| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | Heavy Duty Cargo Sidewall Trailer | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
13000×2550×2970 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with design drawings, with heavy-duty structural design. | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based...) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm （Channel steel） | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| 10 | Sidewall board | 60cm height, detachable type. | |
| Main parts specification | |||
| 11 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 12 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 13 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 14 | Rim | 9.00 & 12 units, high-strength iron. | |
| 15 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand | |
| 16 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 17 | Spare wheel carrier | 2 units | |
| 18 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 19 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 20 | Lashing Winch | Available in large quantities. | |
| 21 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 22 | Electric system | 24V, 7-pin socket, National standard. | |
| 23 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 24 | Reverse buzzer | 1 unit. | |
| 25 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 26 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||

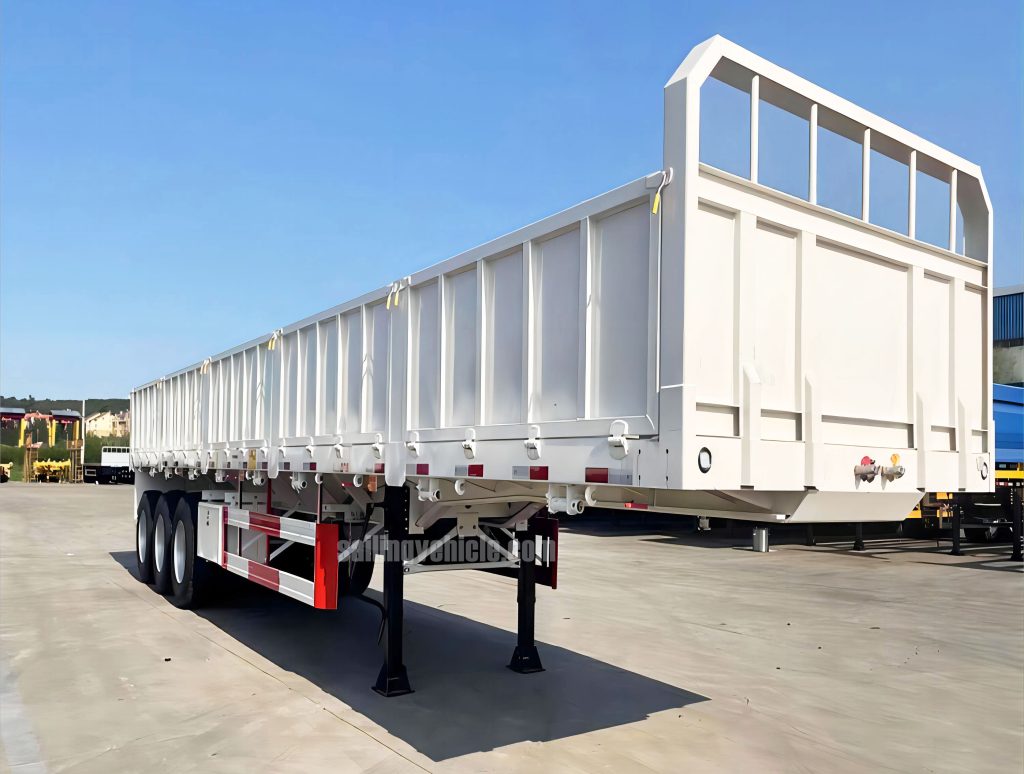

Heavy Duty Cargo Sidewall Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：8,500 – 10,500 USD（Prices vary by configuration）
Looking for a reliable Heavy Duty Cargo Sidewall Trailer? Our trailers offer high payload capacity, durable steel construction, and versatile transport. Request a quote!
Brand: TSV-SAILING
Model: TSV202606-HD
Type: Sidewall Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
The modern international logistics industry demands exceptionally reliable hauling solutions, and our Heavy Duty Cargo Sidewall Trailer is explicitly engineered to exceed those strict expectations. Designed for maximum payload capacity and operational versatility, this robust trailer effortlessly transports bulk cargo, bagged agricultural products, heavy construction materials, and even standard shipping containers across the most challenging terrains. By utilizing high-tensile structural steel throughout the chassis, it ensures exceptional stability, reduced tare weight, and ultimate safety for your daily fleet operations, giving you a competitive edge in the global transport market.
Advanced Engineering of the Heavy Duty Cargo Sidewall Trailer
To achieve unparalleled durability in harsh environments, this sidewall semi-trailer utilizes a state-of-the-art submerged arc welding process specifically on its reinforced main beams. This precision manufacturing technique actively prevents structural fatigue and deformation under heavy, continuous loads. The meticulously designed removable side panels feature high-quality, quick-release locking mechanisms. This allows operators to seamlessly and swiftly convert the unit into a versatile flatbed. This multi-purpose functionality significantly improves logistics efficiency, reduces idle time, and maximizes your overall return on investment. Furthermore, our trailers undergo rigorous shot-blasting and premium anti-corrosion polyurethane coating treatments to effortlessly withstand severe international shipping environments.
Safety and Global Transport Compliance
Safety, driver security, and long-term mechanical performance remain at the absolute core of our manufacturing philosophy. Each Heavy Duty Cargo Sidewall Trailer is equipped with premium FUWA or BPW axles alongside a highly responsive WABCO braking system. This crucial integration ensures rapid, controlled deceleration and vehicle stability even when operating fully loaded on steep inclines. We strictly utilize these internationally recognized components to guarantee that routine maintenance remains simple and essential replacement parts are globally accessible. For a broader understanding of global transport compliance and load regulations, refer to the established commercial vehicle standards.
Optimize Your Global Fleet Transportation
Integrating our premium Heavy Duty Cargo Sidewall Trailer into your transport fleet will drastically reduce operational downtime while significantly increasing your daily hauling capacity. Whether your business operates across the expansive landscapes of Africa, the demanding climates of the Middle East, or other emerging markets, our customized equipment is meticulously tailored to meet your specific geographical and commercial requirements. Are you ready to dramatically upgrade your industrial logistics operations? Contact our expert sales team today to receive a comprehensive technical configuration list, expert export guidance, and highly competitive factory-direct pricing tailored to your needs.

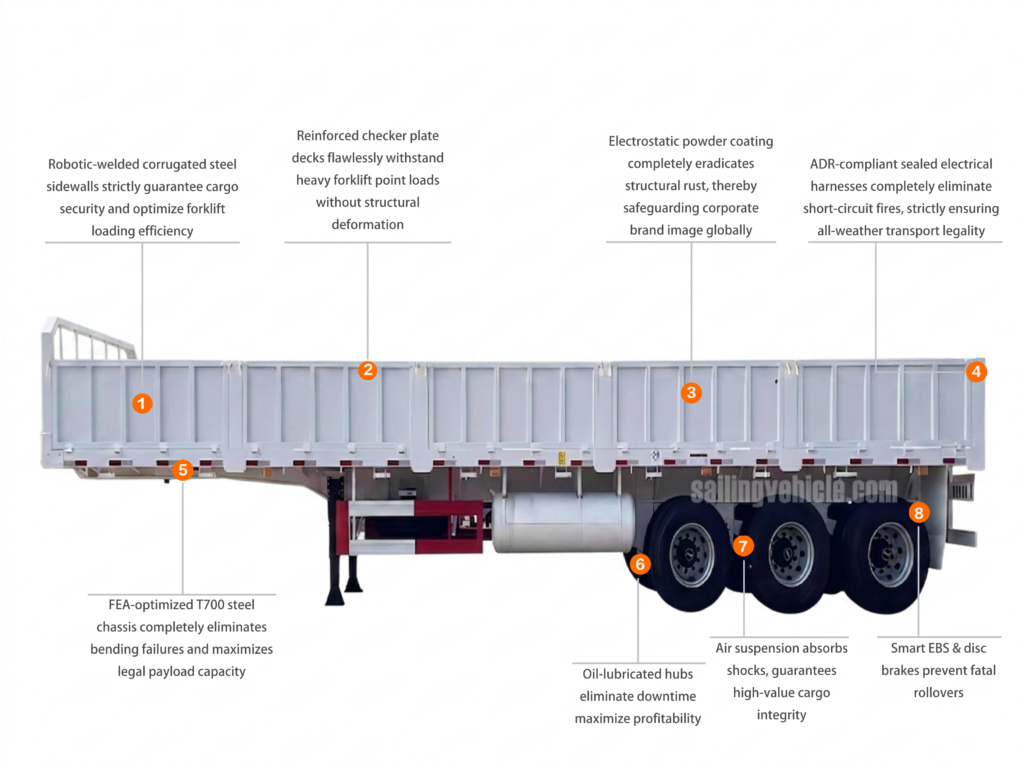

Product Overview
1. Robotic-Welded Corrugated Steel Sidewalls
Manufactured with precision robotic welding, these corrugated steel sidewalls strictly guarantee absolute cargo security. This reinforced barrier effectively optimizes forklift loading efficiency, securely containing heavy bulk materials during rigorous commercial transport routes.
2. Reinforced Checker Plate Decks
Engineered for extreme durability, our reinforced checker plate decks flawlessly withstand heavy, repetitive forklift point loads. This robust design guarantees zero structural deformation over time, facilitating rapid, safe loading cycles for heavy-duty applications.
3. Electrostatic Powder Coating
Featuring an advanced electrostatic powder coating, this premium surface treatment completely eradicates the risk of structural rust. It provides superior weather resistance, actively extending asset lifespan while confidently safeguarding your corporate brand globally.
4. ADR-Compliant Sealed Electrical Harnesses
Designed for maximum safety, these ADR-compliant sealed electrical harnesses completely eliminate the catastrophic threat of short-circuit fires. This crucial integration strictly ensures continuous all-weather transport legality, providing total reliability for international logistics fleets.
5. FEA-Optimized T700 Steel Chassis
Constructed from premium high-strength material, the FEA-optimized T700 steel chassis completely eliminates disastrous bending failures. This brilliant engineering fundamentally reduces tare weight, strategically maximizing your legal payload capacity to dramatically increase trip profitability.
6. Oil-Lubricated Hubs
Equipped with highly efficient oil-lubricated hubs, this advanced wheel system drastically eliminates routine maintenance downtime. By maintaining optimal continuous lubrication, it significantly reduces component wear and friction, directly maximizing your transportation fleet's overall profitability.
7. Advanced Air Suspension
The sophisticated air suspension system actively absorbs extreme road shocks and dangerous vehicle vibrations. It provides an exceptionally smooth ride that definitively guarantees the strict structural integrity of sensitive, high-value cargo during unpredictable transits.
8. Smart EBS & Disc Brakes
Integrating industry-leading Smart EBS and highly responsive disc brakes, this setup provides unparalleled stopping power. It proactively prevents fatal vehicular rollovers, giving drivers absolute dynamic control and strictly ensuring heavy cargo safety during emergencies.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
