| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | 3-Axle 40Feet Skeleton Container Trailer | |
| 2 | Function | Exclusively designed for transporting ISO standard 20ft and 40ft containers. | |
| 3 | Overall dimensions |
12330×2550×1560 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 45 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Cross members | High-strength steel cross beams, spaced at approx. 600mm intervals. Open skeleton design - no floor deck plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |

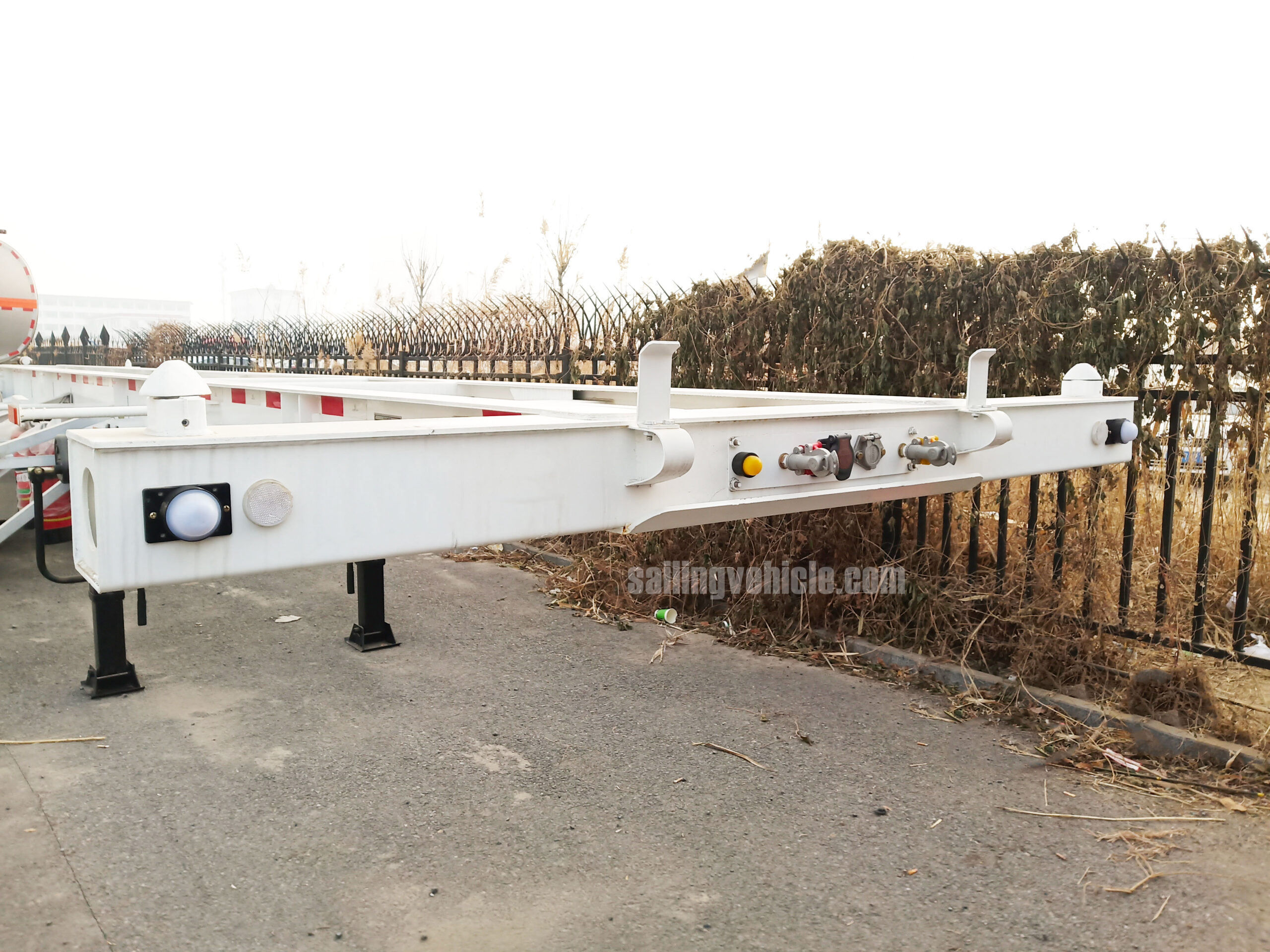

| 14 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Container support pads | Rubber-lined steel pads at all container contact points to prevent sliding and surface damage. | |
| 19 | Container compatibility | 20ft x 1 unit; 20ft x 2 units (tandem); 40ft x 1 unit; 40ft HC x 1 unit. | |
| 20 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||

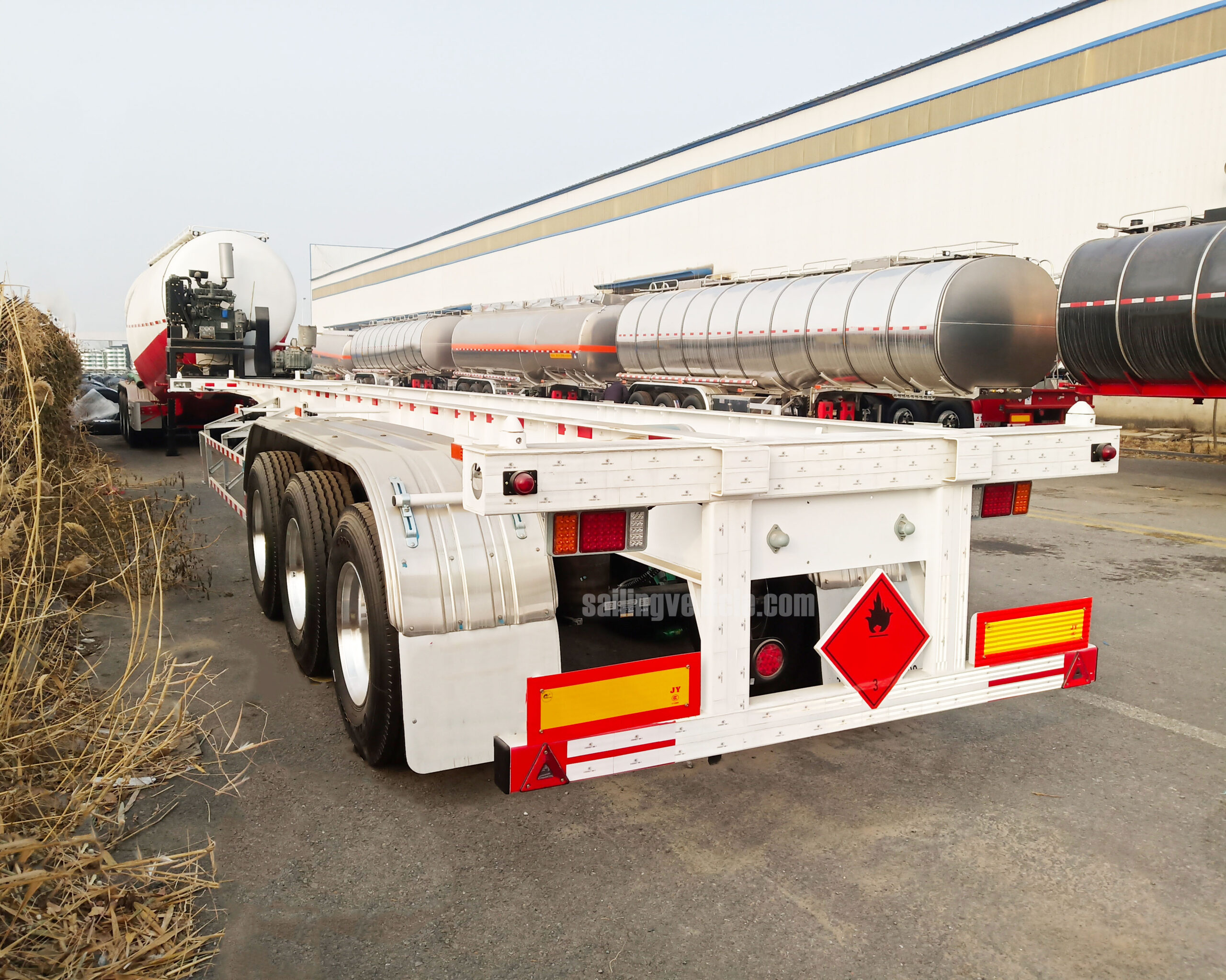

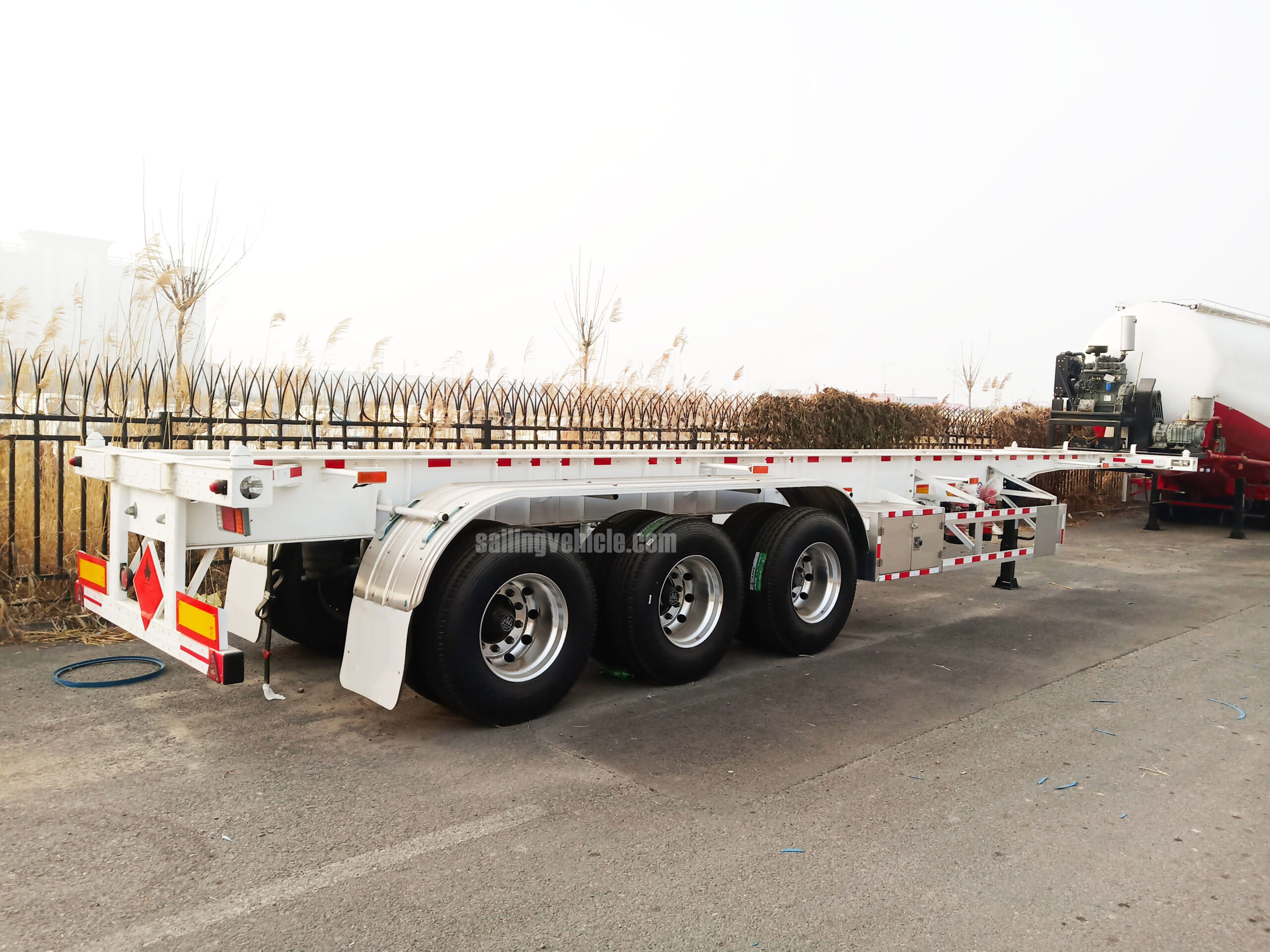

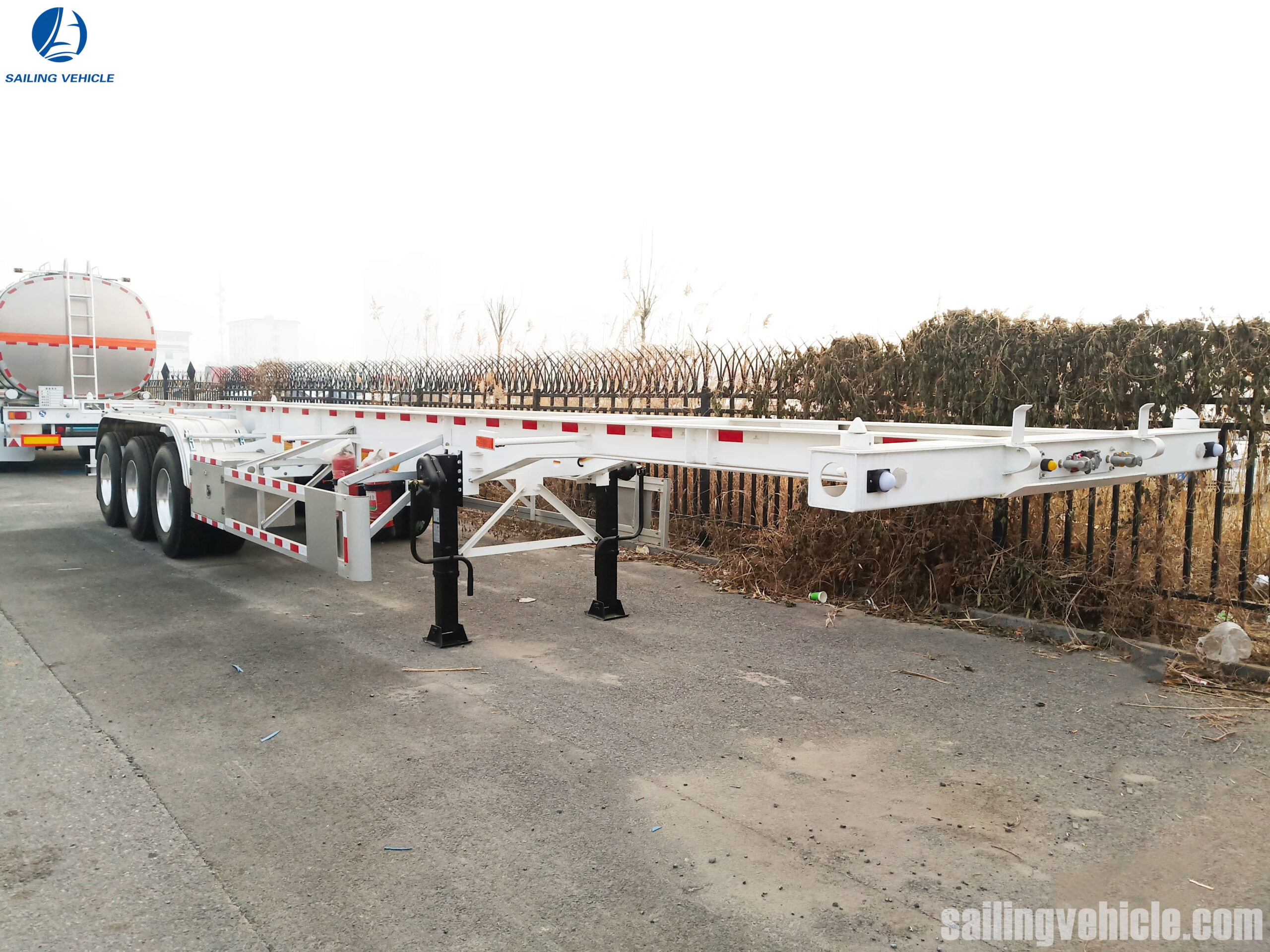

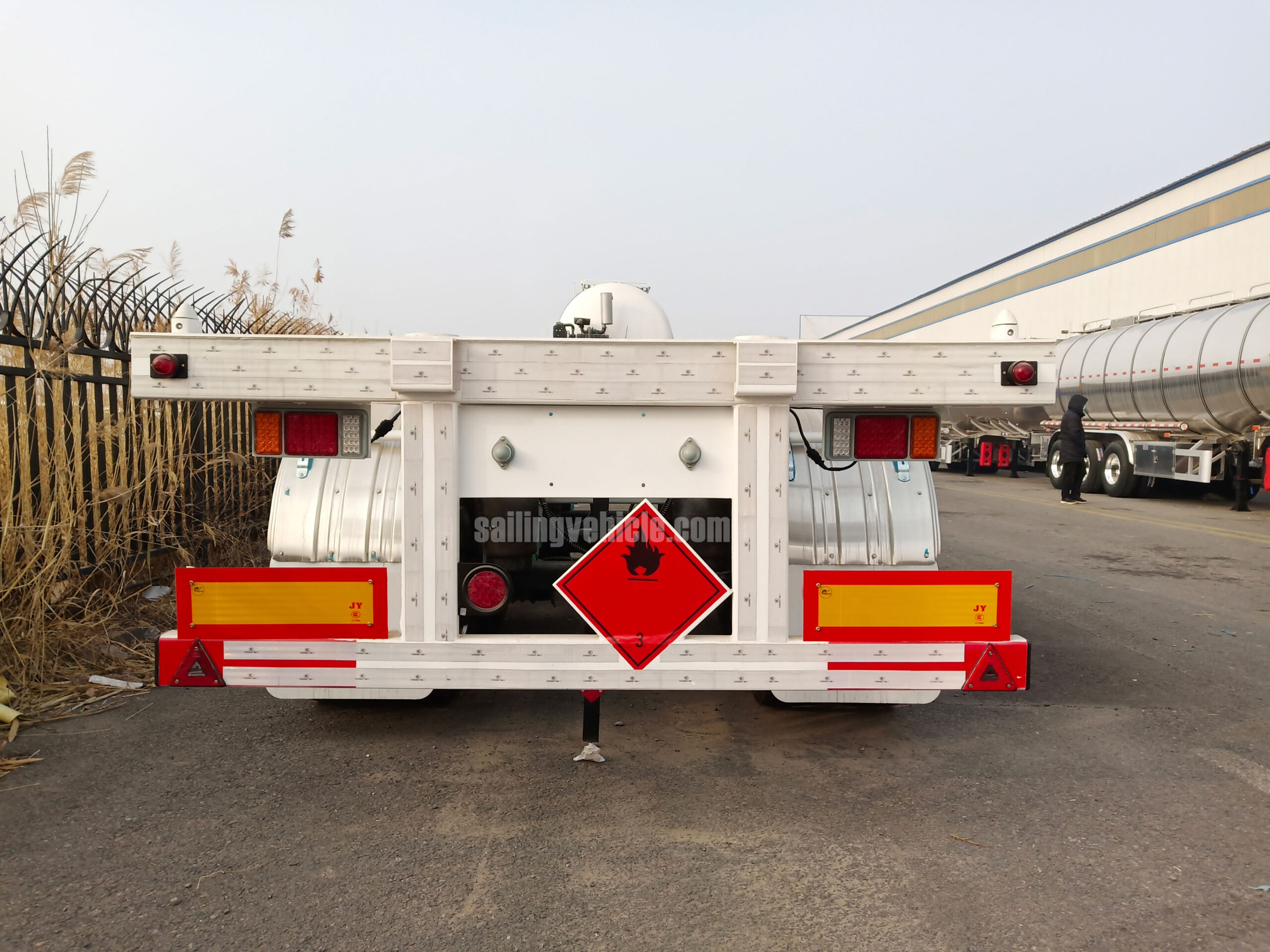

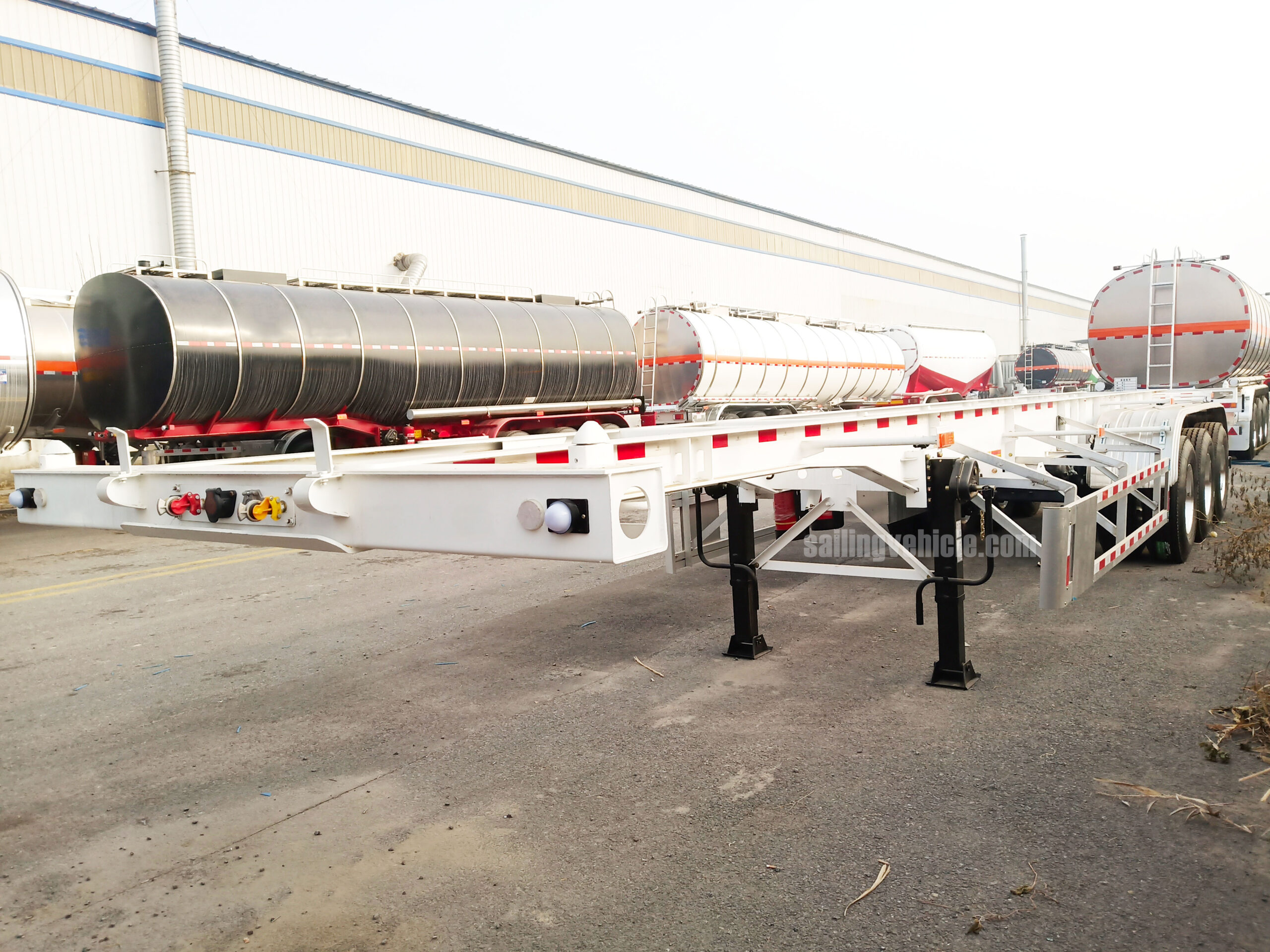

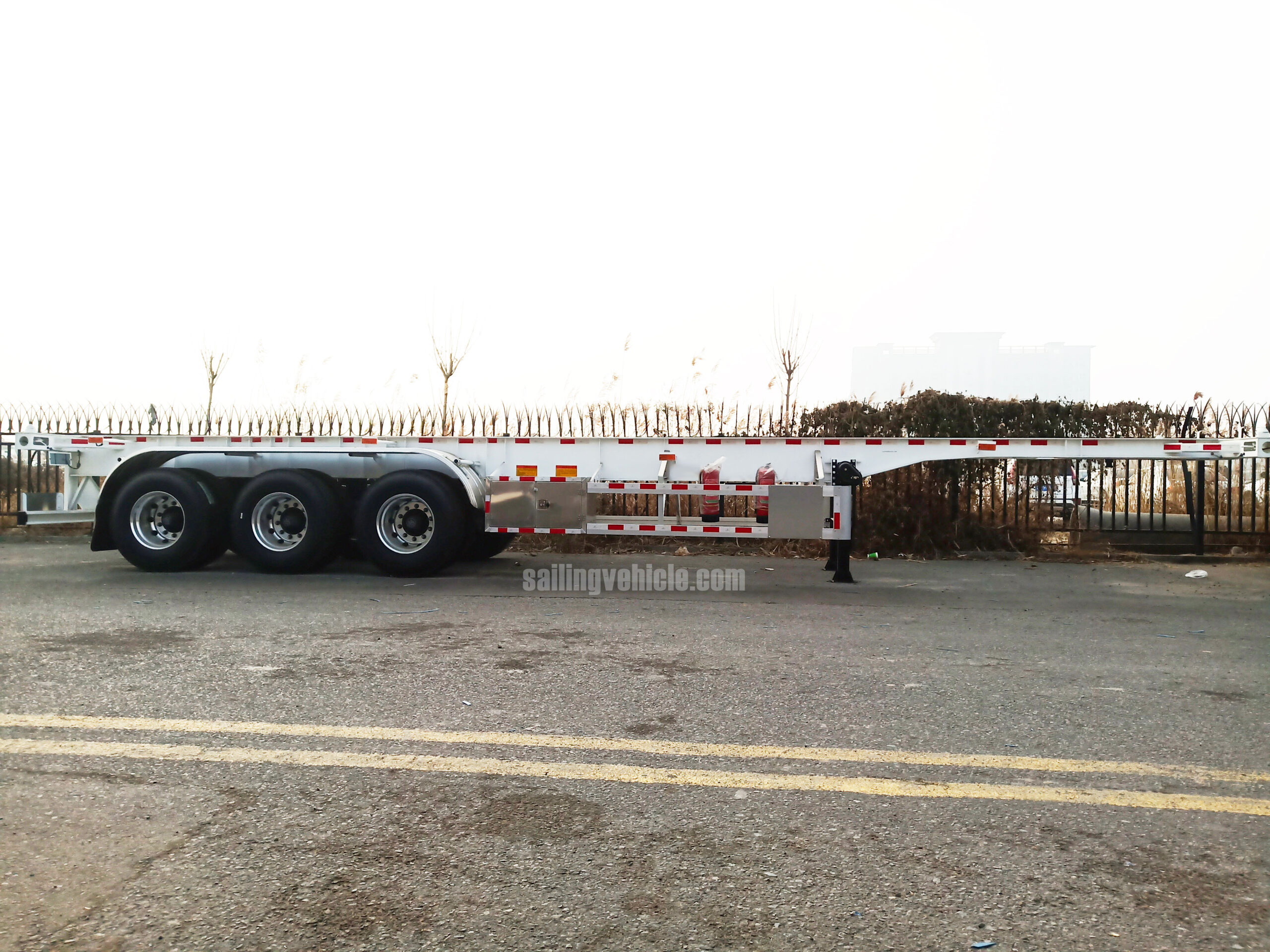

3-Axle 40Feet Skeleton Container Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price:8,000 – 10,000 USD（Prices vary by configuration）
Maximize fleet logistics with our proven, premium 3-Axle 40Feet Skeleton Container Trailer. Engineered for heavy cargo safety. Contact us today!
Brand: TSV-SAILING
Model: TSV2026012-40F
Type: Skeleton Container Transport Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly competitive global logistics industry, maintaining peak transport efficiency is absolutely essential. Investing in a durable 3-Axle 40Feet Skeleton Container Trailer guarantees that your heavy shipments arrive safely and strictly on schedule.
Whether navigating bustling port terminals in the Middle East or traversing rugged highway networks across Africa, this specialized chassis consistently excels. For serious B2B logistics providers, securing highly dependable fleet assets is a necessity for sustained profitability.
Advancing Logistics with the 3-Axle 40Feet Skeleton Container Trailer
To maximize your operational success, this robust chassis is meticulously fabricated using Q345B high-yield carbon steel. This superior material ensures remarkable structural durability while keeping the overall tare weight exceptionally low.
A lighter chassis framework translates directly to minimized fuel consumption and a dramatically increased payload capacity. To successfully withstand severe coastal climates, the steel frame undergoes professional sandblasting and premium polyurethane painting.
Every unit is expertly assembled at our advanced manufacturing facility in the Dongjiang Bonded Port Area of Tianjin. We continuously integrate world-renowned BPW or FUWA axle systems alongside authentic JOST two-speed landing gear.
Superior Stability and Uncompromising Load Security
Cargo protection remains the absolute highest priority during international shipping operations. This specialized skeletal chassis features precision-forged ISO twist locks that reliably anchor standard intermodal containers.
This essential locking mechanism effectively prevents any hazardous load shifting or accidental container detachment. It provides maximum stability during rapid highway transit, completely protecting your valuable shipping assets.
Furthermore, the trailer incorporates a highly responsive dual-line pneumatic braking system. Equipped with dependable WABCO emergency valves, it delivers instantaneous and reliable stopping power.
Upgrading your commercial fleet with this premium transport equipment is a critical step toward scaling your heavy-duty business. Investing in reliable machinery prevents unexpected supply chain delays and significantly boosts your market competitiveness.
Are you ready to optimize your transport efficiency and drastically reduce logistics risks? Contact our expert sales team today for a fully customized quotation tailored specifically to your regional operational needs.
Product Overview
1. T700 High-Strength Steel Chassis
Engineered with FEA-designed lightweight T700 high-strength steel, this robust chassis maximizes your payload capacity. It ensures structural integrity under heavy loads, providing unmatched operational reliability and significant fuel savings for your fleet.
2. Marine-Grade KTL Coating
Guarantee decade-long structural durability with our advanced marine-grade KTL electrophoresis and premium polyurethane armor coatings. This rigorous anti-corrosion treatment effectively protects your investment against harsh coastal climates and severe industrial environments.
3. Extended Open Loading Surface
Experience versatile transport capabilities with an extended open loading deck. Designed to effortlessly accommodate flatbed cargo, steel coils, timber machinery, or standard containers, it maximizes your fleet's daily revenue potential.
4. ISO-Forged Twist Locks
Ensure absolute multimodal transit safety using our premium ISO-forged high-precision twist locks. Featuring an advanced double-locking mechanism, they strictly prevent hazardous container shifting, protecting your valuable cargo during rapid transit.
5. BPW ECO Plus 3 Axles
Drastically eliminate routine maintenance costs with authentic BPW ECO Plus 3 axles. Engineered with long-life bearings, these industry-leading components deliver superior braking responsiveness and exceptional long-term reliability for your operations.
6. Adaptive Air Suspension System
Maximize your delicate cargo safety and minimize tire wear via our highly adaptive air suspension system. It aggressively absorbs unpredictable road shocks, providing an incredibly smooth and stable high-speed transit experience.
7. Automatic Height Adjustment
Accelerate your daily loading efficiency with intuitive automatic height adjustment and precision air bag controls. This intelligent system allows operators to seamlessly align the trailer with various loading docks, saving valuable time.
8. Intelligent Lift Axle Technology
Significantly reduce fleet fuel consumption and unnecessary tire friction using our intelligent automated lift axle technology. This smart system automatically raises the axle when empty, extending tire life and boosting profitability.
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
