| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. | |
| 2 | Overall dimension | 12500×2500×3800mm (L×W×H) (Approx., based on final design drawings.) | |
| 3 | Curb weight | 7500kg (Approx., based on final design drawings.) | |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) | |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | |
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension,leaf springs,13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) | |
| Tank body specification | |||
| 11 | Tank shape | Square-round (Double D ) and gooseneck design. | |
| 12 | Tank capacity | 50,000 liters (valid volume) + 5%(ullage) | |
| 13 | Tank material | AL5182 | |
| 14 | Tank design thickness | End cover | 7 mm |
| Tank body | 6 mm | ||
| Baffle | 6 mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Compartment | 5 units,10,000L+10,000L+10,000L+10,000L+10,000L per compartment. | |
| 17 | Manhole cover | Aluminum & 5 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 18 | Bottom valve | 4" aluminum & 5 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 19 | Discharging valve | 4" aluminum ball-type valve & 5 units (API valve optional) | |
| 20 | Discharging hose box | 6 meters & 2 units. | |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 22 | Handrail | 2 units on the top. | |
| 23 | Walkway platform | Top with anti-slip punched design. | |
| 24 | Ladder | 1 unit, on the rear or front. | |
| 25 | Breather valve | Aluminum & 5 units. | |
| 26 | Spare wheel carrier | 2 units. | |
| 27 | Mud guard plate | Integrated design plate, carbon steel. | |
| 28 | Relay valve | WABCO brand | |
| 29 | Reverse buzzer | 1 unit. | |
| 30 | Electric system | 24V, 7-pin socket, national standard. | |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. | |
| 32 | Color | Original aluminum alloy color or painting as per customer's requirements. | |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding tape.
6. All other necessary accessories. |
|||
50CBM AL5182 Aluminum Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：20,000 – 32,000 USD（Prices vary by configuration）
Maximize your ROI with our 50CBM AL5182 Aluminum Tank Semi-trailer. Lightweight, corrosion-resistant, and high-safety fuel transport solution. Get a quote today!
Brand: TSV-SAILING
Model: TSV202207-45
Type: Aluminum Alloy Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
High-Performance 50CBM AL5182 Aluminum Tank Semi-trailer for Fuel Logistics
The 50CBM AL5182 Aluminum Tank Semi-trailer is engineered for professional fuel transporters seeking the perfect balance between durability and lightweight efficiency. Utilizing premium AL5182 aluminum alloy, this tanker significantly reduces curb weight compared to steel alternatives, allowing for a higher legal payload and reduced fuel consumption during empty returns.
Advanced Structural Engineering and Safety
The structural integrity of this 50CBM AL5182 Aluminum Tank Semi-trailer is backed by automated longitudinal welding processes. Each compartment is designed with optimized baffles to minimize liquid surge, ensuring stability during high-speed transit. According to Petroleum Equipment Standards, aluminum tankers offer superior spark resistance, making them the safest choice for transporting volatile liquids like gasoline and diesel.
Uncompromising Durability and Structural Integrity
While the tank prioritizes lightweight efficiency, the foundational structure remains incredibly robust. The trailer chassis is explicitly constructed from high-strength Q355B carbon steel, delivering exceptional toughness, superior load-bearing capacity, and long-term cost-efficiency. This strategic engineering combination ensures the trailer easily withstands rigorous, challenging highway conditions without ever compromising your critical payload optimization metrics.
Why Choose Our AL5182 Tanker?
Investing in this 50CBM AL5182 Aluminum Tank Semi-trailer means investing in longevity. Aluminum’s natural oxide layer provides exceptional corrosion resistance, eliminating the need for internal coatings and preventing fuel contamination. This ensures your fleet remains operational for decades with minimal maintenance overhead.
Ready to optimize your transport fleet? Contact Our Technical Team for a detailed configuration and competitive pricing.

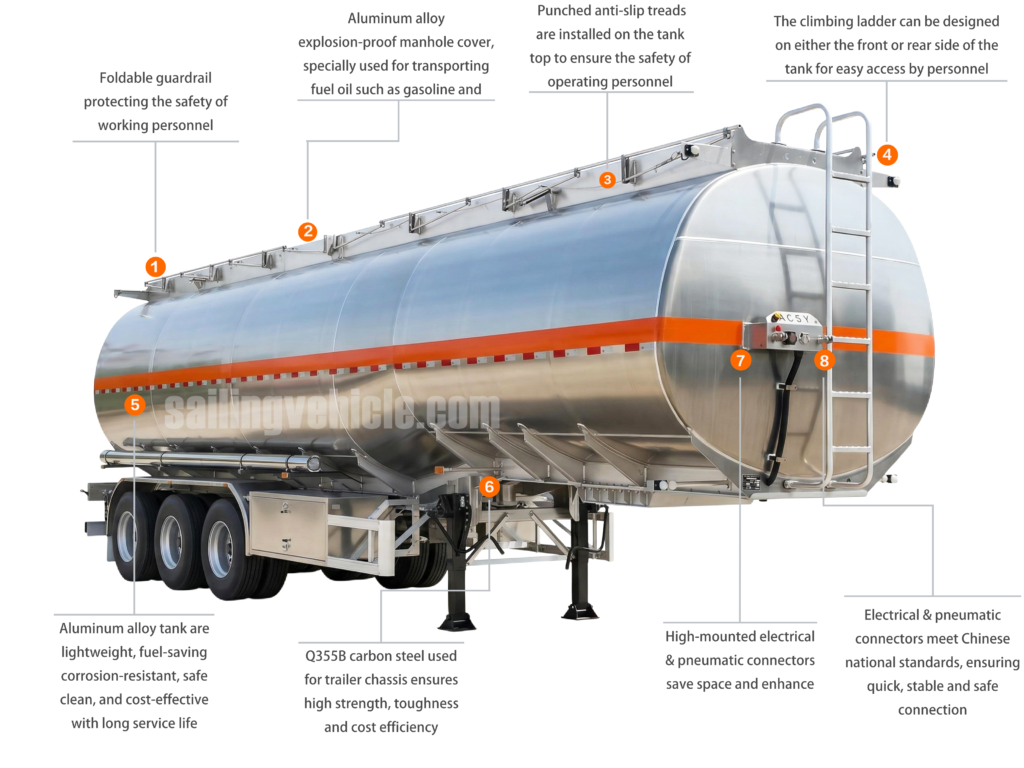

Product Overview
1. Foldable Guardrail
Protect your personnel effectively with this robust foldable guardrail. It deploys quickly to provide a secure perimeter on the tank top, ensuring absolute safety during routine maintenance, inspection, and high-level loading operations.
2. Explosion-Proof Manhole Cover
Transport hazardous liquids safely with our premium explosion-proof manhole covers. Specifically designed for volatile fuels like gasoline, they guarantee a secure seal, actively preventing dangerous leaks and minimizing internal pressure risks during transit.
3. Punched Anti-Slip Treads
Prioritize worker security with heavy-duty punched anti-slip treads. Installed directly along the tank top, this rugged walkway delivers superior grip and unmatched stability, drastically reducing slip hazards in all demanding weather conditions.
4. Ergonomic Climbing Ladder
Streamline operator access with our customized climbing ladder. Expertly designed for flexible installation on either the front or rear side, it provides highly efficient, incredibly stable, and safe personnel entry to the top deck.
5. Aluminum Alloy Tank
Maximize commercial payload while significantly minimizing fuel consumption. This premium, lightweight aluminum tank offers exceptional corrosion resistance, guaranteeing a sterile transport environment, extended operational service life, and outstanding long-term cost-effectiveness for fleets.
6. Q355B Carbon Steel Chassis
Experience unyielding structural integrity with our robust chassis. Constructed entirely from premium Q355B carbon steel, it delivers extraordinary toughness and superior strength, ensuring optimal load distribution and unbeatable cost-efficiency during heavy-duty transportation.
7. High-Mounted Connectors
Optimize your trailer’s layout with innovative high-mounted electrical and pneumatic connectors. This intelligent, space-saving design effectively protects critical wiring from road debris while significantly enhancing the overall safety and reliability of your transit.
8. Standard Connectors
Ensure seamless operational integration with standard electrical and pneumatic connectors. Meeting stringent national regulations, they consistently guarantee remarkably quick, highly stable, and exceptionally safe connections, severely reducing downtime for your busy transport fleet.

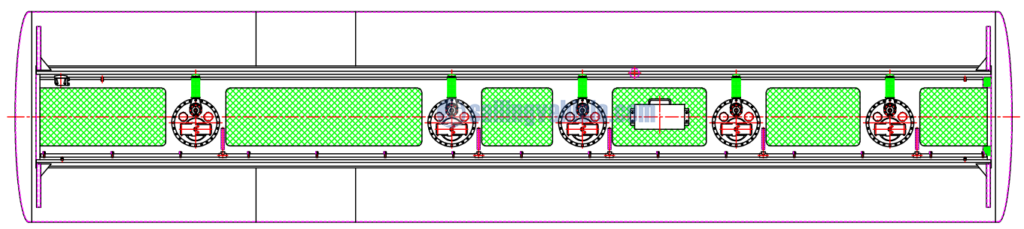

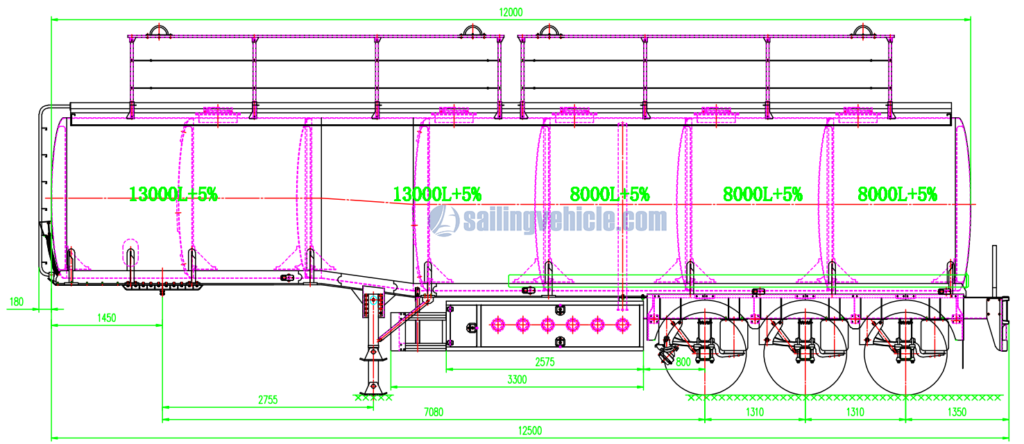

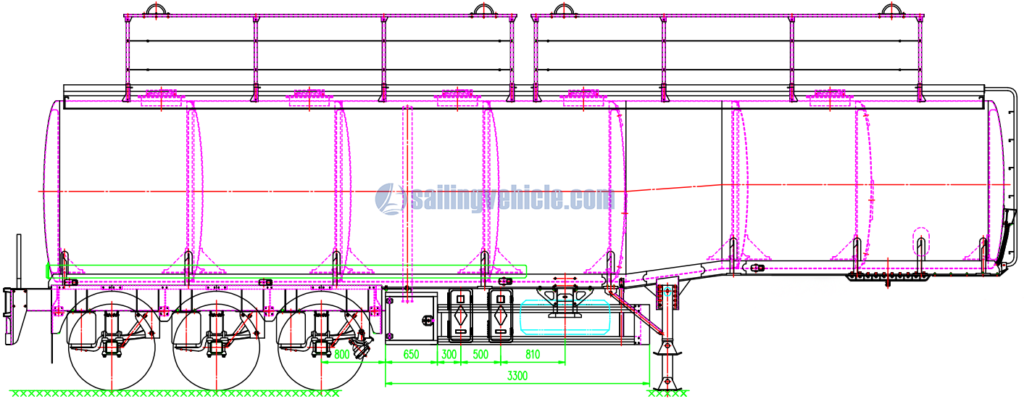

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
