| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. |

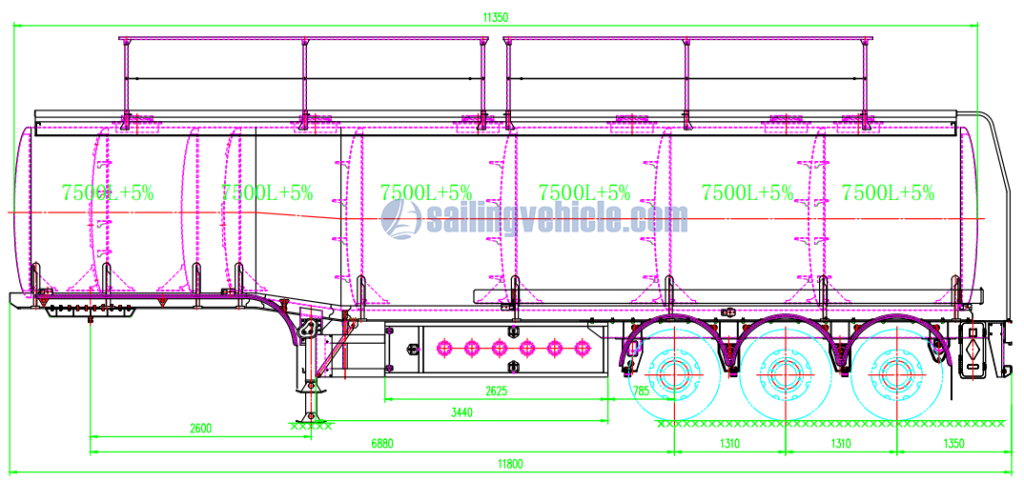

| 2 | Overall dimension | 11350×2500×3360mm (L×W×H) (Approx., based on final design drawings.) |
| 3 | Curb weight | 10200kg (Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | Kingpin | 50# (2") or 90# (3.5"), standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 45,000 liters (valid volume) + 5% (ullage) |
| 13 | Tank material | Q235B |
| 14 | Tank design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| Main parts specification | ||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. |

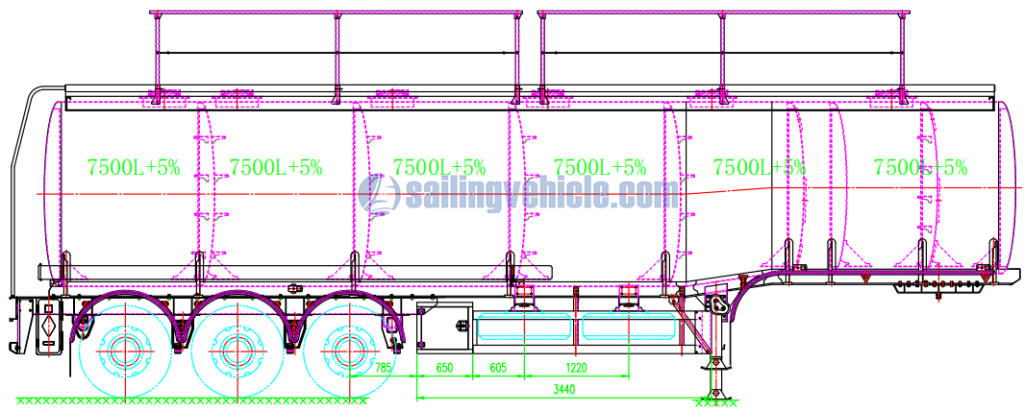

| 16 | Compartment | 6 units,7,500L+7,500L+7,500L+7,500L+7,500L+7,500L per compartment. |
| 17 | Manhole cover | Aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) |
| 18 | Bottom valve | 4" aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) |
| 19 | Discharging valve | 4" aluminum ball-type valve & 6 units (API valve optional) |
| 20 | Discharging hose box | 6 meters & 2 units. |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. |
| 22 | Handrail | 2 units on the top. |
| 23 | Walkway platform | Top with anti-slip punched design. |
| 24 | Ladder | 1 unit, on the rear or front. |
| 25 | Breather valve | Aluminum & 6 units. |
| 26 | Spare wheel carrier | 2 units. |
| 27 | Mud guard plate | Integrated design plate, carbon steel. |
| 28 | Relay valve | WABCO brand |
| 29 | Reverse buzzer | 1 unit. |
| 30 | Electric system | 24V, 7-pin socket, national standard. |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 32 | Painting |
Primer layer: One coat of anti-corrosive paint.
Final coat: Two coats of finish paint.
Color: As per customer's requirements. |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. |
| Other equipment | ||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding strap.
6. All other necessary accessories. |
||

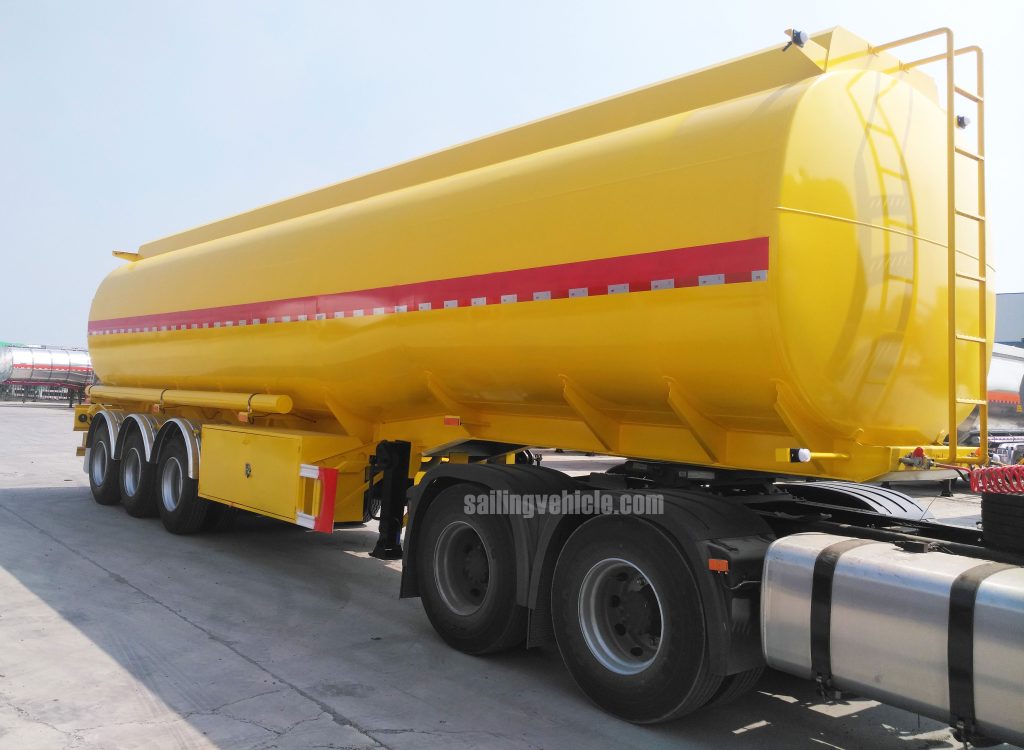

45CBM FUWA Axle Fuel Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 15,500 – 18,500 USD（Prices vary by configuration）
Looking for a reliable 45CBM FUWA Axle Fuel Tank Semi-trailer? Our high-strength carbon steel trailers ensure safe liquid transport. Get a factory price quote now!
Brand: TSV-SAILING
Model: TSV202006-45
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Superior Performance with Our 45CBM FUWA Axle Fuel Tank Semi-trailer
Are you looking to optimize your liquid transportation fleet and reduce overhead costs? Investing in a robust 45CBM FUWA Axle Fuel Tank Semi-trailer is the ultimate solution for maximizing your payload capacity while ensuring uncompromised safety on the road. Engineered specifically for the rigorous demands of modern industrial logistics, this heavy-duty equipment significantly reduces bulk transport costs, minimizes downtime, and ultimately boosts your operational efficiency and bottom line.
Advanced Engineering for Maximum Safety
Safety is absolutely paramount when handling hazardous and flammable liquids like petroleum, crude oil, and diesel. Our trailers feature an innovative box-shaped coaming on the tank top. This structural enhancement provides exceptional stability, effectively preventing dangerous spills and mitigating roll-over risks during transit. Coupled with customizable and highly secure discharge systems—including precision-engineered API valves and reliable ball valves—operators can guarantee secure, fast, and highly efficient unloading every single time. Learn more about international petroleum transport safety standards to understand our strict compliance.
Unmatched Durability and Customization
Built to endure the harshest environments, the trailer’s suspension relies on a heavy-duty leaf spring design (specifications: 16x90x10) to conquer challenging terrains smoothly and reliably. We equip our units with world-renowned JOST kingpins (available in both 2.5” and 3” sizes) for an incredibly secure tractor coupling process. You can seamlessly pair this versatile trailer with top-tier, world-class Chinese tractor heads, including leading brands like Sinotruk, Shacman, or FAW Jiefang.
Furthermore, we understand that aesthetics and branding matter immensely in B2B logistics. We offer fully customizable body colors and precise logo placements to align perfectly with your corporate identity, turning your fleet into a mobile billboard. To further protect your investment, lightweight yet incredibly sturdy, corrosion-resistant aluminum mudguards are installed to shield the chassis from road debris.
Ready to drastically upgrade your commercial fleet with a reliable, high-performance 45CBM FUWA Axle Fuel Tank Semi-trailer? Ensure your liquid logistics operations run smoother, significantly safer, and more profitably than ever before. Do not hesitate to reach out to our dedicated team of engineering experts for customized manufacturing solutions tailored directly to your business needs. Contact us today to request a comprehensive, detailed quotation!

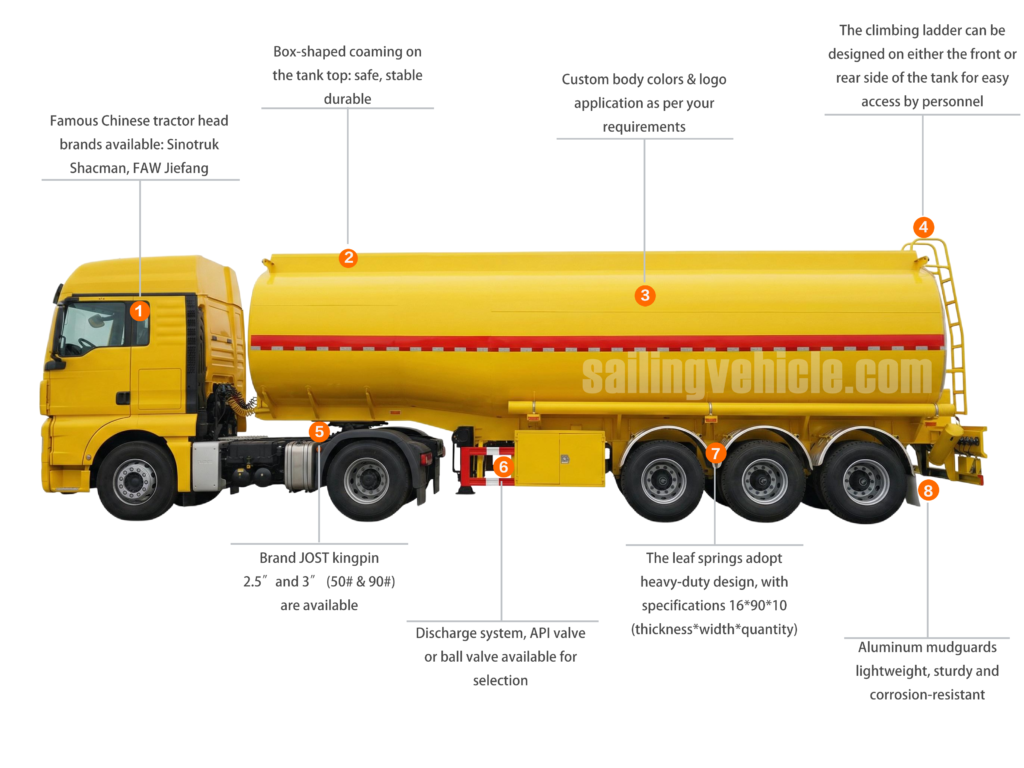

Product Overview
Seamlessly pair your trailer with premium Chinese tractor heads like Sinotruk, Shacman, or FAW Jiefang. This ensures optimal power, outstanding fuel efficiency, and unparalleled reliability for your most demanding long-haul liquid transportation tasks.
2. Box-Shaped Tank Coaming
Our innovative box-shaped top coaming delivers exceptional structural integrity and stability. This reinforced design effectively minimizes rollover risks, guarantees ultimate safety during transit, and significantly extends the operational lifespan of your heavy-duty tanker.
3. Customizable Paint & Branding
Elevate your corporate identity with fully customizable body colors and precise logo applications. Transform your fleet into a powerful mobile billboard, enhancing brand recognition while maintaining a highly professional appearance on every logistics route.
4. Ergonomic Climbing Ladder
Designed for maximum operational safety, our sturdy climbing ladder can be flexibly mounted on the front or rear. It provides personnel with secure, effortless roof access for routine inspections and essential fluid maintenance tasks.
5. Premium JOST Kingpin
Equipped with a world-renowned, high-strength JOST kingpin, available in 2.5-inch and 3-inch specifications. This premium component guarantees a secure, reliable tractor coupling, ensuring maximum load stability and supreme safety during heavy-duty transportation.
6. Advanced Discharge System
Optimize your fluid transfer efficiency with our highly reliable discharge system. Choose between precision-engineered API valves or durable ball valves to ensure secure, leak-proof, and remarkably fast unloading operations tailored precisely to your needs.
7. Heavy-Duty Leaf Spring Suspension
Conquer rugged terrains effortlessly with our heavy-duty leaf spring suspension. Engineered with impressive 16x90x10 specifications, this robust system absorbs severe shocks, ensuring a smooth ride while protecting both the chassis and your valuable payload.
8. Aluminum Mudguards
Protect your investment with premium aluminum mudguards. Exceptionally lightweight yet incredibly sturdy, they provide superior, long-lasting corrosion resistance. They effectively shield your trailer’s undercarriage from damaging road debris and harsh industrial environmental elements.

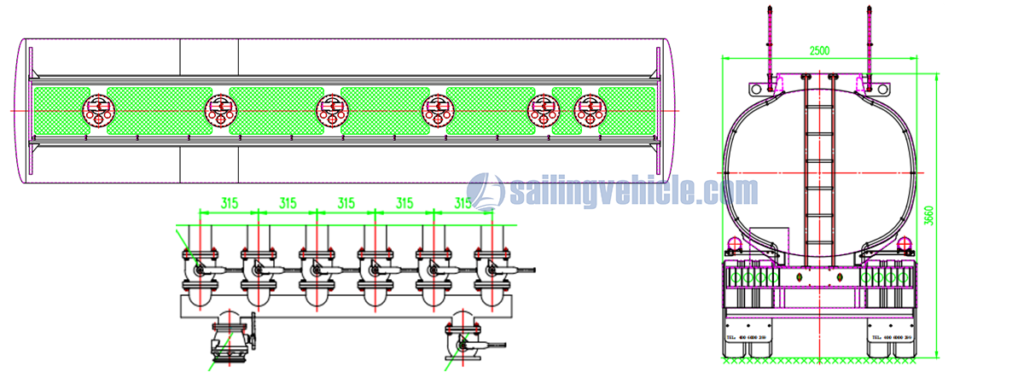

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
