| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10250×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
8000kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 45 CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 4mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||

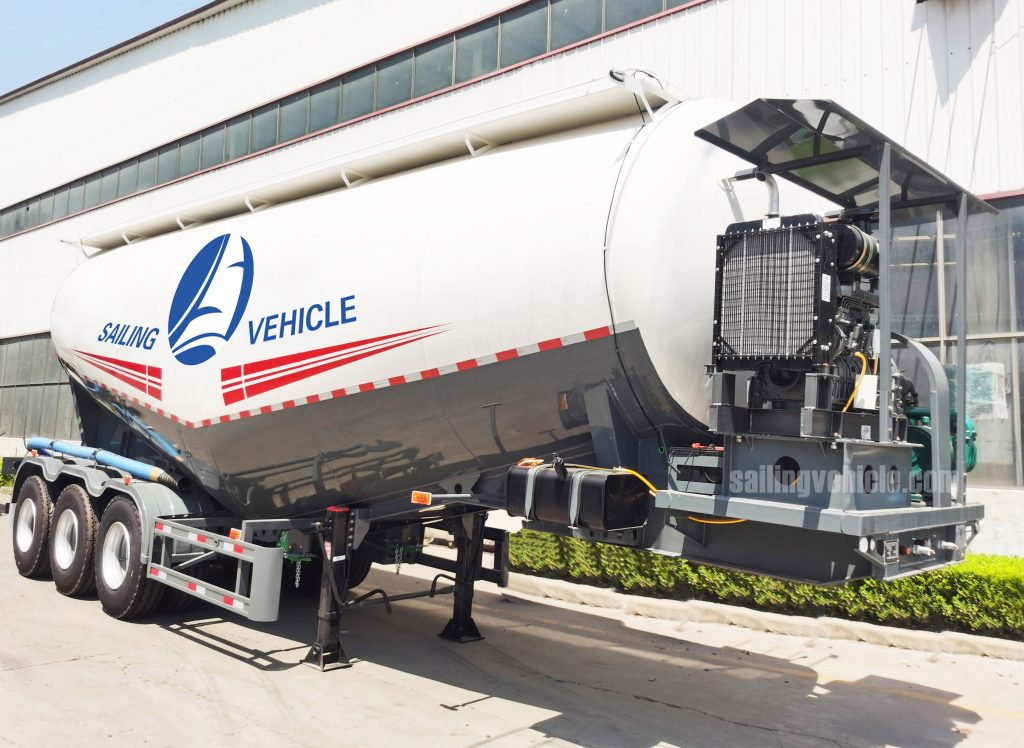

45CBM Bulk Cement Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：14,000 – 17,000 USD（Prices vary by configuration）
Looking for a durable 45CBM Bulk Cement Tank Semi-trailer? Our trailers feature high-strength steel, fast discharge rates, and FUWA axles. Get a free quote today!
Brand: TSV-SAILING
Model: TSV202302-45
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Are you looking to scale your construction logistics and drastically reduce unloading times? Our top-tier 45CBM Bulk Cement Tank Semi-trailer is purposefully engineered to optimize your dry bulk transport operations. Designed for heavy-duty cement logistics, this robust vehicle delivers unmatched discharge speeds and exceptional load-bearing stability. It serves as the ultimate high-ROI asset for forward-thinking transport fleets demanding uncompromising performance and long-term durability on every single job site. Whether you are moving standard portland cement, fly ash, or other fine powder materials, this specialized trailer ensures rapid, moisture-free transit from the silo directly to the batching plant.
High-Efficiency 45CBM Bulk Cement Tank Semi-trailer
At the heart of this formidable 45CBM Bulk Cement Tank Semi-trailer is a precisely calibrated V-shaped tank design, which utilizes gravity to ensure a remarkably fast and complete discharge of dry powder materials, leaving virtually zero residue. To power this process, the trailer integrates a world-renowned Weichai diesel engine paired with a high-capacity 12m³ dual-cylinder Bohai air compressor. This premium powertrain combination guarantees powerful, highly fuel-efficient pneumatic conveying, significantly minimizing your operational downtime and labor costs. Furthermore, the engine is safeguarded by a custom-built rain shelter, guaranteeing stable, uninterrupted performance regardless of harsh weather conditions. This meticulous attention to environmental protection ensures your supply chain never halts.
Unmatched Durability and Industry-Leading Components
Heavy-duty transport requires world-class structural integrity. That is why our trailers feature heavy-duty axles from globally recognized brands like Fuwa or BPW, ensuring superior load distribution and extended tire life. Furthermore, the unit is supported by a rugged 28T JOST landing gear (Model A300C), offering impeccable stability during unhitched loading phases. Safety remains a priority, fortified by dual pressure relief valves and quick-opening manhole covers that provide operators with a highly secure, reliably sealed environment. The entire system is engineered to withstand the rigorous demands of modern infrastructure projects, minimizing wear and tear while maximizing your operational lifespan and overall profit margins. Custom corporate branding is also readily available to elevate your fleet’s professional appearance on the highway.
Upgrading your fleet with premium equipment translates directly into higher daily throughput and lower maintenance overhead. Do not compromise on your critical dry bulk logistics capabilities. Please contact us today to secure a customized, competitive quote for your new transport equipment and let our dedicated engineering experts help you actively accelerate your business growth.

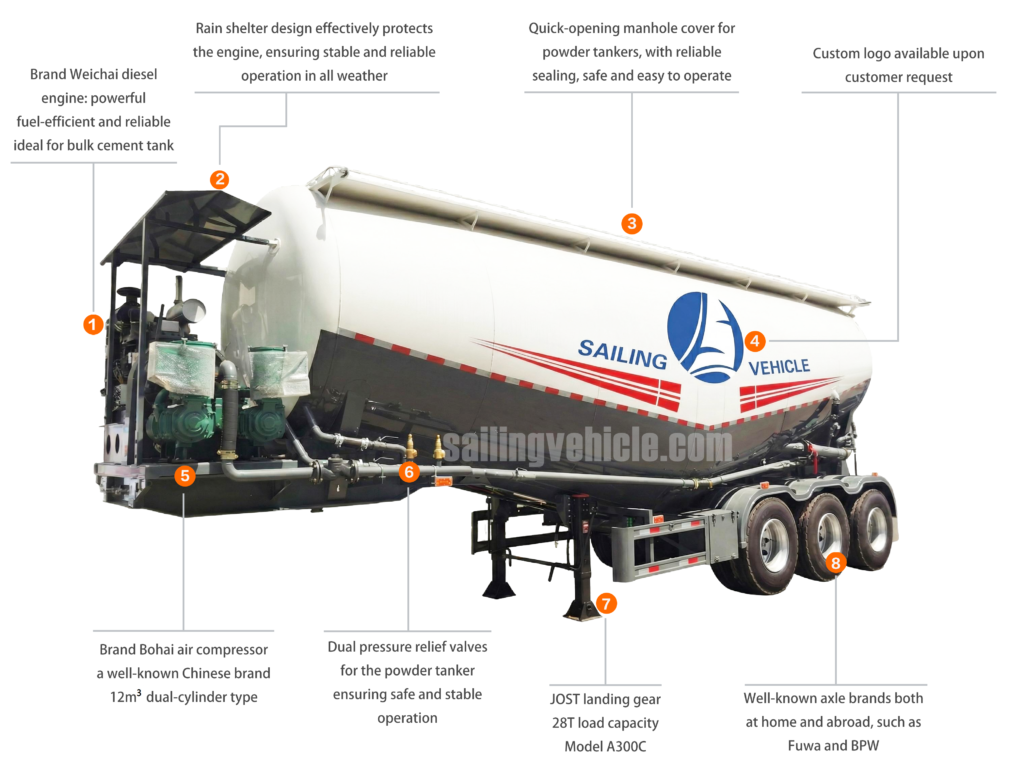

Product Overview
1. Weichai Diesel Engine
Power your pneumatic unloading with the industry-leading Weichai diesel engine. Renowned for its fuel efficiency and robust reliability, it provides consistent, high-torque performance perfectly suited for rigorous, high-volume bulk cement transport operations.
2. Engine Rain Shelter
Protect your critical powertrain with a strategically designed rain shelter. This durable canopy effectively shields the engine from harsh elements, ensuring highly stable, uninterrupted, and reliable mechanical operation in absolutely all weather conditions.
3. Quick-Opening Manhole Cover
Streamline your loading process with our quick-opening manhole covers tailored for powder tankers. Featuring a highly reliable sealing mechanism, they guarantee secure, dust-free transit while remaining incredibly safe and remarkably easy for personnel to operate.
4. Customizable Corporate Logo
Enhance your corporate identity on the highway with fully customizable branding options. We provide bespoke logo placement upon request, transforming your high-performance tanker into a highly visible, mobile billboard that promotes your logistics brand.
5. Bohai Air Compressor
Accelerate discharge rates with the premium Bohai 12m³ dual-cylinder air compressor. As a top-tier Chinese brand, it delivers powerful, continuous airflow, drastically reducing unloading times and maximizing your daily fleet turnaround efficiency.
6. Dual Pressure Relief Valves
Ensure maximum structural safety with highly responsive dual pressure relief valves. Purpose-built for powder tankers, these critical components automatically regulate internal tank pressure, guaranteeing a consistently safe, incredibly stable, and risk-free unloading operation.
7. JOST Landing Gear
Secure your unhitched payload effortlessly with the heavy-duty JOST A300C landing gear. Boasting a massive 28-ton load capacity, this globally trusted support system provides unyielding stability and exceptional longevity in demanding drop-and-hook environments.
8. Premium Axle Systems
Navigate tough terrains confidently with world-renowned axle brands like Fuwa and BPW. These heavy-duty axles guarantee superior load-bearing capacity, optimized braking performance, and dramatically reduced maintenance costs for your demanding commercial fleet.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
