| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Bitumen, crude oil, and other high-temperature oils |
| 2 | Overall dimension | 12780*2500*3650mm (L*W*H)
(Approx., based on final design drawings.) |
| 3 | Curb weight | 11500kg
(Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based on customer's truck head.) |
| 5 | Axle | 13T Brand TSY with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm*90mm, 10pcs (16mm*90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 40,000 liters (valid volume) + 5%(ullage) . |
| 13 | Tank material | Q355B |
| 14 | Tank Design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| 15 | Insulation material | Rock wool, with multilayer insulation felt. |
| 16 | Insulation material thickness | 50 mm (30mm, 80mm, 100mm or other thickness options are available). |
| 17 | Insulation cover plate | Color coated plate, Color Black. |
| 18 | Insulation cover plate thickness | 0.5mm, National standard. |
| 19 | Heating system | Oven, steam, or burner. |
| Main parts specification | ||
| 20 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. |
| 21 | Compartment | Single compartment. |
| 22 | Burner | Diesel fire engine, the Italian Brand RIELLO & 1 unit. |
| 23 | Diesel engine | 1 unit. |
| 24 | Pump | With diesel engine, special for bitumen & 1 unit. |
| 25 | Manhole | Carbon steel, quick-open type & 2 units, mounted on rear or front. |
| 26 | Bottom valve | 4" stainless steel & 1 unit. |
| 27 | Discharging pipe | Carbon steel with insulation. |
| 28 | Discharging valve |
4" Iron ball valve & 2 units, on both the left and right sides at the rear end of the tank, discharging by gravity.
4" Iron ball valve & 1 unit, on both the left side at the middle of the tank, discharging with a pump.
6" butterfly valve & 1 unit, at the rear of the tank, discharging with gravity. |
| 29 | Discharging the hose box | 6 meters & 2 units. |
| 30 | Discharging hose | High thermal resistance, black, thickening type, 5.7M & 2 units. |
| 31 | Handrail | 2 units on the top. |
| 32 | Walkway platform | Top with an anti-slip punched design. |
| 33 | Ladder | 1 unit, mounted on the rear or front. |
| 34 | Breather valve | Stainless steel & 2 units. |
| 35 | Spare wheel carrier | 2 units. |
| 36 | Mud guard plate | Integrated design plate, carbon steel. |
| 37 | Relay valve | WABCO brand. |
| 38 | Temperature Gauge | 1 unit. |
| 39 | Reverse buzzer | 1 unit. |
| 40 | Electric system | 24V, 7-pin socket, national standard. |
| 41 | Lights | LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 42 | Painting |
Primer layer: One coat of anti-corrosive paint on the tank shell.
Color: As the customer's requirements.
Sticker: Make a customer's LOGO and provide enough as backup. |
| 43 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |
| Other equipment | ||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Two sets of 8KG fire extinguishers and boxes.
4. One set of anti-static grounding straps.
5. All other necessary accessories. |
||
40KL 3-axle Bitumen Insulated Tank with Heating System| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：15,000 – 19,500 USD（Prices vary by configuration）
High-performance 40KL 3-axle bitumen insulated tank with heating system. Durable carbon steel, superior insulation, and efficient burners. Get a quote today!
Brand: TSV-SAILING
Model: TSV202207-40
Type: Insulation Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Specialized 40KL 3-axle Bitumen Insulated Tank with Heating System
The 40KL 3-axle Bitumen Insulated Tank with Heating System is engineered specifically for the long-distance transportation of liquid asphalt and coal tar. This heavy-duty trailer utilizes a high-strength carbon steel tank shell integrated with a premium rock wool insulation layer to maintain optimal cargo temperature. According to Asphalt Institute standards, maintaining consistent heat is critical for material integrity, and our system ensures a temperature loss of less than 1°C per hour.
Advanced Thermal Retention and Efficiency
Equipped with a dual-diesel burner heating system and large-diameter heating tubes, this 40KL 3-axle Bitumen Insulated Tank with Heating System significantly reduces pre-discharge waiting times. The 100mm thick high-density insulation layer is protected by a sleek stainless steel or aluminum outer cladding, providing both aesthetic appeal and corrosion resistance in harsh environments.
Robust Mechanical Configuration
Built on a reinforced chassis, the 3-axle configuration features world-class brands like BPW or FUWA to ensure maximum load stability. The integration of high-quality pneumatic valves and a dedicated bitumen pump system allows for rapid loading and unloading, effectively lowering operational costs and increasing site efficiency.
Every 40KL 3-axle Bitumen Insulated Tank with Heating System undergoes rigorous pressure testing and thermal leakage inspections before leaving our facility. Whether you are operating in remote road construction sites or urban infrastructure projects, this trailer delivers the durability required for 24/7 operations.
For customized configurations and bulk pricing, please Contact Our Engineering Team.

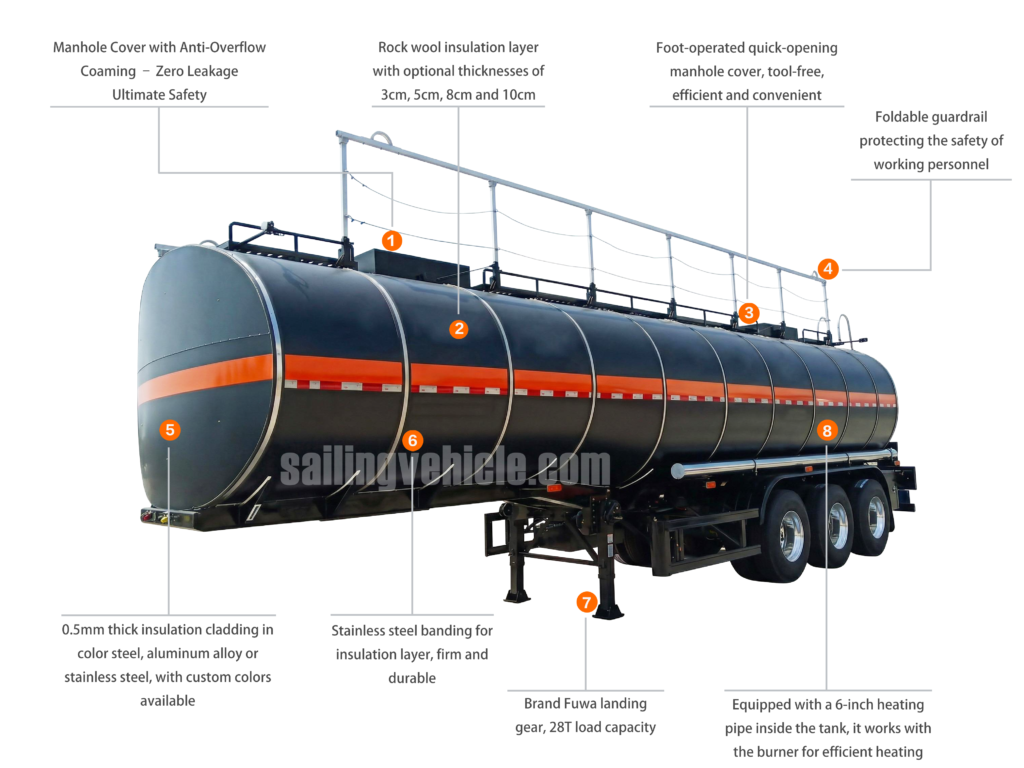

Product Overview
1. Anti-Overflow Manhole Cover
Guarantee zero leakage and ultimate transit safety with our specialized anti-overflow coaming manhole cover. This heavy-duty sealing system prevents hazardous spills, protecting your cargo and ensuring absolute compliance during extreme environmental conditions and rough transport.
2. Rock Wool Insulation Layer
Maintain precise payload temperatures with our premium rock wool insulation layer. Available in customized 3cm, 5cm, 8cm, or 10cm thicknesses, it drastically reduces thermal loss, saving energy costs for temperature-sensitive bulk liquid commercial logistics.
3. Foot-Operated Quick-Opening Manhole Cover
Maximize daily operational efficiency with this innovative foot-operated quick-opening manhole cover. The completely tool-free mechanism enables incredibly rapid access for your working personnel, significantly reducing loading times while maintaining superior structural pressure sealing integrity.
4. Foldable Guardrail System
Protect your invaluable operational personnel with our robust foldable guardrail system. It provides comprehensive safety during critical top-loading procedures and seamlessly folds flat to minimize aerodynamic wind resistance, ultimately reducing long-term fleet fuel consumption.
5. Customizable Insulation Cladding
Protect your tank with our durable 0.5mm thick insulation cladding. Select from premium color steel, lightweight aluminum alloy, or rugged stainless steel. Custom colors are readily available to flawlessly match your corporate fleet identity.
6. Stainless Steel Banding
Secure your thermal protection permanently with our heavy-duty stainless steel banding for the insulation layer. This incredibly firm and durable structural reinforcement guarantees the insulation remains perfectly intact, preventing costly maintenance and thermal bridging.
7. Fuwa 28T Landing Gear
Rely on industry-proven stability with the authentic Fuwa brand landing gear. Delivering an exceptional 28-ton load capacity, this heavy-duty mechanical component guarantees effortless, safe uncoupling and unmatched reliability in the most demanding terminal environments.
8. 6-Inch Internal Heating Pipe
Ensure optimal liquid viscosity during winter transit with the integrated 6-inch internal heating pipe. Seamlessly working alongside the burner unit, this advanced system provides highly efficient heating, ensuring your bulk cargo discharges smoothly everywhere.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
