| Tank trailer specification | |||
|---|---|---|---|

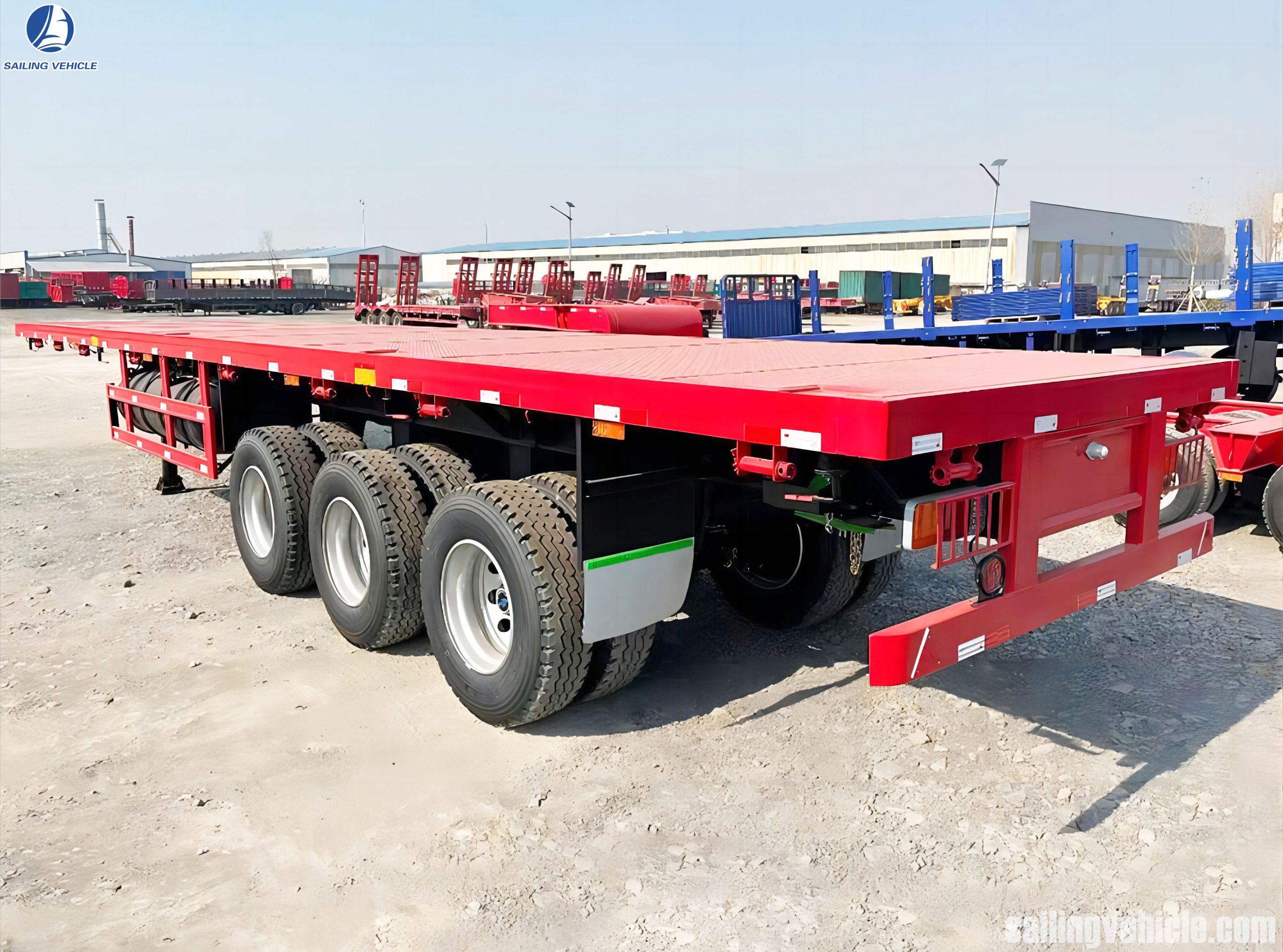

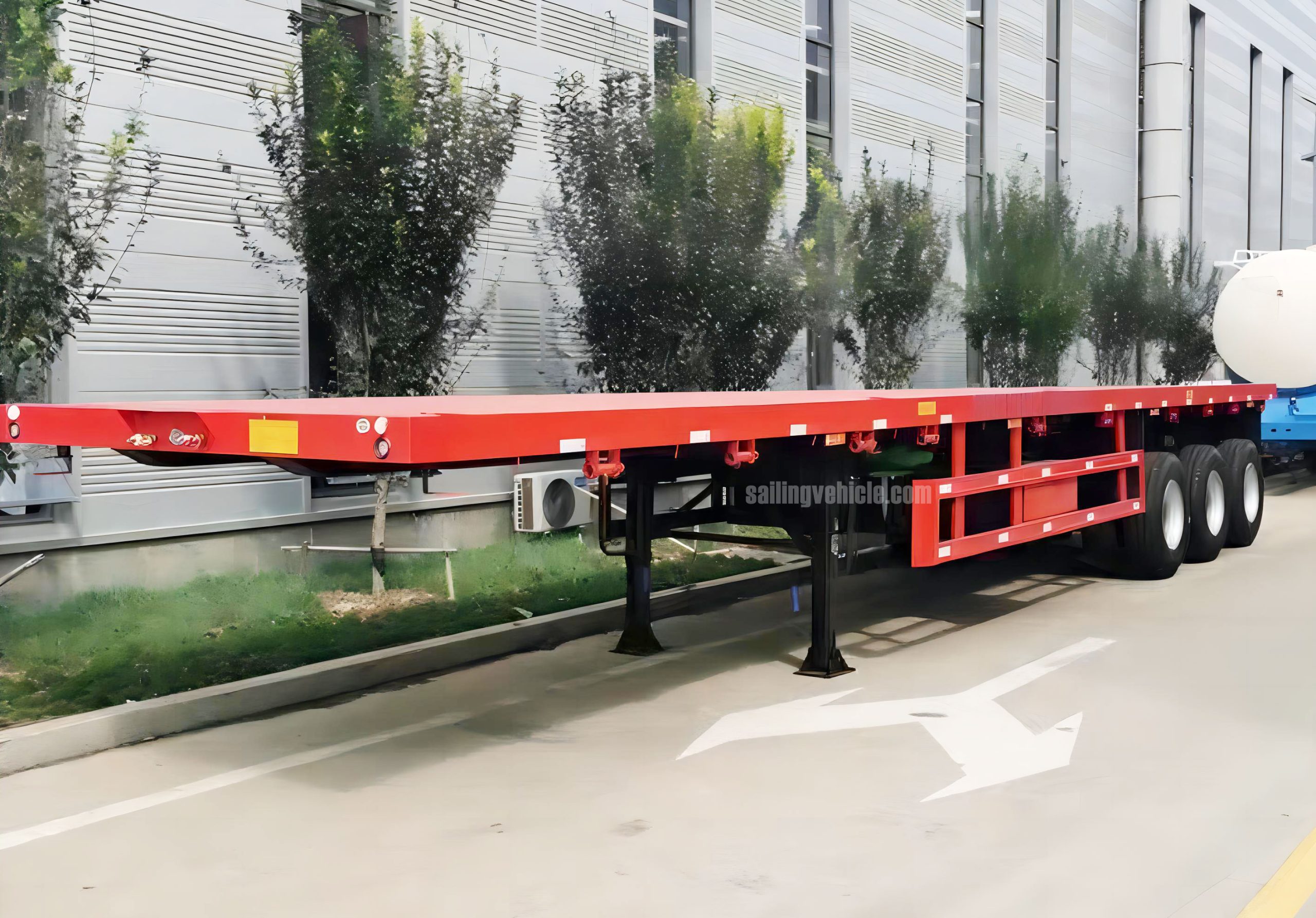

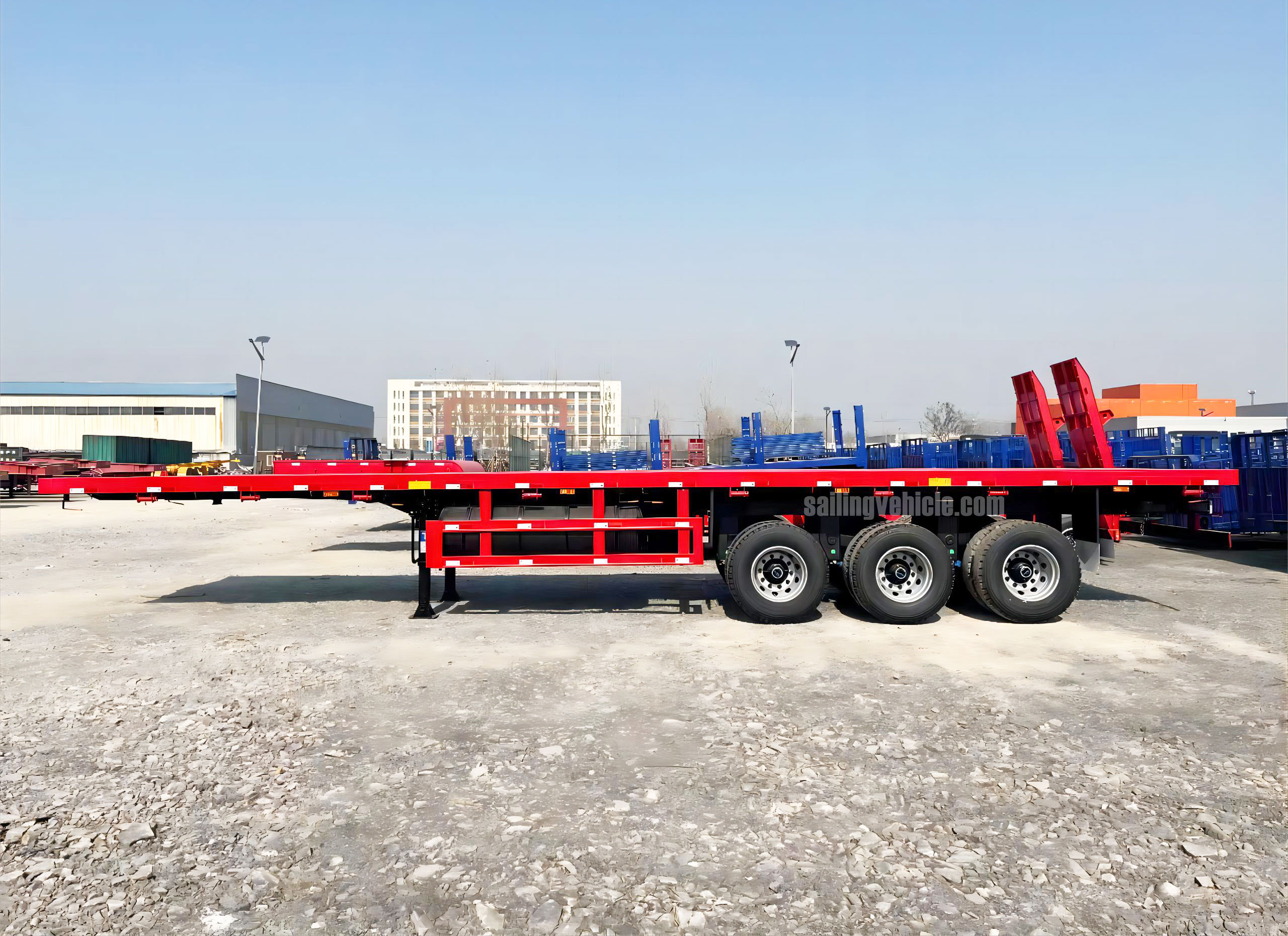

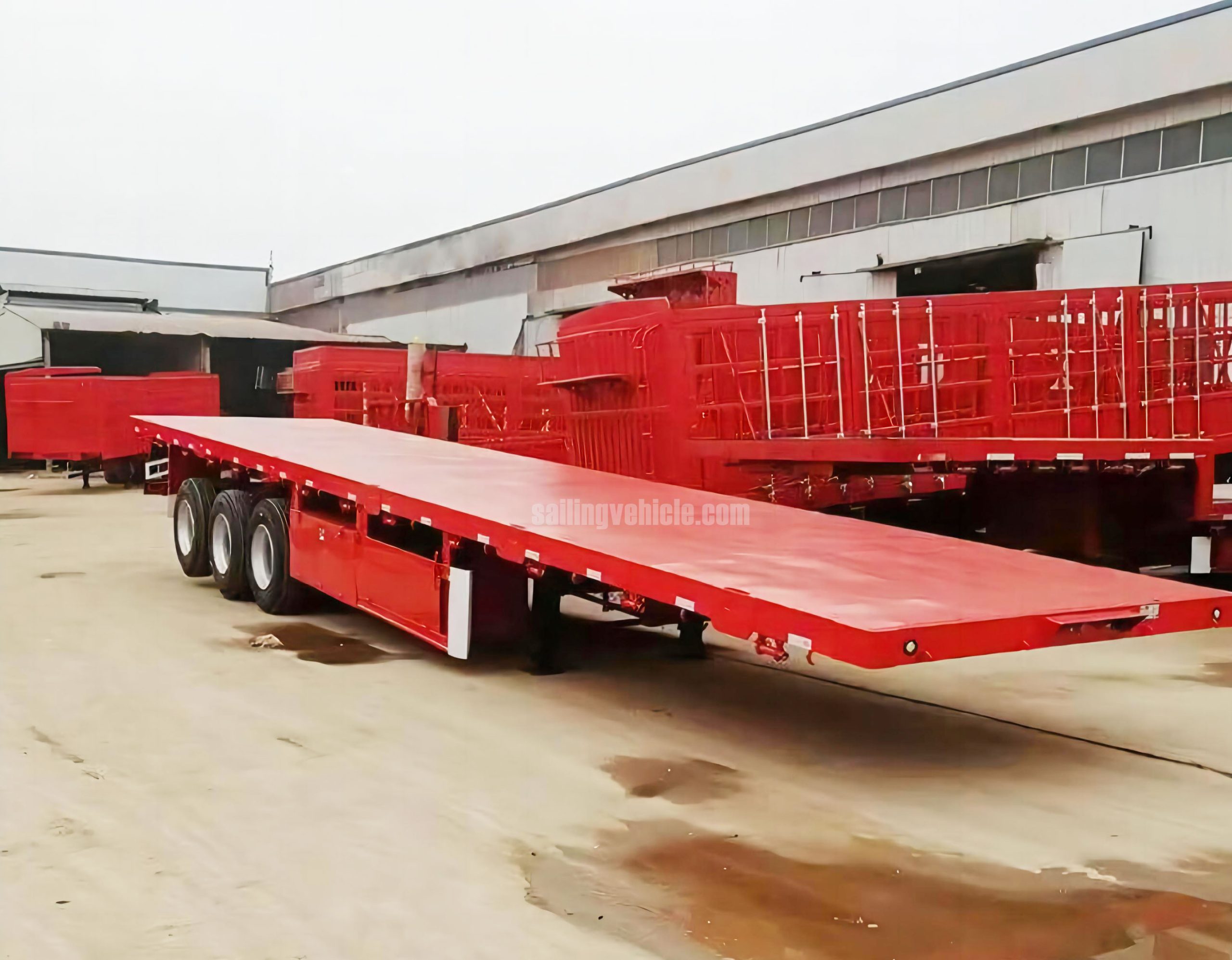

| 1 | Description | 40 Feet Flatbed Cargo Transport Semi-trailer | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
12800×2550×2970 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with the design drawings, with heavy-duty structural | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension,leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |
| 14 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 19 | Lashing Winch | Available in large quantities. | |
| 20 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||
40 Feet Flatbed Cargo Transport Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 8,000 – 10,000 USD（Prices vary by configuration）
Maximize payload and efficiency with our durable 40 Feet Flatbed Cargo Transport Semi-trailer. Built for global logistics and heavy freight. Contact us today!
Brand: TSV-SAILING
Model: TSV202605-40
Type: Flat-bed Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When expanding your global logistics fleet, investing in a durable and reliable 40 Feet Flatbed Cargo Transport Semi-trailer is a strategic necessity for maximizing operational efficiency. Designed specifically to handle diverse heavy-duty freight, this highly versatile trailer ensures that your bulk construction materials, heavy industrial machinery, and standard containerized goods reach their final destination safely, securely, and strictly on schedule.
High-Performance 40 Feet Flatbed Cargo Transport Semi-trailer Solutions
At Tianjin Sailing Vehicle Co., Ltd., we specialize in engineering heavy-duty transport equipment that effortlessly withstands the most demanding and unpredictable road conditions. Our premium flatbed trailers are constructed using advanced high-tensile Q345B steel, providing exceptional structural integrity and preventing critical deformation under massive payloads. By intelligently optimizing the tare weight of the vehicle without compromising its strength, we actively enable modern logistics operators to increase their payload capacity per trip. This intelligent design directly reduces overall transportation costs, minimizes required fleet maintenance, and substantially improves your long-term business profitability.
Engineered for Maximum Safety and Global Terrain
Safety and operational stability are absolutely paramount when transporting heavy, high-value freight across vast international distances. This advanced flatbed trailer features a heavily reinforced chassis design, a robust multi-axle suspension system, and highly responsive dual-circuit braking mechanisms to ensure exceptionally smooth handling on both newly paved highways and rugged, unpaved terrains. Whether your fleet is actively operating in the diverse landscapes of Africa, navigating the challenging routes of the Middle East, or managing complex supply chains across Southeast Asia and South America, this trailer consistently delivers secure and reliable performance. For a broader understanding of global shipping methodologies and modern freight mechanics, you can review the core principles of intermodal freight transport.
To secure your next 40 Feet Flatbed Cargo Transport Semi-trailer and dramatically elevate your heavy transport fleet’s capabilities, we invite you to contact our sales team today.

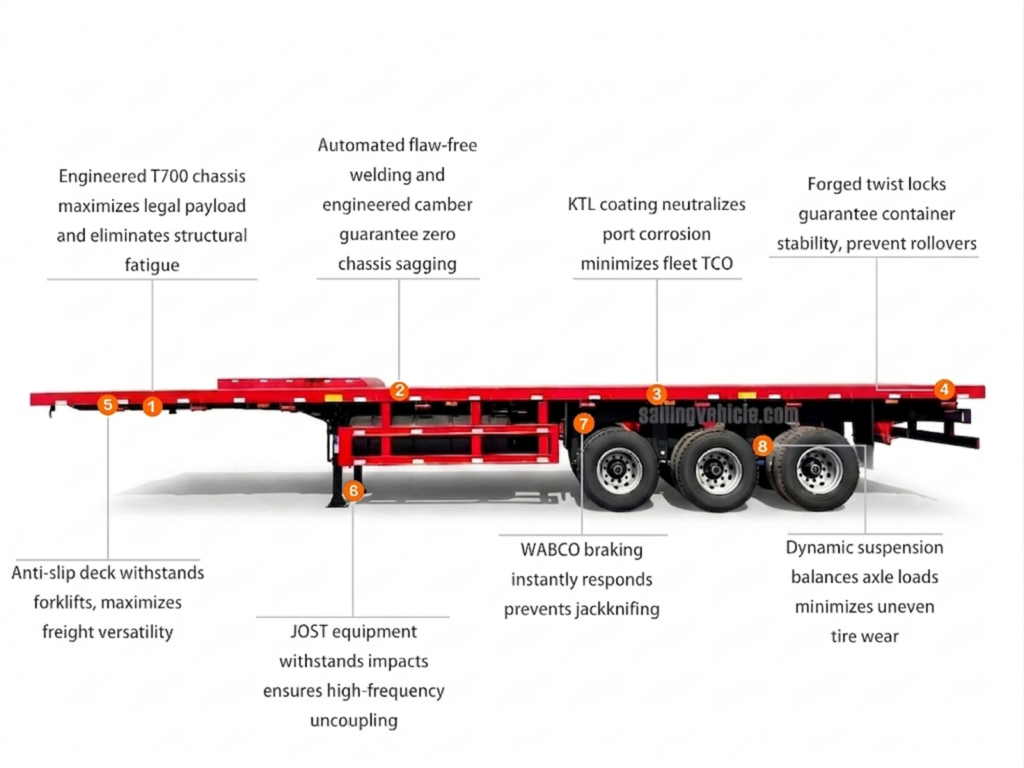

Product Overview
1. T700 High-Strength Chassis
Our engineered T700 steel chassis drastically maximizes your legal payload capacity. By eliminating structural fatigue under heavy loads, it guarantees superior long-term durability and structural integrity for your most demanding commercial transport operations.
2. Automated Flaw-Free Welding
Utilizing advanced automated welding techniques, we deliver a flawless main beam with an engineered camber. This precision manufacturing guarantees zero chassis sagging, maintaining robust structural alignment even during extreme heavy-haul logistics operations.
3. KTL Electrophoretic Coating
Protect your investment with our advanced KTL coating technology. It effectively neutralizes port corrosion and resists harsh weather conditions, ensuring a pristine appearance while significantly minimizing your fleet's total cost of ownership over time.
4. Forged Twist Locks
Secure your cargo with our heavy-duty forged twist locks. Engineered for maximum container stability, these critical components firmly anchor standard shipping containers, actively preventing dangerous rollovers during sharp maneuvers or rough highway transits.
5. Reinforced Anti-Slip Deck
Maximize your freight versatility with our industrial-grade anti-slip deck. Built to withstand relentless daily forklift operations, it ensures secure loading environments and prevents cargo shifting, ultimately safeguarding your valuable goods throughout the journey.
6. JOST Landing Gear
Equip your fleet with industry-leading JOST landing equipment. Designed to withstand severe downward impacts, this robust system ensures incredibly safe and highly efficient high-frequency uncoupling, streamlining your fast-paced daily yard operations with absolute confidence.
7. WABCO Pneumatic Braking
Safety is paramount with our integrated WABCO braking system. It provides instant pneumatic response to driver inputs, drastically reducing stopping distances and effectively preventing catastrophic jackknifing incidents during sudden highway emergency braking situations.
8. Dynamic Axle Suspension
Experience smoother rides with our specialized dynamic suspension setup. By intelligently balancing axle loads across the trailer, it absorbs road shocks, significantly minimizes uneven tire wear, and extends the lifespan of your critical undercarriage components.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
