| Container tank specification | |||
|---|---|---|---|
| 1 | Cargo | Palm Oil | |
| 2 | Dimensions | Outer |
12188×2438×2591mm (L×W×H)
(Based on final design drawings.) |
| Centre distance between twistlocks |
11985×2259 mm (L×W)
(Based on final design drawings.) |
||
| 3 | Curb weight |
7000kg
(Approx., based on final design drawings.) |
|
| Tank body specification | |||
| 4 | Tank shape | Round cylindrical. | |
| 5 | Tank capacity | 46,000 liters | |
| 6 | Tank material | Carbon Steel, Q235B | |
| 7 | Tank design thickness | End cover | 4.5mm |
| Tank body | 4mm | ||
| Baffle | 4mm | ||
| Main parts specification | |||
| 8 | Compartment | Single | |
| 9 | Manhole cover | Aluminum alloy & 2 units, 3-top and 6-bottom bolted configuration | |
| 10 | Bottom valve | Bottom & discharge integrated combination valve & 1 unit | |
| 11 | Discharging valve | ||
| 12 | Discharging the hose box | 6 meters & 2 units. | |
| 13 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 14 | Handrail | 2 units on the top, Stainless steel material | |
| 15 | Walkway platform | On the top with anti-slip punched design, aluminum alloy material | |
| 16 | Ladder | 1 unit, on the rear | |
| 17 | Breather valve | Aluminum alloy & 2 units. | |
| 18 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per customer's requirements. | ||
| 19 | Delivery | Spray wax before departure and cover with tarpaulin for delivery. | |

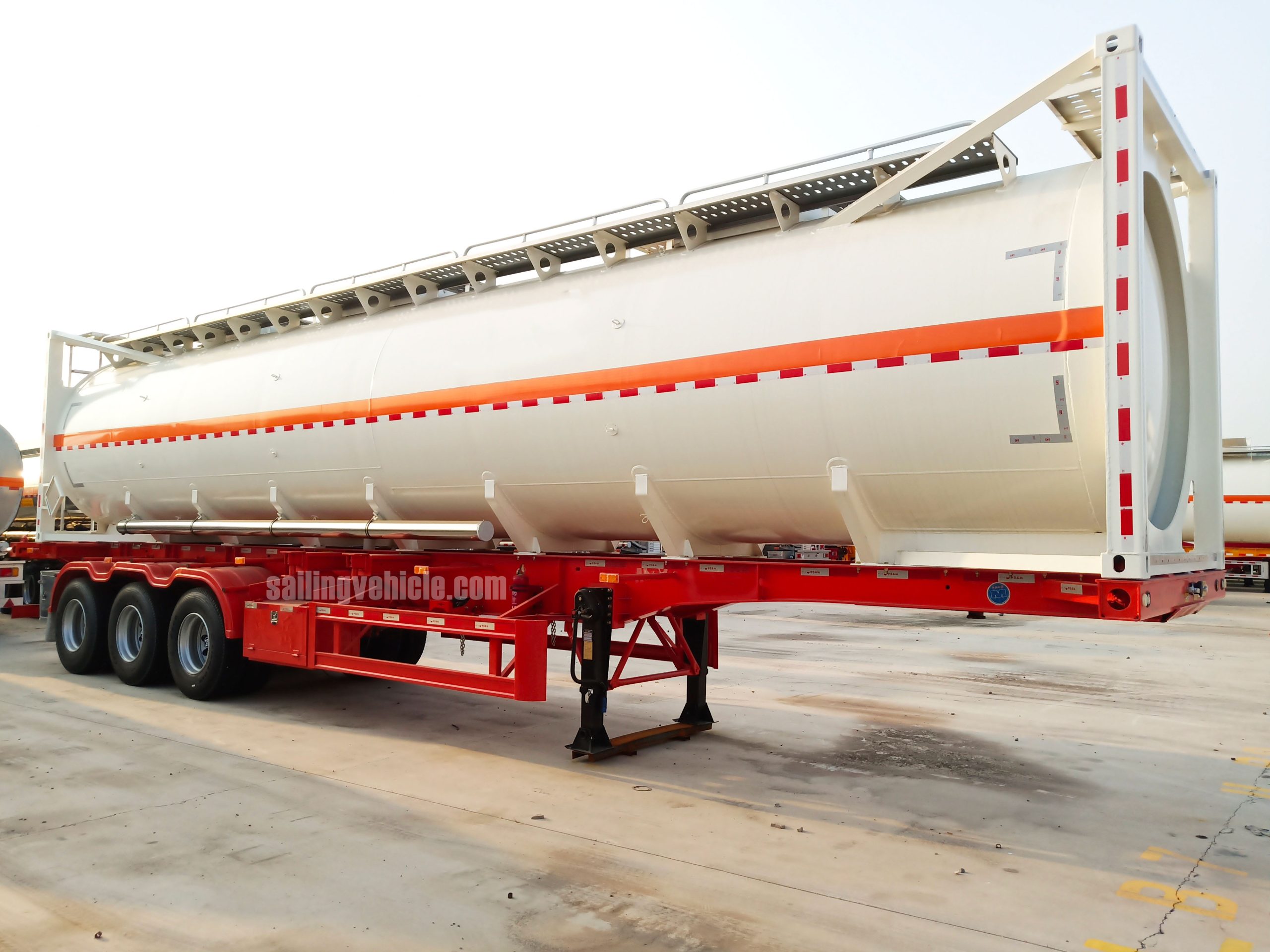

40FT Carbon Steel Container Tanker| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：11,800 – 14,800 USD（Prices vary by configuration）
Upgrade your fleet with our high-capacity 40FT Carbon Steel Container Tanker. Built for safe, multimodal liquid transport. Contact us for B2B pricing today!
Brand: TSV-SAILING
Model: TSV202109-40F
Type: Container Frame Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Optimizing your global logistics network requires equipment built for maximum durability and efficiency. The 40FT Carbon Steel Container Tanker is masterfully engineered to meet the highest, most stringent demands of international liquid transport. Designed specifically for rugged road transport and multimodal flexibility, this robust vessel guarantees the secure movement of industrial chemicals, hazardous fuels, and food-grade bulk liquids. Whether navigating bustling commercial city ports or traversing challenging, unpredictable regional terrains, this tanker delivers unmatched reliability and safety for your entire B2B supply chain operations, ensuring your cargo arrives exactly as intended.
Why Choose Our 40FT Carbon Steel Container Tanker
Constructed from premium Q345B high-tensile steel, our specialized tank containers offer an exceptional, industry-leading balance of payload capacity and structural strength. The advanced factory manufacturing process includes precise robotic welding alongside stringent X-ray flaw detection, definitively guaranteeing zero-leakage performance under pressure. To successfully combat extreme temperature fluctuations and the uniquely harsh environmental conditions frequently encountered across diverse global continents, the exterior frame is fortified with a specialized, heavily protective multi-layer anti-corrosion coating designed for absolute longevity.
Advanced Safety and Structural Features
Safety remains paramount in high-volume bulk liquid logistics. Inside the main tank, multiple heavy-duty anti-wave baffles are strategically installed to dynamically suppress dangerous fluid inertia. This critical design strictly prevents hazardous liquid surging during sudden braking or sharp cornering, significantly enhancing overall road transport stability. Furthermore, standardized ISO corner castings ensure seamless, rapid transitions between ocean freight, rail networks, and heavy-duty semi-trailers, vastly reducing terminal handling times and minimizing costly product loss. For comprehensive, updated guidelines on international safe transport protocols, you can consistently review the strict standards provided by the International Organization for Standardization (ISO).
Investing in a high-capacity 40FT Carbon Steel Container Tanker dramatically lowers your long-term operational costs by completely eliminating the laborious need for intermediate cargo decanting. This direct, highly efficient “door-to-door” transport model empowers your business to scale distribution operations seamlessly. Are you ready to substantially upgrade your commercial fleet with superior, customized road transport solutions tailored for the most demanding global markets? Contact our engineering team today to discuss exact custom specifications, secure highly competitive B2B pricing, and permanently optimize your liquid transport workflow.
Product Overview
1. ISO Tank Structure
Designed as full-frame or semi-frame structures, these ISO tank containers provide the ultimate flexibility to meet diverse transportation needs, ensuring structural integrity and balanced weight distribution for long-distance hauls and intermodal logistics.
2. Anti-Overflow Manhole Cover
Featuring an advanced anti-overflow coaming, this manhole cover ensures zero leakage and ultimate safety. It prevents environmental contamination and product loss during transport, meeting the strictest international safety and liquid handling regulations.
3. Customizable ISO Sizes
Our ISO tank containers are available in 20ft, 30ft, 40ft, and 45ft sizes. This wide selection allows logistics companies to optimize their fleet based on specific volume requirements and regional infrastructure constraints.
4. Anti-Slip Safety Treads
Punched anti-slip treads are strategically installed on the tank top to ensure the maximum safety of operating personnel. This design prevents falls during inspection or loading, even in wet or oily working conditions.
5. Intermodal Compatibility
These ISO tank containers are perfectly matched with heavy-duty semi-trailers for seamless land transportation. The standardized design allows for rapid switching between sea-freight and road-transport, significantly reducing turnaround times at ports.
6. Bolted Chassis Connection
The bolted connection between the tank and chassis is exceptionally firm and durable. Unlike permanent welds, this modular design is much easier to maintain and repair, reducing downtime and extending the equipment's service life.
7. Multi-Compartment Design
The multi-compartment tank configuration allows for high-efficiency multi-fuel transport. This system is safer and more stable, enabling operators to carry different liquids simultaneously without the risk of cross-contamination or weight shifting.
8. Independent Unloading System
Each compartment features an independent unloading system, including its own manhole cover, bottom valve, and discharge outlet. This ensures precise control over liquid delivery and facilitates faster, more organized discharge operations at multiple sites.

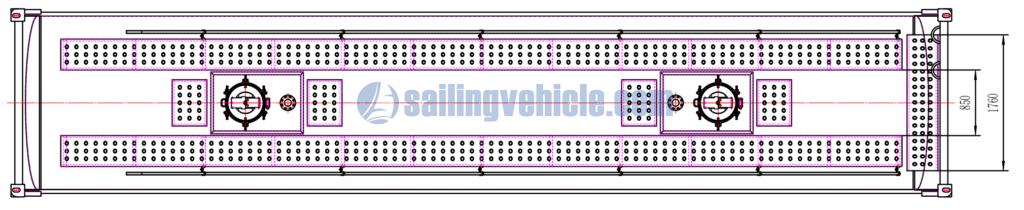

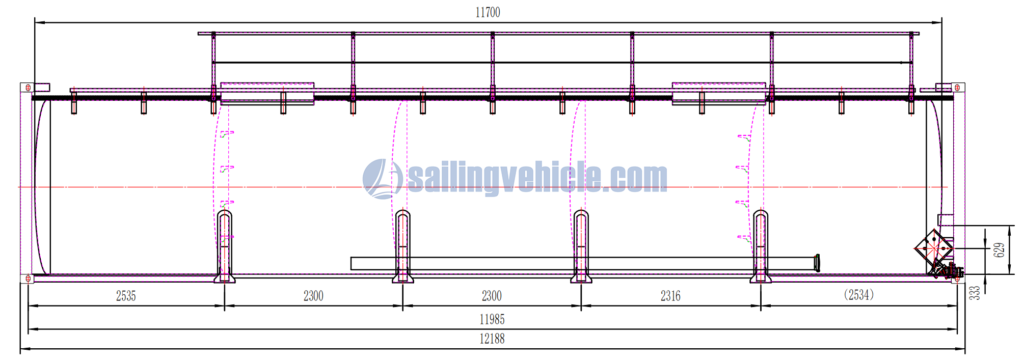

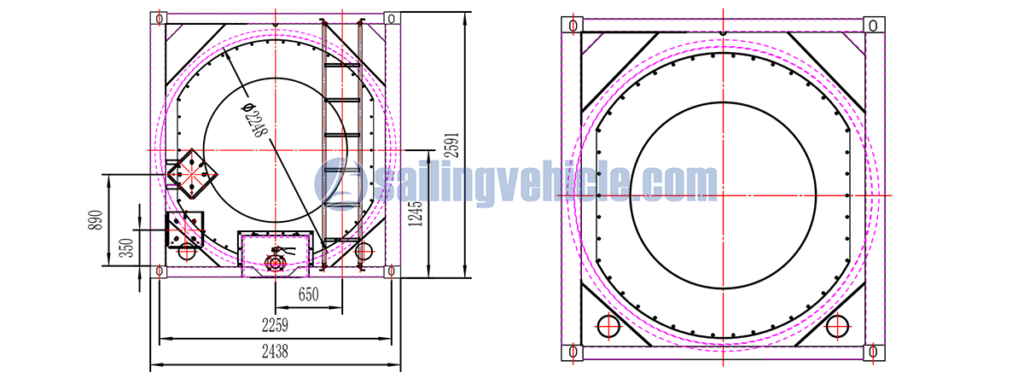

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
