| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | 40 Feet Cargo Delivery Sidewall Semi-trailer | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
13000×2550×2970 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with design drawings, with heavy-duty structural design. | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based...) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm （Channel steel） | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| 10 | Sidewall board | 60cm height, detachable type. | |
| Main parts specification | |||
| 11 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 12 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 13 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 14 | Rim | 9.00 & 12 units, high-strength iron. | |
| 15 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand | |
| 16 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 17 | Spare wheel carrier | 2 units | |
| 18 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 19 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 20 | Lashing Winch | Available in large quantities. | |
| 21 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 22 | Electric system | 24V, 7-pin socket, National standard. | |
| 23 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 24 | Reverse buzzer | 1 unit. | |
| 25 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 26 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||

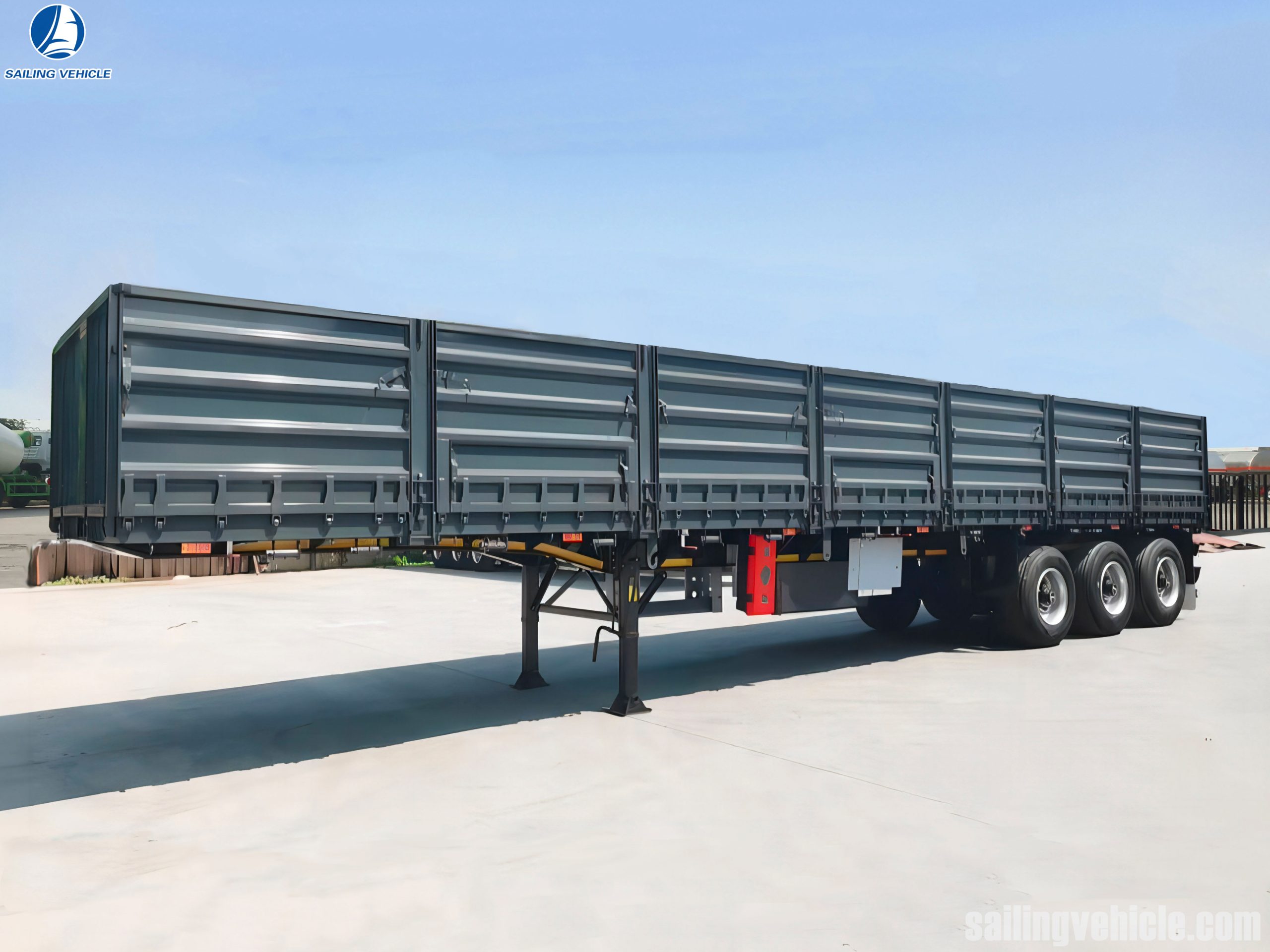

40 Feet cargo delivery sidewall semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 8,500 – 10,500 USD（Prices vary by configuration）
Boost your logistics ROI with our premium 40 Feet Cargo Delivery Sidewall Semi-trailer. Engineered for heavy-duty loads. Contact us for a custom quote!
Brand: TSV-SAILING
Model: TSV202601-40
Type: Sidewall Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When managing high-frequency logistics and demanding supply chains, upgrading to a robust 40 Feet cargo delivery sidewall semi-trailer is absolutely essential for scaling your commercial transportation business. Engineered to conquer the most punishing industrial environments, this highly versatile trailer delivers exceptional cargo security and maximized payload efficiency. By integrating advanced metallurgy and smart braking technology, it ensures your fleet operates seamlessly while heavily reducing daily operational costs.
Advanced Engineering of the 40 Feet Cargo Delivery Sidewall Semi-Trailer
At the foundation of this rugged vehicle is an FEA-optimized T700 steel chassis. This ultra-high-strength framework effectively maximizes your payload capacity while entirely eliminating dangerous structural fatigue risks during rigorous daily hauls across challenging terrains. By utilizing this premium high-tensile steel, we absolutely guarantee decades of reliable heavy-duty service. Complementing this powerful core is the reinforced checkered deck equipped with piercing crossmembers. This deck is explicitly designed to flawlessly support continuous, heavy forklift operations without suffering any floor deformation. Furthermore, the robotic-welded corrugated sidewalls strictly guarantee absolute cargo integrity, significantly accelerating your high-frequency loading and unloading processes.
Premium Safety and Anti-Corrosion Technologies
Complete fleet safety and long-term durability are non-negotiable in modern logistics. Therefore, our 40 Feet cargo delivery sidewall semi-trailer is fully equipped with industry-leading WABCO EBS (Electronic Braking Systems). This advanced pneumatic network ensures millisecond response times, strictly preventing fatal transport accidents during emergency stops, even when fully loaded. For a deeper understanding of standardized safety protocols, explore this overview of commercial vehicle electronic braking systems.
To combat severe weather and harsh industrial environments, the entire structure undergoes a premium KTL electrophoretic coating process. This marine-grade protection permanently resists deep structural rust, fundamentally safeguarding your long-term asset value. Additionally, integrated ISO twist locks enable seamless multi-modal cargo transitions, drastically enhancing transport versatility. Finally, the maintenance-free oil-lubricated hubs significantly reduce mechanical downtime, perfectly maximizing your fleet’s overall operational profitability.
Are you ready to dramatically improve your daily logistical efficiency and drastically lower fleet maintenance expenses? Our heavy-duty transport solutions are precision-engineered to guarantee an exceptional return on your investment. Contact our expert sales team today to receive a comprehensive commercial quote and explore customized configurations for your enterprise.

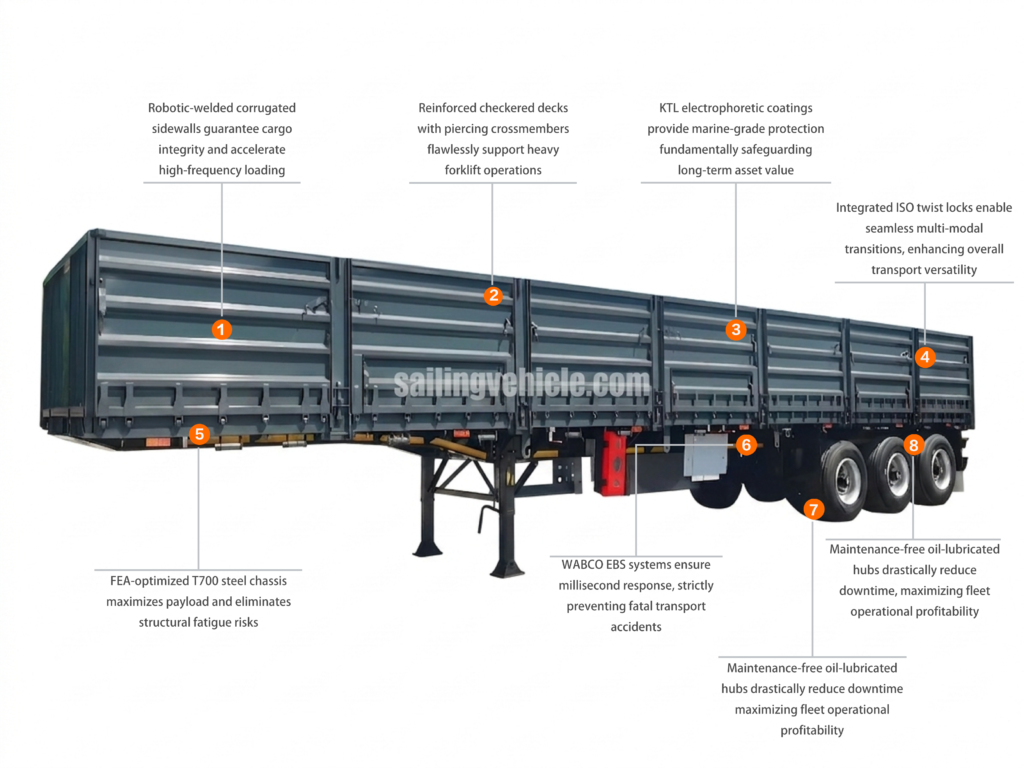

Product Overview
1. Robotic-welded Corrugated Sidewalls
Manufactured with precision robotic welding, these corrugated sidewalls strictly guarantee absolute cargo integrity. Their high-strength design drastically accelerates high-frequency loading operations, perfectly securing loose commercial payloads during punishing daily transits.
2. Reinforced Checkered Decks
Featuring piercing high-density crossmembers, these reinforced checkered decks flawlessly support continuous heavy forklift operations. They entirely prevent floor deformation, heavily ensuring maximum efficiency and absolute safety during demanding warehouse loading cycles.
3. KTL Electrophoretic Coatings
Our state-of-the-art KTL electrophoretic coatings provide exceptional marine-grade protection. This advanced anti-corrosion barrier permanently resists structural rust, fundamentally safeguarding your long-term fleet asset value even in highly aggressive chemical environments.
4. Integrated ISO Twist Locks
Strategically placed integrated ISO twist locks instantly enable seamless multi-modal cargo transitions. This flexible engineering drastically enhances overall transport versatility, effortlessly allowing fleets to securely handle standard shipping containers alongside bulk loads.
5. FEA-optimized T700 Steel Chassis
Forged from resilient FEA-optimized T700 steel, this massive chassis entirely eliminates dangerous structural fatigue risks. It flawlessly maximizes your commercial payload capacity, heavily guaranteeing decades of stable, highly profitable heavy-duty logistics performance.
6. WABCO EBS Systems
Industry-leading WABCO EBS systems ensure instantaneous millisecond braking response under extreme commercial conditions. This highly advanced electronic network strictly prevents fatal transport accidents, absolutely guaranteeing total highway safety for your valuable fleet.
7. Maintenance-free Hubs
These highly engineered maintenance-free oil-lubricated hubs continuously protect internal wheel bearings. By entirely eliminating frequent greasing requirements, they drastically reduce mechanical downtime, fundamentally maximizing your transport fleet’s daily operational profitability.
8. Oil-lubricated Axle Systems
Integrated closely with the advanced hubs, these premium oil-lubricated axle systems deliver exceptionally smooth rolling resistance. This precise engineering heavily boosts fuel efficiency and perfectly ensures uninterrupted, highly profitable cross-country commercial hauling.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
