| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | 40 Feet Cargo Delivery Side Fence Semi-trailer | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
13000×2550×2970 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with design drawings, with heavy-duty structural design. | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based...) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm （Channel steel） | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| 10 | Sidewall board | 60cm height, detachable type. | |
| Main parts specification | |||
| 11 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 12 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 13 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 14 | Rim | 9.00 & 12 units, high-strength iron. | |
| 15 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand | |
| 16 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 17 | Spare wheel carrier | 2 units | |
| 18 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 19 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 20 | Lashing Winch | Available in large quantities. | |
| 21 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 22 | Electric system | 24V, 7-pin socket, National standard. | |
| 23 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 24 | Reverse buzzer | 1 unit. | |
| 25 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 26 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||

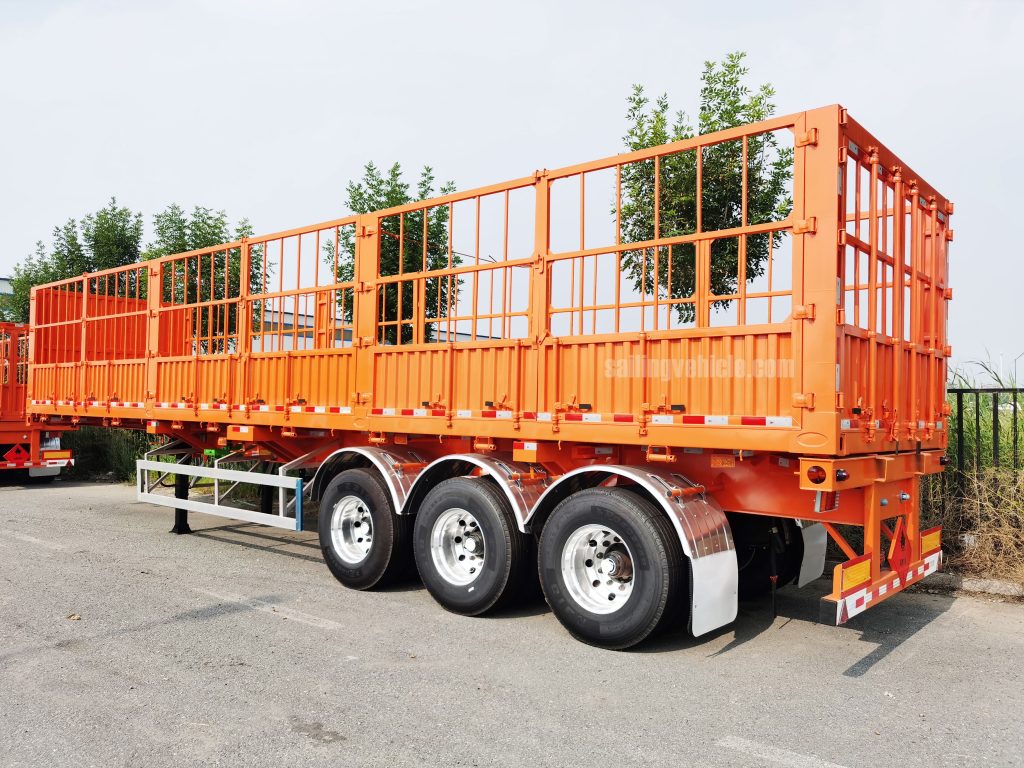

40 Feet Cargo Delivery Side Fence Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 8,500 – 10,500 USD（Prices vary by configuration）
Discover our top reliable 40 feet cargo delivery side fence semi-trailer. Boost payload safety and efficiency. Contact us today for a free quote!
Brand: TSV-SAILING
Model: TSV202606-40
Type: Sidewall Semi-trailer Fence Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When transporting bulk goods across long distances, securing a dependable 40 feet cargo delivery side fence semi-trailer is essential for your logistics fleet. Designed for versatility and durability, this equipment handles everything from agricultural products to heavy industrial materials efficiently.
Why Choose Our Heavy-Duty Side Wall Trailer?
Our 40 feet cargo delivery side fence semi-trailer is engineered to withstand challenging road conditions, making it particularly suitable for diverse and rugged terrains. By integrating advanced manufacturing processes, we ensure each trailer maximizes payload capacity while maintaining exceptional driving stability under heavy loads.
Robust Structure and Advanced Chassis
The main beam utilizes high-strength carbon steel, providing superior load-bearing capabilities. Equipped with industry-leading BPW or FUWA axles, the chassis guarantees reduced tire wear and long-term mechanical reliability. Furthermore, the inclusion of premium polyurethane paint ensures excellent anti-corrosion properties, extending the operational lifespan of the vehicle even in harsh climates. The suspension system effectively absorbs shocks to protect your valuable cargo during transit. For more insights into how these vehicles operate globally, you can read about the history and mechanics of the semi-trailer on Wikipedia.
Enhancing Your Fleet’s Efficiency
Safety and operational efficiency are at the core of our designs. The side fence structure features thickened corrugated steel plates, which prevent deformation under heavy lateral pressure from loose cargo. These sidewalls can be easily disassembled or opened to accommodate forklift loading, drastically reducing turnaround times at logistics hubs. Premium twist locks also allow the secure transport of ISO containers, adding multi-purpose value to your investment.
Upgrading your heavy-duty transportation equipment has never been more straightforward. We provide tailored solutions to match your specific operational needs. Ready to expand your fleet’s capabilities? Contact us today to get a detailed quote and discuss your custom requirements.

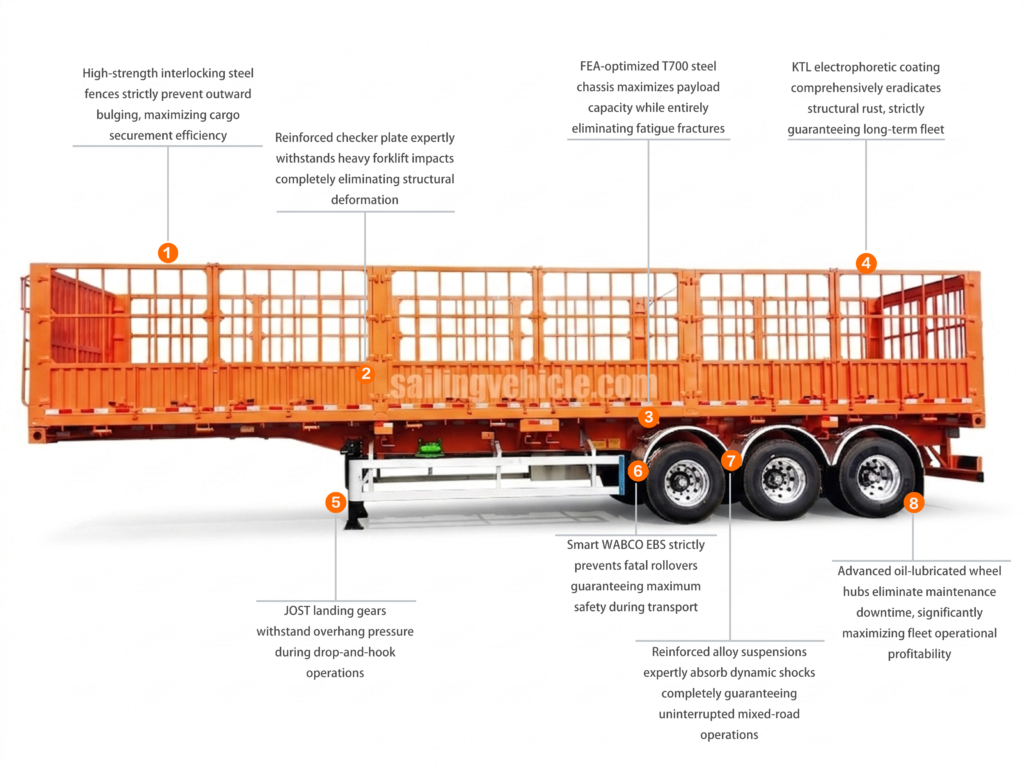

Product Overview
1. High-strength Interlocking Steel Fences
Engineered with high-strength interlocking steel, these resilient fences strictly prevent outward bulging. This robust design totally maximizes cargo securement efficiency, ensuring your valuable payloads remain perfectly intact during demanding transit.
2. Reinforced Checker Plate
The reinforced checker plate expertly withstands massive heavy forklift impacts during loading cycles. By completely eliminating structural deformation, this durable decking guarantees absolutely safe and highly efficient daily warehouse operations.
3. FEA-optimized T700 Steel Chassis
Forged from premium FEA-optimized T700 steel, this massive chassis entirely eliminates dangerous fatigue fractures. It brilliantly maximizes payload capacity, heavily guaranteeing decades of stable, highly profitable heavy-duty logistics performance.
4. KTL Electrophoretic Coating
Our state-of-the-art KTL electrophoretic coating comprehensively eradicates deep structural rust. This advanced marine-grade barrier completely withstands severe corrosive environments, strictly guaranteeing exceptional long-term fleet asset value and lowering maintenance costs.
5. JOST Landing Gears
Authentic heavy-duty JOST landing gears easily withstand immense overhang pressure. Designed for rigorous daily use, they ensure absolute stability during intense drop-and-hook operations, totally safeguarding your trailer during yard parking.
6. Smart WABCO EBS
The industry-leading smart WABCO EBS ensures instantaneous millisecond braking response. This highly advanced electronic network strictly prevents fatal highway rollovers, absolutely guaranteeing maximum transport safety for your valuable commercial fleet.
7. Reinforced Alloy Suspensions
These rugged reinforced alloy suspensions expertly absorb intense dynamic shocks from rough terrains. They completely guarantee uninterrupted mixed-road operations, fully protecting both your heavy cargo and the trailer's structural integrity.
8. Advanced Oil-lubricated Wheel Hubs
These precisely engineered advanced oil-lubricated wheel hubs permanently eliminate frequent greasing requirements. By drastically reducing mechanical maintenance downtime, they significantly maximize fleet operational profitability and continuous long-haul hauling efficiency.

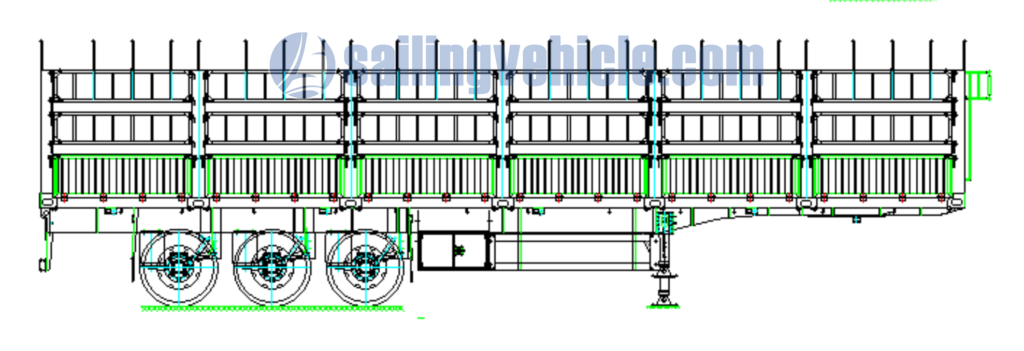

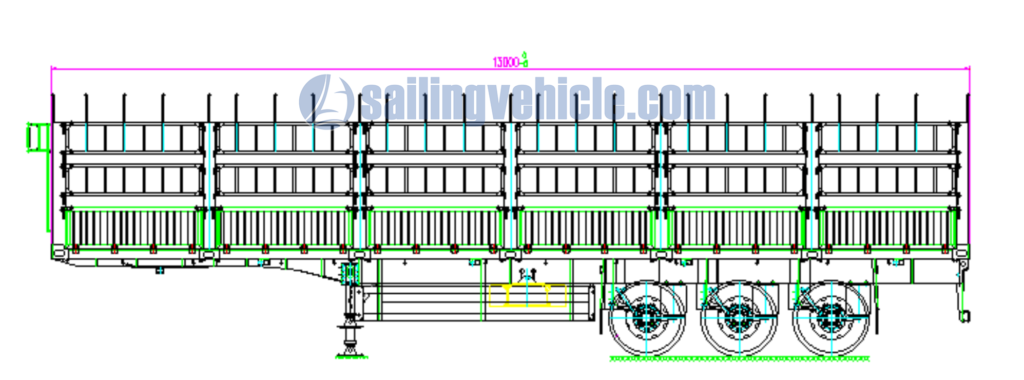

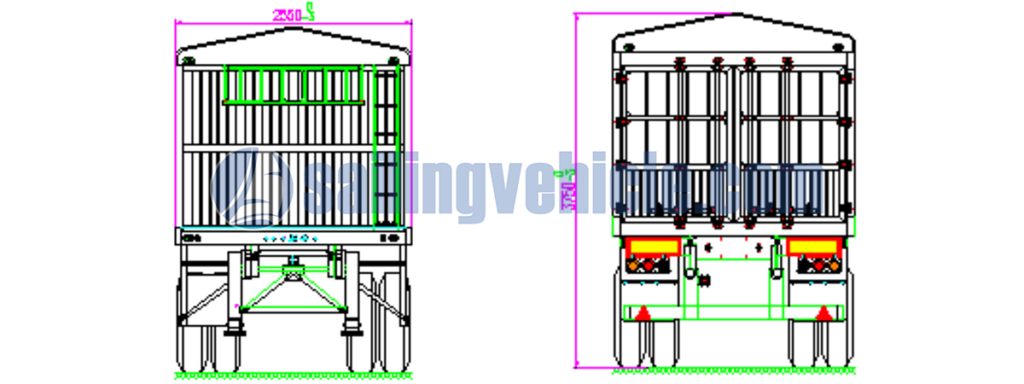

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
