| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Hydrochloric acid, sulfuric acid, and other corrosive chemicals | |
| 2 | Overall dimension |
10950×2500×3650mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
7500 kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) | |
| 10 | Suspension |
Mechanical suspension, leaf springs,13mm×90mm, 10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
|
| Tank body specification | |||
| 11 | Tank shape | Square-round (Double D ) and gooseneck design. | |
| 12 | Tank capacity | 30,000 liters (valid volume) + 5%(ullage) | |
| 13 | Tank material | Q235B | |
| 14 | Tank design thickness | End cover | 5.5mm |
| Tank body | 5mm | ||
| Baffle | 5mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Compartment | 1 unit. | |
| 17 | Manhole cover |
Plastic-lined special & 2 units
Factory standard |
|
| 18 | Bottom valve |
4" Plastic-lined special & 1 unit
Factory standard |
|
| 19 | Discharging valve | 4" ball valve plastic-lined special & 2 units | |
| 20 | Plastic-lined material | PE and thickness must be more than 16 mm | |
| 21 | Discharging the hose box | 6 meters & 2 units. | |
| 22 | Discharging hose | Anti-corrosion 5.7 meters & 2 units. | |
| 23 | Handrail | 2 units on the top. | |
| 24 | Walkway platform | Top with an anti-slip punched design. | |
| 25 | Ladder | 1 unit, on the rear or front. | |
| 26 | Breather valve | Plastic-lined special & 1 unit. | |
| 27 | Safety valve | Plastic-lined special & 1 unit. | |
| 28 | Spare wheel carrier | 2 units. | |
| 29 | Mud guard plate | Integrated design plate, carbon steel. | |
| 30 | Relay valve | WABCO brand | |
| 31 | Reverse buzzer | 1 unit. | |
| 32 | Electric system | 24V, 7-pin socket, national standard. | |
| 33 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 34 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 35 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4.2 sets of 8KG fire extinguishers with boxes.
5.1 set of anti-static grounding tape.
6. All other necessary accessories. |
|||

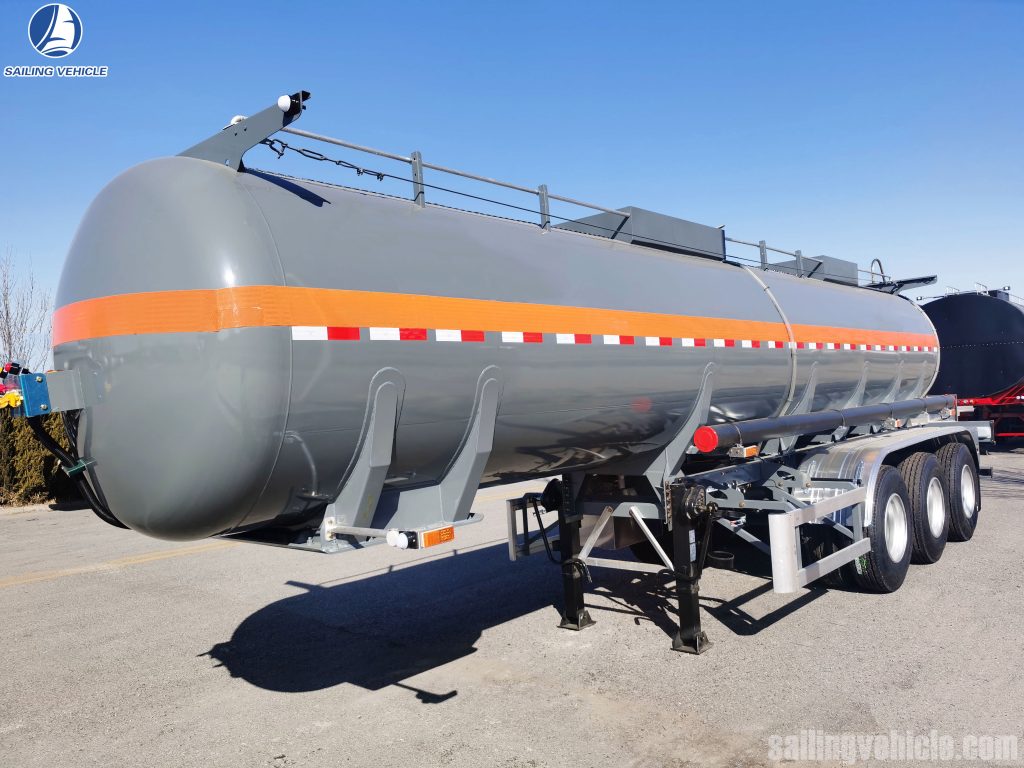

27KL plastic lining chemical tank semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price:19,000 – 23,000USD（Prices vary by configuration）
Secure your corrosive transport with our durable 30KL plastic lining chemical tank semitrailer. Ensure unmatched safety and efficiency. Get a free quote today!
Brand: TSV-SAILING
Model: TSV202107-30
Model: Plastic Lining Chemical Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When transporting highly corrosive liquids, safety, compliance, and absolute reliability are non-negotiable requirements for any logistics operation. Investing in a premium 30KL plastic lining chemical tank semitrailer ensures your hazardous materials reach their destination securely, without ever compromising the structural integrity of your heavy-duty fleet. Designed specifically for demanding B2B industrial applications, this specialized trailer serves as the ultimate, long-term solution for bulk chemical logistics.
Why Choose Our 30KL Plastic Lining Chemical Tank Semitrailer?
The core advantage of this high-performance trailer lies entirely in its advanced internal construction. The seamless, 16mm thick polyethylene lining provides an incredibly robust barrier against aggressive acids, alkalis, and various other harsh industrial chemicals. By completely preventing direct chemical contact with the outer carbon steel shell, this innovative design significantly extends the operational lifespan of the equipment. For comprehensive safety guidelines on handling hazardous bulk materials safely, you can refer to the ADR framework for dangerous goods transport.
Our senior mechanical engineers have meticulously optimized the chassis and air suspension systems to guarantee unparalleled stability under maximum payload conditions. We exclusively utilize heavy-duty, reinforced axles from globally recognized brands, ensuring minimal wear and tear even on the most challenging, uneven road conditions. Furthermore, the specialized anti-corrosion, PTFE-lined discharge valves guarantee absolute zero-leakage operations, heavily protecting both your frontline operators and the surrounding environment from catastrophic spills.
Maximize Your ROI and Operational Efficiency
In the highly competitive world of industrial chemical transport, minimizing your fleet’s downtime is absolutely crucial for profitability. By integrating this durable 30KL plastic lining chemical tank semitrailer into your daily operations, you drastically reduce unexpected maintenance frequency and significantly lower your overall lifecycle costs. Additionally, the optimized aerodynamic design actively contributes to superior fuel efficiency during demanding long-haul transit routes.
Are you ready to upgrade your commercial transportation fleet with industry-leading, highly secure equipment? Contact our expert sales team today to request a customized quote and thoroughly discuss your specific operational configurations.

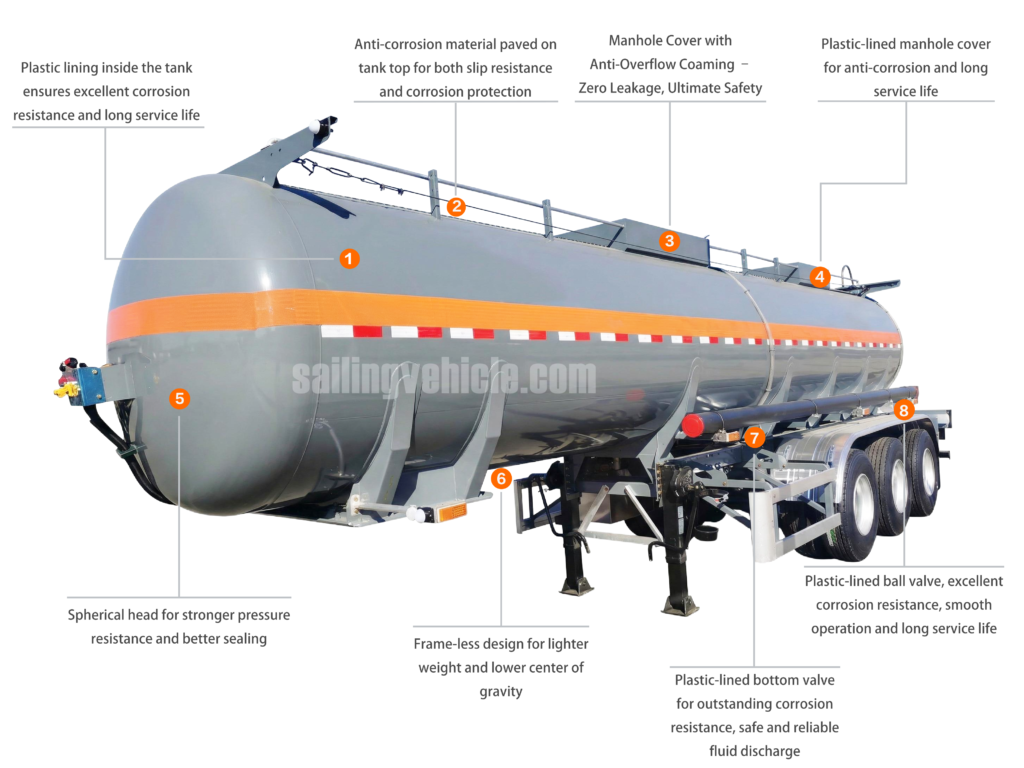

Product Overview
1. Internal Plastic Lining
The heavy-duty plastic lining inside the tank ensures excellent corrosion resistance against aggressive acids and alkalis. This seamless barrier prevents chemical reactions with the steel shell, guaranteeing a long service life and high-purity transport.
2. Anti-Corrosion Top Pavement
Specialized anti-corrosion material is paved on the tank top to provide dual benefits. It offers essential slip resistance for operators walking on the vessel while shielding the upper structure from corrosive chemical spills or atmospheric wear.
3. Anti-Overflow Coaming
Featuring a manhole cover with integrated anti-overflow coaming, this system ensures zero leakage and ultimate safety. It captures any accidental drips during loading, protecting the environment and the trailer body from hazardous chemical contact.
4. Plastic-Lined Manhole Cover
Every manhole cover is fully plastic-lined to resist corrosion from rising chemical vapors. This precision-engineered component ensures an airtight seal and extended durability, maintaining the integrity of the containment system under harsh operating conditions.
5. Spherical Tank Head
The spherical head design is engineered for stronger pressure resistance and superior sealing. By distributing stress evenly across the surface, it prevents structural deformation and ensures the tank remains leak-proof throughout its entire operational cycle.
6. Frameless Design
Our advanced frameless design significantly reduces the trailer's tare weight for a higher payload capacity. This architecture also lowers the center of gravity, providing enhanced driving stability and safety during high-speed highway transportation.
7. Plastic-Lined Bottom Valve
The plastic-lined bottom valve provides outstanding corrosion resistance for safe and reliable fluid discharge. Its robust construction ensures that the internal mechanism remains functional even after prolonged exposure to highly concentrated acidic or alkaline chemicals.
8. Plastic-Lined Ball Valve
This specialized ball valve features a complete plastic lining for excellent chemical resistance. It facilitates smooth operation and a long service life, allowing for precise flow control during unloading without the risk of valve seizure or leakage.

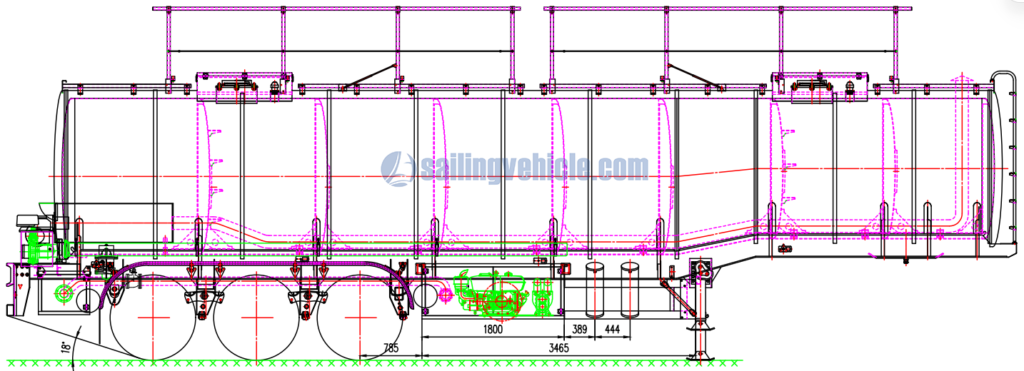

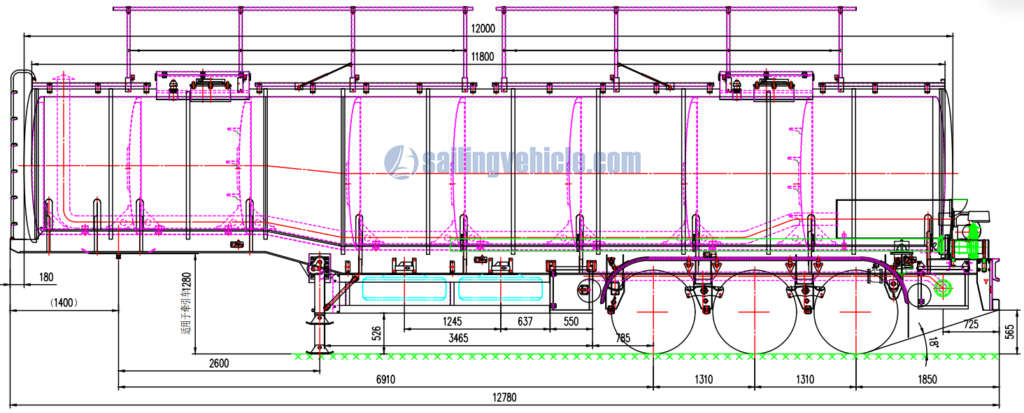

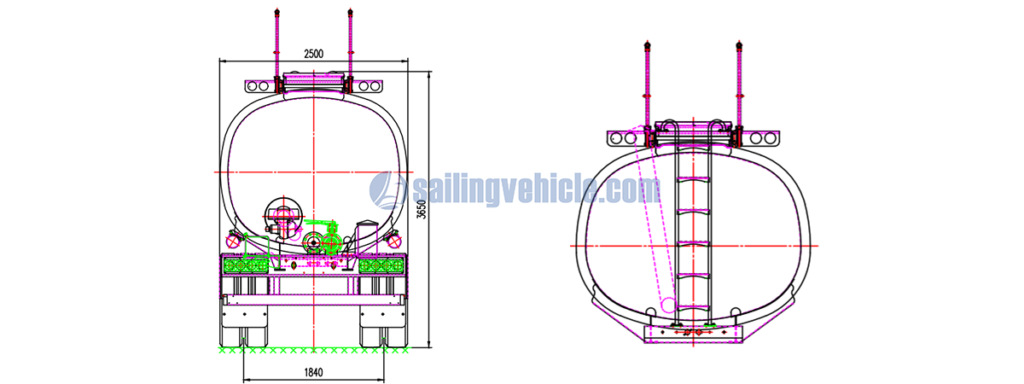

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
