| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | Lowbed Heavy-duty Equipment Carrier Semi-trailer | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
16700×3000×2930 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with the design drawings, with heavy-duty structural | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based...) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |
| 14 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 19 | Lashing Winch | Available in large quantities. | |
| 20 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||

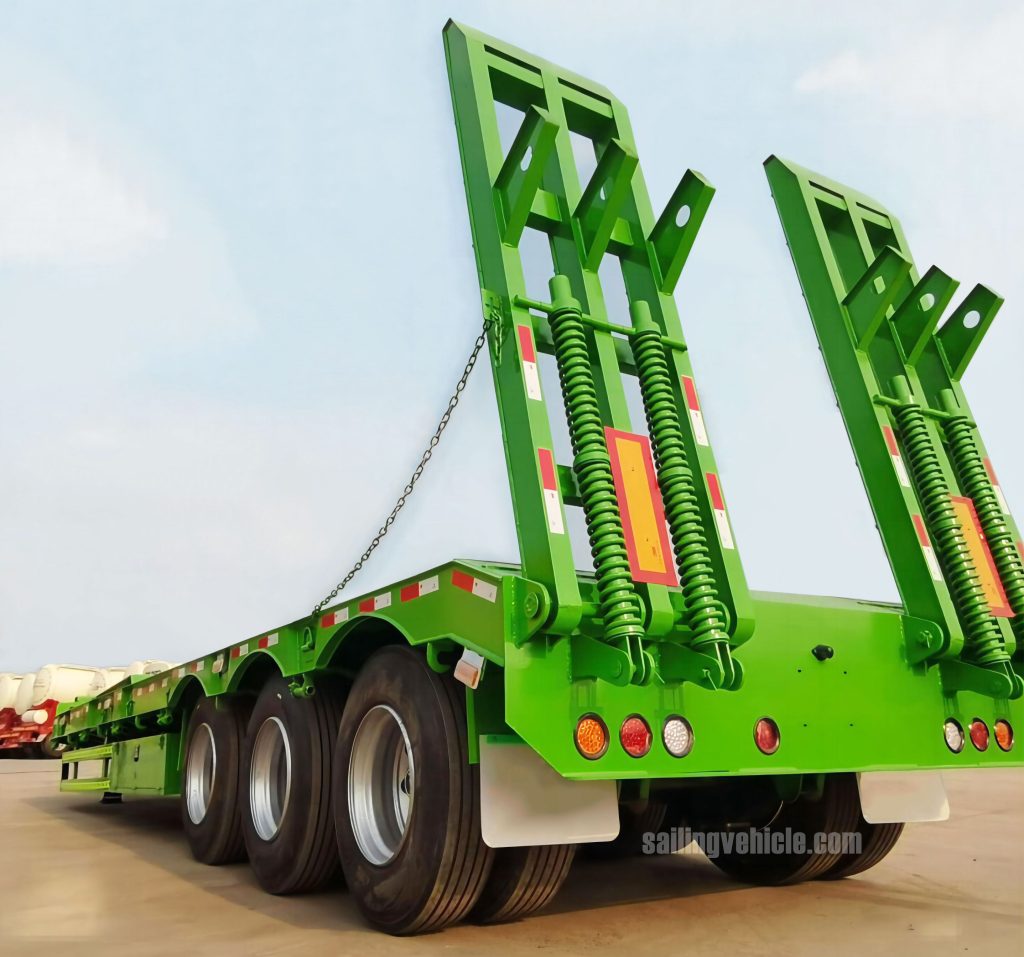

Lowbed Heavy-duty Equipment Carrier Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: $21,800~$23,500（Prices vary by configuration）
Looking for an Ultimate Lowbed Heavy-duty Equipment Carrier Semi-trailer? Ensure safe, reliable transport with our premium chassis. Get your quote today!
Brand: TSV-SAILING
Model: TSV202604-LB
Type: Low Bed Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Ultimate Lowbed Heavy-duty Equipment Carrier Semi-trailer for Safe Transport
Selecting the ideal Lowbed Heavy-duty Equipment Carrier Semi-trailer is a critical decision for any global transport fleet. Designed to handle extreme loads, this premium trailer ensures the maximum safety of massive machinery, from oversized excavators to heavy industrial transformers. By utilizing advanced engineering, we guarantee a highly durable platform that significantly optimizes your daily logistics operations and minimizes costly downtime.
Engineered with High-Tensile Steel for Rugged Terrains
Our expert manufacturing team has meticulously constructed the chassis using top-grade Q345B high-tensile carbon steel. This strategic structural choice provides exceptional vertical rigidity and dramatically lowers the center of gravity, effectively preventing dangerous rollover risks on steep off-road construction sites. In strict compliance with global heavy haulage safety regulations, this specialized trailer features heavily reinforced load-bearing components capable of withstanding continuous mechanical stress.
Core Specifications and Professional Components
To maximize your operational efficiency, we have integrated world-class components. The premium FUWA axles and highly durable WABCO braking valves work synergistically to reduce maintenance frequency and lower your total cost of ownership. The integration of robust mechanical ramps ensures rapid loading, significantly reducing equipment deployment time.
Enhancing Fleet ROI and Operational Safety
Beyond sheer raw strength, this heavy-duty transport solution is strategically optimized for long-term reliability. The widened cargo deck seamlessly accommodates various heavy machinery track widths, securely eliminating dangerous lateral shifting during high-speed highway transit. Furthermore, our premium dual-layer anti-corrosive polyurethane painting process vastly extends the trailer’s lifespan, relentlessly protecting your valuable investment against highly abrasive work environments and harsh weather conditions. Coupled with highly wear-resistant tires, this configuration slashes operational costs.
Are you ready to dramatically upgrade your heavy equipment transport capabilities? Do not hesitate to contact our technical sales team today to secure a detailed structural blueprint and a highly competitive, factory-direct quotation.

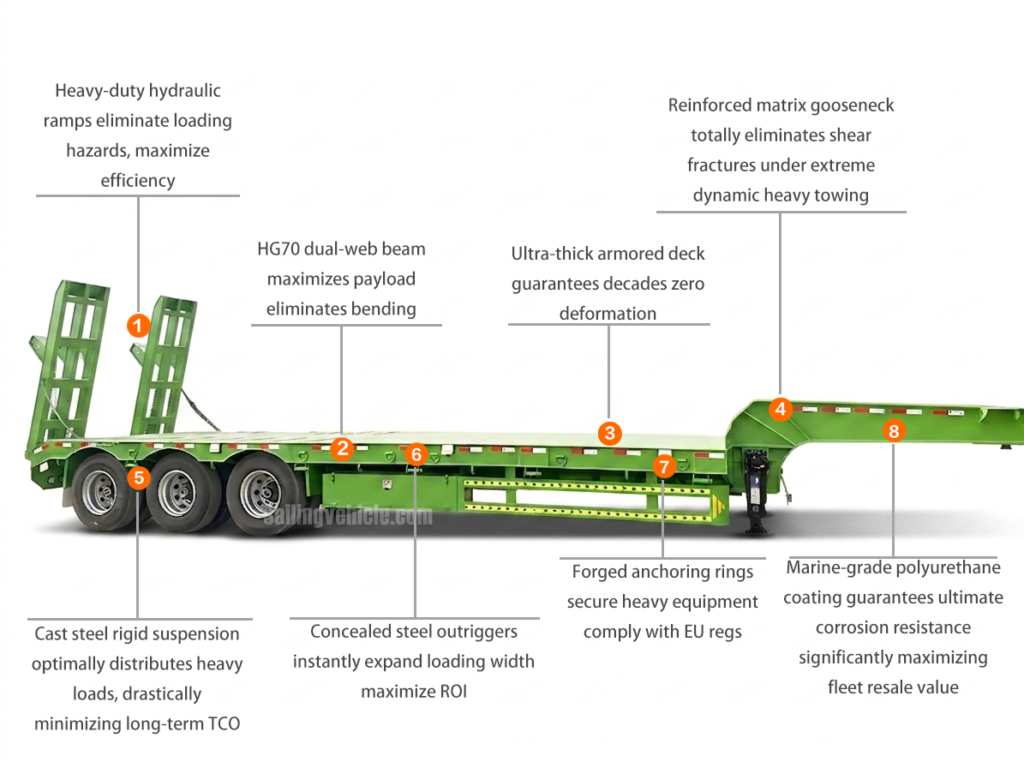

Product Overview
1. Heavy-Duty Hydraulic Ramps
Our heavy-duty hydraulic ramps completely eliminate dangerous manual loading hazards. This advanced automated system maximizes daily operational efficiency, allowing your crew to swiftly and safely load massive machinery without any physical strain.
2. HG70 Dual-Web Beam
Constructed with an advanced HG70 dual-web beam, this robust chassis maximizes your total payload capacity. It completely eliminates catastrophic bending risks under extreme stress, definitively guaranteeing unparalleled structural longevity and reliable performance.
3. Ultra-Thick Armored Deck
The ultra-thick armored deck rigorously disperses extreme concentrated weights from massive machinery. Engineered for severe industrial applications, this heavy-duty platform confidently guarantees decades of zero deformation, perfectly securing your valuable equipment investments.
4. Reinforced Matrix Gooseneck
An exceptionally reinforced matrix gooseneck totally eliminates dangerous shear fractures under extreme dynamic heavy towing. This robust connection point securely links the tractor, guaranteeing flawless stability during the absolute most demanding transportation tasks.
5. Cast Steel Rigid Suspension
Our premium cast steel rigid suspension system optimally distributes heavy loads across all axles. This rugged engineering setup drastically minimizes your long-term total cost of ownership (TCO) while ensuring maximum transit stability off-road.
6. Concealed Steel Outriggers
Featuring heavy-duty concealed steel outriggers, this trailer instantly expands its functional loading width. This incredible versatility effortlessly accommodates oversized machinery, significantly maximizing your versatile fleet ROI and broadening your heavy hauling capabilities.
7. Forged Anchoring Rings
Strategically positioned forged anchoring rings strictly secure heavy equipment during intense transit. Fully complying with the most rigid EU safety regulations, these tie-downs guarantee absolute load stability, preventing dangerous shifts at highway speeds.
8. Marine-Grade Polyurethane Coating
Finished with a premium marine-grade polyurethane coating, the chassis guarantees ultimate corrosion resistance against harsh weather elements. This superior protection significantly maximizes your fleet's lifespan and drastically boosts its long-term resale value.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
