| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | Heavy-duty Lowbed Semi-trailer | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
16700×3000×2930 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with the design drawings, with heavy-duty structural | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based...) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |
| 14 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 19 | Lashing Winch | Available in large quantities. | |
| 20 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||
Heavy-duty lowbed semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 8,000 – 10,000 USD（Prices vary by configuration）
Looking for a reliable heavy-duty lowbed semi-trailer? Maximize your fleet’s efficiency with our premium transport solutions. Contact us for a quote today!
Brand: TSV-SAILING
Model: TSV202606-H
Type: Low Bed Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When transporting oversized industrial machinery, investing in a reliable heavy-duty lowbed semi-trailer is crucial for operational success and safety. Designed to handle extreme weights with exceptional stability, our advanced trailers provide the ultimate solution for demanding heavy-haul logistics across various industrial sectors.
Ultimate Performance with Our Heavy-duty Lowbed Semi-trailer
Built to conquer the toughest construction terrains, this heavy-duty lowbed semi-trailer features an engineered HG70 dual-web main beam. This advanced construction maximizes your payload capacity while entirely eliminating fatal bending risks under severe mechanical stress. Supported by a heavily reinforced matrix gooseneck, the chassis effectively prevents shear fractures during extreme towing operations, ensuring your massive cargo reaches its destination safely.
To guarantee longevity in harsh outdoor environments, each unit is meticulously finished with a marine-grade polyurethane coating. This superior paint system offers ultimate corrosion resistance, significantly maximizing your fleet’s resale value. For a deeper understanding of industrial steel grades and their load-bearing properties, you can explore the metallurgy principles on Wikipedia.
Core Technical Specifications
We engineer our transportation solutions to drastically minimize your long-term Total Cost of Ownership (TCO). The precise integration of cast steel rigid suspension and heavy-duty tires guarantees optimal load distribution and completely eliminates blowout risks under severe overloads.
Designed for Seamless Fleet Operations
Operational efficiency is just as important as structural strength. The ultra-thick checkered deck effortlessly withstands heavy track indentations from excavators, guaranteeing decades of maintenance-free operation. When it is time to load, the rear ramps fold down smoothly, allowing massive machinery to drive directly onto the deck securely.
Furthermore, premium landing gear reliably supports the trailer front when uncoupled from the tractor, keeping the entire platform stable and level during extended parking.
Ready to upgrade your transportation fleet with a top-tier heavy-duty lowbed semi-trailer? Our dedicated engineering team is available to customize specifications to suit your project requirements. Contact us today to get a comprehensive quote and expert technical consultation.

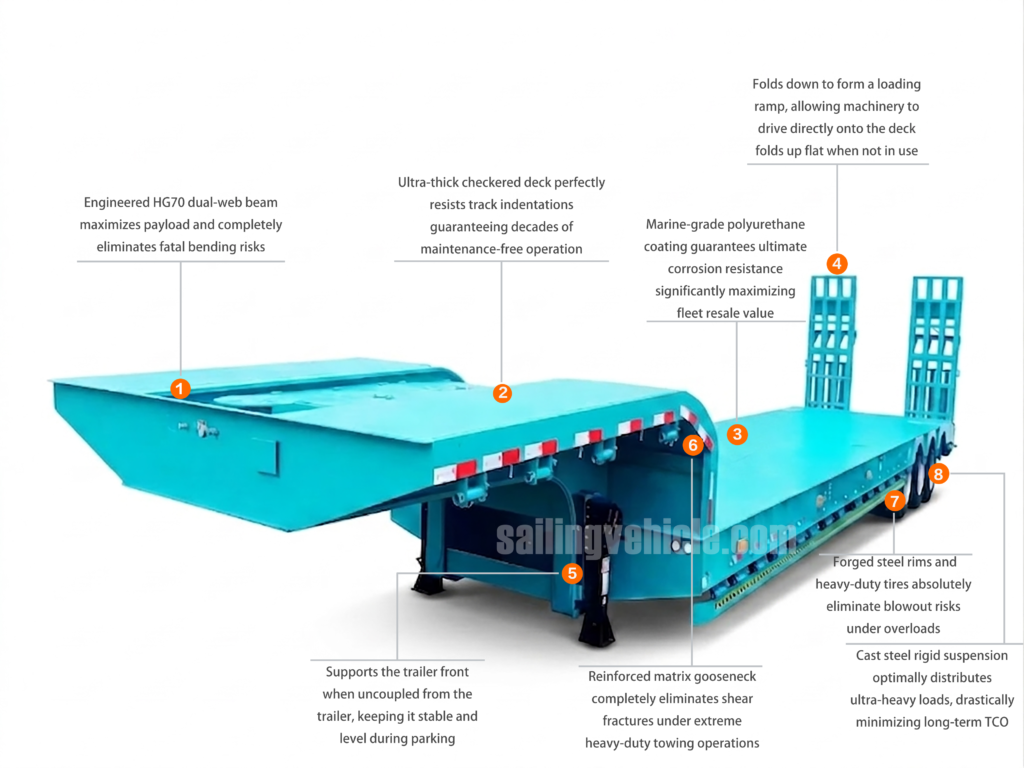

Product Overview
1. Engineered HG70 Dual-web Beam
Constructed with premium engineered HG70 steel, our dual-web beam design maximizes payload capacity. This robust architecture completely eliminates fatal bending risks, ensuring exceptional structural integrity and unparalleled safety during extreme heavy-haul transportation.
2. Ultra-thick Checkered Deck
The ultra-thick checkered steel deck perfectly resists severe track indentations from heavy tracked machinery. This rugged surface guarantees decades of reliable, maintenance-free operation while providing superior grip for safe equipment loading.
3. Marine-grade Polyurethane Coating
Applied with marine-grade polyurethane coating, the trailer offers ultimate corrosion resistance against harsh environments. This premium finish prevents rust degradation, significantly extending lifespan and maximizing your fleet’s long-term resale value.

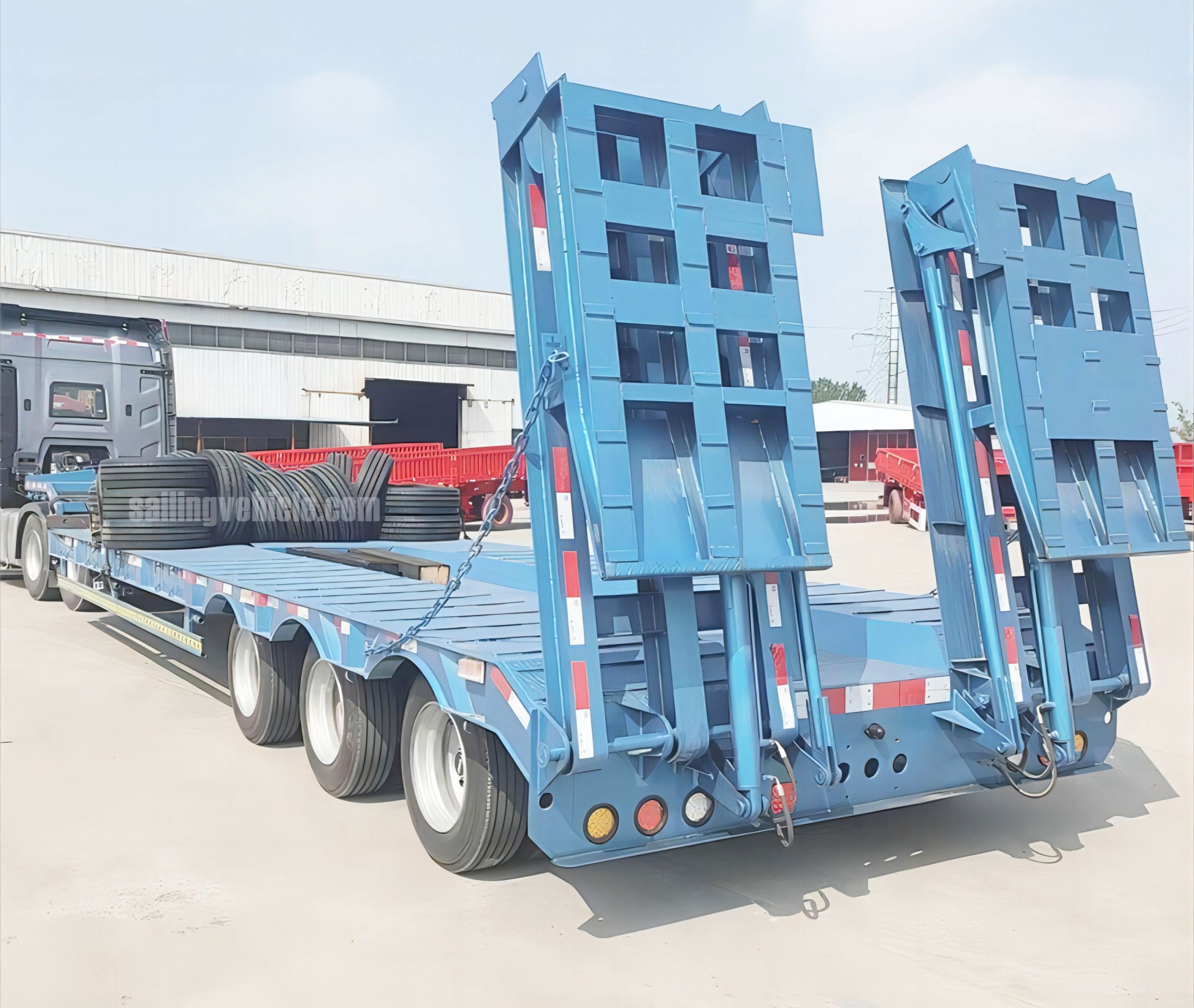

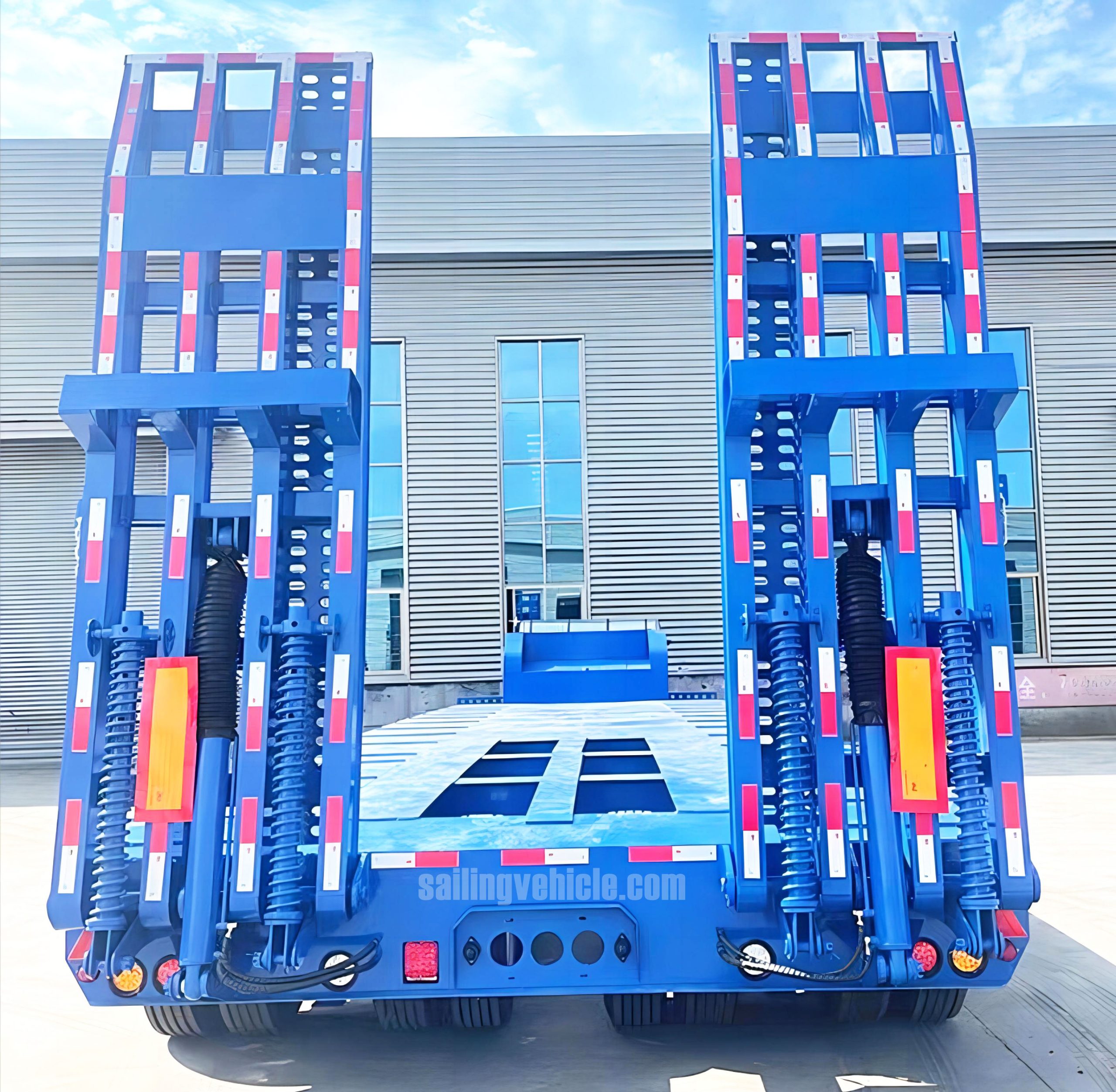

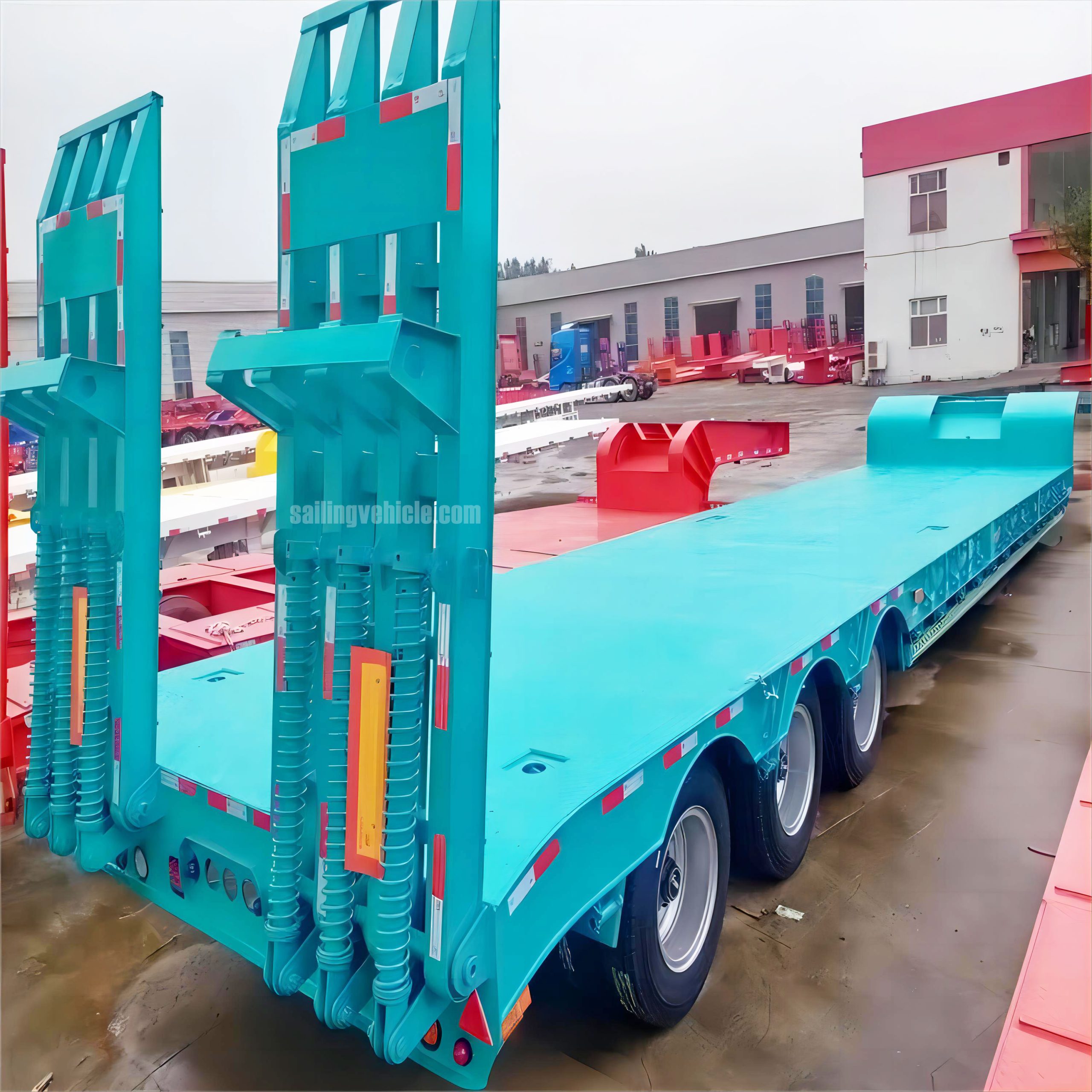

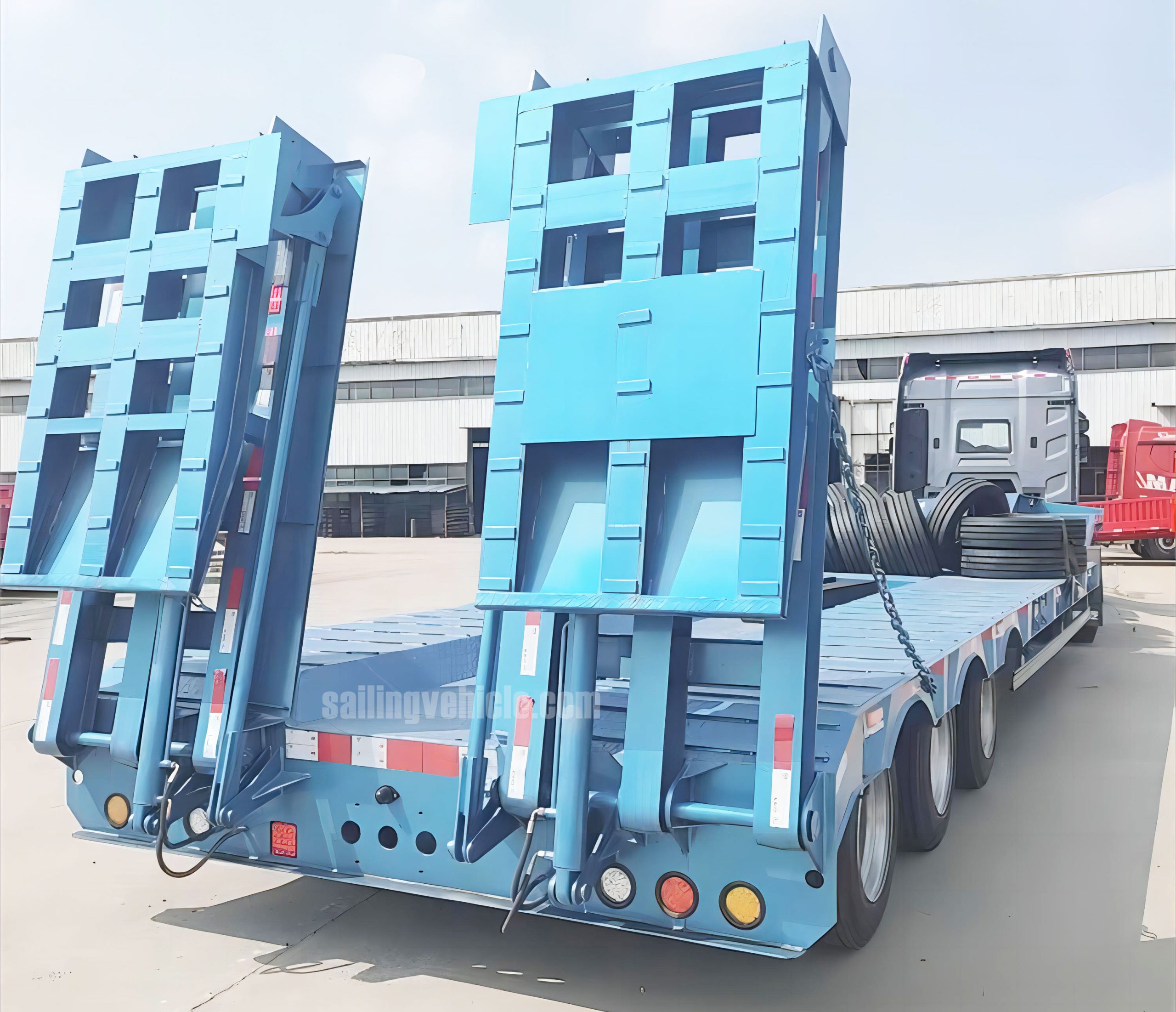

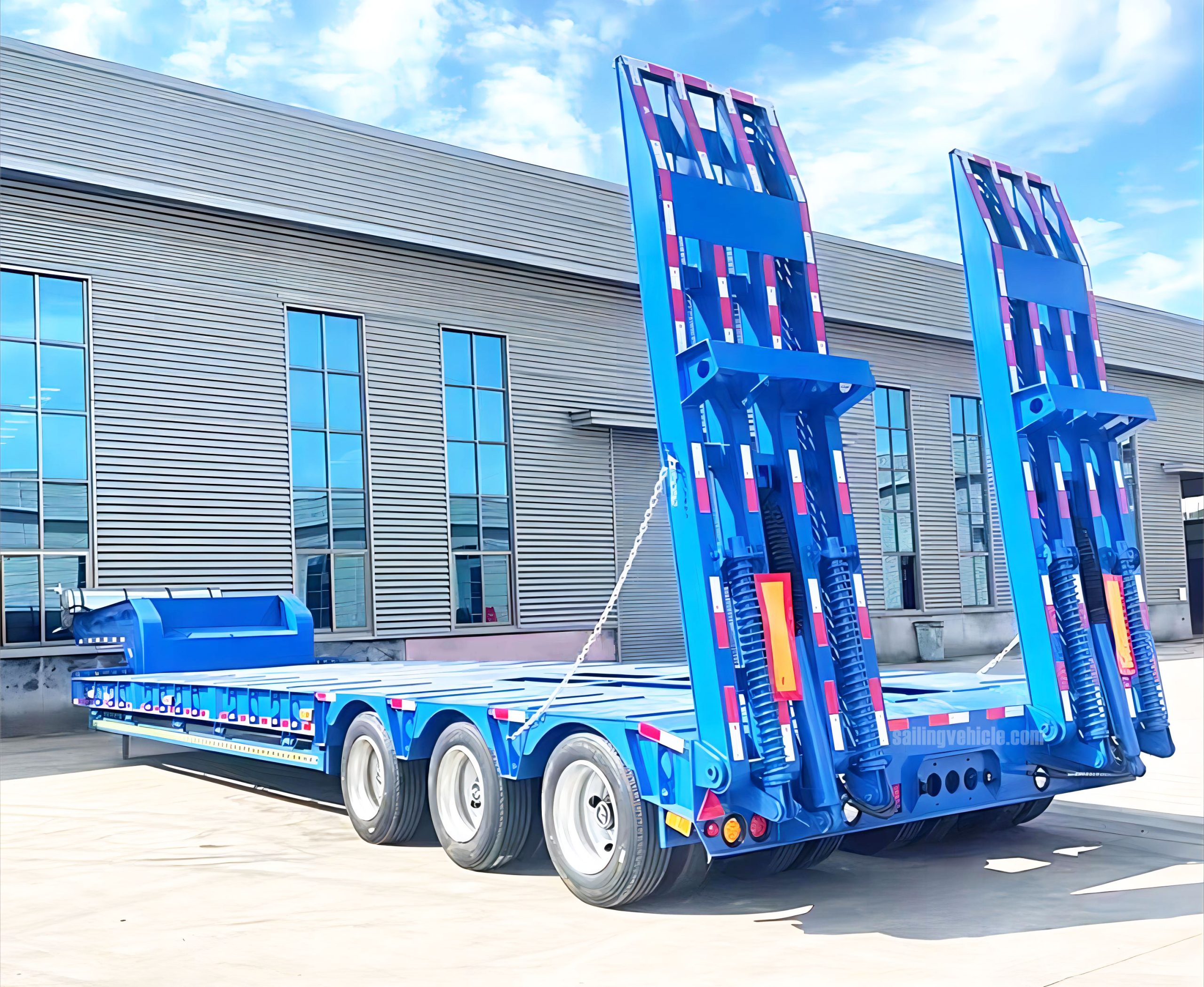

4. Foldable Loading Ramps
Heavy-duty rear ramps effortlessly fold down to form a stable loading surface, allowing massive machinery to drive directly onto the deck. They conveniently fold up flat when not in use.
5. Heavy-duty Landing Gear
Premium heavy-duty landing gear reliably supports the trailer front when uncoupled from the tractor. This robust system keeps your equipment perfectly stable, leveled, and secure during extended parking or loading.

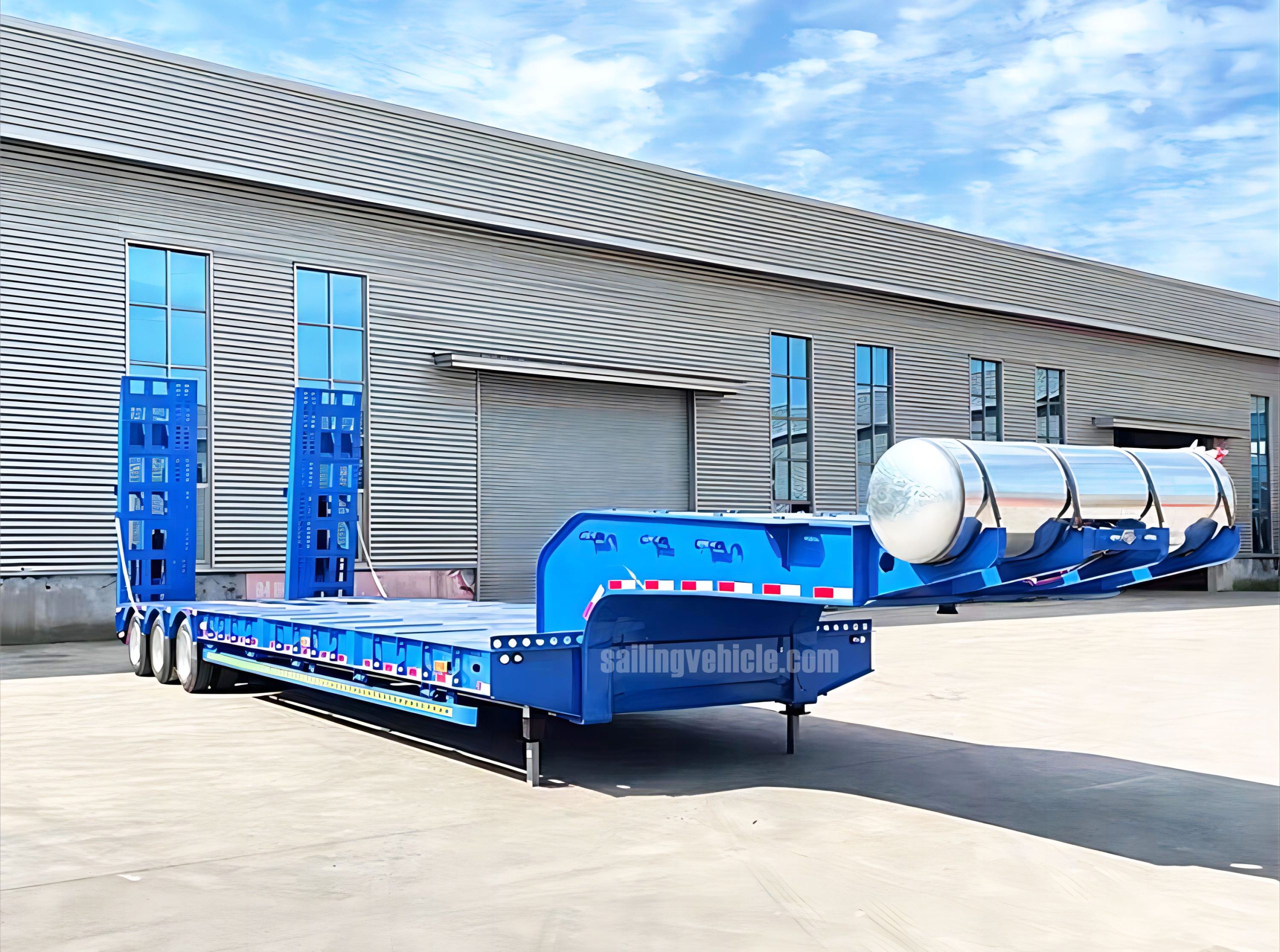

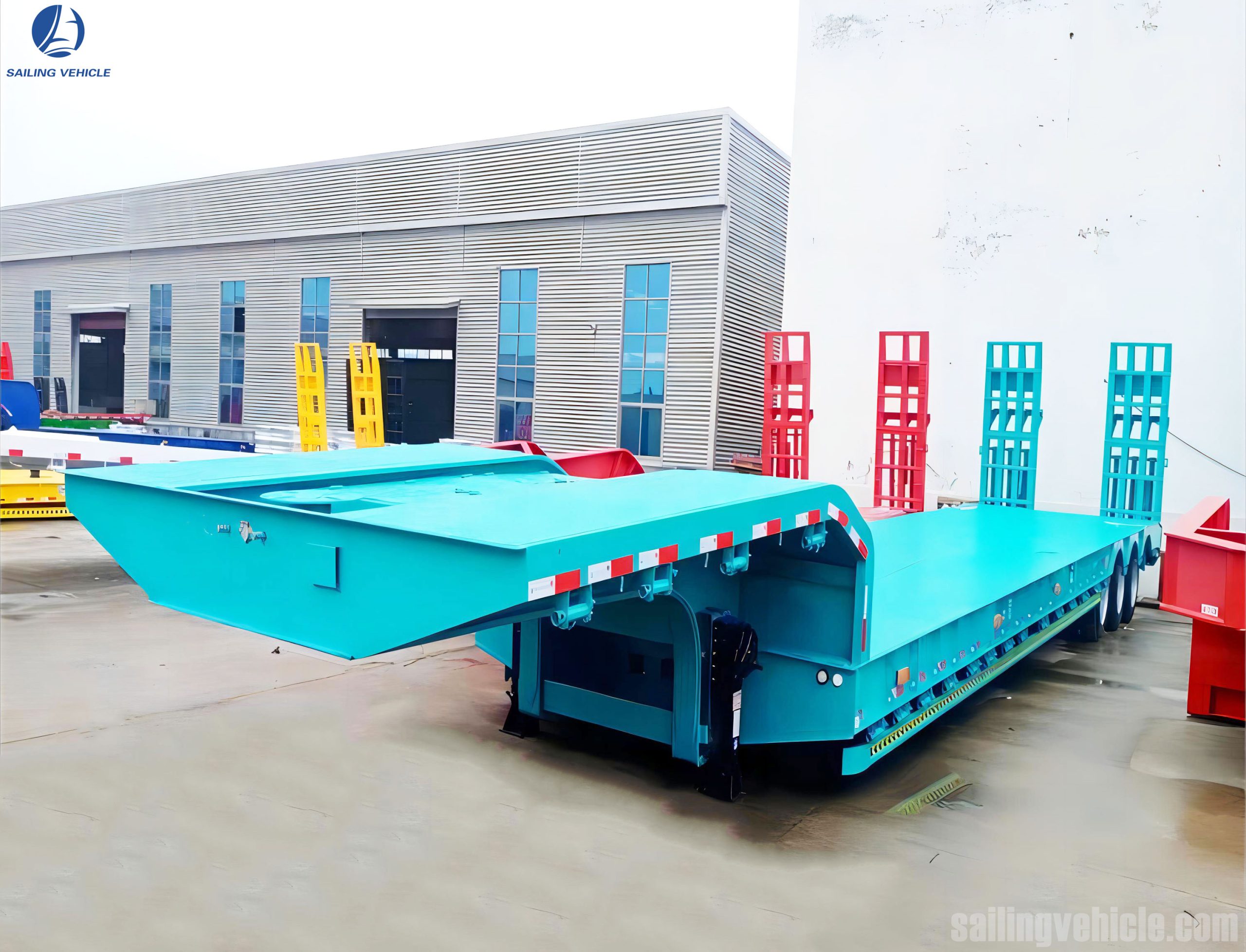

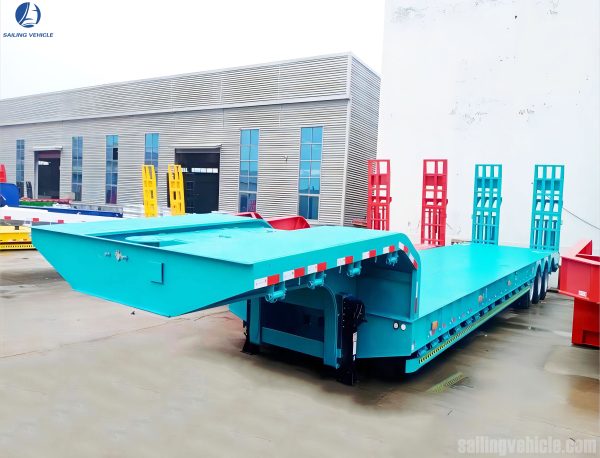

6. Reinforced Matrix Gooseneck
The heavily reinforced matrix gooseneck completely eliminates shear fractures under extreme towing operations. This advanced structural design safely transfers massive forces, ensuring absolute reliability when hauling oversized industrial equipment.
7. Cast Steel Rigid Suspension
Cast steel rigid suspension optimally distributes ultra-heavy cargo weight across all axles. This durable mechanical system drastically minimizes long-term total cost of ownership while providing maximum stability on rough terrains.
8. Forged Steel Rims and Heavy-duty Tires
Equipped with premium forged steel rims and rugged heavy-duty tires, this setup absolutely eliminates dangerous blowout risks under severe overloads, ensuring continuous, safe operation across demanding industrial construction environments.

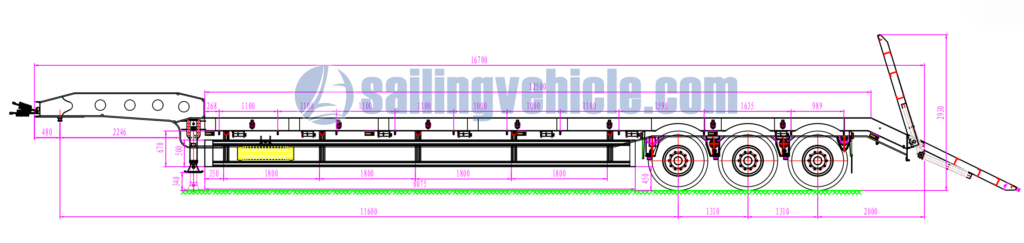

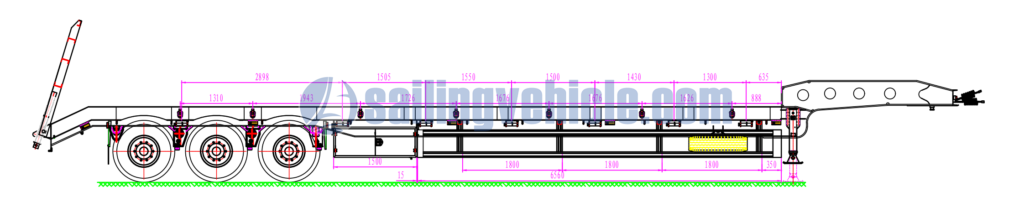

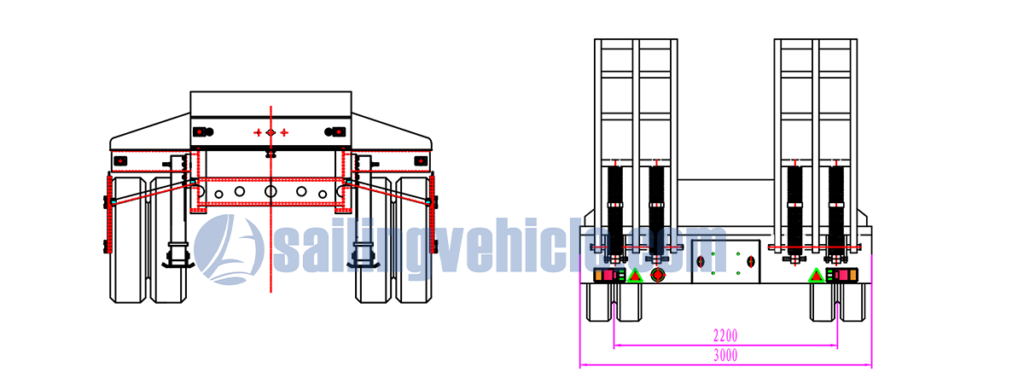

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
