| Tank trailer specification | ||||
|---|---|---|---|---|
| 1 | Medium | CO2 (Liquefied Carbon Dioxide) | ||
| 2 | Overall dimension | 13410x2500x3610mm (L*W*H) | ||
| 3 | Curb weight | 12,388 KG | ||
| 4 | Payload capacity | 27,632 KG | ||
| 5 | Design Speed | <= 80 km/h | ||
| 6 | Design Temperature | -40 ℃ | ||
| 7 | Working Temperature | -38~-15 ℃ | ||
| 8 | Design Pressure | 2.2 MPa | ||
| 9 | Working Pressure | 1.5~2.2 MPa | ||
| 10 | Weld Joint Efficiency | 1 | ||
| 11 | Shell / Head Design Thickness | 11 mm / 8 mm | ||
| 12 | Corrosion Allowance | 1 mm | ||
| 13 | Rated Fill Ratio | 0.9 | ||
| 14 | Filling Density per Unit Volume | 972 kg/m³ | ||
| 15 | Insulation Type | Polyurethane Foam Insulation | ||
| 16 | Tank Gross Weight | 6,050 kg | ||
| 17 | Service life | 15 years | ||
| 18 | Fifth-wheel height | 1250mm (Generally within 1250 - 1450 mm, precise dimensions required based on tractor) | ||
| Tank body specification | ||||
| 19 | Tank shape | Cylindrical round | ||
| 20 | Tank capacity | 28.43 CBM | ||
| 21 | Tank body material | 16MnDR | ||
| 22 | Tank Design thickness | Shell wall | 11 mm | |
| Head wall | 8 mm | |||
| Tank parts specification | ||||
| 23 | Liquid level meter | Type | Double Bellows Differential Pressure type | |
| Model | MZC-II | |||
| Nominal Pressure | 4.0 MPa | |||
| Surveying range | 0~2000 mmWC | |||
| Connection Type | Threaded | |||
| 24 | Loading/Unloading valve | Model | Gas phase | DJS-50A |
| Liquid phase | DJS-50E | |||
| Nominal pressure | 4.0 MPa | |||
| Nominal diameter | Gas phase | 50mm | ||
| Liquid phase | 55mm | |||
| Operation way | Manual | |||
| 25 | Safety valve | Model | DAY-25 | |
| Nominal pressure | 4.0 MPa | |||
| Nominal diameter | DN25mm | |||
| Set pressure | 2.40 MPa | |||
| Re-seating pressure | >= 2.16 MPa | |||
| Rated for relieving pressure | <= 2.64 MPa | |||
| 26 | Pressure gauge | Model | YTN-100 | |
| Connection type | Threaded connection | |||
| Precision | 1.6 grade | |||
| Surveying range | 0~ 4.0 MPa | |||
| 27 | Thermometer | Type | Cryogenic Temperature Gauge | |
| Model | Threaded connection | |||
| Precision | 1.5 grade | |||
| Surveying range | -195℃ ~ +50℃ | |||
| Trailer parts specification | ||||
| 28 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | ||
| 29 | Tire | 12R22.5 & 12 units (Tubeless type) (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | ||
| 30 | Rim | 9.00 & 12 units, high-strength iron. | ||
| 31 | King pin | 50#(2") or 90#(3.5"). Standard bolt type & Brand JOST | ||
| 32 | Landing gear | Capacity 28T, Brand JOST, Model A300C | ||
| 33 | Suspension | Mechanical suspension/leaf springs, 16mm*90mm*10pcs | ||
| 34 | Ladder | 1 unit | ||
| 35 | Spare wheel carrier | 2 units. | ||
| 36 | Mud guard plate | Integrated design plate, carbon steel. | ||
| 37 | Relay valve | Brand WABCO | ||
| 38 | Reverse buzzer | 1 unit. | ||
| 39 | Electric system | 24V, 7-pin socket. National standard. | ||
| 40 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. | ||
| 41 | Painting | Primer layer | One coat of anti-corrosive paint. | |
| Final coat | Two coats of finish paint. | |||
| Color | As the customer's requirements. | |||
| 42 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | ||
| Other equipment | ||||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on the left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding straps.
6. All other necessary accessories. |
||||
CO2 Carbon Dioxide Deliver Pressure Vessel| Factory Price – Sailingvehicle
Price: 45,300 – 48,300 USD （Prices vary by configuration）
Looking for a safe, reliable solution? Our premium CO2 Carbon Dioxide Deliver Pressure Vessel ensures efficient transport. Trigger a quote form today!
Brand: TSV-SAILING
Model: TSV202607-29.6
Type: Carbon Dioxide CO₂ Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 45-60 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly demanding field of B2B industrial logistics, choosing the right semi-trailer equipment is absolutely critical for long-term success. The CO2 Carbon Dioxide Deliver Pressure Vessel is expertly engineered to provide the safest, most efficient liquid transport solution available.
Designed specifically for complex long-haul commercial operations, this advanced semi-trailer guarantees maximum payload capacity. It strictly adheres to rigorous global safety protocols and cryogenic transport standards.
Advanced Engineering of the CO2 Carbon Dioxide Deliver Pressure Vessel
Built to perform effortlessly in the toughest environmental conditions, this heavy-duty tank is perfect for expansive logistics networks. Our comprehensive manufacturing process seamlessly integrates the specialized expertise of three distinct factory subsidiaries: Changhua, Tongya, and Huawo.
This highly coordinated production strategy ensures every CO2 Carbon Dioxide Deliver Pressure Vessel achieves unparalleled structural integrity. The primary tank shell utilizes premium high-grade 16MnDR steel, expertly combined with advanced high-density polyurethane insulation.
By utilizing industry-leading valves and robust suspension systems, cross-border fleet operators can significantly reduce maintenance downtime. For more technical context regarding the chemical properties handled by this equipment, please refer to the authoritative Carbon dioxide Wikipedia page. Safety and operational reliability remain the absolute core focus of our premium cryogenic semi-trailer solutions. Every unit is comprehensively equipped with highly responsive dual safety relief valves alongside an ergonomically designed operational piping box.
This centralized layout enables rapid, highly secure unloading sequences across diverse facilities. It actively protects your human operators while instantly boosting your daily logistical output and overall efficiency. By continually optimizing load weight distribution, fleet managers will immediately experience drastically reduced tire wear. You will also notice superior road stability during highly complex and challenging transit routes.
Upgrading your commercial fleet with this premium equipment guarantees a substantial return on investment through superior reliability. Are you ready to elevate your industrial gas logistics operations? Click the “Download Configuration” button below to trigger our convenient pop-up form. Alternatively, you can visit our Contact Us page to discuss tailored specifications with our professional engineering team today.

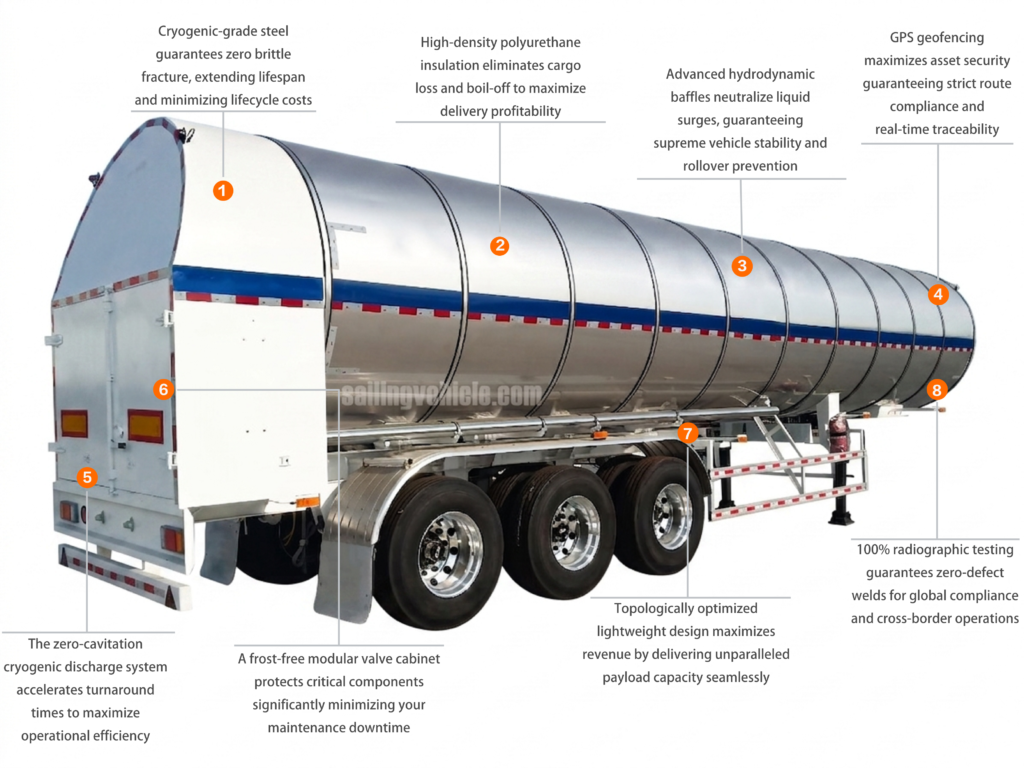

Product Overview
1. Cryogenic-Grade Steel Tank
Maximize your investment with our cryogenic-grade steel tank. Engineered to eliminate brittle fracture risks at extreme temperatures, this ultra-durable shell dramatically extends equipment lifespan while significantly reducing long-term lifecycle maintenance costs for your fleet.
2. High-Density Polyurethane Insulation
Eliminate costly cargo loss with our premium high-density polyurethane insulation. This advanced thermal barrier effectively stops boil-off, ensuring your liquid CO2 arrives perfectly intact, directly maximizing your per-trip delivery profitability and operational efficiency.
3. Advanced Hydrodynamic Baffles
Ensure driver safety with advanced hydrodynamic baffles. These internal structures actively neutralize dangerous liquid surges during transit, guaranteeing supreme vehicle stability, drastically reducing rollover risks, and providing smooth handling across demanding transportation routes.
4. GPS Geofencing System
Protect your high-value assets with our integrated GPS geofencing system. This smart technology maximizes security by guaranteeing strict route compliance, providing real-time fleet traceability, and offering immediate alerts to optimize your logistics management.
5. Zero-Cavitation Discharge System
Accelerate terminal operations using our zero-cavitation cryogenic discharge system. Designed for rapid, smooth fluid transfer, this high-performance mechanism slashes turnaround times, minimizes pump wear, and maximizes daily operational efficiency for your distribution network.
6. Frost-Free Modular Valve Cabinet
Safeguard your critical control components with a frost-free modular valve cabinet. This weather-sealed, accessible enclosure prevents freezing issues, significantly minimizing maintenance downtime, and ensuring seamless operation even in the harshest environmental conditions.
7. Topologically Optimized Lightweight Chassis
Boost your bottom line through our topologically optimized lightweight chassis design. By reducing empty vehicle weight without sacrificing structural integrity, this engineering marvel delivers unparalleled payload capacity, seamlessly maximizing revenue on every dispatch.
8. Radiographically Tested Welds
Guarantee absolute structural integrity with 100% radiographic tested welds. Our zero-defect manufacturing process ensures maximum safety, providing you with complete confidence for global regulatory compliance and seamless cross-border hazardous material transportation operations.

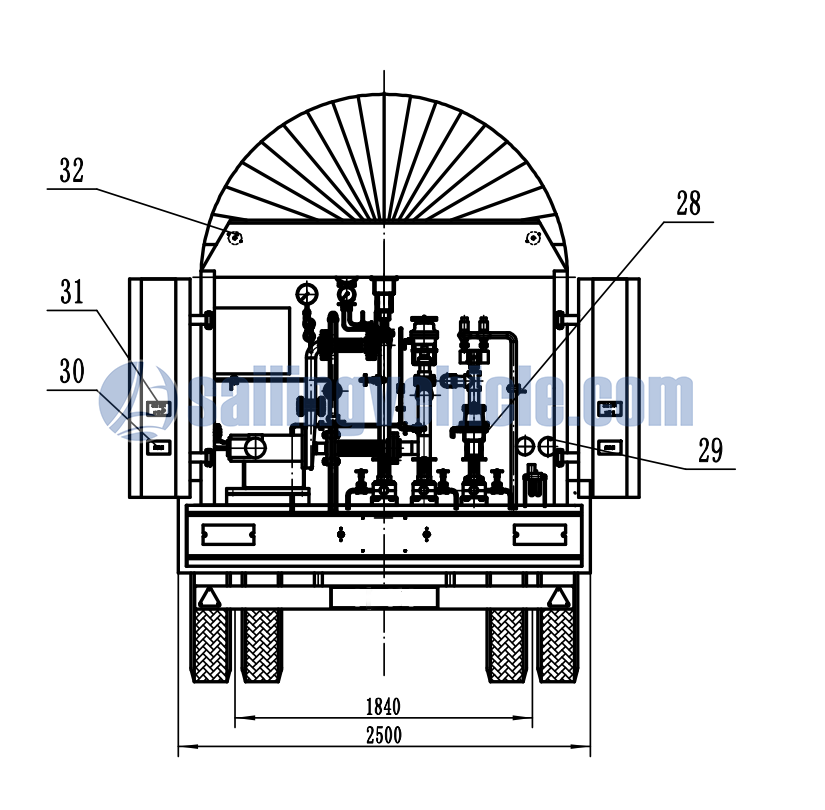

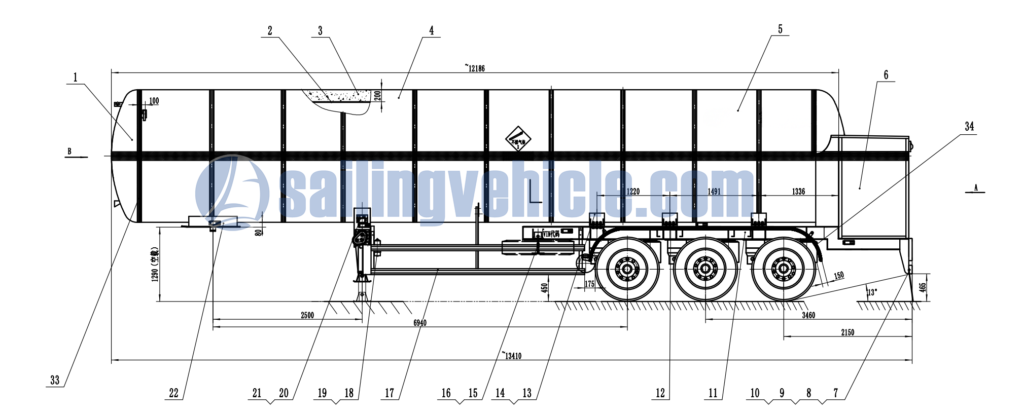

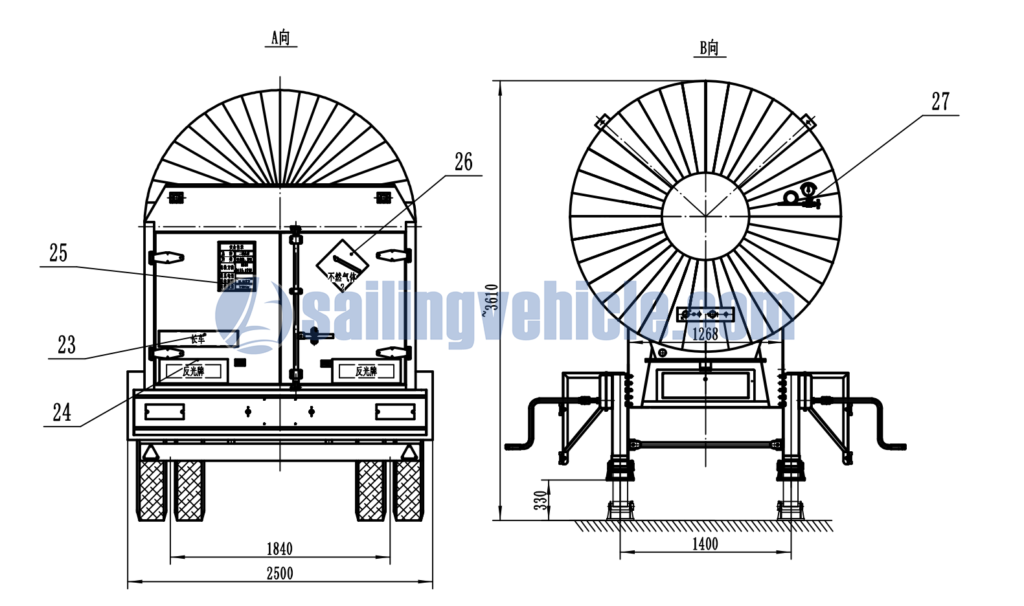

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
