| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10250×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
6000kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 45 CBM | |
| 13 | Tank material | Aluminum alloy, 5182 | |
| 14 | Tank Design thickness | End cover | 6mm |
| Tank body | 5mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||

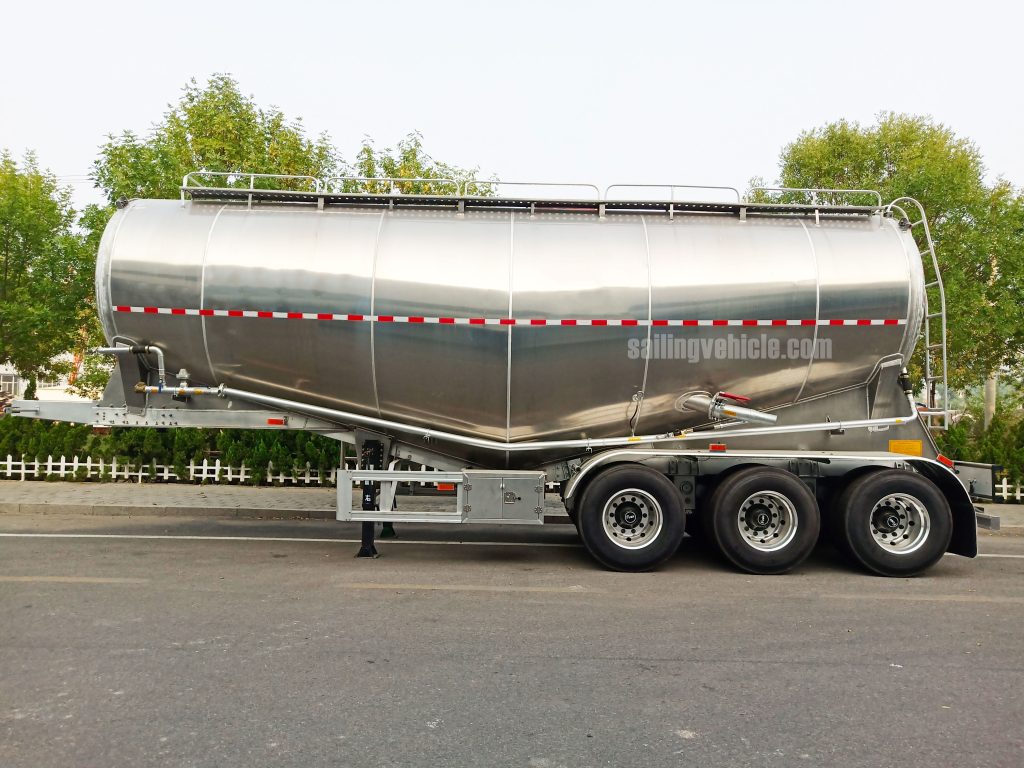

Aluminum Alloy 5182 Bulk Cement Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 22,000 – 24,000 USD（Prices vary by configuration）
Maximize ROI with the Aluminum Alloy 5182 Bulk Cement Tank Semi-trailer. 30% lighter than steel for higher payloads and rust-free durability. Get a quote!
Brand: TSV-SAILING
Model: TSV202012-45
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly competitive logistics industry, optimizing payload capacity is critical. Investing in our premium Aluminum Alloy 5182 Bulk Cement Tank Semi-trailer is the ultimate strategy to maximize your transport efficiency and drastically reduce operating costs. Engineered from high-grade materials, this innovative vehicle offers an unparalleled combination of lightweight construction and heavy-duty performance, ideal for transporting dry powder safely and swiftly.
Advanced Engineering of Our Aluminum Alloy 5182 Bulk Cement Tank Semi-trailer
The core advantage of this specialized trailer lies in its revolutionary lightweight design. By utilizing premium aluminum alloy for both the tank and auxiliary parts, we significantly reduce the tare weight of the vehicle. This massive weight reduction directly translates to a higher maximum payload per trip, increasing your overall profit margins while simultaneously saving fuel. Furthermore, aluminum’s natural corrosion resistance ensures a longer service life, maintaining a clean and safe environment for your transported materials.
Unlike traditional models, this specific trailer features an external air compressor-ready design. By eliminating the onboard engine and compressor, the trailer sheds even more dead weight, further maximizing your legal load limit. To complement this, the integrated electrical and pneumatic quick handshake system ensures stable, leak-free connections to your tractor unit in seconds.
Optimized Unloading and World-Class Components
Efficient unloading is vital for turnaround times. The internal V-shaped fluidization bed guarantees ultra-smooth material flow. This proven aerodynamic geometry accelerates discharge rates and minimizes powder residue, boosting your daily operational throughput.
We refuse to compromise on stability. The trailer rests on globally recognized BPW or Fuwa axles, renowned for their exceptional load-bearing capacity and reduced tire wear. Additionally, the authentic JOST A300C landing gear provides a secure 28-ton support during decoupling.
Understanding the broader context of dry bulk logistics is important; learn more about international bulk cargo transport standards to keep your fleet compliant.
Are you ready to transform your logistics operations with a truly lightweight, high-payload transport solution? Contact our expert team today to discuss custom configurations and secure a competitive quotation for your modern fleet.

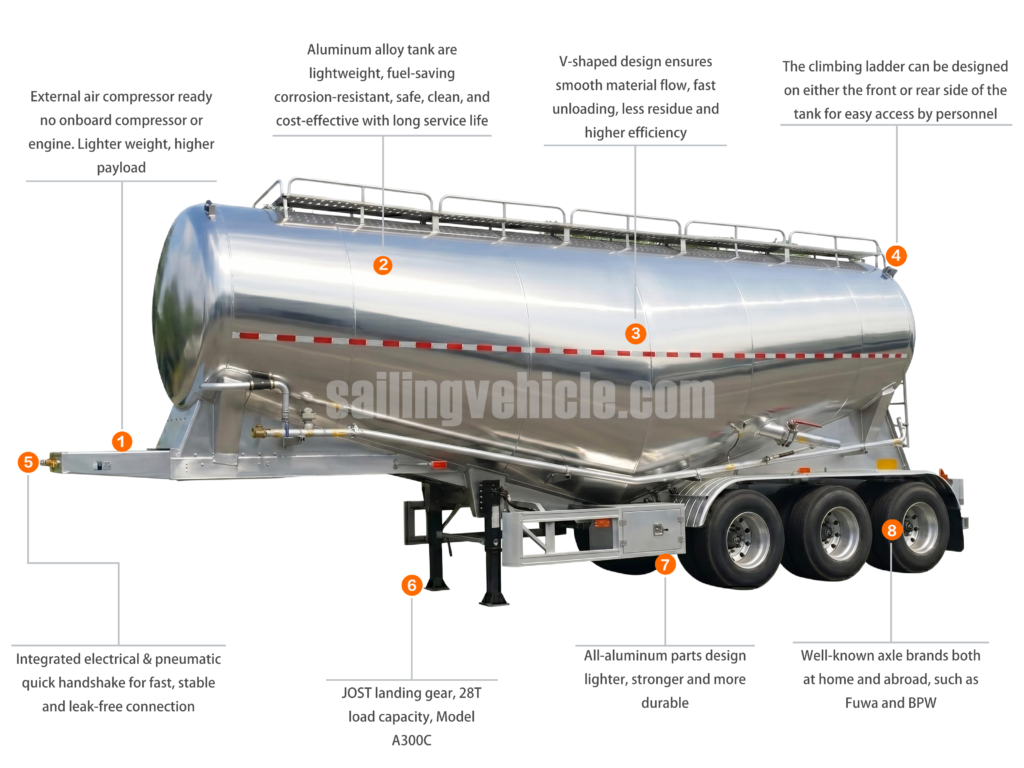

Product Overview
1. External Air Compressor Ready
Maximize your payload capacity with our external air compressor-ready design. By removing the onboard engine and compressor, we drastically reduce tare weight, allowing you to transport significantly more material per trip.
2. Premium Aluminum Alloy Tank
Experience unparalleled fuel efficiency and superior corrosion resistance with our lightweight aluminum alloy tank. This safe, easily cleanable structure dramatically extends service life, providing maximum cost-effectiveness for your entire logistics fleet.
3. V-Shaped Tank Design
Accelerate your unloading speed with our aerodynamically optimized V-shaped tank design. This innovative fluidization structure ensures ultra-smooth material flow, dramatically reducing internal residue and significantly boosting your overall operational efficiency daily.
4. Customizable Climbing Ladder
Ensure safe and convenient personnel access with a highly adaptable climbing ladder. Custom-designed to be positioned on either the front or rear side of the tank, it perfectly matches your specific operational requirements.
5. Integrated Quick Handshake Connection
Achieve rapid deployment with our integrated electrical and pneumatic quick handshake. This premium system guarantees exceptionally fast, highly stable, and completely leak-free connections between the trailer and tractor, minimizing operational downtime.
6. JOST Landing Gear (Model A300C)
Secure your valuable trailer with absolute confidence using the authentic JOST Model A300C landing gear. Featuring a massive 28-ton load capacity, it provides unparalleled structural stability and safety during decoupling operations.
7. All-Aluminum Parts Design
Maximize structural integrity while minimizing weight through our comprehensive all-aluminum parts design. This intelligent engineering approach ensures auxiliary components remain incredibly lightweight, significantly stronger, and vastly more durable against harsh industrial environments.
8. Well-Known Axle Brands (Fuwa/BPW)
Guarantee superior highway stability and outstanding load-bearing capacity with world-renowned BPW or Fuwa axles. These heavy-duty components drastically minimize tire wear, lower maintenance costs, and ensure highly reliable, long-lasting commercial transport performance.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
