| Tank trailer specification | ||
|---|---|---|
| 1 | Description | 8-unit Car Delivery Carrier Semi-trailer |
| 2 | Function | Designed for transporting passenger cars, SUVs, light commercial vehicles, and new energy vehicles. Upper and lower dual-deck configuration for maximum vehicle capacity. |
| 3 | Overall dimensions | 17000x2500x4200 mm ( L x W x H ) (Approx., based on final design drawings. Front extension: 500mm; Rear extension: 1500mm. Height complies with road transport regulations.) |
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. |
| 5 | Material | High-strength carbon steel Q355B, upper flange 14mm, middle 8mm,down 16mm. |
| 6 | Vehicle capacity | 8 standard passenger car (Actual capacity subject to individual vehicle dimensions.) |
| 7 | Loading capacity | 40-60 tons. |
| 8 | Fifth-wheel height | 1350mm (Generally within 1250-1450mm; precise dimensions required based on the customer's truck head.) |
| 9 | Ground clearance | 200mm |
| 10 | Height of loading surface | 435mm |
| Frame Structure | ||
| 11 | Main longitudinal beam | I-shape high-strength steel, variable cross-section. Automatic submerged arc welding was used on the left and right sides. Integrated gooseneck design. |
| 12 | Upper deck | 2 hydraulic lift decks, adjustable height to accommodate different vehicle heights. Load capacity per deck: approx. 15 tons. |
| 13 | Lower deck | Fixed or tiltable lower deck with tire recesses. Anti-slip checkered steel plate, thickness 3mm/4mm/6mm (optional). |
| 14 | Loading ramp | Aircraft-style integrated ramp. |
| 15 | Control system | Electro-Hydraulic Power + Side Control Levers. |
| 16 | Safety Features | Tire Recesses +Wheel Chocks +Tire Stoppers. |
| Running Gear | ||
| 17 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
| 18 | Suspension |
Mechanical suspension, leaf springs,13mm*90mm,10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
| 19 | Tire |
825R20 & 6 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 20 | Rim | 6. 50-20 & 6 units, high-strength iron. |
| 21 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand |
| 22 | Braking system | 2-Line compressed air brake system on all wheels with additional parking brake. |
| 23 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 24 | Spare wheel carrier | 1 unit. |
| 25 | Hubs | Cast steel 10 studs. |
| Electrical & Lighting | ||
| 26 | Electric system | 24V, 7-pin socket, national standard. |
| 27 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 28 | Reverse buzzer | 1 unit. |
| Painting | ||
| 29 | Paintings |
KTL Electrophoresis painting + powder spraying.
One coat of anti-corrosive paint.
Two coats of finish paint.
As per the customer's requirements. |
| 30 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |

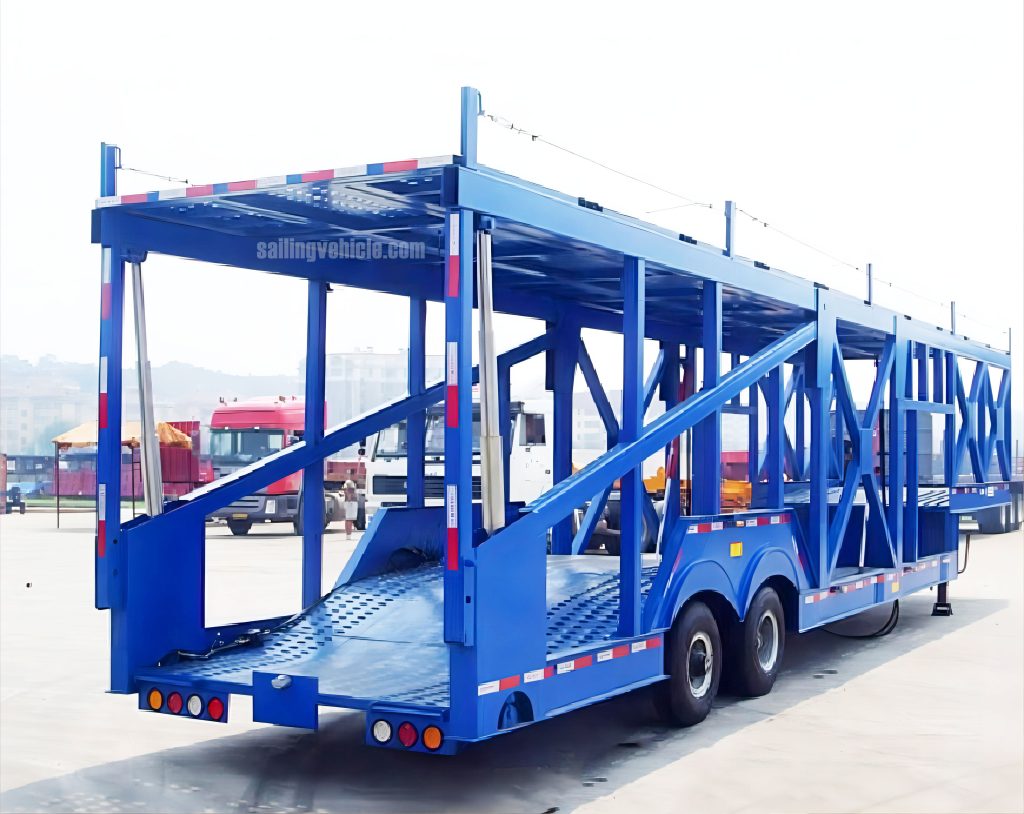

8-unit Car Delivery Carrier Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,400 – 18,400 USD（Prices vary by configuration）
Looking for a proven premium 8-unit Car Delivery Carrier Semi-trailer? Maximize your fleet’s efficiency and safety. Contact info@sailingvehicle.com today!
Brand: TSV-SAILING
Model: TSV202604-8C
Type: Car Carrier Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly competitive global automotive logistics sector, maximizing your transport efficiency is absolutely essential. Our 8-unit Car Delivery Carrier Semi-trailer offers the ultimate commercial transportation solution for large-scale logistics fleets operating across rapidly expanding markets in Africa, the Middle East, and Southeast Asia. Designed explicitly to handle demanding long-haul routes, this premium heavy-duty asset drastically enhances your operational transport capacity while minimizing overall transit expenses.
High-Yield 8-unit Car Delivery Carrier Semi-trailer
Successfully meeting rigorous international B2B trade demands requires unyielding structural durability and intelligent mechanical design. Constructed fundamentally from premium high-tensile Q345B carbon steel, this robust dual-deck commercial vehicle transporter strongly resists critical structural deformation. By actively utilizing world-renowned hardware components like heavy-duty BPW axles and highly responsive WABCO pneumatic braking systems, professional fleet operators can confidently guarantee supreme highway safety. Our 8-unit Car Delivery Carrier Semi-trailer ensures perfectly balanced weight distribution and incredibly consistent driving performance over thousands of miles.
The advanced precision hydraulic lifting mechanics seamlessly integrated into the framework allow operators to execute smooth internal deck adjustments. This vital feature drastically reduces manual vehicle loading and unloading times at busy logistical hubs, directly enabling faster commercial turnaround cycles. Furthermore, the specialized anti-corrosive polyurethane painting process completely ensures the transport trailer effortlessly survives the harshest coastal port environments without rusting or deteriorating.
Every single inch of this meticulously engineered structure aggressively prioritizes maximum cargo security. Strategically positioned dedicated tire tie-down anchor points securely lock down each transported vehicle. This entirely eliminates any dangerous cargo shifting or costly internal collisions during high-speed highway transit. Actively investing in the highly reliable 8-unit Car Delivery Carrier Semi-trailer instantly equips your commercial transport business with an unparalleled competitive edge.
Are you ready to rapidly upgrade your daily logistics operations and safely scale your international shipping volume? Reach out directly to our expert engineering team via our Contact Us page at info@sailingvehicle.com to securely obtain a customized, highly competitive quotation tailored specifically to your regional fleet requirements today.

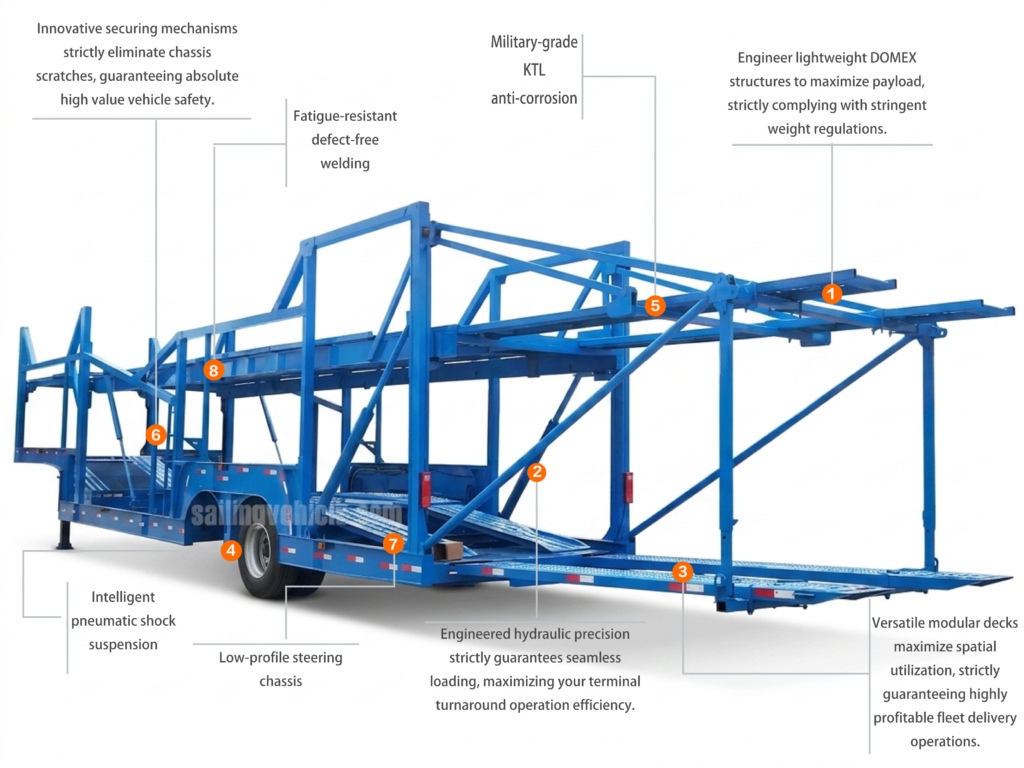

Product Overview
1. Lightweight DOMEX Structures
Engineer lightweight DOMEX structures to aggressively maximize your payload capacity. This advanced material drastically reduces tare weight, ensuring you strictly comply with stringent weight regulations while significantly boosting your overall commercial fleet profitability.
2. Engineered Hydraulic Precision
Deploy engineered hydraulic precision systems to strictly guarantee seamless multi-vehicle loading. This highly advanced mechanism effortlessly maximizes your terminal turnaround operation efficiency, empowering your dock crew to execute rapid, highly profitable daily fleet dispatches.
3. Versatile Modular Decks
Utilize versatile modular decks to rigorously maximize spatial utilization across the trailer. This intelligent structural design strictly guarantees highly profitable fleet delivery operations, effortlessly accommodating diverse vehicle dimensions to powerfully optimize your logistics supply chain.
4. Low-Profile Steering Chassis
Integrate a specialized low-profile steering chassis to massively enhance urban maneuverability. This intelligent running gear safely navigates incredibly tight dealership lots and constrained city routes, dramatically accelerating your high-value vehicle delivery operations.
5. Military-Grade KTL Anti-Corrosion
Apply military-grade KTL anti-corrosion treatments to powerfully protect your investment. This premium chemical barrier entirely eliminates devastating structural rust, exponentially maximizing your commercial operational lifespan and preserving exceptionally high resale value in extreme climates.
6. Innovative Securing Mechanisms
Implement innovative securing mechanisms to strictly eliminate costly chassis scratches. This highly secure load-binding system aggressively guarantees absolute high-value vehicle safety, ensuring pristine zero-damage transit and powerfully protecting your reputation with premium automotive dealerships.
7. Intelligent Pneumatic Shock Suspension
Equip your fleet with an intelligent pneumatic shock suspension system to entirely eliminate harsh transit vibrations. This premium engineering strictly guarantees zero cargo damage, safely delivering delicate automotive electronics and paintwork in absolute pristine condition.
8. Fatigue-Resistant Defect-Free Welding
Execute fatigue-resistant defect-free welding to completely eliminate structural stress failures. This rigorous manufacturing standard securely guarantees a maximum operational lifespan under extreme dynamic loads, providing an incredibly reliable foundation for demanding automotive transport operations.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
