| Tank trailer specification | ||
|---|---|---|
| 1 | Description | 8-unit Car-carrying Semi-trailer. |
| 2 | Function | Designed for transporting passenger cars, SUVs, light commercial vehicles, and new energy vehicles. Upper and lower dual-deck configuration for maximum vehicle capacity. |
| 3 | Overall dimensions | 17000x2500x4200 mm ( L x W x H ) (Approx., based on final design drawings. Front extension: 500mm; Rear extension: 1500mm. Height complies with road transport regulations.) |
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. |
| 5 | Material | High-strength carbon steel Q355B, upper flange 14mm,middle 8mm,down 16mm. |
| 6 | Vehicle capacity | 8 standard passenger car (Actual capacity subject to individual vehicle dimensions.) |
| 7 | Loading capacity | 40-60 tons. |
| 8 | Fifth-wheel height | 1350mm (Generally within 1250-1450mm; precise dimensions required based on the customer's truck head.) |
| 9 | Ground clearance | 200mm |
| 10 | Height of loading surface | 435mm |
| Frame Structure | ||
| 11 | Main longitudinal beam | I-shape high-strength steel, variable cross-section. Automatic submerged arc welding was used on the left and right sides. Integrated gooseneck design. |
| 12 | Upper deck | 2 hydraulic lift decks, adjustable height to accommodate different vehicle heights. Load capacity per deck: approx. 15 tons. |
| 13 | Lower deck | Fixed or tiltable lower deck with tire recesses. Anti-slip checkered steel plate, thickness 3mm/4mm/6mm (optional). |
| 14 | Loading ramp | Aircraft-style integrated ramp. |
| 15 | Control system | Electro-Hydraulic Power + Side Control Levers. |
| 16 | Safety Features | Tire Recesses +Wheel Chocks +Tire Stoppers. |
| Running Gear | ||
| 17 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
| 18 | Suspension |
Mechanical suspension, leaf springs,13mm*90mm,10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
| 19 | Tire |
825R20 & 6 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 20 | Rim | 6. 50-20 & 6 units, high-strength iron. |
| 21 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand |
| 22 | Braking system | 2-Line compressed air brake system on all wheels with additional parking brake. |
| 23 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 24 | Spare wheel carrier | 1 unit. |
| 25 | Hubs | Cast steel 10 studs. |
| Electrical & Lighting | ||
| 26 | Electric system | 24V, 7-pin socket, national standard. |
| 27 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 28 | Reverse buzzer | 1 unit. |
| Painting | ||
| 29 | Paintings |
KTL Electrophoresis painting + powder spraying.
One coat of anti-corrosive paint.
Two coats of finish paint.
As per the customer's requirements. |
| 30 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |

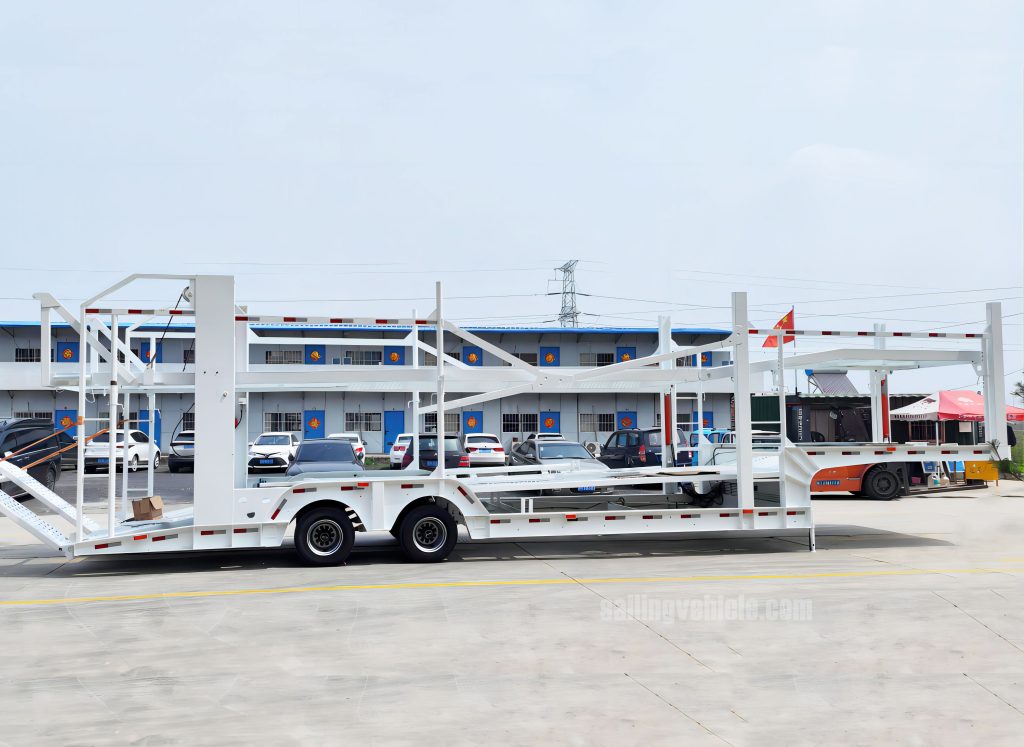

8-unit Car-carrying Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,400 – 18,400 USD（Prices vary by configuration）
Looking for a premium 8-unit car-carrying semi-trailer? Discover our high-capacity transport solutions designed for maximum safety. Contact us today!
Brand: TSV-SAILING
Model: TSV202602-8C
Type: Car Carrier Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Streamline Automotive Logistics with Our 8-unit Car-carrying Semi-trailer
In the highly demanding and fast-paced world of automotive transport, operational efficiency and uncompromising safety are non-negotiable for success. Our premium 8-unit Car-carrying Semi-trailer is meticulously engineered to exceed these industry demands, offering an exceptional balance of structural integrity and logistical flexibility. Designed specifically for professional international logistics fleets, this high-capacity transport solution ensures your valuable vehicles are loaded seamlessly and delivered securely, whether navigating tight urban streets or enduring long-haul cross-country highway routes.
Advanced Engineering and High-Strength Materials
Constructed entirely from premium high-tensile Q345B carbon steel, the reinforced dual-deck structure provides a robust foundation capable of handling heavy, concentrated loads without structural deformation. By integrating a sophisticated hydraulic lifting system equipped with precision control valves, operators can smoothly adjust the upper deck heights. This innovation significantly reduces loading times and minimizes labor costs. Furthermore, the strategic use of world-renowned components, such as heavy-duty 13-ton BPW axles and advanced WABCO pneumatic braking systems, ensures unparalleled on-road reliability. It serves as an indispensable car carrier trailer asset explicitly designed to lower your overall maintenance expenses and drastically maximize your fleet’s daily uptime.
Maximizing Transport Safety and Long-Term Profitability
Cargo safety remains our highest engineering priority. This specialized trailer features strategically placed professional tire tie-down points and high-friction anti-slip platform surfaces, effectively securing your high-value automotive cargo against any dangerous shifting during sudden stops, steep inclines, or sharp turns. Additionally, the comprehensive anti-corrosive polyurethane painting process creates a durable shield, extending the vehicle’s operational lifespan by actively fighting off severe rust and environmental degradation in harsh climates. When you invest in this robust multi-car transporter, you are actively choosing a proven, high-performance tool that instantly enhances your competitive edge in the global vehicle transport market.
For comprehensive pricing details, bespoke customization options, or specialized technical inquiries tailored to your market, please reach out to our dedicated B2B support team. Feel free to explore our website or email us directly at info@sailingvehicle.com to upgrade your hauling capabilities today.

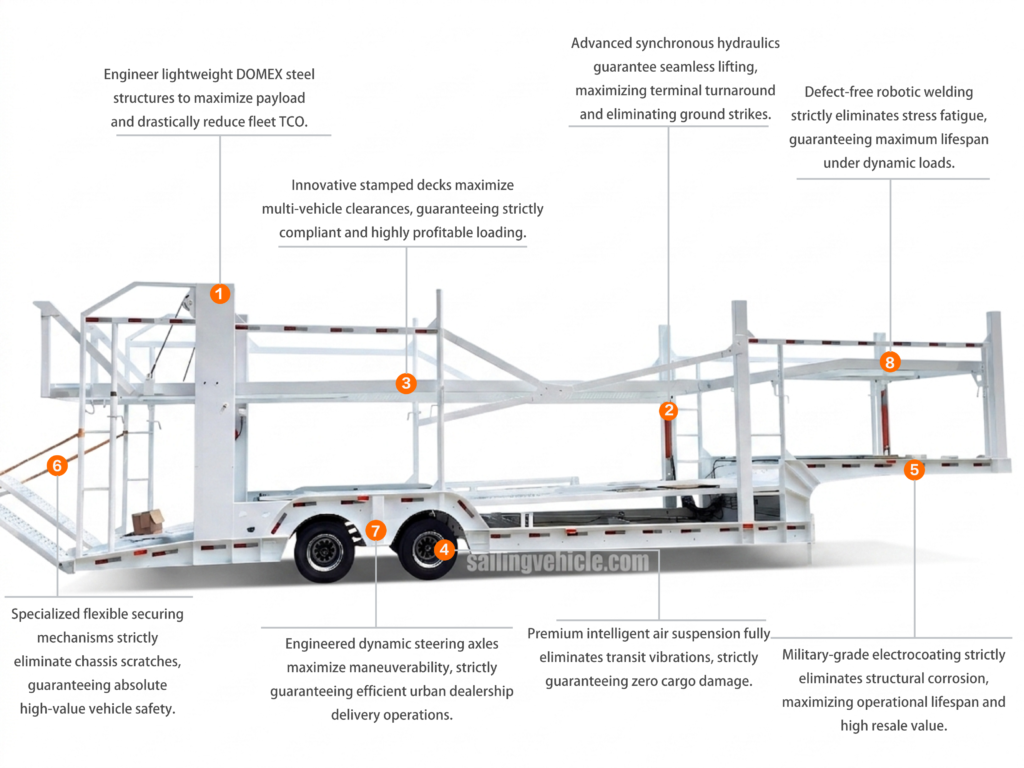

Product Overview
1. Lightweight DOMEX Steel Structures
Engineer lightweight DOMEX steel structures to effortlessly maximize your hauling payload. This advanced, ultra-strong material drastically reduces fleet TCO while maintaining uncompromising structural integrity during demanding heavy-duty B2B auto transport operations.
2. Advanced Synchronous Hydraulics
Deploy advanced synchronous hydraulics to strictly guarantee seamless deck lifting. This premium system maximizes your terminal turnaround efficiency and completely eliminates hazardous ground strikes, safely accelerating your daily automotive loading procedures and boosting profits.
3. Innovative Stamped Decks
Utilize innovative stamped decks to strategically maximize multi-vehicle clearances. This brilliant engineering guarantees strictly compliant and highly profitable loading, allowing your logistics fleet to seamlessly transport diverse vehicle models without hazardous overhead clearance issues.
4. Premium Intelligent Air Suspension
Integrate a premium intelligent air suspension system to fully eliminate dangerous transit vibrations. This high-end shock absorption technology strictly guarantees zero cargo damage, rigorously protecting delicate electronics and ensuring pristine dealership deliveries every time.
5. Military-Grade Electrocoating
Apply military-grade electrocoating to strictly eliminate devastating structural corrosion. This advanced chemical barrier exponentially maximizes your operational lifespan and preserves exceptionally high resale value, fiercely protecting your valuable logistics asset in harsh weather.
6. Flexible Securing Mechanisms
Implement specialized flexible securing mechanisms to aggressively eliminate costly chassis scratches. This highly secure load-binding system strictly guarantees absolute high-value vehicle safety, ensuring zero-damage transit to protect your reputation with premium automotive dealerships.
7. Dynamic Steering Axles
Engineer dynamic steering axles to radically maximize tight urban maneuverability. This intelligent running gear strictly guarantees highly efficient dealership delivery operations, effortlessly navigating constrained city environments and dramatically reducing your overall transit times.
8. Defect-Free Robotic Welding
Execute defect-free robotic welding to strictly eliminate structural stress fatigue. This precision manufacturing standard completely guarantees a maximum operational lifespan under heavy dynamic loads, providing an incredibly robust foundation for multi-vehicle transport operations.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
