| Tank trailer specification | ||||
|---|---|---|---|---|
| 1 | Medium | LPG (Liquefied Petroleum Gas). | ||
| 2 | Overall dimension | 13500*2540*4000mm (L*W*H) | ||
| 3 | Curb weight | 14,000 KG | ||
| 4 | Payload capacity | 26,000 KG | ||
| 5 | Design Speed | <= 80 km/h | ||
| 6 | Design Temperature | -40/50 ℃ | ||
| 7 | Operating Temperature | -40~50 ℃ | ||
| 8 | Design Pressure | 1.61/-0.04 MPa | ||
| 9 | Operating Pressure | <= 1.60 MPa | ||
| 10 | Weld Joint Efficiency | 1 | ||
| 11 | Minimum Design Metal Temperature (MDMT) | -40 ℃ | ||
| 12 | Corrosion Allowance | 1.0 mm | ||
| 13 | Rated Fill Ratio | 0.95 | ||
| 14 | Filling Density per Unit Volume | 420 kg/m³ | ||
| 15 | Hydrostatic Test Pressure | 2.1 MPa | ||
| 16 | Leak Test Pressure | 1.61 MPa | ||
| 17 | Service life | 10 years | ||
| 18 | Service life | 10 years | ||
| 19 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required based on the customer's truck) | ||
| Tank body specification | ||||
| 20 | Tank shape | Cylinder-model and bullet-type design. | ||
| 21 | Tank capacity | 61.9 CBM | ||
| 22 | Tank body material | WH590E | ||
| 23 | End cover material | 16MnDR | ||
| 24 | Tank Design thickness | End cover | 8 mm | |
| Tank body | 11.5 mm | |||
| Tank parts specification | ||||
| 25 | Liquid level meter | Type | Rotary type | |
| Model | ZGM-25-2D | |||
| Nominal pressure | PN2.5Mpa | |||
| Surveying range | 0~2512mm | |||
| Precision | 2.5Grade | |||
| 26 | Emergency cutting valve | Model | Gas phase | QGJ43F-2.5-6 |
| Liquid phase | QGJ43F-2.5-7 | |||
| Nominal pressure | PN2.5Mpa | |||
| Nominal diameter | Gas phase | DN25mm | ||
| Liquid phase | DN50mm | |||
| Operation way | Mechanical | |||
| Closing time | <= 5 Sec | |||
| Melting switch temperature | 75±5 ℃ | |||
| 27 | Safe valve | Model | A412F-2.5-16 | |
| Type | Inner full lift | |||
| Nominal pressure | PN2.5 MPa | |||
| Nominal diameter | DN80mm | |||
| Set pressure | 1.72 MPa | |||
| Re-seating pressure | >= 1.55 MPa | |||
| Rated for relieving pressure | <= 1.93 MPa | |||
| 28 | Inlet and outlet | Model | Gas phase | Q41F-25P-2B |
| Liquid phase | Q41F-25P-5B | |||
| Type | Quick tie-in | |||
| Nominal Diameter | Gas phase | DN25mm | ||
| Liquid phase | DN50mm | |||
| 29 | Pressure gauge | Model | YTN-100T | |
| Type | Threaded connection | |||
| Precision | 1.6 grade | |||
| Surveying range | 0~4 Mpa | |||
| 30 | Thermometer | Model | WTQ-280 | |
| Type | Threaded connection | |||
| Precision | 1.5 grade | |||
| Surveying range | -50~60 ℃ | |||
| Trailer parts specification | ||||
| 31 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | ||
| 32 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | ||
| 33 | Rim | 9.00 & 12 units, high-strength iron. | ||
| 34 | King pin | 50#(2") or 90#(3.5"). Standard bolt type & Brand JOST | ||
| 35 | Landing gear | Capacity 28T, Brand JOST, Model A300C | ||
| 36 | Suspension | Mechanical suspension/leaf springs, 16mm*90mm*10pcs | ||
| 39 | Ladder | 1 unit | ||
| 41 | Spare wheel carrier | 2 units. | ||
| 42 | Mud guard plate | Integrated design plate, carbon steel. | ||
| 43 | Relay valve | Brand WABCO | ||
| 44 | Reverse buzzer | 1 unit. | ||
| 45 | Electric system | 24V, 7-pin socket. National standard. | ||
| 46 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. | ||
| 47 | Painting | Primer layer | One coat of anti-corrosive paint. | |
| Final coat | Two coats of finish paint. | |||
| Color | As the customer's requirements. | |||
| 48 | Delivery | Spray wax before departure and cover with a tarpaulin for protection | ||
| Other equipment | ||||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on the left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding straps.
6. All other necessary accessories. |
||||

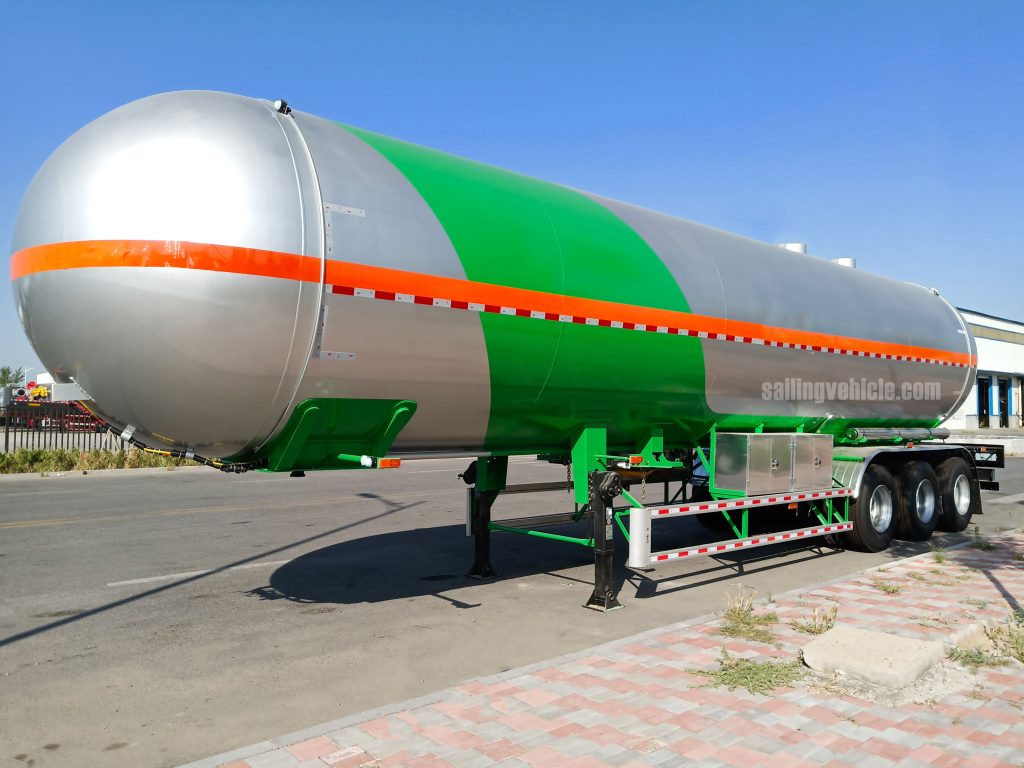

61.9m³ LPG Transport Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 36,800 – 39,800 USD（Prices vary by configuration）
Need a secure liquid gas solution? Discover our ultimate premium 61.9m³ LPG Transport Tank Semi-trailer for reliable logistics. Trigger a quote form today!
Brand: TSV-SAILING
Model: TSV202601-61.9
Type: LPG Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 45-60 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly demanding and constantly evolving sector of industrial B2B gas logistics, selecting the right heavy-duty equipment is absolutely vital for operational success. The 61.9m³ LPG Transport Tank Semi-trailer provides an ultimate, high-capacity transport solution tailored specifically for long-haul liquid gas distribution.
Engineered to thrive in the harshest global environments, this robust semi-trailer is strategically designed to support complex supply chains across emerging markets in Africa, the Middle East, and South America. By prioritizing maximum payload efficiency, it ensures that your logistics fleet operates at peak profitability while strictly complying with the most rigorous international pressure vessel safety standards.
When navigating complex commercial routes, structural integrity is paramount. This specialized semi-trailer actively minimizes the risks associated with hazardous material transport, delivering peace of mind alongside unparalleled performance.
Advanced Engineering of the 61.9m³ LPG Transport Tank Semi-trailer
Our comprehensive manufacturing methodology seamlessly integrates the specialized production expertise of three distinct factory subsidiaries: Changhua, Tongya, and Huawo. This unified, high-precision manufacturing approach guarantees unparalleled structural integrity and consistency for every single semi-trailer we produce.
The primary pressure vessel shell utilizes premium high-tensile Q345R carbon steel. This highly specific metallurgical configuration is expertly welded using submerged arc technologies to effortlessly withstand extreme internal pressures. It provides outstanding durability against dynamic liquid sloshing during transit on unpaved or unpredictable road networks.
By utilizing world-class heavy-duty axles and highly responsive pneumatic braking systems, commercial fleet operators will significantly reduce routine maintenance downtime. For more detailed chemical context regarding the liquid payload safely handled by this equipment, refer to the authoritative Liquefied petroleum gas Wikipedia page.
To continuously support seamless operations in demanding remote locations, the entire semi-trailer chassis undergoes advanced anti-corrosion sandblasting processes. This is immediately followed by the application of premium polyurethane painting. This superior coating technology drastically extends the operational lifespan of the vehicle, providing excellent, long-lasting resistance against severe weather conditions, high humidity, and rough, abrasive terrains.
Safety and operational reliability remain the absolute core focus of our premium transport solutions. Every single unit is comprehensively equipped with highly responsive dual safety relief valves alongside an ergonomically arranged operational piping box. This centralized hardware layout enables rapid, highly secure unloading sequences across diverse industrial facilities. It actively protects your human operators while instantly boosting your daily logistical output and overall supply chain efficiency.
Furthermore, the highly optimized load weight distribution effectively minimizes premature tire wear. This precise engineering ensures superior road stability and prevents dangerous rollovers during highly complex transit routes. Upgrading your commercial fleet with this advanced equipment guarantees a substantial, measurable return on investment through superior reliability and considerably lower operating costs over time.
Are you ready to permanently elevate your supply chain capabilities with world-class, reliable equipment? Click the “Download Configuration” button below to instantly trigger our convenient pop-up form, or visit our Contact Us page to discuss tailored specifications with our professional engineering team today.

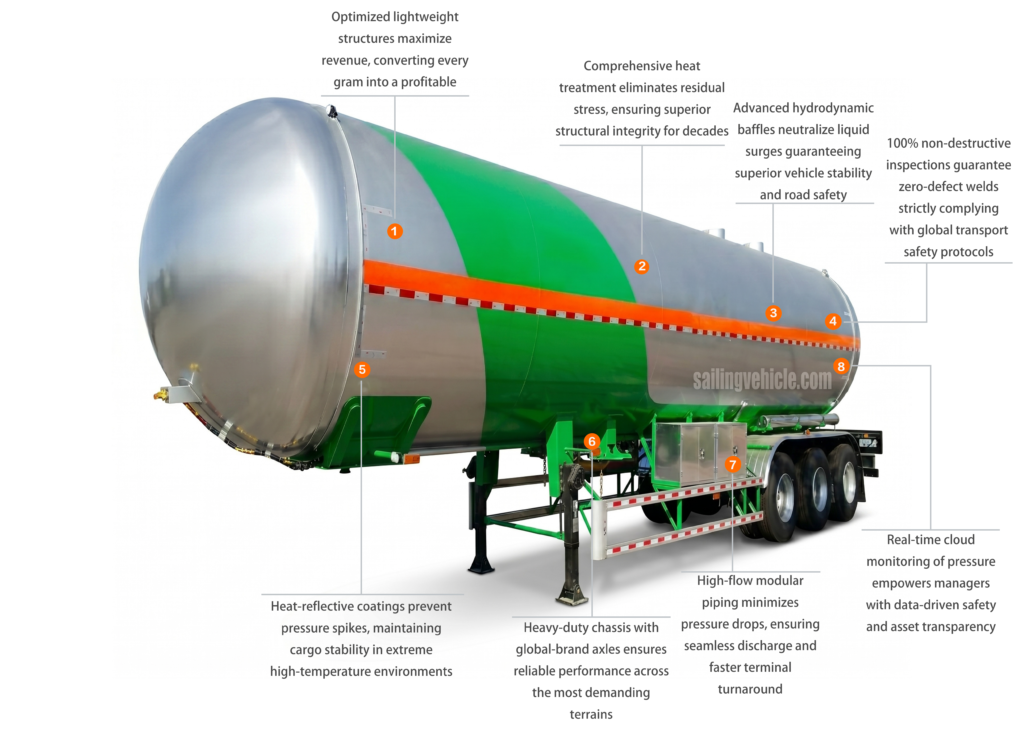

Product Overview
1. Optimized Lightweight Structures
Maximize your payload and boost route revenue. Our optimized lightweight structures convert dead weight into profitable cargo capacity, dramatically increasing your operational margins without ever compromising structural integrity or long-term vehicle durability.
2. Comprehensive Heat Treatment
Ensure decades of reliable service. Our comprehensive heat treatment process eliminates internal residual stress from manufacturing, guaranteeing superior structural integrity and safeguarding your long-term investment against metal fatigue and heavy-duty operational wear.
3. Advanced Hydrodynamic Baffles
Prioritize highway safety and driver security. Advanced hydrodynamic baffles actively neutralize volatile liquid surges during transit, guaranteeing supreme vehicle stability, drastically minimizing rollover risks, and ensuring smooth handling across all driving conditions.
4. 100% Non-Destructive Inspections
Transport hazardous materials with absolute confidence. We mandate 100% non-destructive inspections to guarantee zero-defect welds, strictly complying with global transport safety protocols and ensuring seamless cross-border regulatory approvals for your logistics fleet.
5. Heat-Reflective Coatings
Protect your volatile cargo in extreme climates. Specialized heat-reflective coatings effectively deflect solar radiation, preventing dangerous internal pressure spikes and maintaining crucial cargo stability even in the most demanding, high-temperature environmental conditions.
6. Heavy-Duty Chassis & Axles
Conquer demanding terrains with confidence. A heavy-duty chassis paired with premium global-brand axles ensures exceptionally reliable performance, minimizing mechanical wear, reducing maintenance frequency, and extending the overall operational lifespan of your transport equipment.
7. High-Flow Modular Piping
Accelerate your terminal unloading operations. Our high-flow modular piping design significantly minimizes pressure drops, ensuring a seamless, high-speed discharge process that drastically cuts terminal turnaround times and reliably boosts your daily fleet operational efficiency.
8. Real-Time Cloud Monitoring
Empower your dynamic fleet management. Real-time cloud monitoring of internal pressure provides continuous, data-driven safety oversight, granting logistics managers complete asset transparency and the ability to proactively prevent emergencies during long-haul transport routes.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
