| Tank trailer specification | ||
|---|---|---|
| 1 | Description | 6-unit Car Deliver Carrier with Cloth Cover Trailer |
| 2 | Function | Designed for transporting passenger cars, SUVs, light commercial vehicles, and new energy vehicles. Upper and lower dual-deck configuration for maximum vehicle capacity. |
| 3 | Overall dimensions | 17000x2500x4200 mm ( L x W x H ) (Approx., based on final design drawings. Front extension: 500mm; Rear extension: 1500mm. Height complies with road transport regulations.) |
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. |
| 5 | Material | High-strength carbon steel Q355B, upper flange 14mm,middle 8mm,down 16mm. |
| 6 | Vehicle capacity | 8 standard passenger car (Actual capacity subject to individual vehicle dimensions.) |
| 7 | Loading capacity | 40-60 tons. |
| 8 | Fifth-wheel height | 1350mm (Generally within 1250-1450mm; precise dimensions required based on the customer's truck head.) |
| 9 | Ground clearance | 200mm |
| 10 | Height of loading surface | 435mm |
| Frame Structure | ||
| 11 | Main longitudinal beam | I-shape high-strength steel, variable cross-section. Automatic submerged arc welding was used on the left and right sides. Integrated gooseneck design. |
| 12 | Upper deck | 2 hydraulic lift decks, adjustable height to accommodate different vehicle heights. Load capacity per deck: approx. 15 tons. |
| 13 | Lower deck | Fixed or tiltable lower deck with tire recesses. Anti-slip checkered steel plate, thickness 3mm/4mm/6mm (optional). |
| 14 | Loading ramp | Aircraft-style integrated ramp. |
| 15 | Control system | Electro-Hydraulic Power + Side Control Levers. |
| 16 | Safety Features | Tire Recesses +Wheel Chocks +Tire Stoppers. |
| Running Gear | ||
| 17 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
| 18 | Suspension |
Mechanical suspension, leaf springs,13mm*90mm,10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
| 19 | Tire |
825R20 & 6 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 20 | Rim | 6. 50-20 & 6 units, high-strength iron. |
| 21 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand |
| 22 | Braking system | 2-Line compressed air brake system on all wheels with additional parking brake. |
| 23 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 24 | Spare wheel carrier | 1 unit. |
| 25 | Hubs | Cast steel 10 studs. |
| Electrical & Lighting | ||
| 26 | Electric system | 24V, 7-pin socket, national standard. |
| 27 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 28 | Reverse buzzer | 1 unit. |
| Painting | ||
| 29 | Paintings |
KTL Electrophoresis painting + powder spraying.
One coat of anti-corrosive paint.
Two coats of finish paint.
As per the customer's requirements. |
| 30 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |

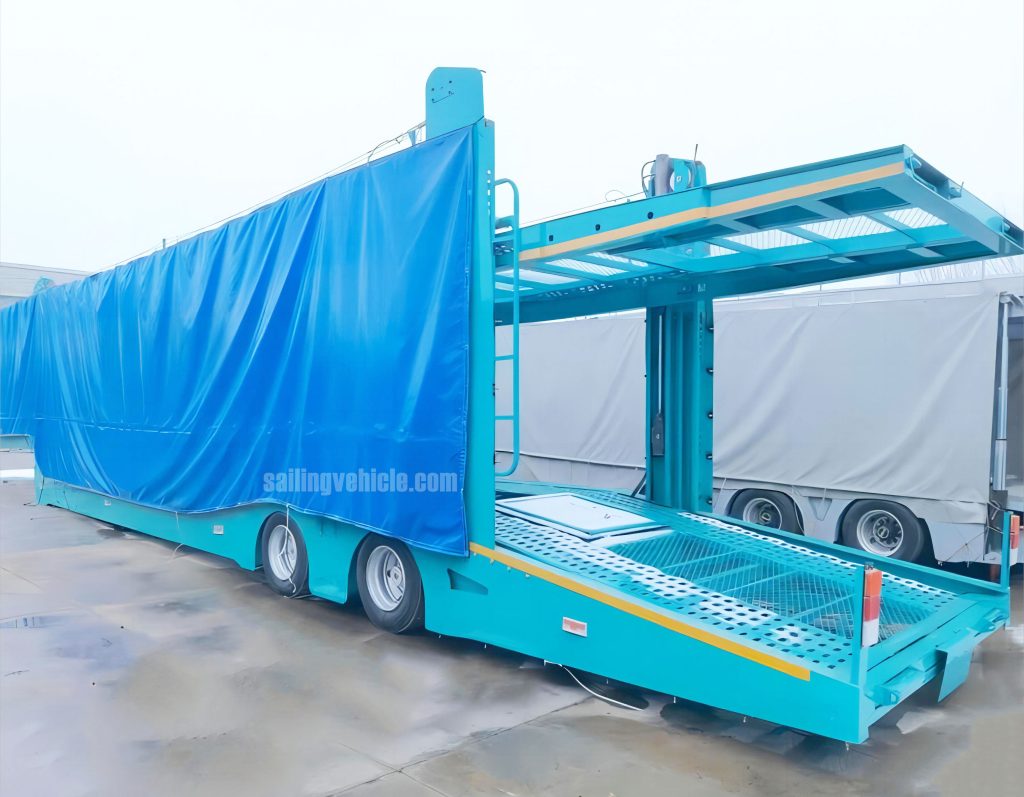

6-unit Car Deliver Carrier with Cloth Cover Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,400 – 18,400 USD（Prices vary by configuration）
Secure your fleet with our premium 6-unit Car Deliver Carrier with Cloth Cover Trailer. Designed for extreme durability and weather protection. Contact us now!
Brand: TSV-SAILING
Model: TSV202606-6C
Type: Car Carrier Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Ultimate 6-unit Car Deliver Carrier with Cloth Cover Trailer
In the highly demanding field of automotive logistics, protecting high-value vehicles during transit is an absolute operational priority. Our highly efficient 6-unit Car Deliver Carrier with Cloth Cover Trailer is meticulously engineered to exceed these rigorous industry demands. This specialized transport solution perfectly balances robust structural engineering with comprehensive exterior weather protection. It ensures every vehicle arrives in pristine condition, completely shielded from road debris, dust, and harsh climates.
Engineered for Maximum Cargo Protection
Unlike standard open carriers, this advanced trailer integrates a high-strength steel framework entirely enveloped in a durable, weather-resistant PVC enclosure. This barrier makes the 6-unit Car Deliver Carrier with Cloth Cover Trailer the ideal choice for safely transporting luxury cars or brand-new dealership inventory across challenging terrains. The structural core utilizes high-tensile Q345B carbon steel for the main beams. This guarantees exceptional load-bearing capacity without compromising handling stability. This premium covered goods trailer serves as an indispensable asset for professional fleets looking to minimize transit damage and significantly reduce costly insurance claims.
Delivering Reliability and Operational Efficiency
Operational efficiency is engineered into the core of this vehicle transport system. The trailer features a precisely calibrated internal hydraulic lifting mechanism, allowing operators to smoothly adjust the internal decks. This drastically cuts down turnaround times at busy logistical hubs. Safety is further reinforced by the integration of world-class components, including highly reliable WABCO pneumatic braking systems and heavy-duty 13-ton axles. These elements work in harmony to deliver superior stopping power and balanced weight distribution on highway routes.
Every single component is rigorously tested to meet strict international trade standards, providing a long-lasting, cost-effective addition to your fleet. Upgrade your logistics capabilities with our enclosed transport solution today. By investing in the 6-unit Car Deliver Carrier with Cloth Cover Trailer, you guarantee maximum ROI. Please Contact Us directly at info@sailingvehicle.com to secure a highly competitive quote tailored to your regional market requirements.

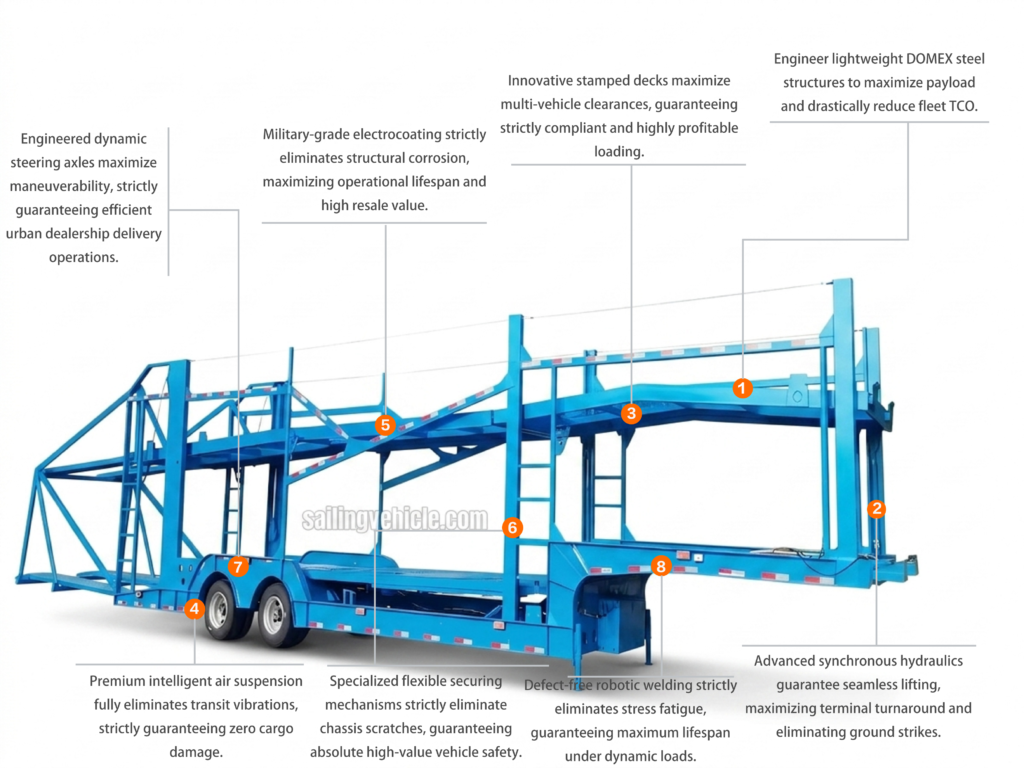

Product Overview
1. Lightweight DOMEX Steel Structures
Engineer lightweight DOMEX steel structures to effortlessly maximize payload capacity. This advanced material drastically reduces your fleet's total cost of ownership while maintaining absolute structural integrity during demanding automotive transport operations.
2. Advanced Synchronous Hydraulics
Deploy advanced synchronous hydraulics to strictly guarantee seamless deck lifting. This premium system maximizes terminal turnaround efficiency and completely eliminates hazardous ground strikes, safely accelerating your daily automotive loading procedures.
3. Innovative Stamped Decks
Utilize innovative stamped decks to strategically maximize multi-vehicle clearances. This brilliant B2B engineering guarantees strictly compliant and highly profitable loading, allowing you to seamlessly transport diverse vehicle models without clearance issues.
4. Premium Intelligent Air Suspension
Integrate premium intelligent air suspension to fully eliminate dangerous transit vibrations. This high-end shock absorption system strictly guarantees zero cargo damage, ensuring pristine dealership deliveries and rigorously protecting valuable automotive freight.
5. Military-Grade Electrocoating
Apply military-grade electrocoating to strictly eliminate devastating structural corrosion. This advanced chemical barrier exponentially maximizes your operational lifespan and preserves high resale value, fiercely protecting your asset in extreme weather conditions.
6. Flexible Securing Mechanisms
Implement specialized flexible securing mechanisms to strictly eliminate costly chassis scratches. This highly secure load-binding system aggressively guarantees absolute high-value vehicle safety, ensuring zero-damage transit for premium automotive logistics fleets.
7. Dynamic Steering Axles
Engineer dynamic steering axles to radically maximize tight urban maneuverability. This intelligent running gear strictly guarantees highly efficient dealership delivery operations, effortlessly navigating constrained city environments and dramatically reducing transit times.
8. Defect-Free Robotic Welding
Execute defect-free robotic welding to strictly eliminate structural stress fatigue. This precision manufacturing standard completely guarantees a maximum operational lifespan under heavy dynamic loads, providing an incredibly robust foundation for multi-vehicle transport.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
