| Tank trailer specification | ||||
|---|---|---|---|---|
| 1 | Medium | LPG( Liquefied Petroleum Gas). | ||
| 2 | Overall dimension | 13500*2540*4000mm (L*W*H) | ||
| 3 | Curb weight | 14,000 KG | ||
| 5 | Payload capacity | 26,000 KG | ||
| 6 | Design Speed | ≤80 km/h | ||
| 7 | Design Temperature | -40/50 ℃ | ||
| 8 | Operating Temperature | -40~50 ℃ | ||
| 9 | Design Pressure | 1.61/-0.04 MPa | ||
| 10 | Operating Pressure | ≤1.60 MPa | ||
| 11 | Weld Joint Efficiency | 1 | ||
| 12 | Minimum Design Metal Temperature (MDMT) | -40 ℃ | ||
| 13 | Corrosion Allowance | 1.0 mm | ||
| 14 | Rated Fill Ratio | 0.95 | ||
| 15 | Filling Density per Unit Volume | 420 kg/m³ | ||
| 16 | Hydrostatic Test Pressure | 2.1 MPa | ||
| 17 | Leak Test Pressure | 1.61 MPa | ||
| 18 | Service life | 10 years | ||
| 19 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based on the customer's truck) |
||
| Tank body specification | ||||
| 20 | Tank shape | Cylinder-model and bullet-type design. | ||
| 21 | Tank capacity | 57.3 CBM | ||
| 22 | Tank body material | WH590E | ||
| 23 | End cover material | 16MnDR | ||
| 24 | Tank Design thickness | End cover | 8 mm | |
| Tank body | 11.5 mm | |||
| Tank parts specification | ||||
| 25 | Liquid level meter | Type | Rotary type | |
| Model | ZGM-25-2D | |||
| Nominal pressure | PN2.5Mpa | |||
| Surveying range | 0~2512mm | |||
| Precision | 2.5Grade | |||
| 26 | Emergency cutting valve | Model | Gas phase | QGJ43F-2.5-6 |
| Liquid phase | QGJ43F-2.5-7 | |||
| Nominal pressure | PN2.5Mpa | |||
| Nominal diameter | Gas phase | DN25mm | ||
| Liquid phase | DN50mm | |||
| Operation way | Mechanical | |||
| Closing time | ≤5 Sec | |||
| Melting switch temperature | 75±5℃ | |||
| 27 | Safe valve | Model | A412F-2.5-16 | |
| Type | Inner full lift | |||
| Nominal pressure | PN2.5 MPa | |||
| Nominal diameter | DN80mm | |||
| Set pressure | 1.72 MPa | |||
| Re-seating pressure | ≥1.55 MPa | |||
| Rated for relieving pressure | ≤1.93 MPa | |||
| 28 | Inlet and outlet | Model | Gas phase | Q41F-25P-2B |
| Liquid phase | Q41F-25P-8B | |||
| Type | Quick tie-in | |||
| Nominal Diameter | Gas phase | DN25mm | ||
| Liquid phase | DN50mm | |||
| 29 | Pressure gauge | Model | YTN-100T | |
| Type | Threaded connection | |||
| Precision | 1.6 grade | |||
| Surveying range | 0~4 Mpa | |||
| 30 | Thermometer | Model | WTQ-280 | |
| Type | Threaded connection | |||
| Precision | 1.5 grade | |||
| Surveying range | -50—80 ℃ | |||
| Trailer parts specification | ||||
| 31 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
||
| 32 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
||
| 33 | Rim | 9.00 & 12 units, high-strength iron. | ||
| 34 | King pin | 50#(2") or 90# (3.5") , Standard bolt type & Brand JOST | ||
| 35 | Landing gear | Capacity 28T, Brand JOST, Model A300C | ||
| 36 | Suspension | Mechanical suspension, leaf springs,16mm*90mm*10pcs | ||
| 39 | Ladder | 1 unit | ||
| 41 | Spare wheel carrier | 2 units. | ||
| 42 | Mud guard plate | Integrated design plate, carbon steel. | ||
| 43 | Relay valve | Brand WABCO | ||
| 44 | Reverse buzzer | 1 unit. | ||
| 45 | Electric system | 24V, 7-pin socket. National standard. | ||
| 46 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
||
| 47 | Painting | Primer layer | One coat of anti-corrosive paint. | |
| Final coat | Two coats of finish paint. | |||
| Color | As the customer's requirements. | |||
| 48 | Delivery | Spray wax before departure and cover with a tarpaulin for protection | ||
| Other equipment | ||||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on the left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding straps.
6. All other necessary accessories. |
||||

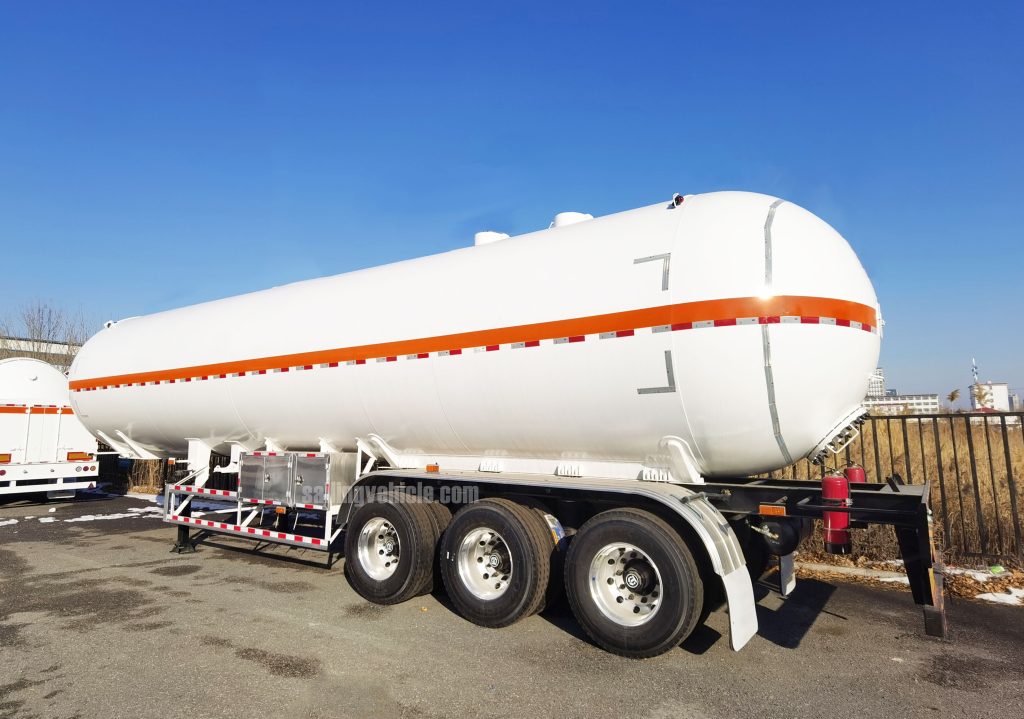

57.3CBM LPG Gas Delivery Pressure Vessel| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 36,800 – 39,800 USD （Prices vary by configuration）
Secure your fleet with our ultimate 57.3CBM LPG Gas Delivery Pressure Vessel. Premium steel ensures zero leaks. Contact us today for a reliable custom quote!
Brand: TSV-SAILING
Model: TSV202606-57.3
Type: LOx/LAr/LN Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 45-60 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When transporting hazardous liquefied petroleum gas, maintaining absolute structural integrity and uncompromising safety is essential for your entire supply chain. Our premium 57.3CBM LPG Gas Delivery Pressure Vessel is expertly engineered to meet and consistently exceed the most rigorous B2B industrial logistics standards worldwide. This robust, high-capacity trailer comprehensively guarantees the secure, highly efficient, and completely temperature-stable delivery of extremely volatile gases over extended long-haul logistics routes, perfectly protecting your valuable commercial assets.
Ultimate Performance of the 57.3CBM LPG Gas Delivery Pressure Vessel
Constructed meticulously from specialized high-yield Q420R pressure vessel steel, the main cylindrical tank body consistently offers exceptional tensile strength alongside superior corrosion resistance. The heavy-duty structural integrity relies heavily on automated submerged arc welding technology, ensuring massive physical stability even under severe internal pressure fluctuations. By seamlessly integrating this advanced metallurgical design, the 57.3CBM LPG Gas Delivery Pressure Vessel significantly reduces your daily maintenance costs. Fleet managers can easily maximize long-term operational lifespan while effortlessly maintaining strict regulatory compliance with highly complex international hazardous material transport protocols.
Advanced Safety and Operational Features
Uncompromising structural safety continuously remains the critical foundation of modern chemical logistics operations. This sophisticated, deeply engineered unit is completely equipped with highly responsive pneumatic emergency shut-off valves, precision magnetic liquid level gauges, and extremely dependable redundant safety relief systems. These integral security components function simultaneously to proactively prevent hazardous internal over-pressurization during intensive daily operations. For industry professionals rigorously reviewing specific thermal and chemical handling properties, you can easily consult official LPG technical specifications for comprehensive compliance and fluid handling guidelines.
To comprehensively optimize high-speed road stability and dynamic load-bearing performance, the specialized heavy-duty trailer aggressively utilizes world-class BPW axles seamlessly paired alongside an ultra-responsive anti-lock braking framework. These highly durable, premium mechanical components consistently minimize uneven tire wear, substantially improve long-distance fuel economy, and decisively maximize emergency braking reliability across physically challenging international terrains. Consequently, strategically investing in this high-performance 57.3CBM LPG Gas Delivery Pressure Vessel directly yields a remarkably low total cost of ownership for your growing industrial business.
Accelerate your daily terminal operational workflow with our meticulously designed, highly ergonomic liquid and vapor piping layout. This intelligent, centralized setup fully empowers terminal operators to confidently manage incredibly fast, completely leak-proof loading and discharging processes safely. Are you thoroughly prepared to strongly upgrade your industrial gas transport fleet with a proven, exceptionally secure solution? Please promptly Contact Us today to thoroughly discuss exact pricing, exclusive custom manufacturing features, and comprehensive global shipping arrangements for your upcoming strategic logistics investment.

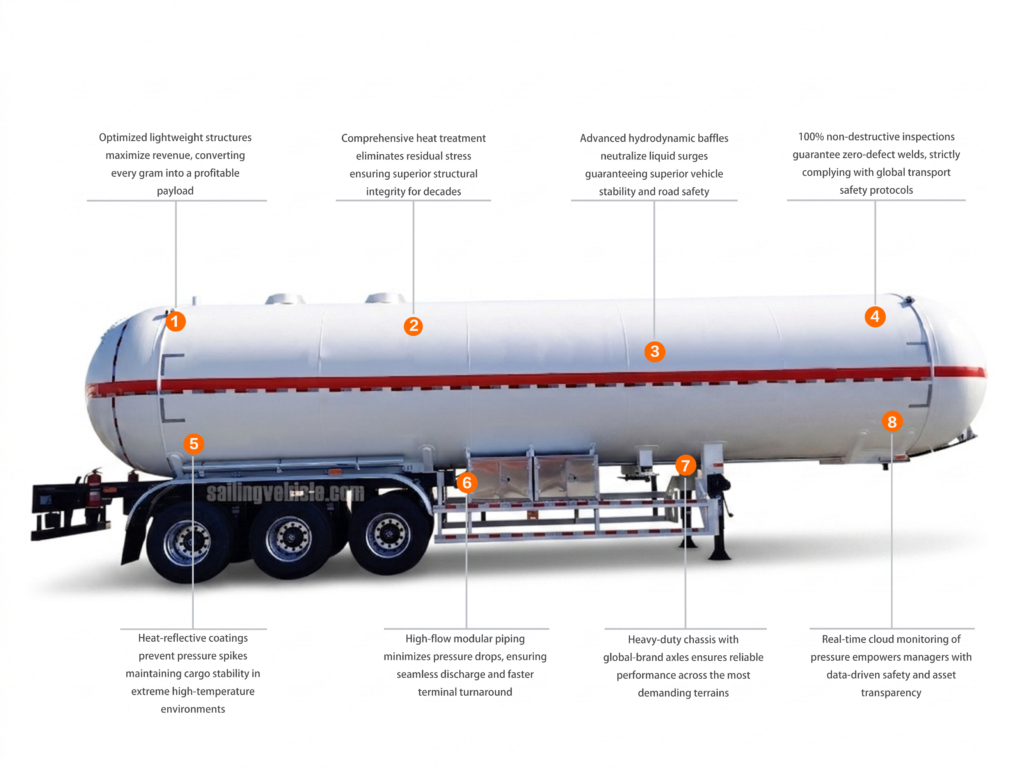

Product Overview
1. Optimized Lightweight Structure
Maximize your revenue potential with our optimized lightweight tank design. By reducing tare weight without compromising strength, this advanced engineering converts every possible gram into a highly profitable payload for your fleet.
2. Comprehensive Heat Treatment
Enjoy decades of reliability. Our comprehensive heat treatment process actively eliminates hazardous residual welding stress. This critical manufacturing step guarantees superior structural integrity, safeguarding your pressure vessel against fatigue in demanding operations.
3. Advanced Hydrodynamic Baffles
Eliminate dangerous highway rollovers. Advanced hydrodynamic internal baffles expertly neutralize volatile liquid surges during transit. This critical safety engineering guarantees superior vehicle stability, protecting your drivers and cargo across unpredictable road conditions.
4. Non-Destructive Weld Inspections
Absolute safety is non-negotiable. We conduct 100% non-destructive inspections to guarantee absolute zero-defect welds. This rigorous quality control strictly complies with global transport safety protocols, ensuring seamless high-pressure gas containment.
5. Superior Heat-Reflective Coatings
Protect your valuable volatile cargo. Specialized heat-reflective exterior coatings effectively prevent dangerous internal pressure spikes. This premium insulation maintains absolute cargo stability, even when operating in extreme high-temperature summer environments.
6. High-Flow Modular Piping
Accelerate your daily operations. Our high-flow modular piping system actively minimizes fluid pressure drops. This optimized engineering ensures seamless gas discharge, guaranteeing significantly faster terminal turnaround times for your logistics fleet.
7. Heavy-Duty Chassis & Axles
Conquer the most challenging routes. A rugged, heavy-duty chassis paired with premium global-brand axles ensures exceptionally reliable performance. This reinforced foundation provides your fleet with unparalleled mechanical stability across demanding global terrains.
8. Real-Time Cloud Monitoring
Take total control of your logistics. Real-time cloud monitoring of internal tank pressure empowers fleet managers with actionable, data-driven safety insights, ensuring unparalleled asset transparency and immediate emergency response capabilities.

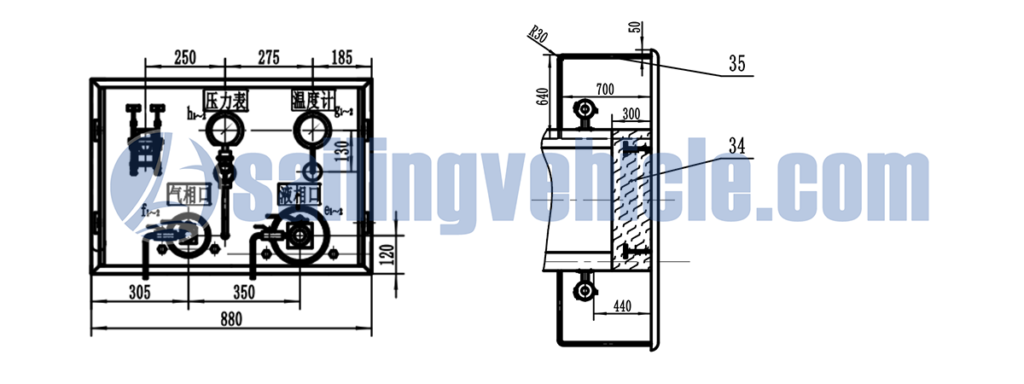

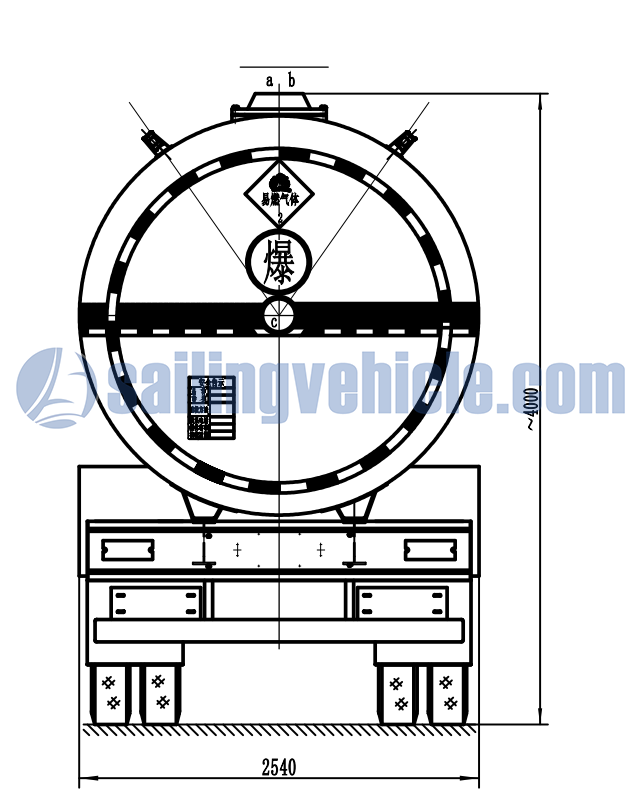

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
