| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10500×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
8500kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 55 CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 4mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||

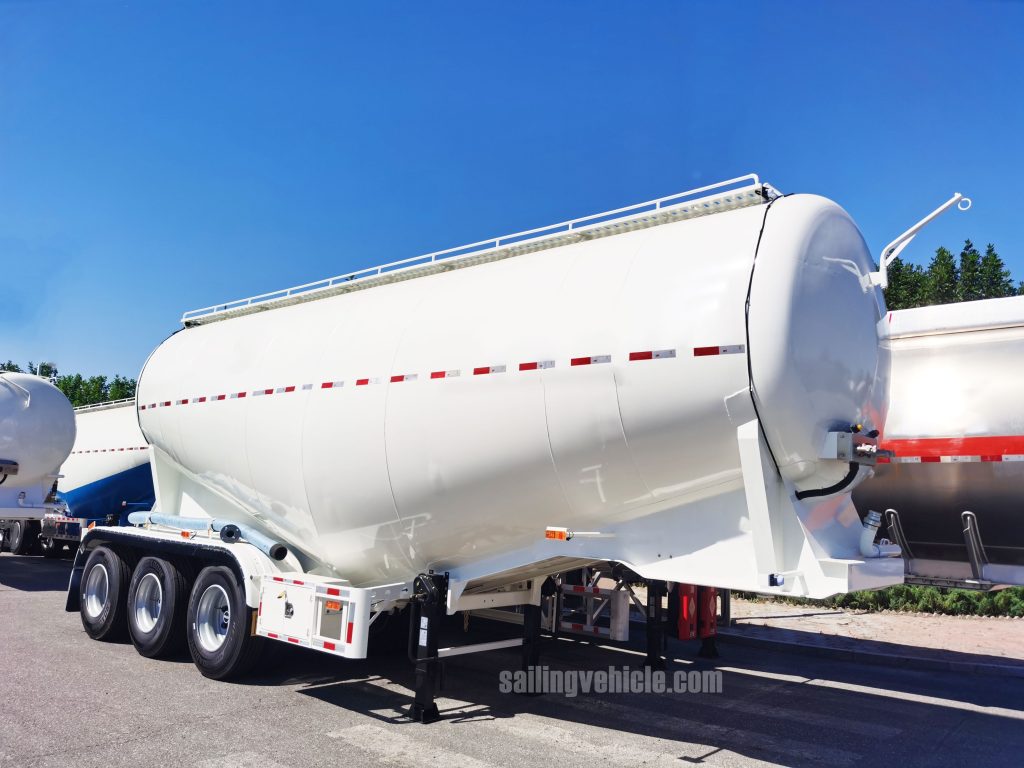

55CBM 3-axle Bulk Cement Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,800 – 17,800 USD（Prices vary by configuration）
Maximize payload with our 55CBM 3-axle Bulk Cement Tank Semi-trailer. High-strength steel, WEICHAI engine, and fast pneumatic discharge. Get a factory quote!
Brand: TSV-SAILING
Model: TSV202008-55
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
For large-scale construction and infrastructure projects, maximizing payload and minimizing unloading time is crucial for profitability. The 55CBM 3-axle Bulk Cement Tank Semi-trailer is engineered specifically to meet these demanding B2B logistics requirements. By adopting an innovative, engine-free design, this trailer significantly reduces its tare weight, allowing your commercial fleet to transport maximum product volume while strictly adhering to highway weight regulations.
High-Efficiency Design of the 55CBM 3-axle Bulk Cement Tank Semi-trailer
The core advantage of this heavy-duty commercial vehicle lies in its highly optimized V-shaped tank design. This geometry ensures a rapid, smooth material flow during pneumatic discharge, dramatically reducing leftover powder residue and accelerating fleet turnaround times.
Unlike traditional self-contained models, it is configured to be strictly external air compressor ready. Removing the heavy onboard diesel engine and compressor translates directly to a much lighter overall weight and a correspondingly higher payload per trip. You can explore more about the dynamics of pneumatic conveying on the Wikipedia bulk material handling page.
Premium Components for Maximum Durability
Reliability is non-negotiable in dry bulk transport. This trailer rests upon world-renowned axle brands like Fuwa or BPW, ensuring exceptional load-bearing stability and lower maintenance intervals. Heavy-duty vacuum tires—available in versatile configurations like 385/65R22.5—provide excellent traction on challenging construction site terrains.
Top-tier safety features are also strictly standard. Punched anti-slip treads span the top of the tank, offering maintenance personnel a highly secure walkway. Simultaneously, quick-opening manhole covers guarantee a tight seal and safe, straightforward operation during loading phases. Furthermore, the integration of a 28T capacity JOST A300C landing gear and a robust JOST kingpin ensures highly secure coupling and dependable parking under full load conditions.
Upgrade your fleet’s profitability with this high-efficiency dry bulk transport solution. Ready to configure your trailer specifications and secure factory-direct pricing? Visit our Contact Us page to consult with our specialized B2B sales engineers today.

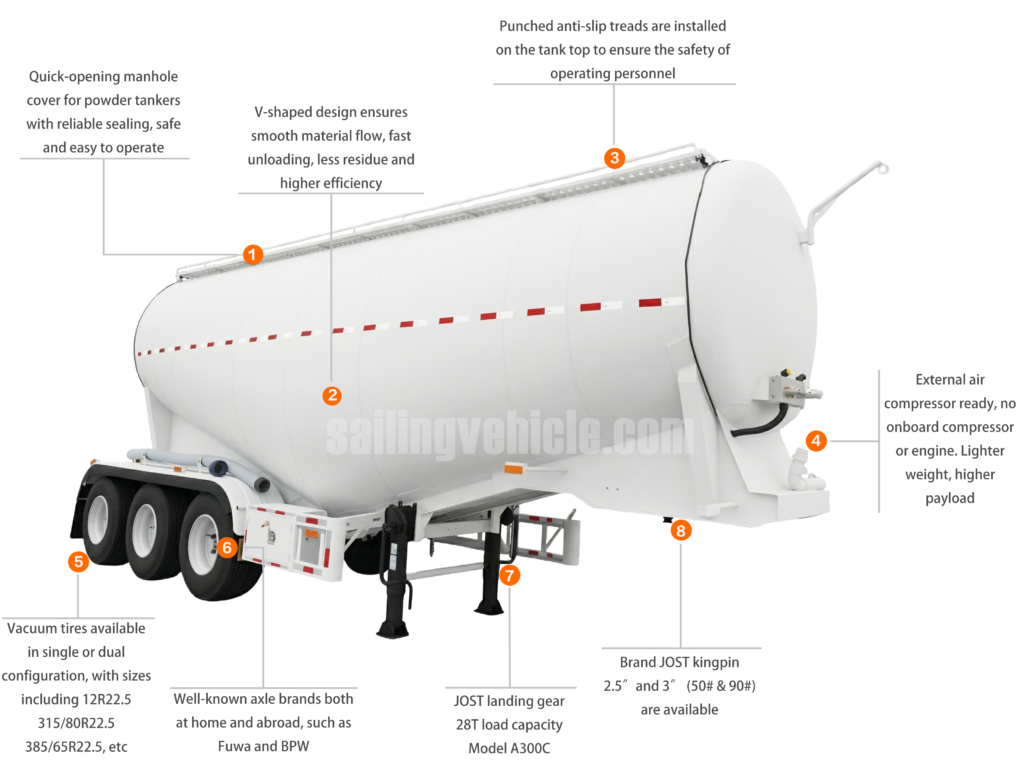

Product Overview
1. Quick-Opening Manhole Cover
Streamline your loading process with our quick-opening powder tanker manhole covers. Engineered for exceptional, reliable sealing, they prevent product contamination while ensuring extremely safe, effortless daily operation for your workforce.
2. V-Shaped Tank Design
Maximize operational efficiency with the specialized V-shaped tank design. This optimized geometry guarantees smooth material flow and ultra-fast unloading rates, practically eliminating internal residue and accelerating your fleet's turnaround times.3. Punched Anti-Slip Treads
Prioritize workplace safety with heavy-duty punched anti-slip treads installed along the tank's top. These rugged walkways provide essential grip, protecting operating personnel from dangerous falls during routine loading and maintenance.
4. External Compressor Configuration
Boost your revenue per trip. Designed to connect to external air compressors, this trailer eliminates heavy onboard engines. This intelligent, lighter-weight design dramatically increases your legally permissible payload capacity and profits.
5. Versatile Vacuum Tires
Conquer varied industrial terrains with premium vacuum tires, available in single or dual configurations. Choose from robust sizes like 12R22.5 or 385/65R22.5 to optimize traction, reduce wear, and lower maintenance costs.
6. Renowned Axle Brands
Ensure maximum load stability with top-tier axles from globally recognized brands like Fuwa and BPW. These heavy-duty components deliver exceptional durability and drastically lower lifecycle maintenance costs for long-haul operations.
7. JOST Landing Gear (A300C)
Secure your investment with the industry-leading JOST A300C landing gear. Featuring a massive 28-ton load capacity, it provides unshakeable stability and supreme safety when the fully loaded trailer is uncoupled.
8. Premium JOST Kingpin
Guarantee safe and reliable tractor-trailer coupling with the authentic JOST brand kingpin. Available in standard 2.5-inch and 3-inch sizes to seamlessly and securely integrate with your existing commercial trucking fleet.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
