| Tank trailer specification | ||||
|---|---|---|---|---|
| 1 | Medium | LNG (Liquefied Natural Gas) | ||
| 2 | Overall dimension | 13000x2500x3920 (L*W*H) | ||
| 3 | Curb weight | 15,400 KG | ||
| 4 | Payload capacity | 24,600 KG | ||
| 5 | Design Speed | < 80 km/h | ||
| 6 | Design Temperature | -20~50 ℃ | ||
| 7 | Working Temperature | -50 ℃ | ||
| 8 | Design Pressure (Inner Vessel / Outer Shell) | 0.65 / -0.1~0.2 MPa | ||
| 9 | Working Pressure (Inner Vessel / Outer Shell) | 0.60 / -0.1 MPa | ||
| 10 | Weld Joint Efficiency | 1 | ||
| 11 | Shell / Head Design Thickness | 3.7mm / 5.15mm | ||
| 12 | Corrosion Allowance | 0 mm | ||
| 13 | Rated Fill Ratio | 0.9 | ||
| 14 | Filling Density per Unit Volume | 457.7 kg/m³ | ||
| 15 | Insulation Type | High-Vacuum Multi-layer Insulation | ||
| 16 | Tank Gross Weight | 10,625 kg | ||
| 17 | Service life | 10 years | ||
| 18 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based on) |
||
| Tank body specification | ||||
| 19 | Tank shape | Cylindrical round | ||
| 20 | Tank capacity | 52.6 CBM | ||
| 21 | Tank body material | S30408 | ||
| 22 | Outer shell material | S30408II | ||
| 23 | Tank Design thickness | Inner vessel wall | 5.5 mm | |
| Outer shell wall | 6.15 mm | |||
| Tank parts specification | ||||
| 24 | Liquid level meter | Type | Combined differential pressure type | |
| Model | WIKAI | |||
| Nominal Pressure | 4.0 MPa | |||
| Surveying range | 0~1500 mmWCmm | |||
| Precision | 2.5Grade | |||
| Connection Type | Threaded | |||
| 25 | Emergency cutting valve | Model | Gas phase | DJQ-40 |
| Liquid phase | DJQ-50 | |||
| Nominal pressure | 2.5 MPa | |||
| Nominal diameter | Gas phase | DN40mm | ||
| Liquid phase | DN50mm | |||
| Operation way | Pneumatic (manual override) | |||
| Closing time | ≤5 Sec | |||
| Melting switch temperature | 75±5℃ | |||
| 26 | Safety valve | Type | Spring-loaded full lift | |
| Model | DAY-25 | |||
| Nominal pressure | 4.0 MPa | |||
| Nominal diameter | DN25mm | |||
| Set pressure | 0.70 MPa | |||
| Re-seating pressure | 0.63 MPa | |||
| Rated for relieving pressure | ≤ 0.78 MPa | |||
| 27 | Flame Arrester | Model | DGZ-40 | |
| Nominal Pressure | 4.0 MPa | |||
| Nominal Size | DN40 | |||
| Connection Type | Welded | |||
| 28 | Pressure gauge | Type | YTN-100 | |
| Model | Threaded connection | |||
| Precision | 1.6 grade | |||
| Surveying range | 0~ 1.6 MPa | |||
| 29 | Thermometer | Type | Cryogenic Temperature Gauge | |
| Model | Threaded connection | |||
| Precision | 1.5 grade | |||
| Surveying range | -196℃ ~ +50℃ | |||
| Trailer parts specification | ||||
| 30 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | ||
| 31 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
||
| 32 | Rim | 9.00 & 12 units, high-strength iron. | ||
| 33 | King pin | 50# (2") or 90# (3.5"). Standard bolt type & Brand JOST | ||
| 34 | Landing gear | Capacity 28T, Brand JOST, Model A300C | ||
| 35 | Suspension | Mechanical suspension, leaf springs,16mm*90mm*10pcs | ||
| 36 | Ladder | 1 unit. | ||
| 37 | Spare wheel carrier | 2 units. | ||
| 38 | Mud guard plate | Integrated design plate, carbon steel. | ||
| 39 | Relay valve | Brand WABCO | ||
| 40 | Reverse buzzer | 1 unit. | ||
| 41 | Electric system | 24V, 7-pin socket, National standard. | ||
| 42 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
||
| 43 | Painting | Primer layer | One coat of anti-corrosive paint. | |
| Final coat | Two coats of finish paint. | |||
| Color | As the customer's requirements. | |||
| 44 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | ||
| Other equipment | ||||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on the left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding straps.
6. All other necessary accessories. |
||||
52.6CBM LNG Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 51,500 – 54,500 USD（Prices vary by configuration）
Looking for a safe and reliable transport solution? Our premium 52.6CBM LNG Tank Semi-trailer ensures efficient cryogenic delivery. Trigger a quote form today!
Brand: TSV-SAILING
Model: TSV202602-52.6
Type: LNG Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 45-60 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When it comes to secure and highly efficient cryogenic transport, the 52.6CBM LNG Tank Semi-trailer stands out as an industry-leading solution. Designed specifically for the rigorous demands of global energy logistics, this specialized semi-trailer guarantees maximum payload capacity while maintaining uncompromised safety standards for the long-haul distribution of liquefied natural gas.
Manufactured with uncompromising precision, our semi-trailer units draw upon the combined engineering excellence of our specialized production facilities, including Changhua, Tongya, and Huawo. This robust manufacturing synergy ensures that every semi-trailer rigorously meets international pressure vessel codes. Built for diverse terrains, these highly durable units are uniquely adaptable for emerging markets, ensuring smooth transport logistics across challenging road conditions without sacrificing structural integrity.
Advanced Engineering of the 52.6CBM LNG Tank Semi-trailer
At the core of this semi-trailer is an advanced high-vacuum multi-layer insulation system, which drastically reduces the daily boil-off gas (BOG) evaporation rate. The tank shell utilizes premium 06Cr19Ni10 stainless steel for the inner vessel, permanently preventing brittleness at extreme cryogenic temperatures (-196°C). Simultaneously, the outer jacket is constructed from heavy-duty Q345R steel to withstand external impacts. By integrating world-class axles and highly responsive pneumatic braking systems, fleet operators experience minimized maintenance downtime, optimized payload distribution, and enhanced road stability.
For a comprehensive understanding of the handling protocols and global regulatory standards governing these sensitive materials, you can review the authoritative Liquefied Natural Gas Wikipedia page.
Safety and operational efficiency remain paramount in cryogenic transport. This semi-trailer is equipped with dual relief valves, accurate liquid level gauges, and highly visible thermal meters, granting operators complete control. The optimized piping layout facilitates rapid sequences, significantly boosting your daily transport volume.
Upgrading your logistics fleet with our advanced equipment ensures long-term cost reduction and superior delivery reliability. Ready to optimize your fleet’s performance? Click the “Download Configuration” button to instantly trigger our pop-up form, or Contact Us to request a customized quotation tailored perfectly to your business needs.

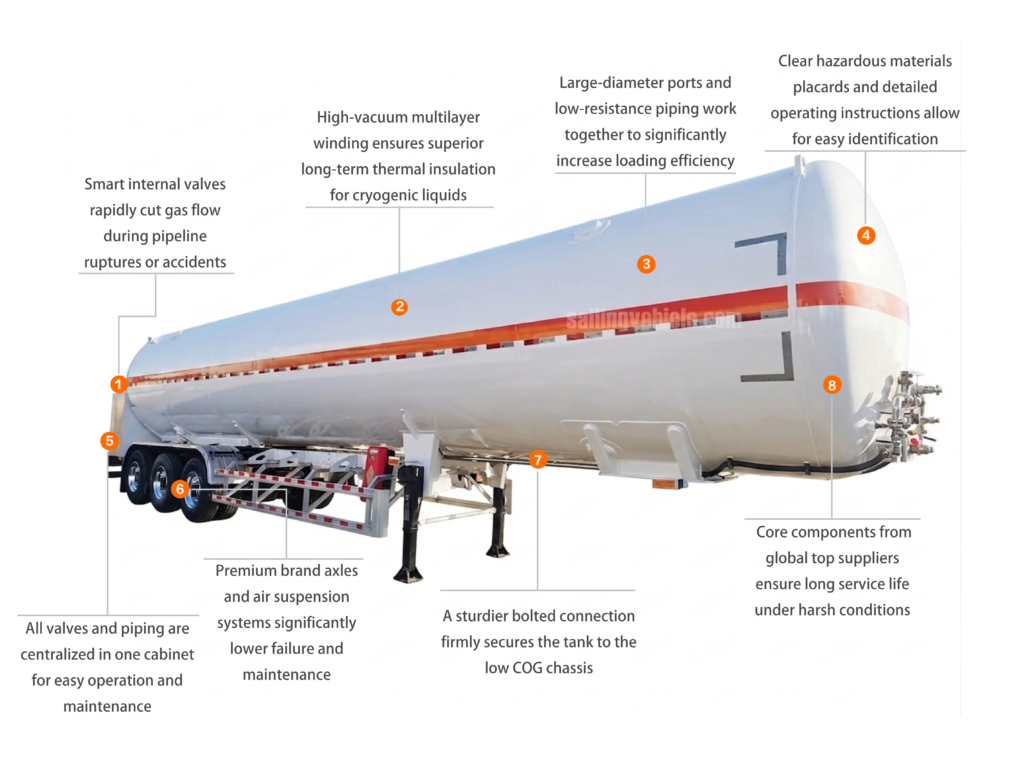

Product Overview
1. Smart Internal Valves
Enhance operational safety with our smart internal valves. These intelligent mechanisms instantly halt gas flow during pipeline ruptures or unforeseen accidents, actively preventing catastrophic leaks and securing your valuable hazardous cargo.
2. High-Vacuum Multilayer Winding
Maximize thermal retention utilizing advanced high-vacuum multilayer winding. This superior insulation technology effectively minimizes heat transfer for cryogenic liquids, drastically reducing boil-off rates and preserving product integrity throughout long-haul transportation.
3. Large-Diameter Ports & Piping
Accelerate your turnaround times with large-diameter ports and low-resistance piping. This optimized flow architecture significantly boosts loading and unloading efficiency, maximizing throughput and operational profitability for your B2B logistics fleet.
4. Hazardous Materials Placards
Ensure strict regulatory compliance and safety with highly visible hazardous materials placards. Combined with detailed operating instructions, these clear indicators guarantee immediate identification, safeguarding personnel and streamlining emergency response protocols.
5. Centralized Valve Cabinet
Simplify routine maintenance and daily operations with our centralized valve cabinet. Enclosing all critical valves and piping in one secure, accessible location minimizes operator error and dramatically reduces servicing downtime.
6. Premium Axles & Air Suspension
Upgrade fleet reliability with premium brand axles and robust air suspension systems. These high-grade undercarriage components significantly reduce vibration, lower maintenance frequencies, and ensure smooth transit across demanding highway conditions.
7. Bolted Connection & Low COG Chassis
Enhance highway stability via a sturdy bolted connection securing the tank to a low center-of-gravity chassis. This engineered design minimizes rollover risks, ensuring secure, balanced maneuvering for heavy cryogenic payloads.
8. Global Top Supplier Components
Maximize equipment longevity with core components sourced from global top suppliers. Engineered to endure harsh operational environments, these premium parts significantly extend service life, delivering an exceptional return on investment.

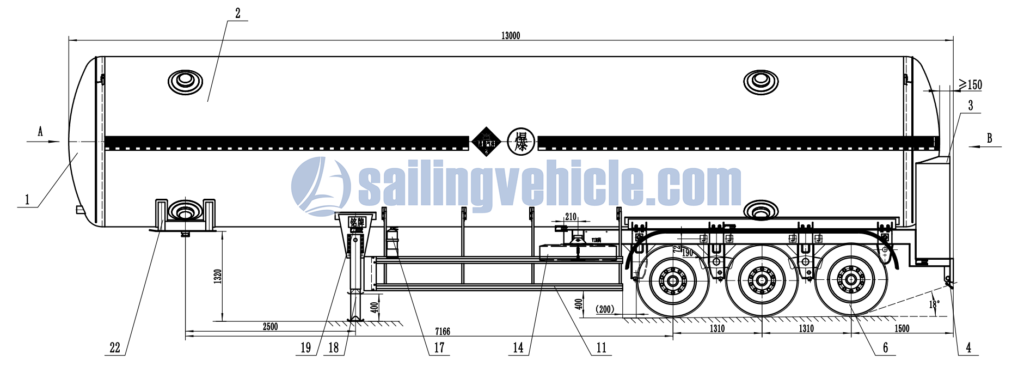

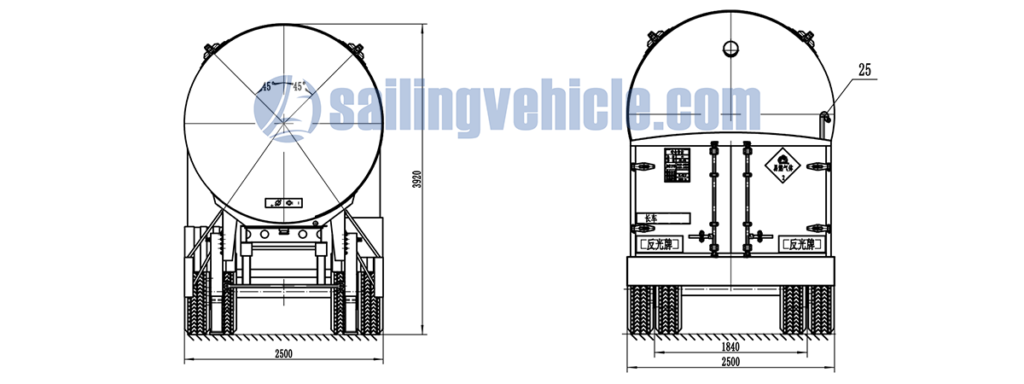

| Note: We will design drawings according to your requirements. |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
