| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Bitumen, asphalt, crude oil, raw petroleum, and other heavy oils |
| 2 | Overall dimension | 12780*2500*3650mm (L*W*H)
(Approx., based on final design drawings.) |
| 3 | Curb weight | 11500kg
(Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based on the customer's truck head.) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 4 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 16 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 16 units, high-strength iron. |
| 8 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm*90mm, 10pcs (16mm*90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 50,000 liters (valid volume) + 5%(ullage）. |
| 13 | Tank material | Q355B |
| 14 | Tank Design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| 15 | Insulation material | Rock wool, with multilayer insulation felt. |
| 16 | Insulation material thickness | 80 mm (30mm, 80mm, 100mm, or other thickness options are available). |
| 17 | Insulation cover plate | Color-coated plate. |
| 18 | Insulation cover plate thickness | 0.5mm, National standard. |
| 19 | Heating system | Oven, steam, or burner. |
| Main parts specification | ||
| 20 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. |
| 21 | Compartment | Single compartment. |
| 22 | Burner | Diesel fire engine, the Italian Brand RIELLO & 1 unit. |
| 23 | Diesel engine | 1 unit. |
| 24 | Pump | With a diesel engine, special for bitumen & 1 unit. |
| 25 | Manhole | Carbon steel, quick-open type & 2 units, mounted on rear or front. |
| 26 | Bottom valve | 4" stainless steel & 1 unit. |
| 27 | Discharging pipe | Carbon steel with insulation. |
| 28 | Discharging valve |
4" Iron ball valve & 2 units, on both the left and right sides at the rear end of the tank, discharging by gravity.
4" Iron ball valve & 1 unit, on both the left side at the middle of the tank, discharging with a pump.
6" butterfly valve & 1 unit, at the rear of the tank, discharging with gravity. |
| 29 | Discharging the hose box | 6 meters & 2 units. |
| 30 | Discharging hose | High thermal resistance, black, thickening type, 5.7M & 2 units. |
| 31 | Handrail | 2 units on the top. |
| 32 | Walkway platform | Top with an anti-slip punched design. |
| 33 | Ladder | 1 unit, mounted on the rear or front. |
| 34 | Breather valve | Stainless steel & 2 units. |
| 35 | Spare wheel carrier | 2 units. |
| 36 | Mud guard plate | Integrated design plate, carbon steel. |
| 37 | Relay valve | WABCO brand. |
| 38 | Temperature Gauge | 1 unit. |
| 39 | Reverse buzzer | 1 unit. |
| 40 | Electric system | 24V, 7-pin socket, national standard. |
| 41 | Lights | LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 42 | Painting |
Primer layer: One coat of anti-corrosive paint on the tank shell.
Color: As per the customer's requirements.
Sticker: Make a customer's LOGO and provide enough as backup. |
| 43 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |
| Other equipment | ||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Two sets of 8KG fire extinguishers and boxes.
4. One set of anti-static grounding straps.
5. All other necessary accessories. |
||

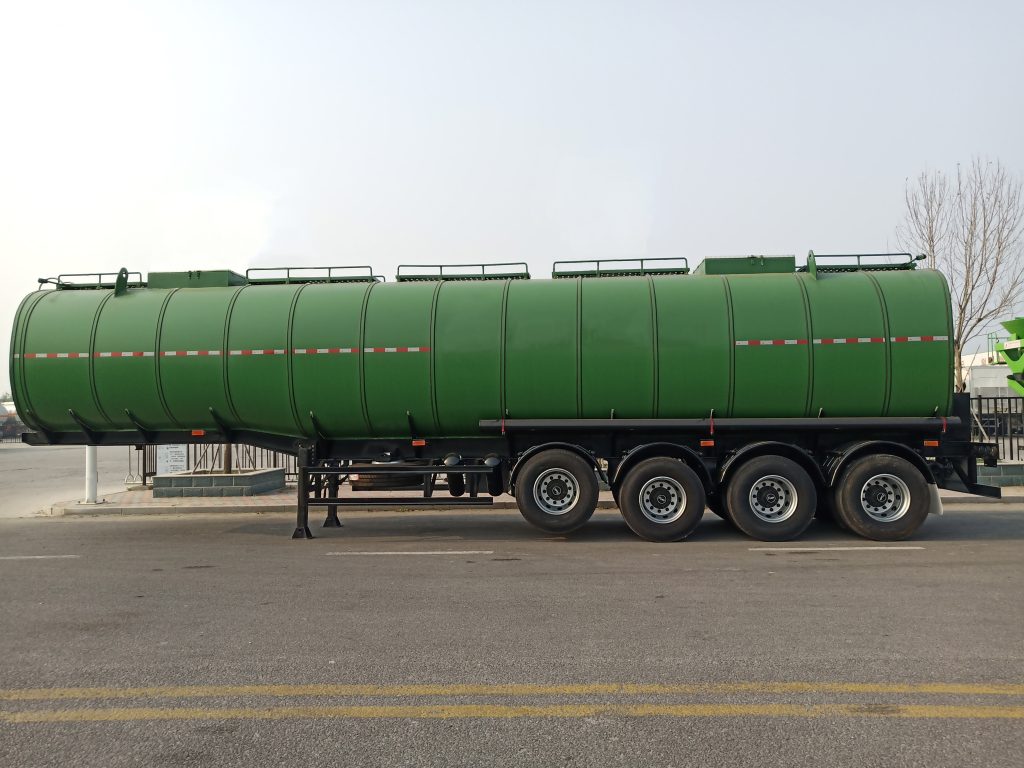

50KL 4-axle Bitumen Insulated Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 15,000 – 19,500 USD（Prices vary by configuration）
Optimize asphalt transport with our 50KL 4-axle Bitumen Insulated Tank Semi-trailer. Features diesel heating and rock wool insulation. Get a factory price!
Brand: TSV-SAILING
Model: TSV201907-50
Type: Insulation Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Superior Thermal Efficiency with the 50KL 4-axle Bitumen Insulated Tank Semi-trailer
Transporting liquid asphalt demands rigorous temperature control and structural integrity. Our 50KL 4-axle Bitumen Insulated Tank Semi-trailer is specifically engineered for long-distance bitumen logistics, ensuring the cargo remains in a liquid state for immediate discharge upon arrival. This high-capacity tanker combines advanced heating technology with a reinforced 4-axle chassis to maximize payload without compromising safety.
Advanced Insulation and Heating Systems
The core advantage of this tanker lies in its multi-layer thermal protection. We utilize 100mm high-density rock wool insulation covered by a stainless steel jacket, minimizing heat loss even in extreme cold. According to Bitumen Transport Standards, maintaining a stable temperature is critical for road construction efficiency. Our integrated diesel burners and heating pipes provide consistent warmth, preventing bitumen solidification and reducing operational downtime.
Heavy-Duty 4-Axle Chassis Design
To handle the 50,000-liter capacity, the 50KL 4-axle Bitumen Insulated Tank Semi-trailer features a reinforced carbon steel frame. The 4-axle configuration provides superior weight distribution, ensuring compliance with strict road regulations while offering enhanced stability on uneven terrain. This design significantly reduces tire wear and extends the service life of the vehicle under heavy-load conditions.
Precision Engineering for Safe Operations
Safety is paramount when handling high-temperature bitumen. This trailer is equipped with explosion-proof manholes and specialized high-temperature-resistant discharge valves. The internal baffling system reduces liquid surge during transit, improving braking performance and overall vehicle control for the driver.
Boost your road construction efficiency today with a reliable transport solution. Our engineers can customize the tanker to your specific project needs. Contact our technical sales team for a professional quotation and detailed CAD drawings.

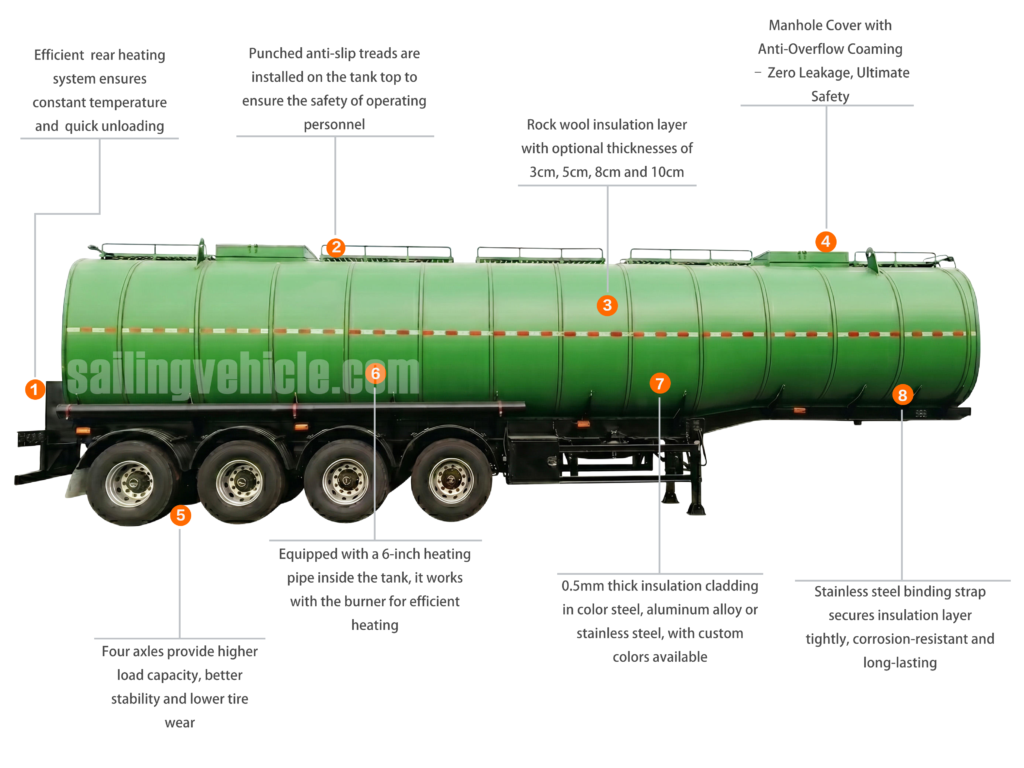

Product Overview
1. Efficient Rear Heating System
This highly efficient rear heating system guarantees constant temperature control for your liquid asphalt. It rapidly warms the cargo, completely eliminating solidification risks to ensure incredibly fast, smooth, and cost-effective unloading operations every single time.
2. Punched Anti-Slip Treads
Engineered for ultimate workplace safety, these durable punched anti-slip treads span the tank top. They provide maximum traction for operating personnel in harsh weather, drastically reducing slip hazards during critical loading, inspection, and maintenance procedures.
3. Rock Wool Insulation Layer
Lock in the heat with our premium rock wool insulation. Available in customizable thicknesses from 3cm to 10cm, this high-performance thermal barrier significantly prevents heat loss, saving valuable burner fuel and preserving optimal cargo viscosity.
4. Anti-Overflow Manhole Cover
Experience absolute peace of mind with our specialized anti-overflow coaming manhole cover. This precision-engineered safety feature guarantees zero leakage during turbulent transit, protecting the environment while ensuring ultimate safety for your valuable hot bitumen cargo.
5. Four-Axle Configuration
Maximize your hauling profitability. Our heavy-duty four-axle design drastically increases overall payload capacity and road stability. By evenly distributing massive weight, it significantly lowers tire wear, extending component lifespan and reducing your fleet's maintenance costs.
6. 6-Inch Internal Heating Pipe
Maximize thermal efficiency with our robust 6-inch internal heating pipe. Working seamlessly with the high-performance burner, it delivers rapid, uniform heat distribution throughout the tank, ensuring your heavy asphalt remains in the perfect fluid state.
7. 0.5mm Insulation Cladding
Protect your investment with robust 0.5mm thick insulation cladding. Available in color steel, aluminum alloy, or stainless steel, this durable exterior offers superior corrosion resistance and a sleek, professional appearance tailored to your corporate branding.
8. Stainless Steel Binding Strap
Secure your thermal efficiency permanently. These heavy-duty stainless steel binding straps lock the insulation layer tightly in place. Highly corrosion-resistant and incredibly long-lasting, they ensure structural integrity and prevent thermal bridging even under extreme vibrations.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
