| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. |
| 2 | Overall dimension | 13000×2500×3900mm (L×W×H) (Approx., based on final design drawings.) |
| 3 | Curb weight | 10800kg (Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | Kingpin | 50# (2") or 90# (3.5"), standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 50,000 liters (valid volume) + 5% (ullage) |
| 13 | Tank material | Q235B |
| 14 | Tank design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| Main parts specification | ||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. |
| 16 | Compartment | 7units,10,000L+10,000L+10,000L+6,000L+6,000L+4,000L+4,000L per compartment. |
| 17 | Manhole cover | Aluminum & 7 units, factory standard. (Jialong brand with ADR certificate optional) |
| 18 | Bottom valve | 4" aluminum & 7 units, factory standard. (Jialong brand with ADR certificate optional) |
| 19 | Discharging valve | 4" aluminum ball-type valve & 7 units (API valve optional) |
| 20 | Discharging hose box | 6 meters & 2 units. |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. |
| 22 | Handrail | 2 units on the top. |
| 23 | Walkway platform | Top with anti-slip punched design. |
| 24 | Ladder | 1 unit, on the rear or front. |
| 25 | Breather valve | Aluminum & 7 units. |
| 26 | Spare wheel carrier | 2 units. |
| 27 | Mud guard plate | Integrated design plate, carbon steel. |
| 28 | Relay valve | WABCO brand |
| 29 | Reverse buzzer | 1 unit. |
| 30 | Electric system | 24V, 7-pin socket, national standard. |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 32 | Painting |
Primer layer: One coat of anti-corrosive paint.
Final coat: Two coats of finish paint.
Color: As per customer's requirements. |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. |
| Other equipment | ||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding strap.
6. All other necessary accessories. |
||

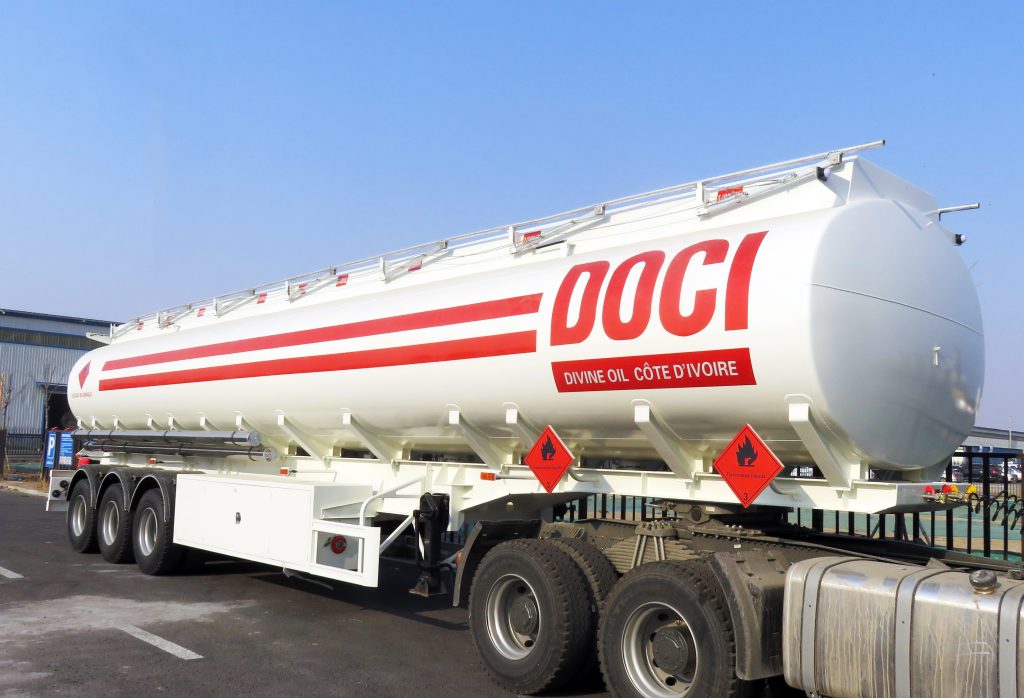

50 CBM 7-compartment Fuel Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 15,500 – 19,500 USD（Prices vary by configuration）
Maximize hauling efficiency with our 50 CBM 7-compartment fuel tank semi-trailer. Multi-compartment design for versatile fuel transport. Get a professional quote now!
Brand: TSV-SAILING
Model: TSV202201-50
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Are you looking to dramatically optimize your commercial liquid transport operations? Investing in a premium 50 CBM 7-compartment fuel tank semi-trailer provides the ultimate, highly efficient solution for transporting diverse petroleum products safely. By integrating world-class engineering, robust materials, and smart design, this specialized trailer significantly reduces your operational overhead while maximizing your fleet’s daily productivity.
Advanced Engineering of 50 CBM 7-compartment fuel tank semi-trailer
Safety, stability, and maximum payload flexibility are absolutely critical factors in modern fuel logistics. The specialized multi-compartment structure allows fleet operators to seamlessly transport diesel, gasoline, and other specific liquids simultaneously in a single trip. This multi-fuel transport capability guarantees higher efficiency, safer handling, and a much more stable center of gravity on the highway. Operational safety is further enhanced by a robust foldable guardrail that rigorously protects working personnel during top-loading procedures and routine inspections.
Furthermore, we deeply understand the importance of corporate branding. We offer custom logo applications according to your specific requirements, turning your transport vehicles into powerful mobile billboards. Learn more about international tank truck safety standards to understand how our equipment consistently meets strict global compliance.
Superior Components for Unmatched Durability
To ensure unparalleled, long-lasting reliability under extreme working conditions, our 50 CBM 7-compartment fuel tank semi-trailer is equipped with industry-leading mechanical components. The highly specialized bolted connection between the tank and the chassis ensures an incredibly firm grip. It is exceptionally easy to maintain and repair, specially designed to endure rugged and demanding terrains in regions like West Africa. For maximum load-bearing capacity and longevity, we utilize well-known axle brands both at home and abroad, such as Fuwa and BPW.
The coupling mechanism relies on a premium brand JOST kingpin (available in 2.5” and 3” options), ensuring a highly stable connection to famous Chinese tractor head brands like Sinotruk, Shacman, and FAW Jiefang. Additionally, for fast fluid unloading, the versatile discharge system offers precision API valves or robust ball valves for your selection.
By integrating this high-capacity, heavy-duty equipment into your B2B logistics company, you will decrease turnaround times and increase overall profitability. Ready to significantly upgrade your operations? Contact us today to get a competitive quote and detailed technical specifications tailored for your entire fleet!

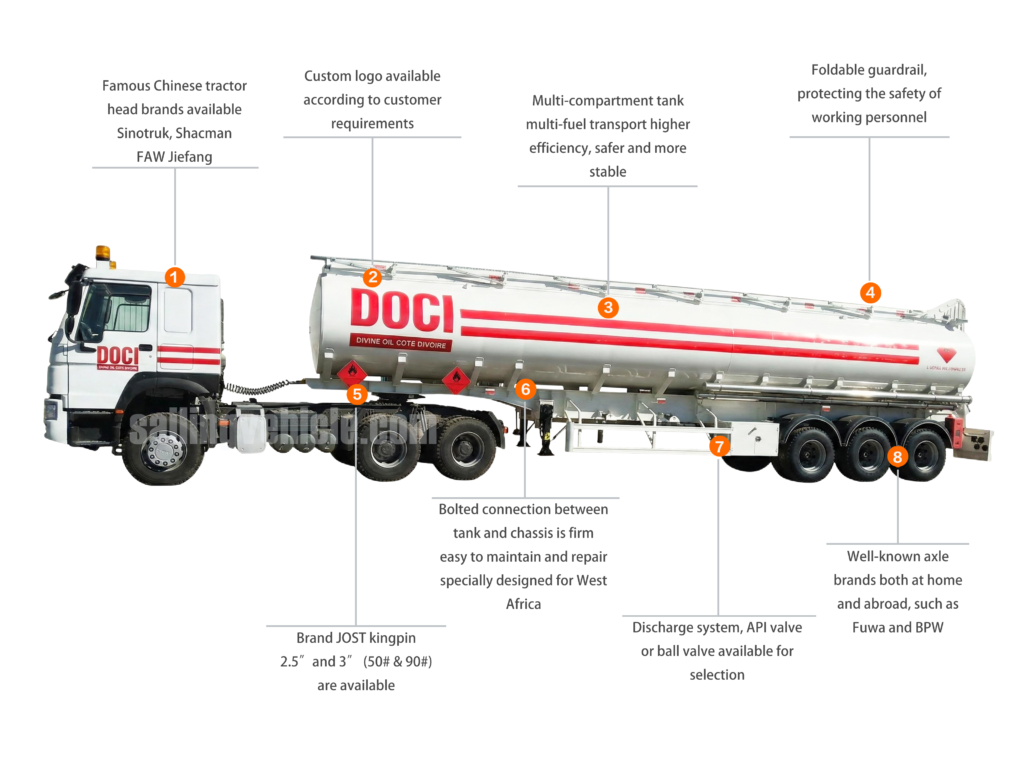

Product Overview
1. Tractor Head Compatibility
Seamlessly integrate your trailer with premium Chinese tractor heads like Sinotruk, Shacman, or FAW Jiefang. Guarantee exceptional power, outstanding fuel efficiency, and unparalleled reliability for your most demanding liquid transport operations.
2. Custom Logo & Branding
Enhance your corporate identity with fully customizable body colors and precise logo applications. Transform your transport fleet into a highly visible mobile billboard, boosting brand recognition along every commercial logistics route.
3. Multi-Compartment Tank Structure
Maximize operational efficiency with our robust multi-compartment structure. Safely transport diverse petroleum products simultaneously, ensuring superior payload flexibility, enhanced dynamic stability, and drastically reduced overall transportation costs for your business.
4. Foldable Safety Guardrail
Prioritize operational safety with our heavy-duty foldable guardrail. This essential structural feature rigorously protects personnel during roof access, routine tank inspections, and top-loading procedures, ensuring strict compliance with industrial safety standards.
5. Premium JOST Kingpin
Secure your valuable payloads with world-renowned JOST kingpins, perfectly available in standard 2.5-inch and 3-inch models. This critical component guarantees a flawless tractor connection, maximizing load stability and ultimate transit safety.
6. Bolted Tank-to-Chassis Connection
Experience superior structural durability with our specialized bolted connection. Specially engineered for rugged terrains like West Africa, this firm design drastically simplifies routine maintenance while preventing severe fatigue during heavy transit.
7. Versatile Discharge System
Accelerate your fluid transfer operations with our highly versatile discharge system. Select between precision-engineered API valves or durable ball valves to guarantee secure, rapid, and perfectly leak-proof unloading tailored to your needs.
8. World-Class Axle Systems
Conquer challenging road networks with absolute confidence. We equip our trailers with internationally recognized axle brands like Fuwa and BPW, delivering extraordinary load-bearing capacity, minimal maintenance downtime, and exceptional operational longevity.

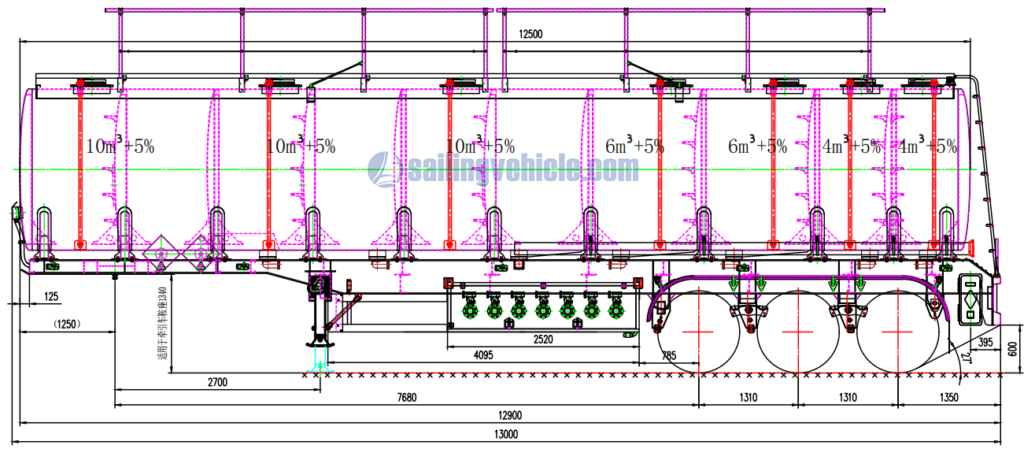

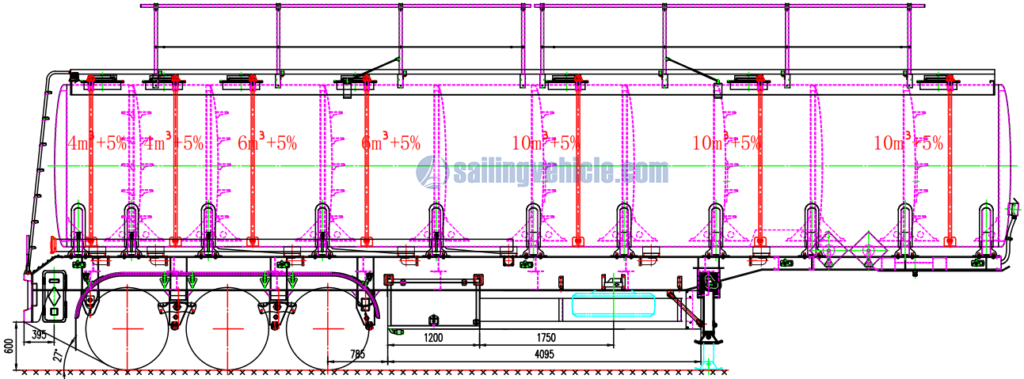

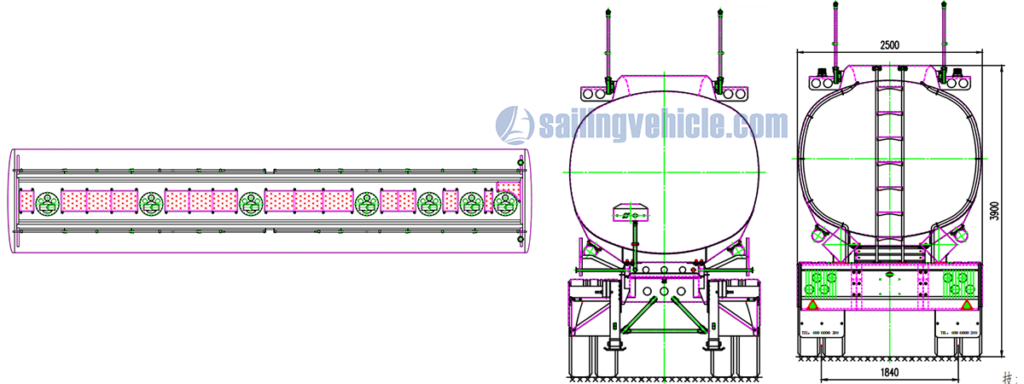

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
