| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Palm oil soybean oil and other edible oils |
| 2 | Overall dimension | 12780*2500*3650mm (L*W*H)
(Approx., based on final design drawings.) |
| 3 | Curb weight | 11500kg
(Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based on the customer's truck head.) |
| 5 | Axle | 13T Brand TSY with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm*90mm, 10pcs (16mm*90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 48,000 liters (valid volume) + 5%(ullage）. |
| 13 | Tank material | Q235B |
| 14 | Tank Design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| 15 | Insulation material | Rock wool, with multilayer insulation felt. |
| 16 | Insulation material thickness | 50 mm (30mm, 80mm, 100mm, or other thickness options are available). |
| 17 | Insulation cover plate | Color-coated plate, Color White. |
| 18 | Insulation cover plate thickness | 0.5mm, National standard. |
| 19 | Heating system | Oven, steam, or burner. |
| Main parts specification | ||
| 20 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. |
| 21 | Compartment | Single compartment. |
| 22 | Burner | Diesel fire engine, the Italian Brand RIELLO & 1 unit. |
| 23 | Diesel engine | 1 unit. |
| 24 | Pump | With a diesel engine, special for bitumen & 1 unit. |
| 25 | Manhole | Carbon steel, quick-open type & 2 units, mounted on rear or front. |
| 26 | Bottom valve | 4" stainless steel & 1 unit. |
| 27 | Discharging pipe | Carbon steel with insulation. |
| 28 | Discharging valve |
4" Iron ball valve & 2 units, on both the left and right sides at the rear end of the tank, discharging by gravity.
4" Iron ball valve & 1 unit, on both the left side at the middle of the tank, discharging with a pump.
6" butterfly valve & 1 unit, at the rear of the tank, discharging with gravity. |
| 29 | Discharging the hose box | 6 meters & 2 units. |
| 30 | Discharging hose | High thermal resistance, black, thickening type, 5.7M & 2 units. |
| 31 | Handrail | 2 units on the top. |
| 32 | Walkway platform | Top with an anti-slip punched design. |
| 33 | Ladder | 1 unit, mounted on the rear or front. |
| 34 | Breather valve | Stainless steel & 2 units. |
| 35 | Spare wheel carrier | 2 units. |
| 36 | Mud guard plate | Integrated design plate, carbon steel. |
| 37 | Relay valve | WABCO brand. |
| 38 | Temperature Gauge | 1 unit. |
| 39 | Reverse buzzer | 1 unit. |
| 40 | Electric system | 24V, 7-pin socket, national standard. |
| 41 | Lights | LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 42 | Painting |
Primer layer: One coat of anti-corrosive paint on the tank shell.
Color: As per the customer's requirements.
Sticker: Make a customer's LOGO and provide enough as backup. |
| 43 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |
| Other equipment | ||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Two sets of 8KG fire extinguishers and boxes.
4. One set of anti-static grounding straps.
5. All other necessary accessories. |
||

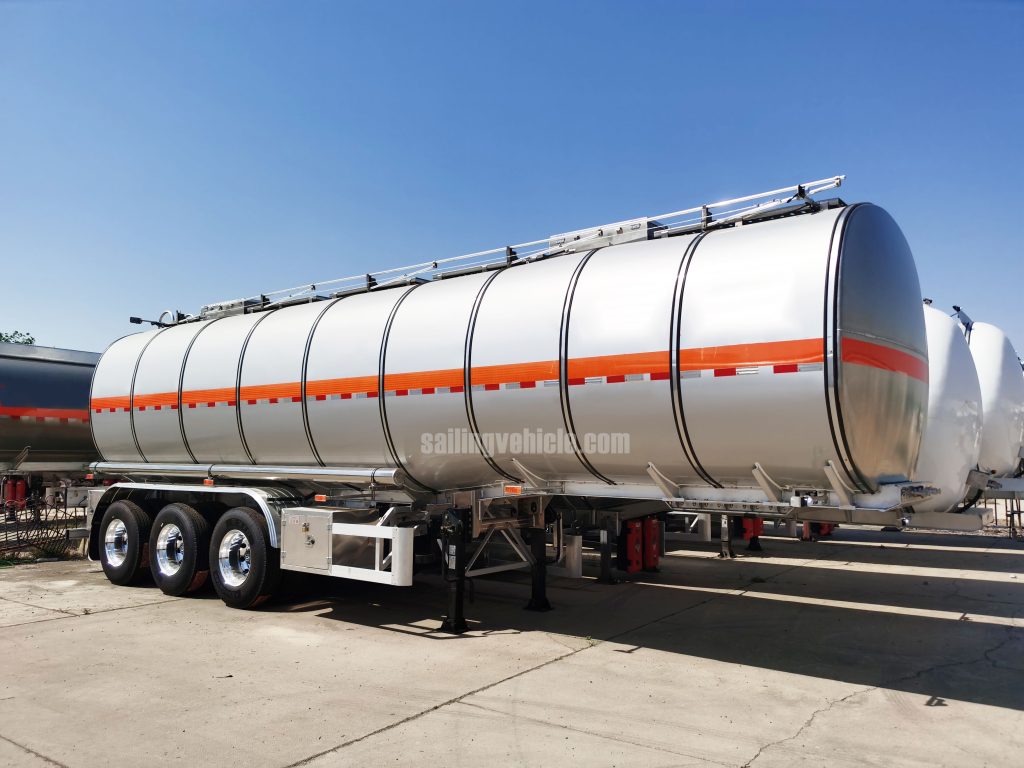

48KL 3-axle Palm Oil Insulated Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price:15,000 – 19,500 USD（Prices vary by configuration）
Transport palm oil safely with our premium 48KL 3-axle Palm Oil Insulated Tank Semi-trailer. Features food-grade steel & advanced heating. Get a quote!
Brand: TSV-SAILING
Model: TSV202010-48
Type: Insulation Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Transporting specialized edible oils requires precision, and preventing liquid solidification during transit is your biggest logistical challenge. The 48KL 3-axle Palm Oil Insulated Tank Semi-trailer is specifically engineered for the highly secure, long-haul commercial logistics of temperature-sensitive palm oil. Combining a massive 48,000-liter payload capacity with industry-leading thermal retention technology, this heavy-duty commercial vehicle guarantees your valuable liquid cargo arrives in perfect condition, maximizing your overall fleet efficiency and operational profitability.
Advanced Thermal and Heating Systems
Because palm oil naturally solidifies at lower ambient temperatures, maintaining strict internal heat is completely non-negotiable. Every 48KL 3-axle Palm Oil Insulated Tank Semi-trailer utilizes a premium 80mm to 100mm high-density polyurethane insulation layer, meticulously encased in a durable stainless steel outer jacket. Furthermore, we uniquely integrate high-efficiency internal heating channels. According to global bulk liquid transport standards, maintaining exact temperature control is absolutely critical to preserving the essential viscosity and nutritional purity of palm oil during extended commercial transit.
Uncompromising Food-Grade Hygiene
In the edible logistics sector, cargo safety and absolute purity are paramount. The inner tank shell of our 48KL 3-axle Palm Oil Insulated Tank Semi-trailer is meticulously constructed from highly polished 304 or 316L food-grade stainless steel. This perfectly smooth, seamless interior actively prevents sticky residue buildup, naturally resists harsh chemical corrosion, and ensures ultra-sanitary conditions for repeated commercial use.
Maximize Your Fleet Efficiency
Designed to significantly minimize turnaround times at commercial depots, this transport equipment features specialized, leak-proof bottom discharge valves and highly secure anti-slip aluminum walkways. By upgrading your fleet to a highly reliable, thermally protected 48KL 3-axle Palm Oil Insulated Tank Semi-trailer, you dramatically reduce the risk of product degradation and eliminate costly operational downtime. Our expert B2B engineering team can seamlessly customize internal compartments and technical specifications to fit your logistics requirements perfectly. Ready to dramatically enhance your bulk liquid transport capabilities? Contact our technical sales team today for a comprehensive, customized quote, detailed CAD drawings, and flexible wholesale pricing.

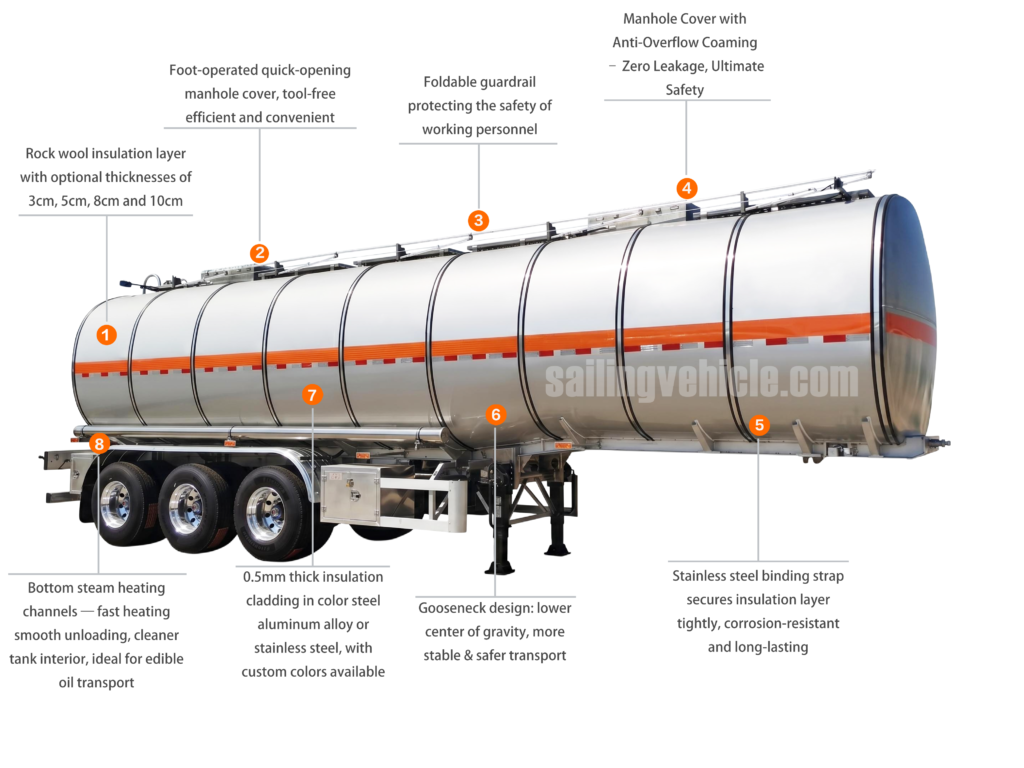

Product Overview
1. Rock Wool Insulation Layer
Maintain perfect payload temperatures with high-density rock wool insulation. Available in customizable 3cm, 5cm, 8cm, or 10cm thicknesses, it drastically reduces thermal loss, saving energy and preserving palm oil quality during transport.
2. Foot-Operated Quick-Opening Manhole Cover
Experience tool-free, highly efficient access with our innovative foot-operated quick-opening manhole cover. This ergonomic design significantly accelerates routine inspections and loading procedures while reducing manual labor and enhancing daily operational convenience.
3. Foldable Guardrail System
Prioritize operator security with a heavy-duty foldable guardrail. This essential safety feature reliably protects working personnel from dangerous falls during top-tank maintenance and loading, ensuring full compliance with strict industrial workplace safety regulations.
4. Manhole Cover with Anti-Overflow Coaming
Prevent costly product waste with our advanced anti-overflow coaming manhole cover. This intelligent, zero-leakage engineering guarantees ultimate environmental safety, effectively containing sloshing liquids and maintaining pristine exterior conditions during high-capacity transport.
5. Stainless Steel Binding Straps
Ensure uncompromising structural integrity with heavy-duty stainless steel binding straps. Highly corrosion-resistant and incredibly durable, they tightly secure the outer insulation layer, preventing transit shifting and guaranteeing a long-lasting, maintenance-free service life.
6. Gooseneck Chassis Design
Enhance fleet safety with a specialized gooseneck chassis design. By significantly lowering the vehicle's center of gravity, it delivers unmatched road stability, improves maneuverability, and dramatically minimizes rollover risks during demanding industrial transport.
7. 0.5mm Thick Insulation Cladding
Protect your investment with robust 0.5mm thick insulation cladding. Available in customizable color steel, lightweight aluminum alloy, or premium stainless steel, it offers exceptional weather resistance and professional aesthetics tailored to your brand.
8. Bottom Steam Heating Channels
Accelerate discharge times utilizing integrated bottom steam heating channels. This system provides rapid, uniform heating for smooth, residue-free unloading, ensuring a flawlessly clean interior perfectly suited for premium edible and palm oil logistics.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
