| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. | |
| 2 | Overall dimension | 13000×2500×3600mm (L×W×H) (Approx., based on final design drawings.) | |
| 3 | Curb weight | 7800kg (Approx., based on final design drawings.) | |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) | |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | |
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension,leaf springs,13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) | |
| Tank body specification | |||
| 11 | Tank shape | Square-round (Double D ) and gooseneck design. | |
| 12 | Tank capacity | 48,000 liters (valid volume) + 5%(ullage) | |
| 13 | Tank material | AL5182 | |
| 14 | Tank design thickness | End cover | 7 mm |
| Tank body | 6 mm | ||
| Baffle | 6 mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Compartment | 6 units,8,000L+8,000L+8,000L+8,000L+8,000L+8,000L+8,000L per compartment. | |
| 17 | Manhole cover | Aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 18 | Bottom valve | 4" aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 19 | Discharging valve | 4" aluminum ball-type valve & 6 units (API valve optional) | |
| 20 | Discharging hose box | 6 meters & 2 units. | |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 22 | Handrail | 2 units on the top. | |
| 23 | Walkway platform | Top with anti-slip punched design. | |
| 24 | Ladder | 1 unit, on the rear or front. | |
| 25 | Breather valve | Aluminum & 6 units. | |
| 26 | Spare wheel carrier | 2 units. | |
| 27 | Mud guard plate | Integrated design plate, carbon steel. | |
| 28 | Relay valve | WABCO brand | |
| 29 | Reverse buzzer | 1 unit. | |
| 30 | Electric system | 24V, 7-pin socket, national standard. | |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. | |
| 32 | Color | Original aluminum alloy color or painting as per customer's requirements. | |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding tape.
6. All other necessary accessories. |
|||

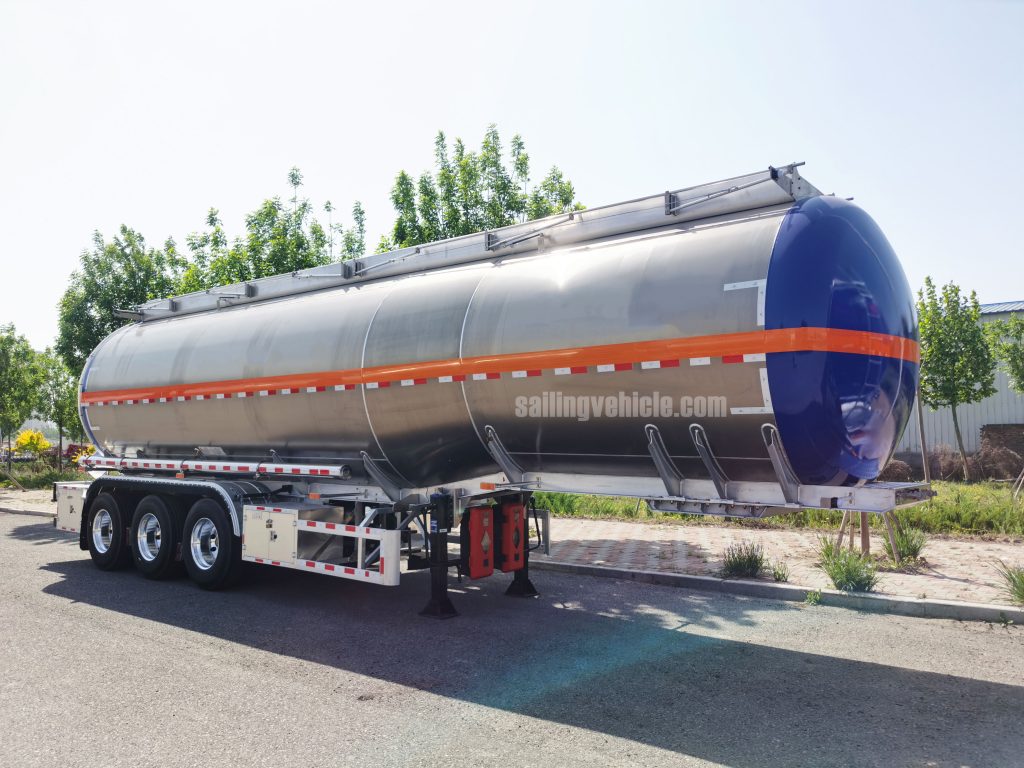

48KL 3-axle Aluminum 5182 Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 20,000 – 32,000 USD（Prices vary by configuration）
Maximize ROI with our 48KL 3-axle Aluminum 5182 Tank Semi-trailer. Lightweight 5182 alloy, 48,000L capacity, and peak safety. Get a professional quote today!
Brand: TSV-SAILING
Model: TSV202003-46
Type: Aluminum Tank Semi- trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When it comes to bulk liquid transport, investing in a high-quality 48KL 3-axle Aluminum 5182 Tank Semi-trailer is the ultimate strategy to maximize your fleet’s profitability. Designed specifically for modern B2B logistics leaders, this state-of-the-art fuel tanker perfectly combines lightweight engineering with uncompromised safety standards. By utilizing advanced materials, it significantly reduces tare weight, allowing you to carry more payload per trip while simultaneously cutting down on fuel consumption and tire wear. In today’s highly competitive industrial transport sector, upgrading to an innovative aluminum solution provides an immediate return on investment by optimizing operational efficiency.
Why Choose Our 48KL 3-axle Aluminum 5182 Tank Semi-trailer?
The core strength of this transport solution lies in its superior construction. The tank body is manufactured from premium aluminum alloy 5182, renowned globally for its exceptional corrosion resistance and impressive tensile strength. This ensures that the 48KL 3-axle Aluminum 5182 Tank Semi-trailer can easily handle the rigorous demands of daily hazardous chemical and fuel distribution. Furthermore, the integration of heavy-duty axles and a premium air suspension system guarantees a smooth ride, effectively minimizing internal liquid agitation across uneven terrains.
Engineered for Maximum Safety and Efficiency
Safety remains our top priority. This fuel tanker is equipped with an intelligent pneumatic bottom valve and European standard manhole covers featuring automatic pressure relief mechanisms. In the event of a rollover, these critical components prevent leaks and hazardous vapor explosions. Paired with standardized API discharge valves, operators can achieve rapid loading and unloading times, boosting operational turnover without sacrificing security. Fleet managers consistently report that integrating this advanced tanker dramatically lowers maintenance downtime. The highly polished aluminum finish not only projects a professional corporate image but also resists harsh environmental elements and aggressive cleaning chemicals used in industrial maintenance protocols.
Upgrading your fleet with this reliable equipment guarantees long-term operational savings and enhanced road safety compliance. If you are ready to elevate your fuel transport capabilities with the highly efficient 48KL 3-axle Aluminum 5182 Tank Semi-trailer, our technical sales team is ready to assist you with customized configurations. Contact us today to request a comprehensive quote and detailed manufacturing specifications.

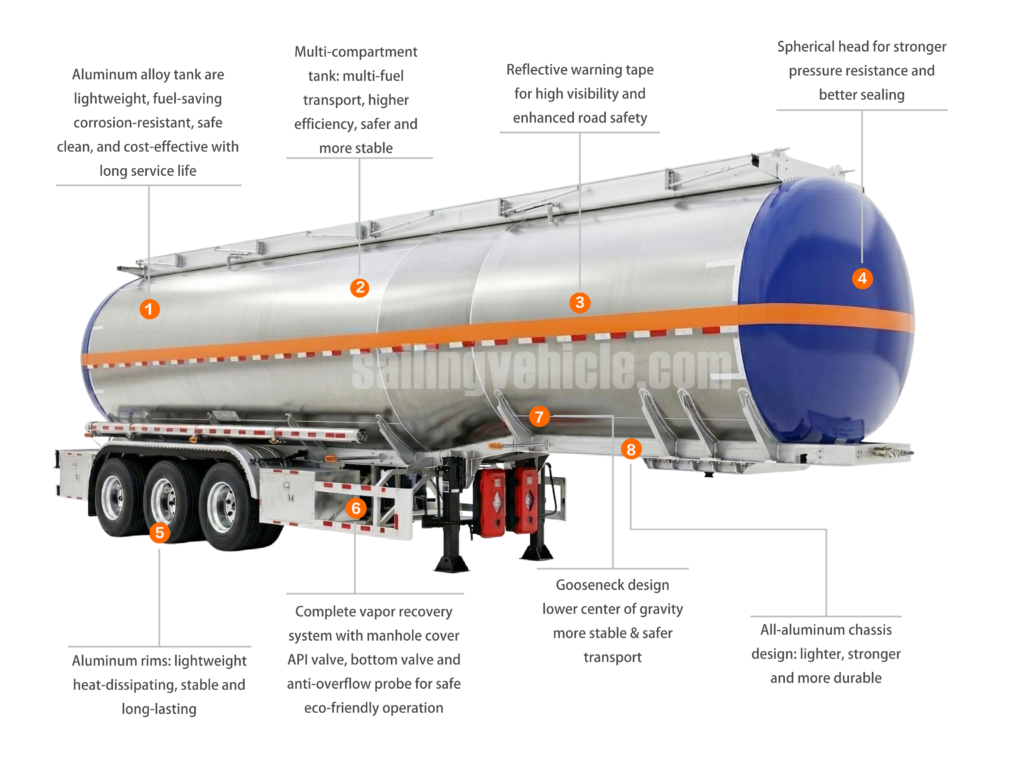

Product Overview
1. Aluminum Alloy Tank
Maximize your payload capacity and minimize fuel consumption. Engineered from premium 5182 aluminum, this lightweight tank provides exceptional corrosion resistance, ensuring a clean transport environment, remarkable cost-effectiveness, and a highly extended operational service life.
2. Multi-Compartment Tank
Boost operational versatility with our multi-compartment design. Seamlessly transport different fuel grades simultaneously, significantly optimizing your routing efficiency. This structured configuration guarantees superior load stability and actively enhances overall safety during high-speed transit.3. Reflective Warning Tape
Ensure maximum nighttime visibility with high-grade reflective warning tape running along the trailer body. This vital safety feature significantly enhances overall road presence, drastically reducing the risk of collisions during low-light transport operations.
4. Spherical Head
Enhance structural integrity with our advanced spherical head design. Specifically engineered to deliver superior pressure resistance and an unparalleled seal, it guarantees the absolute containment of your volatile liquid cargo during rigorous transportation.5. Aluminum Rims
Upgrade vehicle performance with advanced lightweight aluminum rims. Their superior heat-dissipating properties significantly extend brake and tire lifespan, providing a stable, durable foundation that substantially lowers long-term maintenance costs for your commercial fleet.6. Complete Vapor Recovery System
Achieve strict environmental compliance with our comprehensive vapor recovery system. Featuring premium API valves, anti-overflow probes, and specialized bottom valves, it guarantees secure, eco-friendly loading operations while actively preventing hazardous spills and vapor emissions.7. Gooseneck Design
Experience unparalleled transit stability with our optimized gooseneck structure. By effectively lowering the vehicle's center of gravity, this advanced design drastically minimizes rollover risks, ensuring the absolute safest journey for your high-value liquid cargo.8. All-Aluminum Chassis

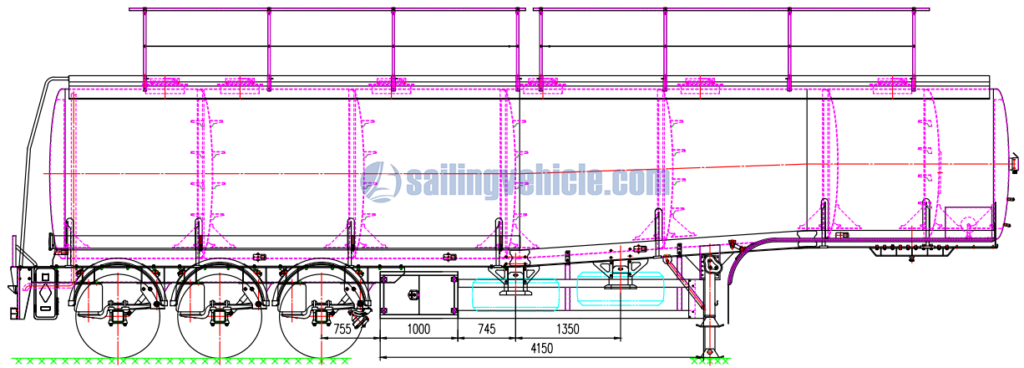

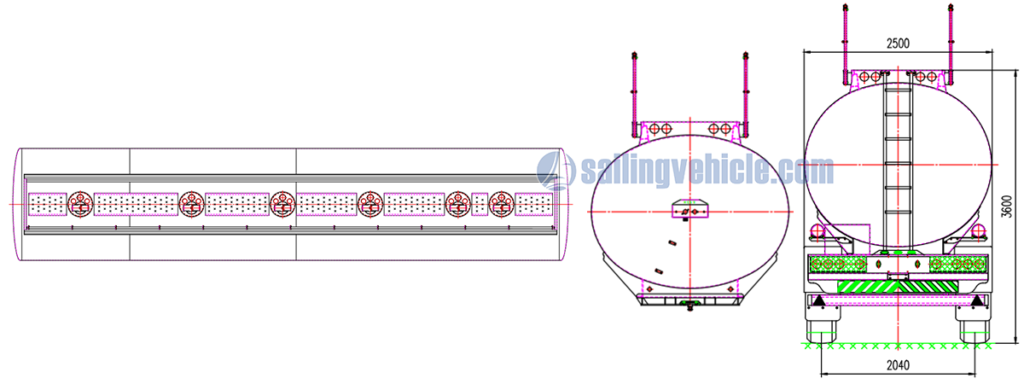

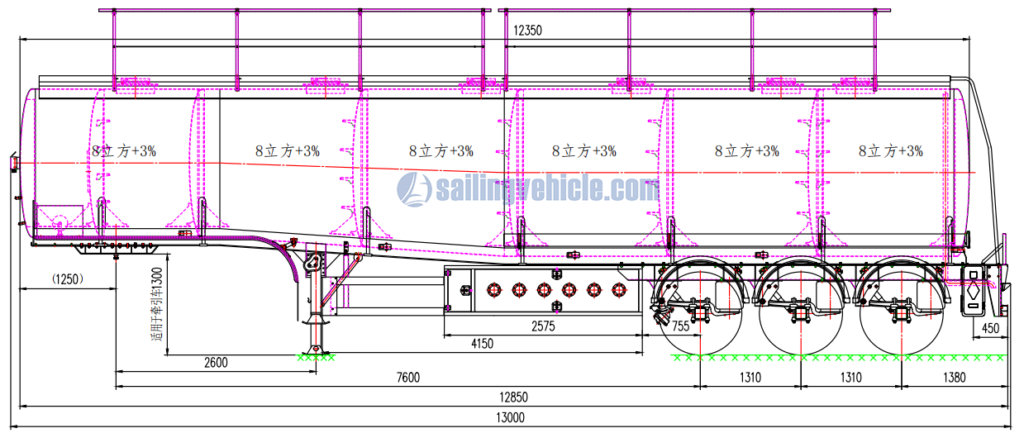

Drastically reduce tare weight without compromising strength. Our innovative all-aluminum chassis design delivers exceptional structural durability and superior payload optimization, ensuring your heavy-duty fleet operates with maximum efficiency and unbeatable long-term cost savings.| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
