| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. |
| 2 | Overall dimension | 12000×2500×3500mm (L×W×H) (Approx., based on final design drawings.) |
| 3 | Curb weight | 10000kg (Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | Kingpin | 50# (2") or 90# (3.5"), standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 48,000 liters (valid volume) + 5% (ullage) |
| 13 | Tank material | Q235B |
| 14 | Tank design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| Main parts specification | ||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B |
| 16 | Compartment | 6 units, 8,000L+8,000L+8,000L+8,000L +8,000L+8,000L per compartment. |
| 17 | Manhole cover | Aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) |
| 18 | Bottom valve | 4" aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) |
| 19 | Discharging valve | 4" aluminum french-type valve & 6 units |
| 20 | Discharging hose box | 6 meters & 2 units. |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. |
| 22 | Handrail | 2 units on the top. |
| 23 | Walkway platform | Top with anti-slip punched design. |
| 24 | Ladder | 1 unit, on the rear or front. |
| 25 | Breather valve | Aluminum & 6 units. |
| 26 | Spare wheel carrier | 2 units. |
| 27 | Mud guard plate | Integrated design plate, carbon steel. |
| 28 | Relay valve | WABCO brand |
| 29 | Reverse buzzer | 1 unit. |
| 30 | Electric system | 24V, 7-pin socket, national standard. |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 32 | Painting |
Primer layer: One coat of anti-corrosive paint.
Final coat: Two coats of finish paint.
Color: As per customer's requirements. |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. |
| Other equipment | ||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. 2 sets of 8KG fire extinguishers with boxes.
5. 1 set of anti-static grounding tape.
6. All other necessary accessories. |
||

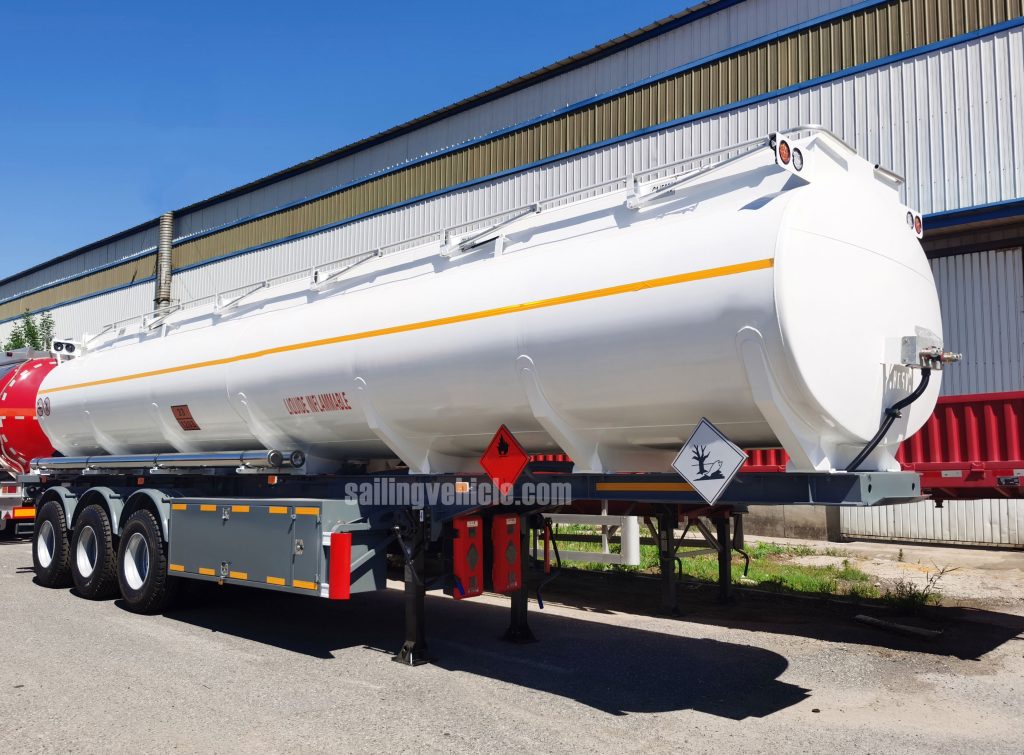

48CBM French-style Design Fuel Tank | Factory Price – Sailingvehicle
Price:12,500-14,500USD （Prices vary by configuration）
Maximize your fleet’s efficiency with our robust 48CBM French-style Design Fuel Tank Semi-trailer. Built for ultimate safety & durability. [Contact us] today!
Brand: TSV-SAILING
Model: TSV202105-30
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Are you looking to optimize your liquid transport operations with highly reliable and compliant equipment? The 48CBM French-style Design Fuel Tank Semi-trailer is meticulously engineered to meet the most rigorous European safety standards, ensuring secure, efficient, and profitable fuel distribution for your B2B logistics fleet.
Why Choose the 48CBM French-style Design Fuel Tank Semi-trailer?
When transporting hazardous liquids, compromising on structural integrity is simply not an option. Our meticulously crafted fuel tanker integrates premium global components, providing unmatched stability on rugged terrains. The unique French-style design effectively lowers the overall center of gravity, significantly improving road stability and handling during tight turns. This structural advantage reduces tire wear and extends the overall lifespan of the vehicle.
This specific 48CBM French-style Design Fuel Tank Semi-trailer is tailored for high-volume transport operations, drastically reducing your long-term logistics costs while maximizing payload capacity per trip.
Engineered for Maximum Safety and Durability
Safety remains the cornerstone of our manufacturing philosophy. Constructed with high-tensile carbon steel, the main tank body offers exceptional resistance to internal pressure and severe external impacts. Coupled with an advanced ABS braking system, it guarantees responsive stopping power even under full load conditions.
Furthermore, the European-standard bottom loading system minimizes hazardous vapor emissions, making it a highly environmentally friendly choice. For further details regarding international transport safety regulations, you can reference the European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR).
Investing in the right transport equipment directly impacts your business’s bottom line. By integrating this highly efficient trailer into your fleet, you ensure long-term durability, reduced maintenance downtime, and increased daily revenue.
Ready to upgrade your hazardous liquid transportation capabilities? Contact our engineering team today to get a customized quote and discover how this exceptional trailer can transform your business.

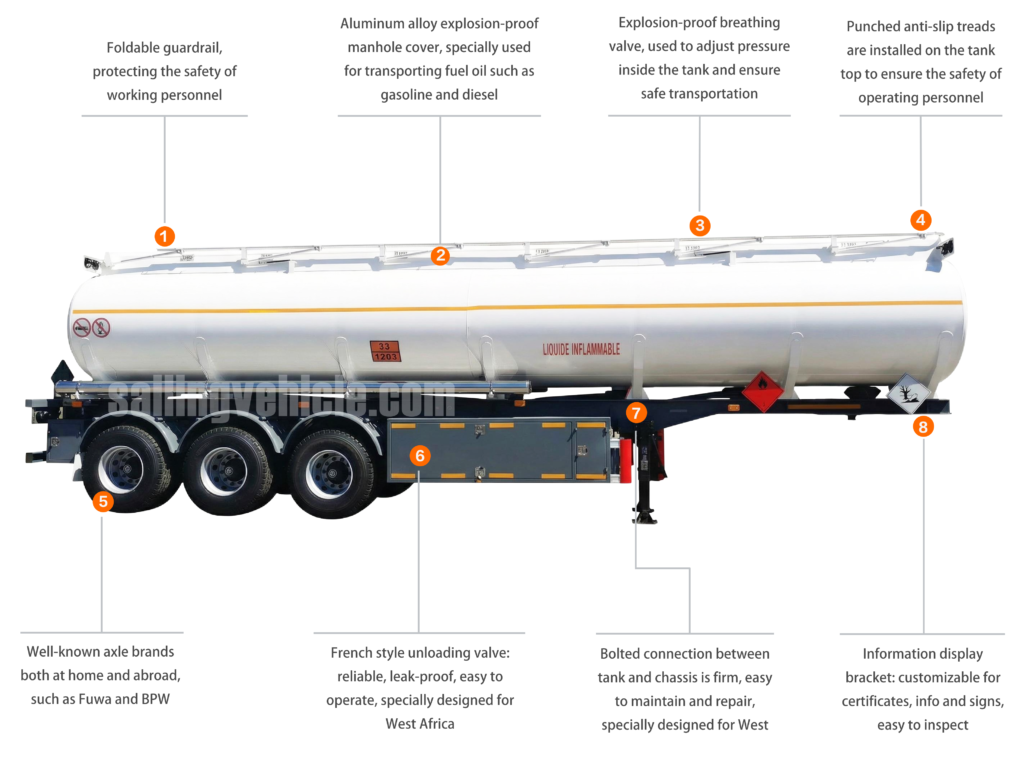

Product Overview
1. Foldable Guardrail
Ensure operator safety with our premium foldable top guardrails. Designed for quick deployment, they provide essential fall protection during loading. When not in use, they fold flat to reduce drag, ensuring operational efficiency and compliance.
2. Aluminum Alloy Explosion-Proof Manhole Cover
This corrosion-resistant aluminum manhole cover ensures a leak-proof seal for volatile fuels. Built-in emergency venting automatically releases extreme internal pressure, preventing tank ruptures and securing your valuable assets during hazardous liquid transport.
3. Explosion-Proof Breathing Valve
Stabilize internal pressure and prevent structural damage with this high-performance breathing valve. It automatically regulates air intake and vapor exhaust, drastically reducing evaporation losses and eliminating combustion risks for safer long-haul operations.
4. Punched Anti-Slip Treads
Protect your crew with rugged, punched anti-slip walkways. Engineered for superior grip in oily or wet conditions, these raised grates prevent dangerous falls during top-loading, ensuring secure and confident operations in any weather.
5. Premium Heavy-Duty Axles
Equip your tanker with world-renowned, heavy-duty axles like BPW or FUWA. Engineered for massive payloads and grueling roads, they deliver exceptional wear resistance, smooth braking, and superior stability, dramatically lowering your maintenance costs.
6. French-Style Unloading Valve
Accelerate discharge times with our rugged French-style unloading valve. Highly adapted for West African markets, this leak-proof, anti-jamming system guarantees rapid, controllable fuel transfers, minimizing depot turnaround times and maximizing daily delivery capacity. This guarantees the maximum efficiency of your 30KL carbon steel fuel oil tanker with flowmeter during daily operations.
7. Bolted Tank-to-Chassis Connection
Maximize structural lifespan with our flexible bolted tank-to-chassis connection. Unlike rigid welds, this high-strength design absorbs severe road shocks, prevents metal fatigue on rough terrains, and allows for effortless maintenance to reduce downtime.
8. Customizable Information Display Bracket
Streamline compliance checks with highly visible display brackets. Designed for the quick mounting of hazmat placards and safety certificates, they ensure swift regulatory inspections and professional branding, avoiding unnecessary delays at checkpoints.
| NOTE： We will design the drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
