| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10250×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
8000kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 45 CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 4mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||

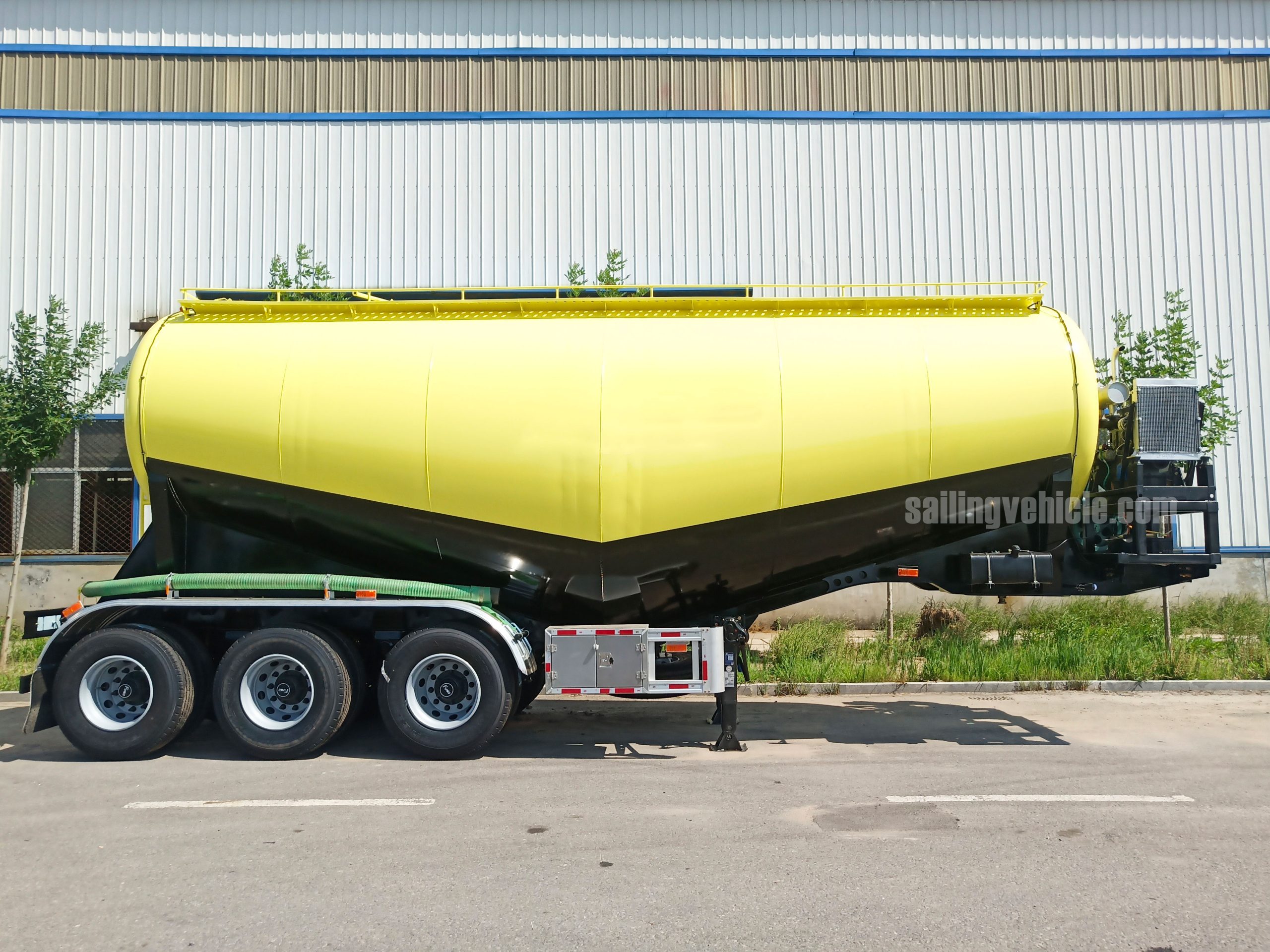

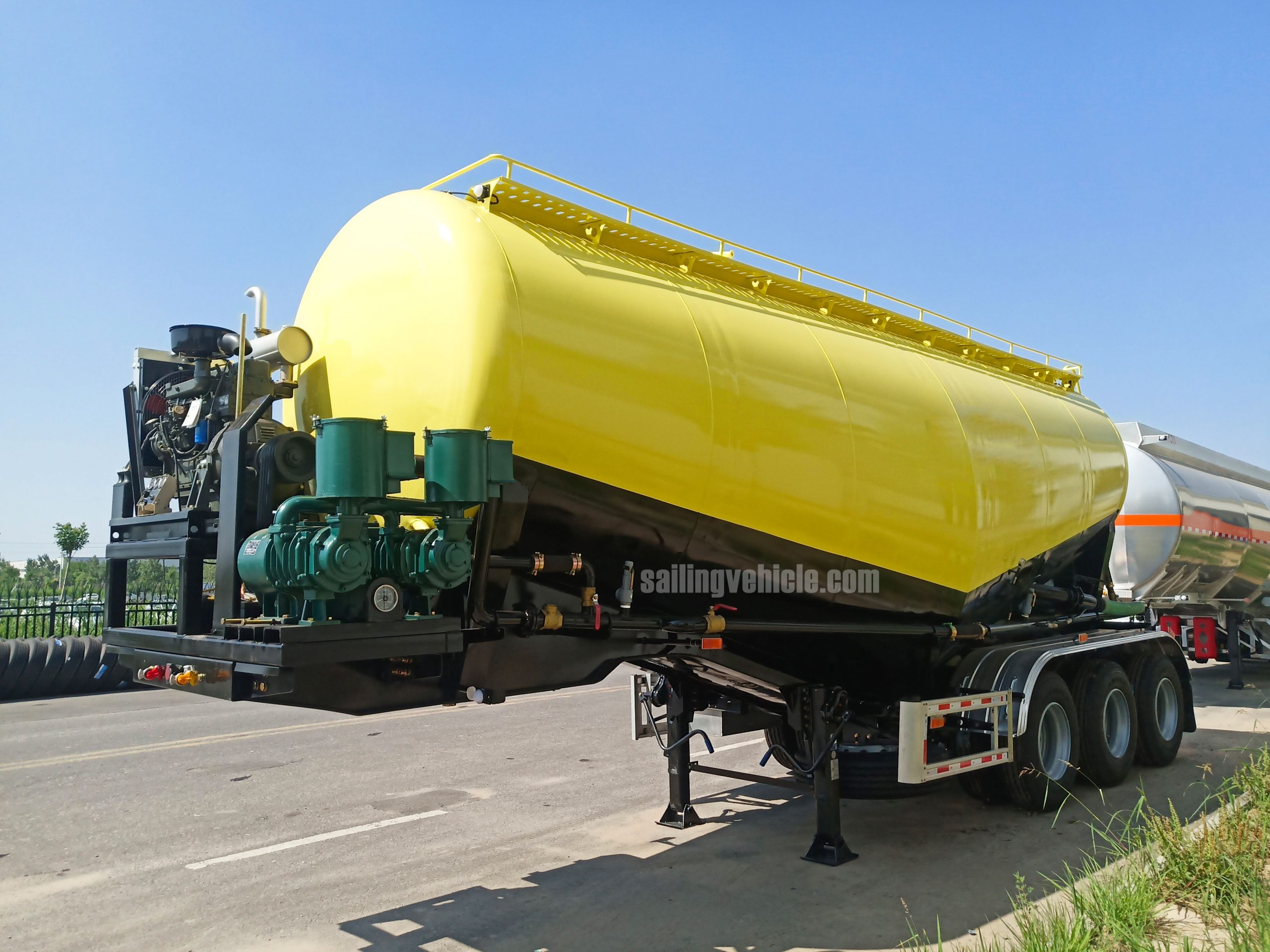

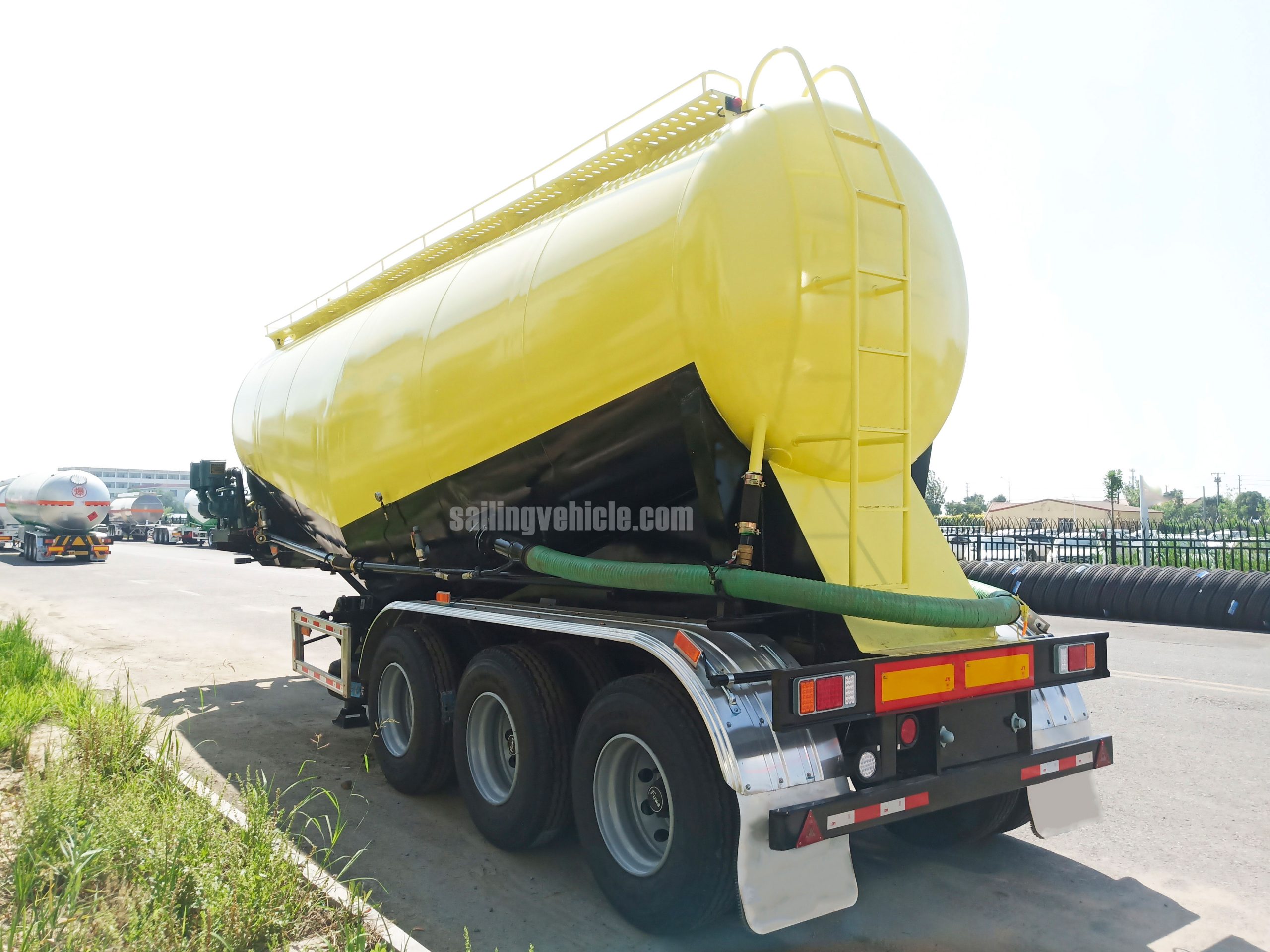

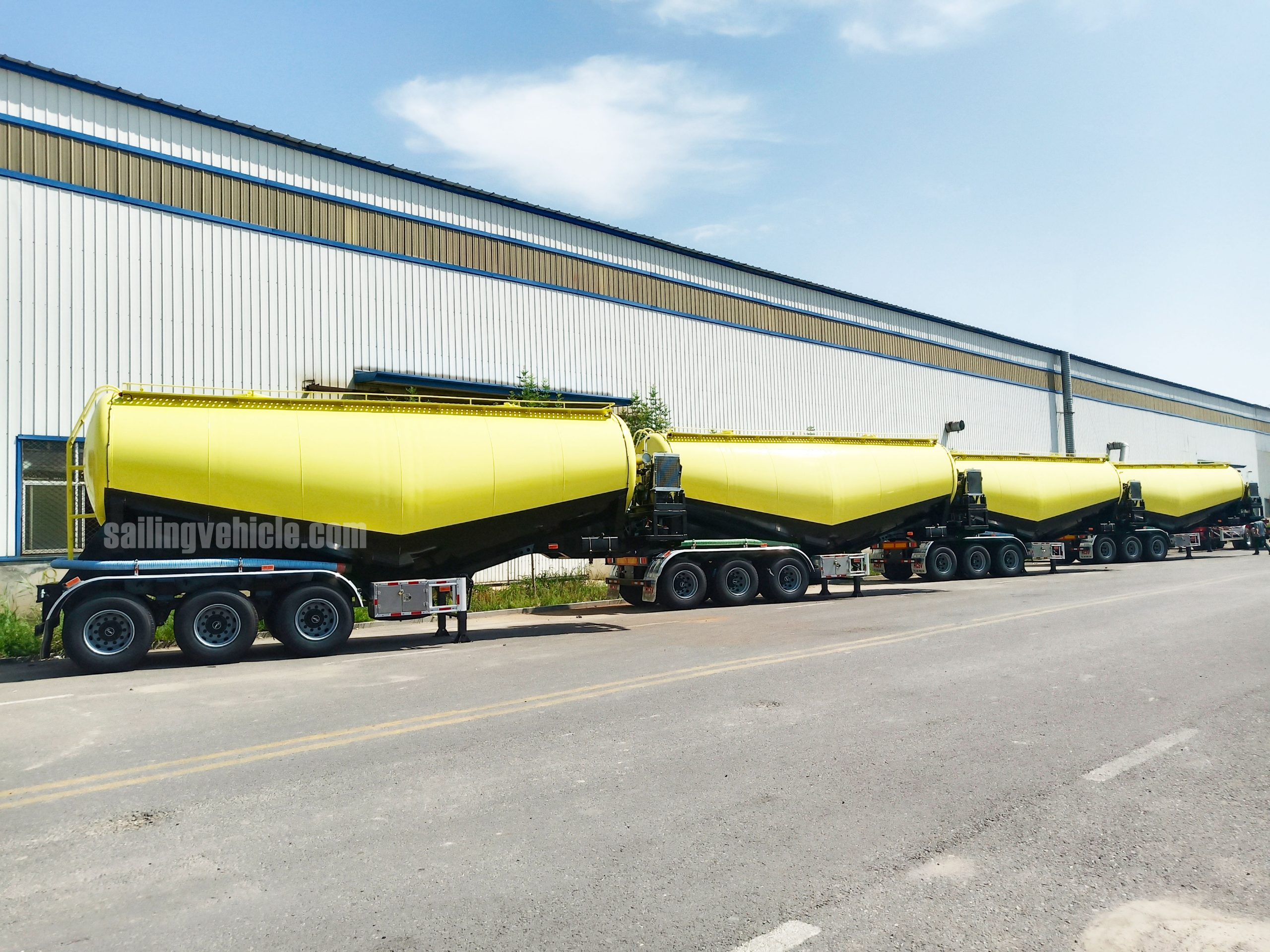

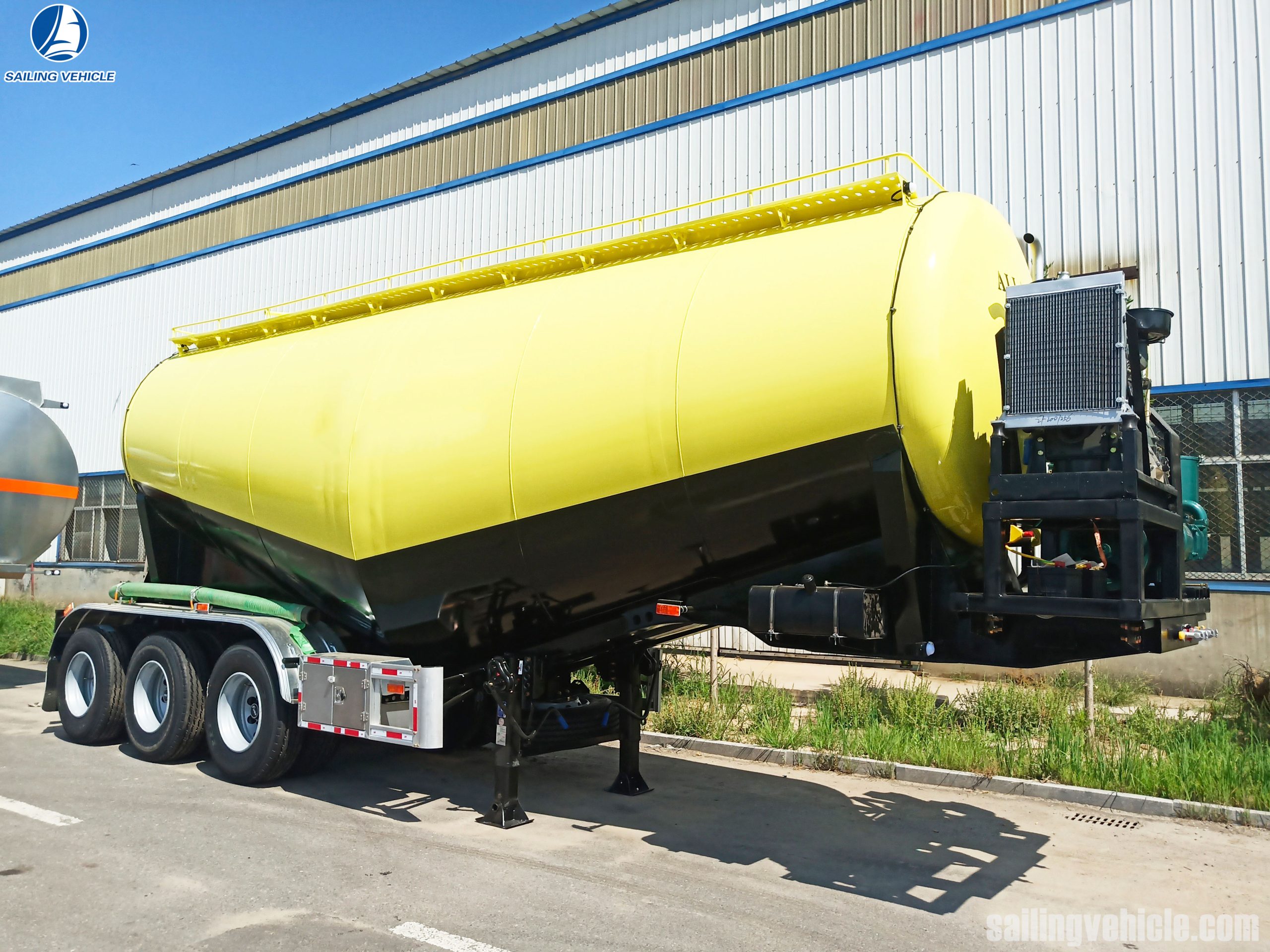

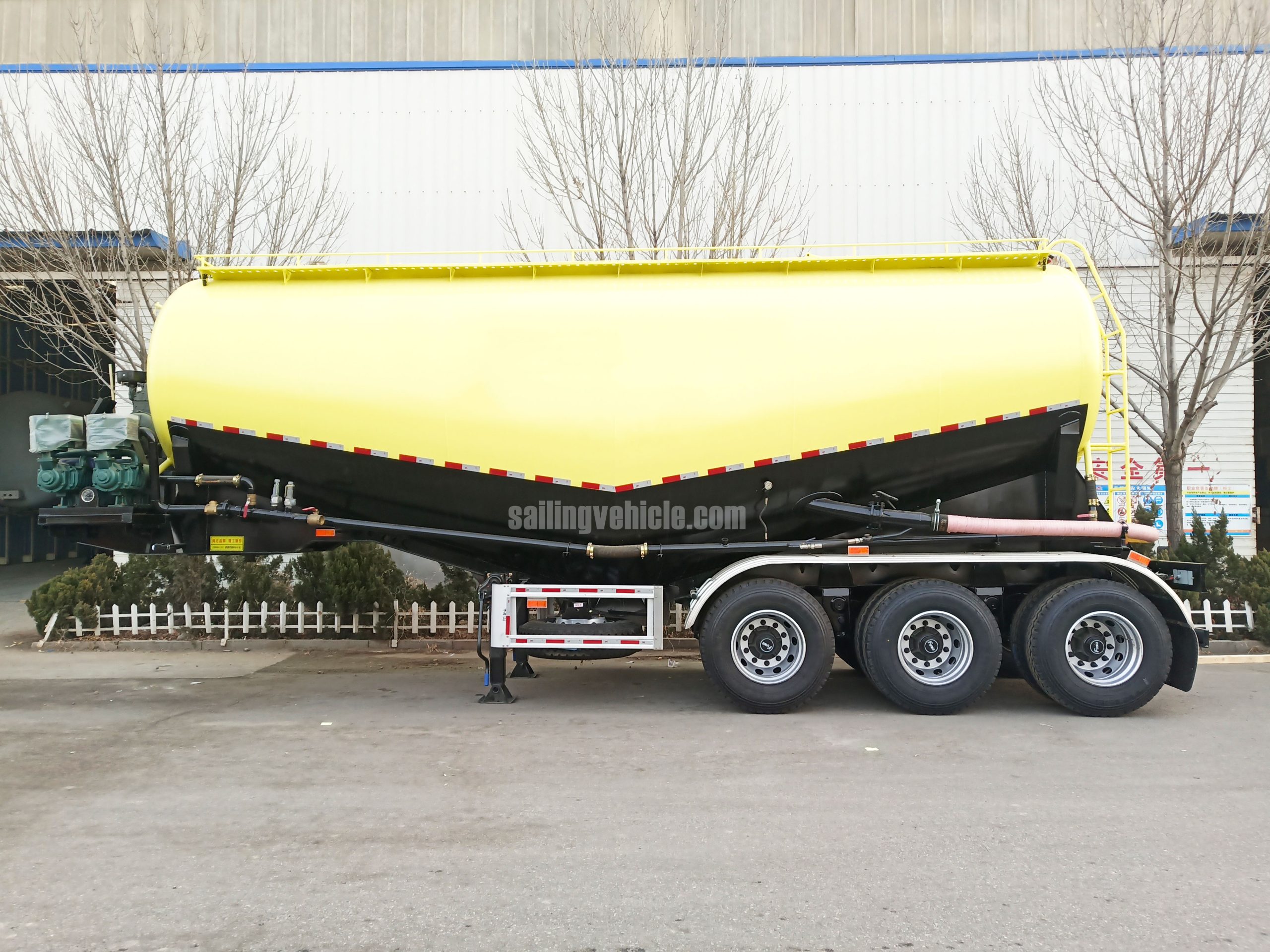

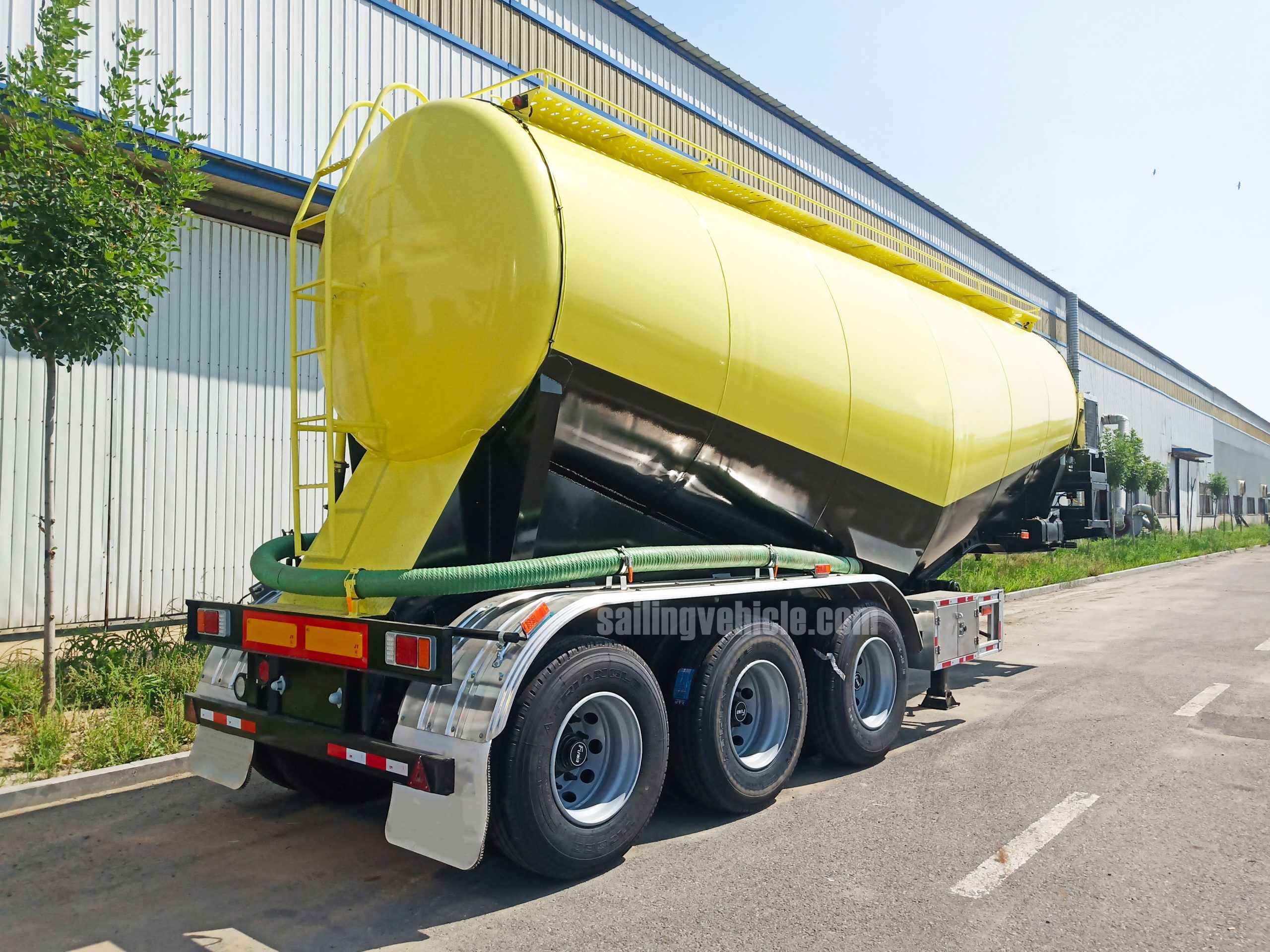

45m³ 3-axle V-shaped Bulk Cement Tank| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,000 – 17,000 USD（Prices vary by configuration）
Maximize payload with our 45m³ 3-axle V-shaped Bulk Cement Tank. Features WEICHAI engine, Bohai compressor, and 1.5t/min discharge. Inquire for factory price!
Brand: TSV-SAILING
Model: TSV202011-45
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Investing in a highly efficient 45m³ 3-axle V-shaped Bulk Cement Tank is a strategic move for modernizing your dry bulk logistics. Designed for heavy-duty performance, this specialized trailer ensures the seamless and secure transportation of dry powder materials, including cement, fly ash, and lime powder.
Core Advantages of Our 45m³ 3-axle V-shaped Bulk Cement Tank
Our trailers are meticulously engineered to balance durability with exceptional unloading speeds. The advanced V-shaped tank architecture utilizes a fluidized bed design that significantly minimizes material residue. This means you experience faster discharge rates, reduced cleaning times, and substantially higher daily operational efficiency for your entire transport fleet.
Industry-Leading Components and Build Quality
To guarantee long-term reliability and minimize maintenance downtime, we exclusively utilize top-tier components. The heart of the pneumatic system is a powerful, fuel-efficient Weichai diesel engine, which perfectly complements the high-capacity Bohai 12m³ dual-cylinder air compressor. This combination guarantees steady airflow for rapid pneumatic discharge.
For superior road stability and weight distribution, the trailer rides on premium BPW or Fuwa axles, renowned globally for their heavy-duty load-bearing capabilities. Additionally, the trailer is supported by authentic JOST A300C landing gear, offering a robust 28-ton lifting capacity.
Designed with Operator Safety in Mind
Operational safety is paramount in industrial environments. Our design includes specially punched anti-slip treads along the upper walkway, significantly reducing the risk of slipping for personnel during routine inspections. Furthermore, the inclusion of a rear backup water tank provides reliable water access for daily cleaning, brake cooling, or emergency situations.
To understand more about the standard handling and regulations of such materials, you can read this comprehensive guide on bulk cargo transport.
Are you ready to elevate your logistics capabilities and reduce operational costs? Contact our expert team today to discuss custom configurations and secure a competitive quote for your next trailer investment.
Product Overview
1. Punched Anti-Slip Treads
Maximize operator safety with our precisely punched anti-slip top treads. Engineered for superior grip in all weather conditions, this robust walkway ensures secure footing during essential loading and routine maintenance operations.
2. V-Shaped Tank Design
Our optimized V-shaped aerodynamic design guarantees ultra-smooth material flow and rapid pneumatic unloading. This innovative geometry dramatically minimizes interior residue, maximizing your daily transport efficiency and boosting operational profitability.
3. Customizable Tank Capacity
Scale your logistics operations with fully customizable tank capacities ranging from 20,000L to 80,000L. We tailor the exact volume to match your specific payload requirements, ensuring maximum transport economy.

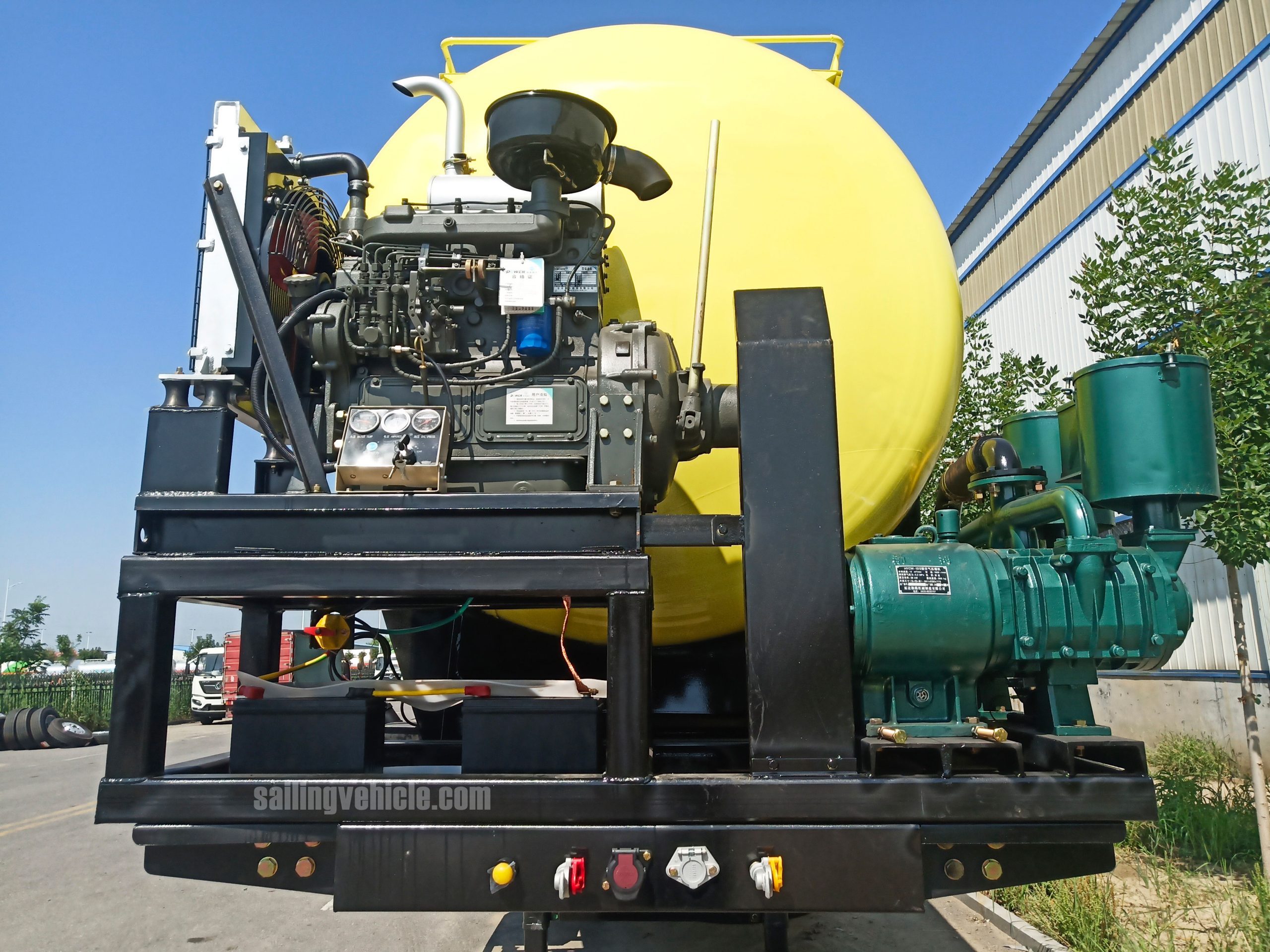

4. Brand Weichai Diesel Engine
Experience relentless power and superior fuel economy with the globally recognized Weichai diesel engine. Built for heavy-duty industrial applications, it delivers reliable, continuous performance to drive your bulk cement transport tasks.
5. Rear Backup Water Tank
Enhance on-the-road convenience with our integrated rear backup water tank. This reliable reserve ensures immediate access to water for daily maintenance routines, brake cooling, or unexpected emergency situations during transit.
6. Well-Known Axle Brands (Fuwa/BPW)
Ensure superior road stability and exceptional load-bearing capacity with world-renowned BPW or Fuwa axles. These heavy-duty components minimize tire wear, reduce maintenance costs, and guarantee long-lasting, reliable highway performance.
7. JOST Landing Gear (Model A300C)
Secure your trailer with absolute confidence using the authentic JOST Model A300C landing gear. Featuring a massive 28-ton load capacity, it provides unparalleled stability and safety during decoupling and parking.
8. Bohai Air Compressor
Achieve blazing-fast discharge rates with the premium Bohai 12m³ dual-cylinder air compressor. As a top-tier Chinese brand, it delivers high-volume, consistent air pressure for highly efficient, residue-free pneumatic unloading.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
