| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Cooking oil and other edible oils |
| 2 | Overall dimension | 12780*2500*3650mm (L*W*H)
(Approx., based on final design drawings.) |
| 3 | Curb weight | 11500kg
(Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based on the customer's truck head.) |
| 5 | Axle | 13T Brand TSY with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm*90mm, 10pcs (16mm*90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 45,000 liters (valid volume) + 5%(ullage）. |
| 13 | Tank material | Q235B |
| 14 | Tank Design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| 15 | Insulation material | Rock wool, with multilayer insulation felt. |
| 16 | Insulation material thickness | 80 mm (30mm, 80mm, 100mm, or other thickness options are available). |
| 17 | Insulation cover plate | Color-coated plate, Color White. |
| 18 | Insulation cover plate thickness | 0.5mm, National standard. |
| 19 | Heating system | Oven, steam, or burner. |
| Main parts specification | ||
| 20 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. |
| 21 | Compartment | Single compartment. |
| 22 | Burner | Diesel fire engine, the Italian Brand RIELLO & 1 unit. |
| 23 | Diesel engine | 1 unit. |
| 24 | Pump | With a diesel engine, special for bitumen & 1 unit. |
| 25 | Manhole | Carbon steel, quick-open type & 2 units, mounted on rear or front. |
| 26 | Bottom valve | 4" stainless steel & 1 unit. |
| 27 | Discharging pipe | Carbon steel with insulation. |
| 28 | Discharging valve |
4" Iron ball valve & 2 units, on both the left and right sides at the rear end of the tank, discharging by gravity.
4" Iron ball valve & 1 unit, on both the left side at the middle of the tank, discharging with a pump.
6" butterfly valve & 1 unit, at the rear of the tank, discharging with gravity. |
| 29 | Discharging the hose box | 6 meters & 2 units. |
| 30 | Discharging hose | High thermal resistance, black, thickening type, 5.7M & 2 units. |
| 31 | Handrail | 2 units on the top. |
| 32 | Walkway platform | Top with an anti-slip punched design. |
| 33 | Ladder | 1 unit, mounted on the rear or front. |
| 34 | Breather valve | Stainless steel & 2 units. |
| 35 | Spare wheel carrier | 2 units. |
| 36 | Mud guard plate | Integrated design plate, carbon steel. |
| 37 | Relay valve | WABCO brand. |
| 38 | Temperature Gauge | 1 unit. |
| 39 | Reverse buzzer | 1 unit. |
| 40 | Electric system | 24V, 7-pin socket, national standard. |
| 41 | Lights | LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 42 | Painting |
Primer layer: One coat of anti-corrosive paint on the tank shell.
Color: As per the customer's requirements.
Sticker: Make a customer's LOGO and provide enough as backup. |
| 43 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |
| Other equipment | ||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Two sets of 8KG fire extinguishers and boxes.
4. One set of anti-static grounding straps.
5. All other necessary accessories. |
||

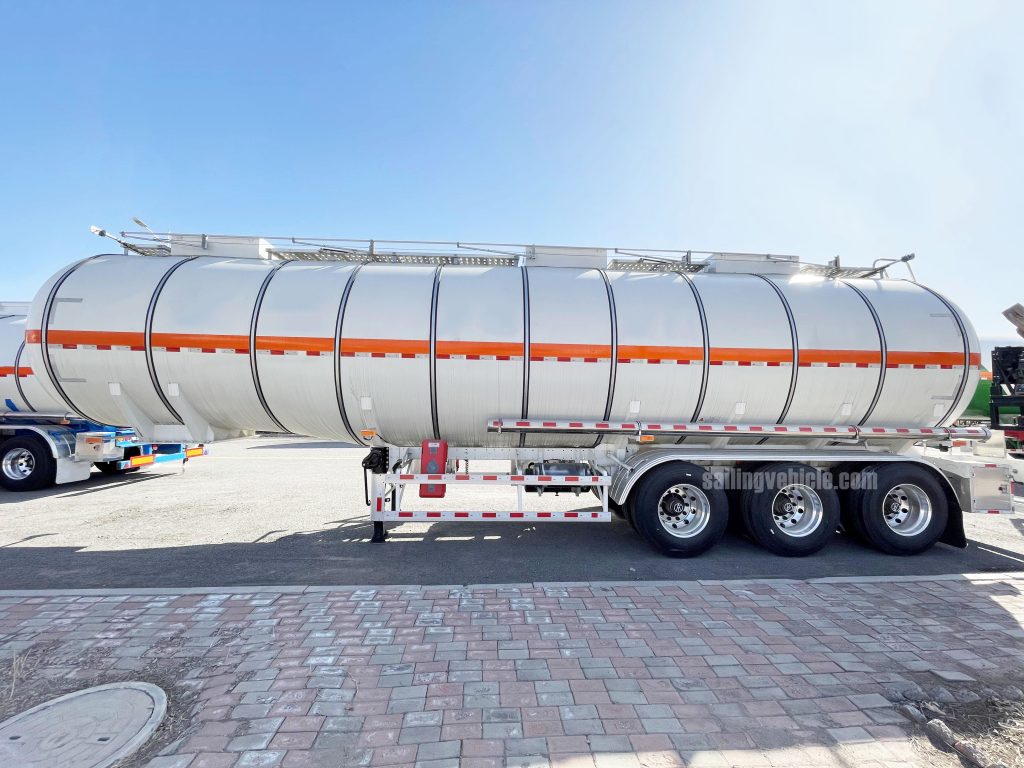

45KL Cooking Oil Insulated Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 15,000 – 19,500 USD（Prices vary by configuration）
Maximize your fleet’s efficiency with our premium 45KL Cooking Oil Insulated Tank Semi-trailer. Features food-grade stainless steel & superior thermal insulation.
Brand: TSV-SAILING
Model: TSV202108-45
Type: Mirror Stainless Steel Insulation Tanker
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When managing bulk food-grade liquid logistics, maintaining extreme purity and precise temperature control is critical for your business operations. Our premium 45KL Cooking Oil Insulated Tank Semi-trailer is meticulously engineered to provide maximum payload capacity while ensuring your valuable cargo remains completely safe during long-haul transit. Designed specifically for the rigorous demands of modern B2B logistics, this advanced transport solution effectively prevents liquid spoilage and maximizes your overall fleet profitability.
Advanced Thermal Insulation Technology
The greatest operational challenge in edible liquid logistics is external ambient temperature fluctuation. To combat this efficiently, every 45KL Cooking Oil Insulated Tank Semi-trailer is equipped with a high-density 50mm to 100mm polyurethane foam insulation layer. This advanced thermal barrier is securely encased in a highly durable stainless steel outer shell, drastically minimizing heat loss. According to international bulk liquid transport standards, strict internal temperature control is absolutely required to perfectly preserve the viscosity and nutritional value of edible oils like palm, sunflower, and soybean oil during extended commercial transit.
Uncompromising Food-Grade Hygiene
Cargo hygiene and purity are absolutely non-negotiable in the food transport sector. The inner tank shell of this 45KL Cooking Oil Insulated Tank Semi-trailer is constructed entirely from highly polished 304 or 316L food-grade stainless steel. This perfectly smooth, seamless interior actively prevents sticky residue buildup, naturally resists harsh chemical corrosion, and ensures ultra-sanitary conditions for repeated commercial use.
Designed for Highly Efficient Logistics
Engineered to significantly minimize turnaround times at commercial depots, this heavy-duty equipment features leak-proof bottom discharge valves and secure anti-slip aluminum walkways. The robust 3-axle chassis effortlessly handles the massive payload, guaranteeing full compliance with rigorous highway weight regulations. It offers exceptional driving stability, absorbs road vibrations, and significantly reduces long-term tire wear.
By upgrading your fleet with our reliable, thermally protected 45KL Cooking Oil Insulated Tank Semi-trailer, you dramatically reduce the risk of product degradation and eliminate costly operational downtime. Our expert B2B engineering team can seamlessly customize internal compartments and technical specifications to fit your specific operational requirements. Ready to enhance your bulk liquid transport capabilities? Contact our technical sales team today for a comprehensive customized quote, detailed CAD drawings, and flexible wholesale pricing.

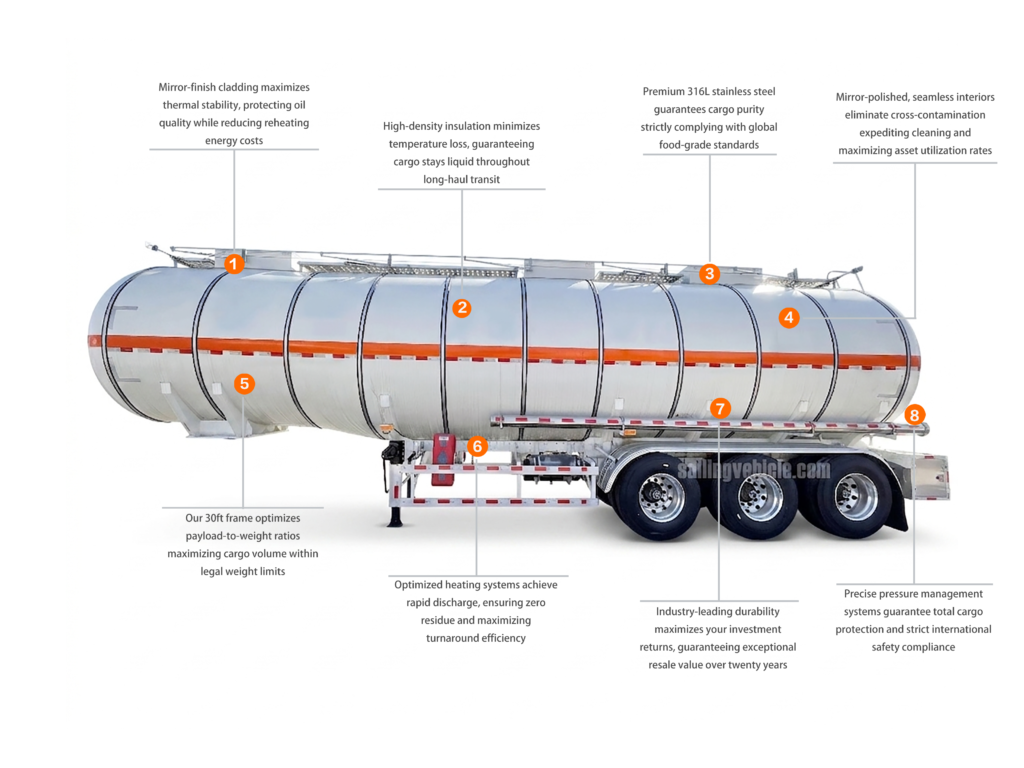

Product Overview
1. Mirror-Finish Cladding
Advanced mirror-finish cladding powerfully maximizes thermal stability during transit. This reflective exterior completely protects sensitive oil quality while drastically reducing expensive terminal reheating energy costs, ultimately driving superior profitability for your logistics operations.
2. High-Density Insulation
Premium high-density insulation critically minimizes internal temperature loss. This advanced thermal barrier reliably guarantees your valuable palm oil cargo remains completely liquid throughout demanding long-haul transit, ensuring fast, highly efficient destination unloading.
3. Premium 316L Stainless Steel
Manufactured from premium 316L stainless steel, this robust tank strictly guarantees absolute cargo purity. It fully complies with rigorous global food-grade transportation standards, ensuring complete safety for your highly sensitive edible oil logistics.
4. Mirror-Polished Seamless Interiors
Sanitary mirror-polished, seamless interiors effectively eliminate dangerous inter-batch cross-contamination. This ultra-smooth surface significantly expedites mandatory terminal cleaning procedures, substantially lowering maintenance costs while expertly maximizing your daily commercial asset utilization rates globally.
5. 30ft Optimized Frame
Our intelligently engineered 30ft frame expertly optimizes crucial payload-to-weight ratios. This specialized structural design securely maximizes your liquid cargo volume within strict legal weight limits, vastly reducing your per-trip logistics overhead costs.
6. Optimized Heating Systems
Highly optimized integrated heating systems achieve ultra-rapid liquid discharge at the destination. This advanced thermal technology ensures absolute zero product residue, completely maximizing your terminal turnaround efficiency and accelerating supply chain workflows.
7. Industry-Leading Durability
Unmatched industry-leading durability expertly maximizes your long-term commercial investment returns. This exceptionally robust tanker trailer guarantees an outstanding resale value over twenty years, sustainably driving modern B2B corporate financial success and growth.
8. Precise Pressure Management
Advanced precise pressure management systems reliably guarantee total cargo protection during high-speed transit. This critical safety engineering ensures strict international transportation safety compliance, providing uncompromising peace of mind for B2B fleet operators.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
