| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. |
| 2 | Overall dimension | 12000×2500×3500mm (L×W×H) (Approx., based on final design drawings.) |
| 3 | Curb weight | 9800kg (Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | Kingpin | 50# (2") or 90# (3.5"), standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 45,000 liters (valid volume) + 5% (ullage) |
| 13 | Tank material | Q235B |
| 14 | Tank design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| Main parts specification | ||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B |
| 16 | Compartment | 3 units, 15,000L+15,000L+15,000L per compartment. |
| 17 | Manhole cover | Aluminum & 3units, factory standard. (Jialong brand with ADR certificate optional) |
| 18 | Bottom valve | 4" aluminum & 3 units, factory standard. (Jialong brand with ADR certificate optional) |
| 19 | Discharging valve | 4" aluminum ball-type valve & 3 units (API valve optional) |
| 20 | Discharging hose box | 6 meters & 2 units. |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. |
| 22 | Handrail | 2 units on the top. |
| 23 | Walkway platform | Top with anti-slip punched design. |
| 24 | Ladder | 1 unit, on the rear or front. |
| 25 | Breather valve | Aluminum & 3 units. |
| 26 | Spare wheel carrier | 2 units. |
| 27 | Mud guard plate | Integrated design plate, carbon steel. |
| 28 | Relay valve | WABCO brand |
| 29 | Reverse buzzer | 1 unit. |
| 30 | Electric system | 24V, 7-pin socket, national standard. |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 32 | Painting |
Primer layer: One coat of anti-corrosive paint.
Final coat: Two coats of finish paint.
Color: As per customer's requirements. |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. |
| Other equipment | ||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. 2 sets of 8KG fire extinguishers with boxes.
5. 1 set of anti-static grounding tape.
6. All other necessary accessories. |
||

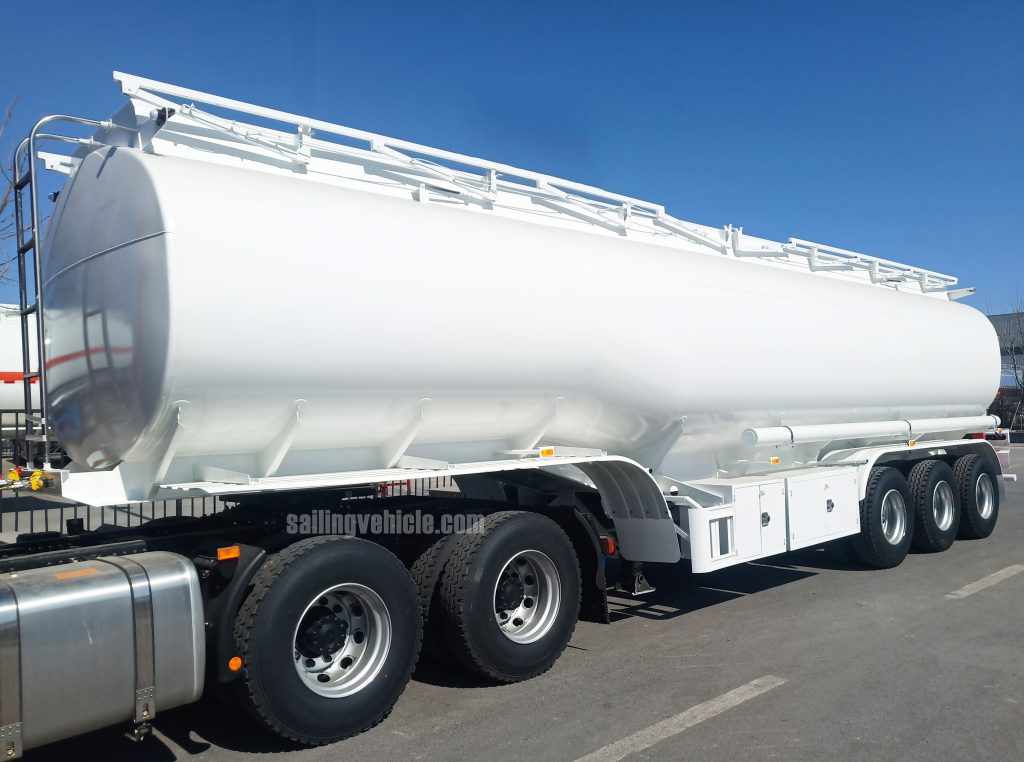

45KL 3-compartment Fuel Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：13,850 – 17,850 USD （Prices vary by configuration）
Maximize transport efficiency with our 45KL 3-compartment fuel tank semi-trailer. High-durability carbon steel & safety-certified valves. Get a factory quote today!
Brand: TSV-SAILING
Model: TSV202001-45
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When it comes to transporting liquid petroleum safely, the45KL 3-compartment Fuel Tank Semi-trailer stands out as an industry-leading solution for modern logistics fleets. Designed to handle gasoline, diesel, and other essential liquid energy products, this trailer maximizes payload while adhering to strict international safety regulations.
Superior Design of the 45KL 3-compartment Fuel Tank Semi-trailer
Safety and durability are the core pillars of our manufacturing process. This trailer is equipped with an aluminum alloy explosion-proof manhole cover, ensuring that volatile vapors are managed securely. When dealing with dangerous goods, adhering to strict safety protocols is mandatory (learn more about hazardous materials transportation). Our tanker provides peace of mind with a premium foldable guardrail that strictly protects working personnel during routine loading and structural maintenance.
Operational efficiency is another crucial benefit for B2B clients. The advanced liquid discharge system features industry-standard API valves or durable ball valves, enabling incredibly rapid and leak-free fuel transfer. Coupled with a globally trusted JOST brand kingpin and the reliable JOST A300C landing gear boasting a massive 28-ton load capacity, the connection and uncoupling process is exceptionally smooth and secure.
Premium Parts and Technical Specifications
We utilize only top-tier components to guarantee vehicle longevity. The heavy-duty suspension system relies on globally recognized axle brands. This configuration ensures exceptional load distribution, minimizes tire wear, and substantially reduces your long-term operational maintenance costs across harsh environments.
Invest in Your Fleet’s Future
By choosing the 45KL 3-compartment Fuel Tank Semi-trailer, you are actively investing in a commercial vehicle engineered for supreme profitability. Whether seamlessly paired with a Sinotruk, Shacman, or FAW Jiefang tractor head, it consistently delivers unmatched performance on the highway. We also offer custom logo printing to enhance your corporate identity.
Are you ready to upgrade your heavy-duty transportation capabilities? Do not hesitate to reach out to our dedicated engineering team for a customized pricing quote and detailed component options. Contact us today to discover exactly how this exceptional trailer can dramatically boost your logistics business operations.

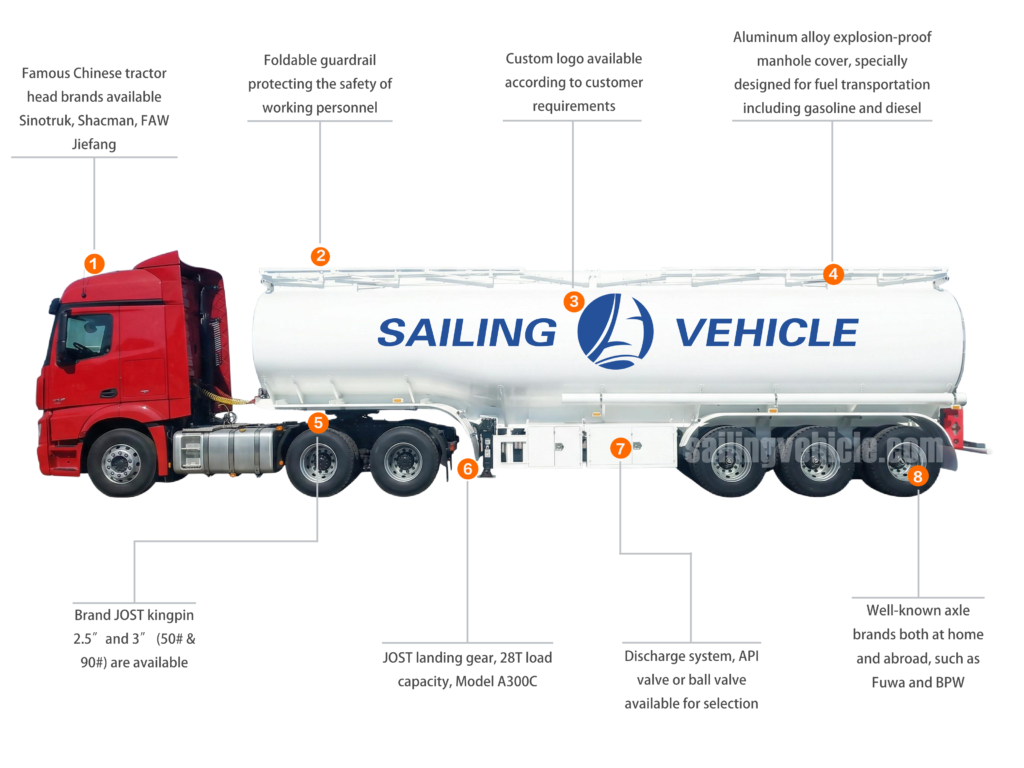

Product Overview
1. Tractor Head Selection
Choose from top-tier Chinese tractor head brands like Sinotruk, Shacman, or FAW Jiefang. These globally recognized trucks ensure powerful performance, exceptional reliability, and maximum cost-efficiency for your demanding long-haul transportation needs.
2. Foldable Guardrail
The premium foldable guardrail maximizes the safety of working personnel during operation and maintenance. Its robust, user-friendly design ensures secure roof access while reducing aerodynamic drag when folded down, improving overall fuel efficiency.
3. Custom Logo Branding
Enhance your fleet's professional appearance with our custom logo printing service. We strictly follow your branding requirements, delivering a high-quality, weather-resistant corporate identity that powerfully promotes your B2B business across every transportation route.
4. Explosion-Proof Manhole Cover
Equipped with an aluminum alloy explosion-proof manhole cover, specifically engineered for highly flammable gasoline and diesel. It effectively relieves internal pressure, preventing catastrophic accidents and guaranteeing ultimate safety during harsh transportation conditions.
5. JOST Brand Kingpin
Featuring the globally trusted JOST brand kingpin, available in 2.5" and 3" specifications. This heavy-duty component guarantees an incredibly secure connection between the tractor and trailer, ensuring supreme stability and reliable towing performance.
6. JOST Landing Gear
Built with the heavy-duty JOST A300C landing gear, boasting a remarkable 28-ton load capacity. This durable system ensures smooth, effortless uncoupling and provides steadfast stability for the loaded fuel trailer when parked safely.
7. Advanced Discharge System
Optimize your unloading process with our versatile discharge system. Choose between industry-standard API valves or durable ball valves, both designed for rapid, leak-free fuel transfer, maximizing operational efficiency and minimizing costly commercial downtime.
8. Premium Axle System
Supported by world-renowned axle brands like FUWA and BPW. These highly durable, heavy-duty axles offer exceptional load-bearing capacity, reduce fleet maintenance costs, and ensure a remarkably smooth, safe ride across challenging road conditions.

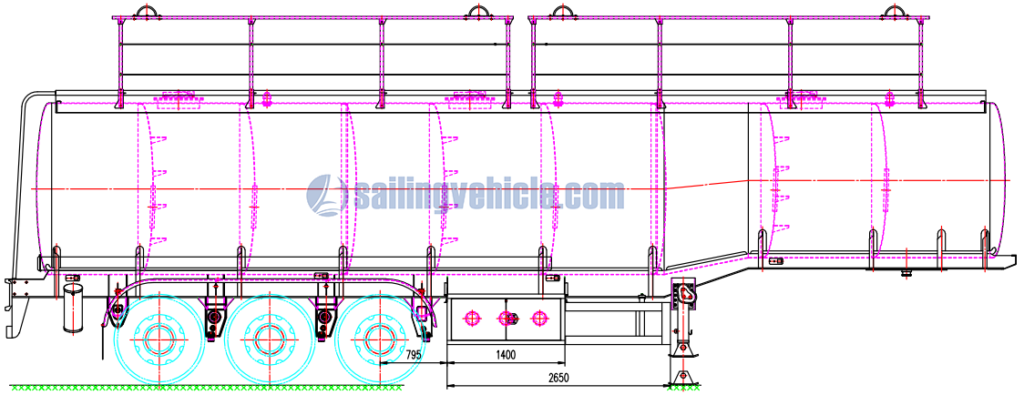

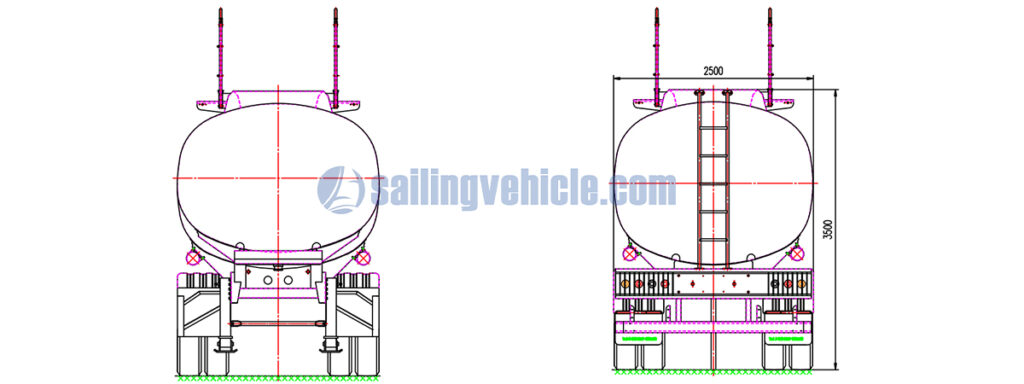

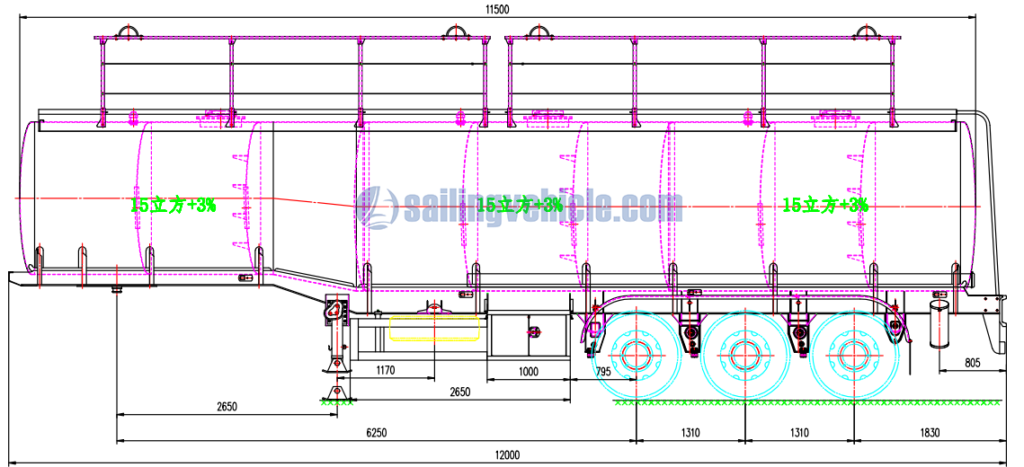

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
