| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. | |
| 2 | Overall dimension | 13000×2500×3530mm (L×W×H) (Approx., based on final design drawings.) | |
| 3 | Curb weight | 7500kg (Approx., based on final design drawings.) | |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) | |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | |
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension,leaf springs,13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) | |
| Tank body specification | |||
| 11 | Tank shape | Square-round (Double D ) and gooseneck design. | |
| 12 | Tank capacity | 45,000 liters (valid volume) + 5%(ullage) | |
| 13 | Tank material | AL5182 | |
| 14 | Tank design thickness | End cover | 7 mm |
| Tank body | 6 mm | ||
| Baffle | 6 mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Compartment | 7 units,6,420L+6,420L+6,420L+6,420L+6,420L+6,420L+6,420L per compartment. | |
| 17 | Manhole cover | Aluminum & 7 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 18 | Bottom valve | 4" aluminum & 7 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 19 | Discharging valve | 4" aluminum ball-type valve & 7 units (API valve optional) | |
| 20 | Discharging hose box | 6 meters & 2 units. | |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 22 | Handrail | 2 units on the top. | |
| 23 | Walkway platform | Top with anti-slip punched design. | |
| 24 | Ladder | 1 unit, on the rear or front. | |
| 25 | Breather valve | Aluminum & 7 units. | |
| 26 | Spare wheel carrier | 2 units. | |
| 27 | Mud guard plate | Integrated design plate, carbon steel. | |
| 28 | Relay valve | WABCO brand | |
| 29 | Reverse buzzer | 1 unit. | |
| 30 | Electric system | 24V, 7-pin socket, national standard. | |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. | |
| 32 | Color | Original aluminum alloy color or painting as per customer's requirements. | |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding tape.
6. All other necessary accessories. |
|||
45CBM 7-compartment Aluminum 5182 Tanker| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 20,000 – 32,000 USD （Prices vary by configuration）
Maximize payload with our 45CBM 7-compartment Aluminum 5182 Tanker. High-strength AL5182 alloy, safe multi-fuel delivery, and ISO certified. Get a quote!
Brand: TSV-SAILING
Model: TSV202006-45
Type: Aluminum Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
High-Efficiency 45CBM 7-compartment Aluminum 5182 Tanker for Multi-Fuel Transport
The 45CBM 7-compartment Aluminum 5182 Tanker is the ultimate solution for high-volume, multi-grade liquid logistics. Engineered with high-strength Aluminium alloy 5182, this trailer offers an exceptional strength-to-weight ratio. By significantly reducing the vehicle’s tare weight, it allows fleet operators to carry more fuel per trip, effectively lowering operational costs and increasing overall ROI in competitive energy markets.
Advanced 7-Compartment Flexible Loading
Versatility is a core advantage of this model. The 45CBM 7-compartment Aluminum 5182 Tanker features seven independent internal chambers, allowing for the simultaneous transport of various fuels without the risk of cross-contamination. Each compartment is built with precision-welded AL5182 baffles, ensuring structural stability and balanced weight distribution during long-distance hauls across diverse road conditions.
Built for Safety and Durability
Every aspect of this tanker is designed with safety as the priority. From the standard API bottom loading system to the integrated pneumatic emergency valves, the trailer minimizes the risk of spills and environmental hazards. The use of 5182-grade aluminum provides superior corrosion resistance against refined petroleum products, ensuring the tank remains clean and leak-proof throughout its extensive service life.
Optimize Your Fleet Today
Our tankers undergo 100% X-ray weld inspection and high-pressure leak testing to meet international safety standards. With its lightweight design and massive 7-compartment capacity, this trailer is a high-performance asset for any fuel distribution company. Contact our expert team today to receive a customized technical drawing and a competitive wholesale quotation.
Product Overview
1. Spherical Tank Head
Engineered with a heavy-duty spherical head, this design dramatically enhances pressure resistance and ensures superior sealing. It effectively prevents dangerous leaks, maximizing overall structural integrity and protecting your valuable liquid cargo during transport.
2. Punched Anti-Slip Treads
Safety is paramount. The tank top features premium punched anti-slip treads, providing maximum grip for operating personnel in all weather conditions. This significantly reduces slip hazards during routine maintenance, ensuring a secure working environment.
3. Custom Logo Branding
Maximize your corporate visibility with our tailored custom logo branding service. We apply durable, high-quality decals to the tank exterior, transforming your trailer into a powerful mobile billboard that promotes your B2B business everywhere.
4. Box-Shaped Top Coaming
The robust box-shaped coaming on the tank top offers exceptional safety and stability. This durable structural reinforcement protects critical top-mounted components from rollover damage, ensuring a significantly longer service life for your vital equipment.
5. JOST Brand Kingpin
Equipped with a globally trusted JOST brand kingpin, available in 2.5" and 3" models. This heavy-duty component guarantees an incredibly secure, stable connection to the tractor, enhancing towing safety and minimizing wear over time.
6. Complete Vapor Recovery System
Features a complete vapor recovery system including a specialized manhole cover, API valve, bottom valve, and anti-overflow probe. This guarantees eco-friendly, safe operations by capturing volatile emissions, strictly adhering to global environmental and safety standards.
7. Premium Axle Configuration
Supported by world-renowned axle brands like Fuwa or BPW. These premium heavy-duty axles deliver exceptional load-bearing capacity, ensure a remarkably smooth ride, and drastically reduce fleet maintenance costs across the most challenging road environments.
8. Lightweight Aluminum Rims
Premium aluminum rims provide a lightweight yet incredibly strong foundation. Their exceptional heat-dissipating properties significantly extend tire life and enhance braking performance, ensuring unparalleled stability, longevity, and long-term cost-efficiency for your commercial fleet operations.

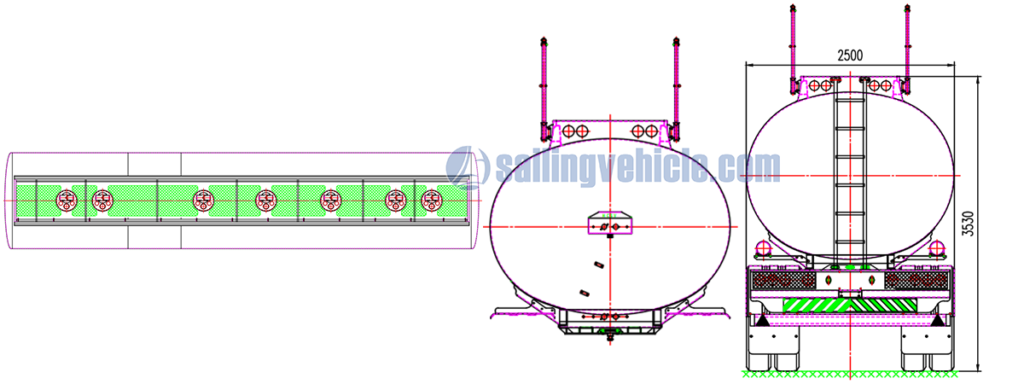

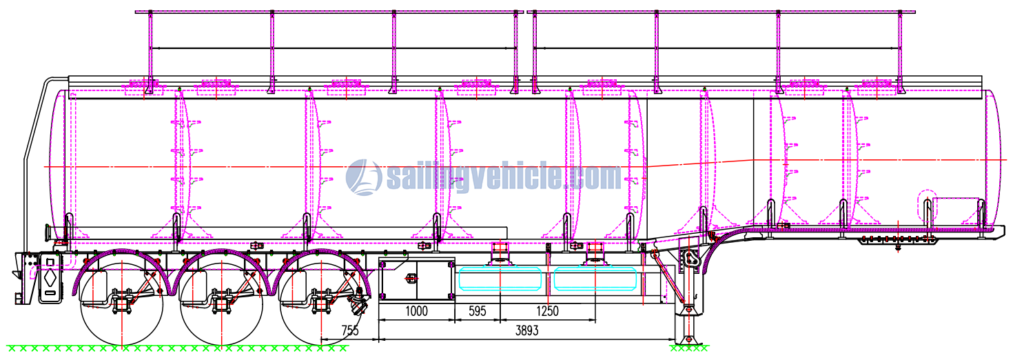

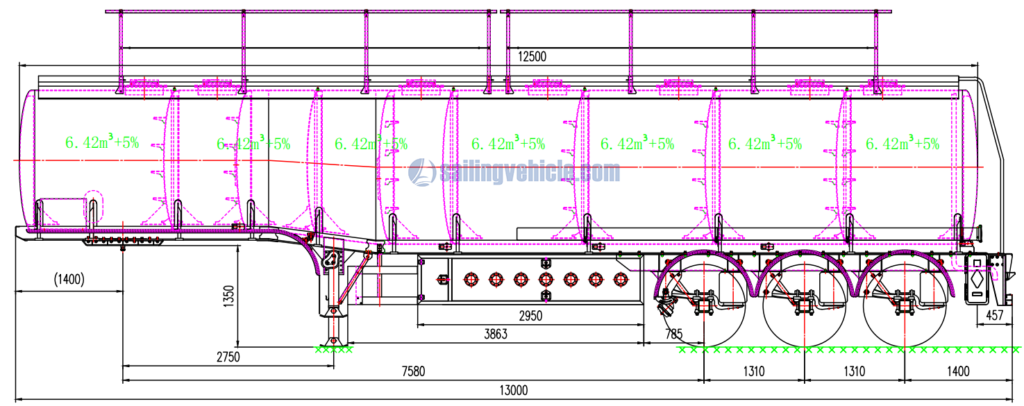

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
