| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. | |
| 2 | Overall dimension | 12580×2500×3450mm (L×W×H) (Approx., based on final design drawings.) | |
| 3 | Curb weight | 7500kg (Approx., based on final design drawings.) | |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) | |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | |
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension,leaf springs,13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) | |
| Tank body specification | |||
| 11 | Tank shape | Square-round (Double D ) and gooseneck design. | |
| 12 | Tank capacity | 45,000 liters (valid volume) + 5%(ullage) | |
| 13 | Tank material | AL5182 | |
| 14 | Tank design thickness | End cover | 7 mm |
| Tank body | 6 mm | ||
| Baffle | 6 mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Compartment | 6 units,7,500L+7,500L+7,500L+7,500L+7,500L+7,500L per compartment. | |
| 17 | Manhole cover | Aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 18 | Bottom valve | 4" aluminum & 6 units, factory standard. (Jialong brand with ADR certificate optional) | |
| 19 | Discharging valve | 4" aluminum ball-type valve & 6 units (API valve optional) | |
| 20 | Discharging hose box | 6 meters & 2 units. | |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 22 | Handrail | 2 units on the top. | |
| 23 | Walkway platform | Top with anti-slip punched design. | |
| 24 | Ladder | 1 unit, on the rear or front. | |
| 25 | Breather valve | Aluminum & 6 units. | |
| 26 | Spare wheel carrier | 2 units. | |
| 27 | Mud guard plate | Integrated design plate, carbon steel. | |
| 28 | Relay valve | WABCO brand | |
| 29 | Reverse buzzer | 1 unit. | |
| 30 | Electric system | 24V, 7-pin socket, national standard. | |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. | |
| 32 | Color | Original aluminum alloy color or painting as per customer's requirements. | |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1.Single tool box, maximum available size.
2.Single valve box, maximum available size.
3.Single side loading & unloading on the left.
4.Two sets of 8KG fire extinguishers with boxes.
5.One set of anti-static grounding tape.
6.All other necessary accessories. |
|||
45CBM 6-compartment AL5182 Aluminum Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：20,000 – 32,000 USD （Prices vary by configuration）
Maximize multi-fuel transport efficiency with our 45CBM 6-compartment AL5182 Aluminum Tank Semi-trailer. Lightweight, safe, and highly durable. Get a quote!
Brand: TSV-SAILING
Model: TSV202005-45
Type: Aluminum Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Versatile 45CBM 6-compartment AL5182 Aluminum Tank Semi-trailer for Liquid Logistics
Investing in the right transport equipment is crucial, and the 45CBM 6-compartment AL5182 Aluminum Tank Semi-trailer stands out as a top-tier choice for modern liquid logistics. Engineered for maximum payload capacity and operational flexibility, this specialized trailer allows fleet operators to transport multiple fuel grades simultaneously. By utilizing advanced AL5182 aluminum, we significantly reduce the tare weight without compromising structural integrity, ensuring you achieve higher profitability and lower fuel consumption on every single run.
Superior AL5182 Alloy Construction
Safety and longevity are paramount in hazardous materials transport. The tank shell and baffle plates are constructed from premium AL5182 aluminum alloy, widely recognized in the automotive and aerospace industries for its exceptional tensile strength, weldability, and natural corrosion resistance. This advanced material selection guarantees a remarkably longer service life and substantially lower maintenance costs, even when handling aggressive petroleum products or harsh environmental conditions.
Multi-Compartment Operational Efficiency
Featuring a sophisticated 6-compartment design, this trailer enables the simultaneous delivery of diesel, petrol, and other refined fuels. Each independent compartment is equipped with state-of-the-art API bottom loading valves and pneumatic emergency foot valves. This intelligent layout completely prevents cross-contamination and ensures rapid, safe, and environmentally compliant discharge at multiple service stations, greatly reducing your fleet’s turnaround time.
Advanced Safety and Handling
Equipped with heavy-duty mechanical leaf springs or optional advanced air suspension, the vehicle handles rough terrains and highway long-hauls with ease. The integrated WABCO ABS/EBS braking system prevents wheel lock-up during emergency braking, safeguarding your driver and valuable cargo.
Every unit is rigorously tested, featuring X-ray inspected welds and premium components like JOST landing gear. Ready to upgrade your transport operations? Contact our sales team today for comprehensive technical drawings, detailed configurations, and a competitive bulk quotation tailored to your market.

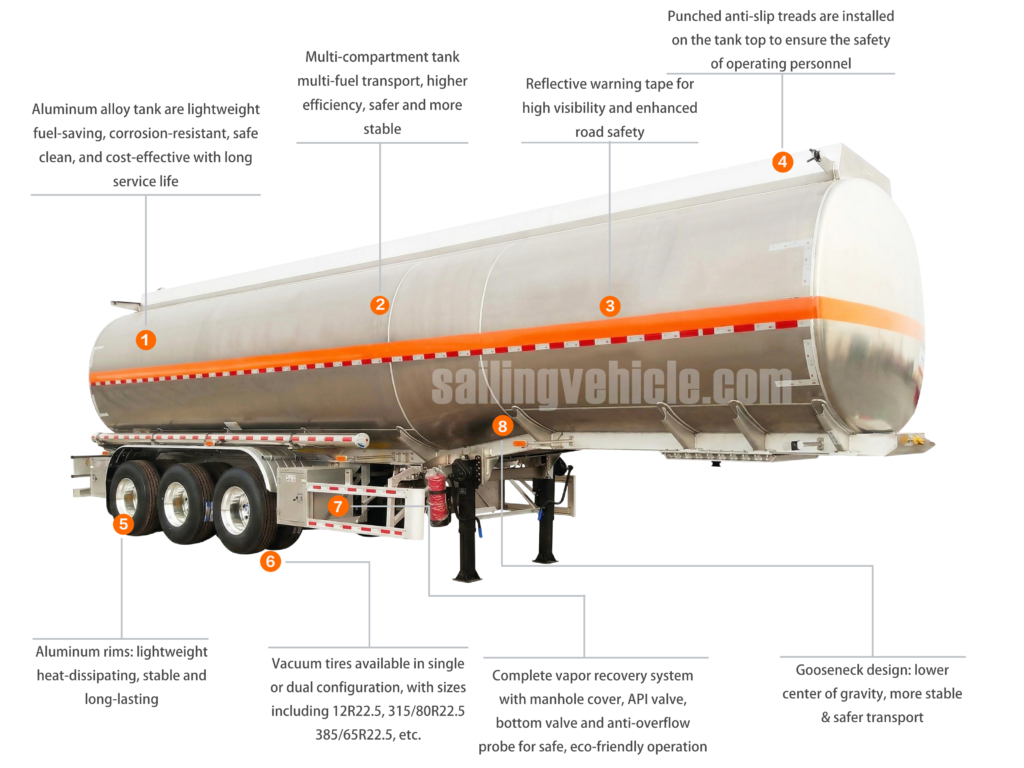

Product Overview
1. Aluminum Alloy Tank
Maximize payload and minimize fuel consumption with our premium aluminum alloy tank. Engineered for exceptional corrosion resistance, it ensures a safe, clean transport environment while delivering unparalleled cost-effectiveness and a remarkably long service life.
2. Multi-Compartment Tank
Boost your fleet’s operational versatility with the multi-compartment configuration. Seamlessly transport different fuel types simultaneously to optimize routing efficiency. This structured design guarantees superior load stability and significantly enhances overall transit safety.
3. Reflective Warning Tape
Ensure maximum nighttime visibility with high-grade reflective warning tape running along the trailer. This vital safety feature significantly enhances overall road presence, drastically reducing the risk of collisions during low-light transport operations.
4. Punched Anti-Slip Treads
Prioritize the physical security of your operators with custom-punched, anti-slip treads along the tank top. This rugged walkway provides maximum grip and stability, ensuring absolute safety during routine loading, inspection, and maintenance procedures.
5. Aluminum Rims
Enhance vehicle performance with advanced lightweight aluminum rims. Their superior heat-dissipating properties significantly extend brake and tire lifespan, providing a stable, durable foundation that lowers long-term maintenance costs for your transportation business.
6. Vacuum Tires
Adapt to any terrain with heavy-duty vacuum tires, available in customizable single or dual configurations. Offering versatile sizing options, these robust tires ensure optimal traction, superior load-bearing capacity, and maximum blowout resistance.
7. Complete Vapor Recovery System
Achieve strict environmental compliance with our comprehensive vapor recovery system. Featuring premium API valves, anti-overflow probes, and bottom valves, it guarantees secure, eco-friendly operations while actively preventing hazardous spills and vapor leakage.
8. Gooseneck Design
Experience unparalleled transit stability with the optimized gooseneck design. By effectively lowering the vehicle's center of gravity, this structure drastically minimizes rollover risks, ensuring the safest possible journey for your high-value liquid cargo.

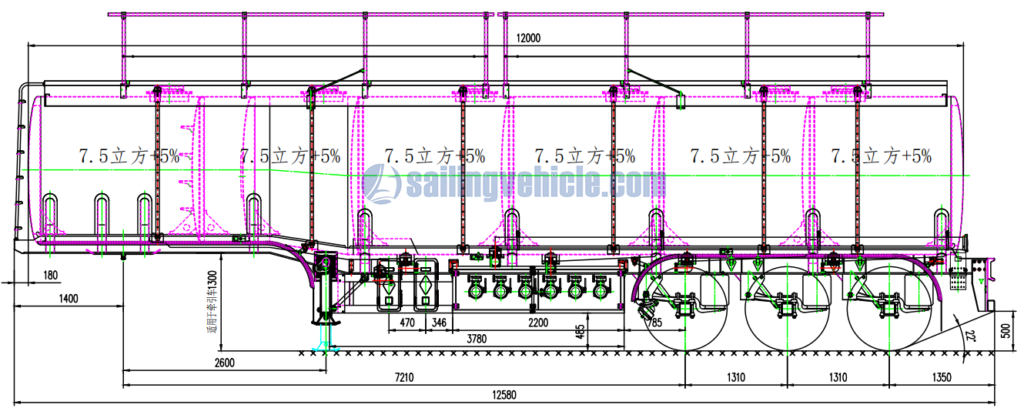

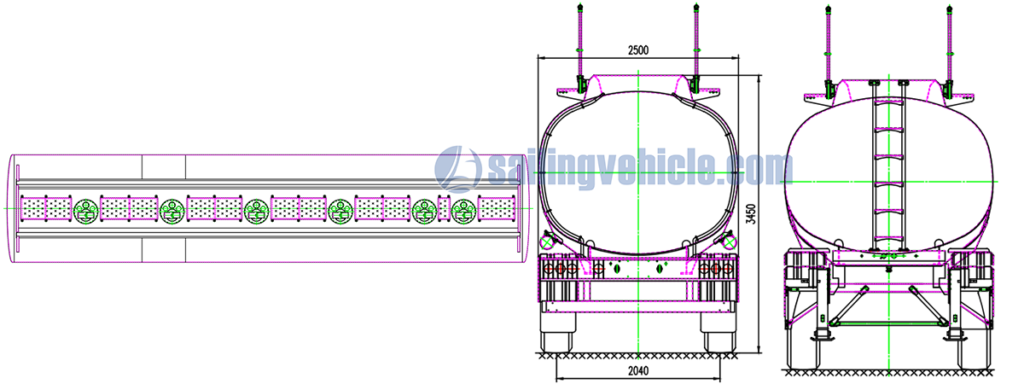

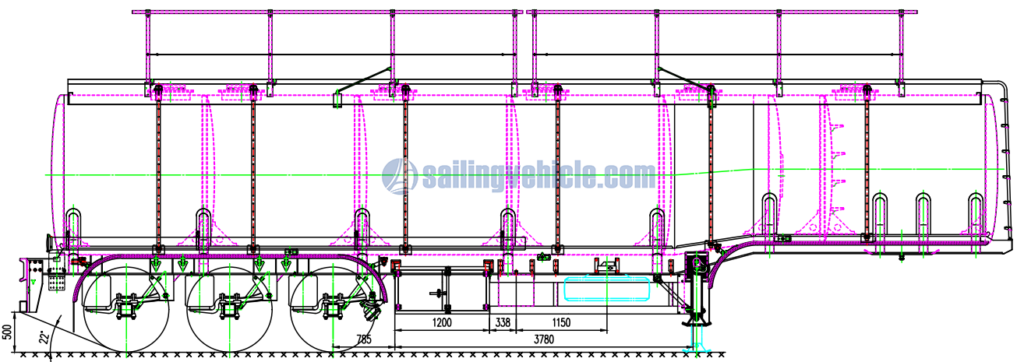

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
