| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10250×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
8000kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 45 CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 4mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||

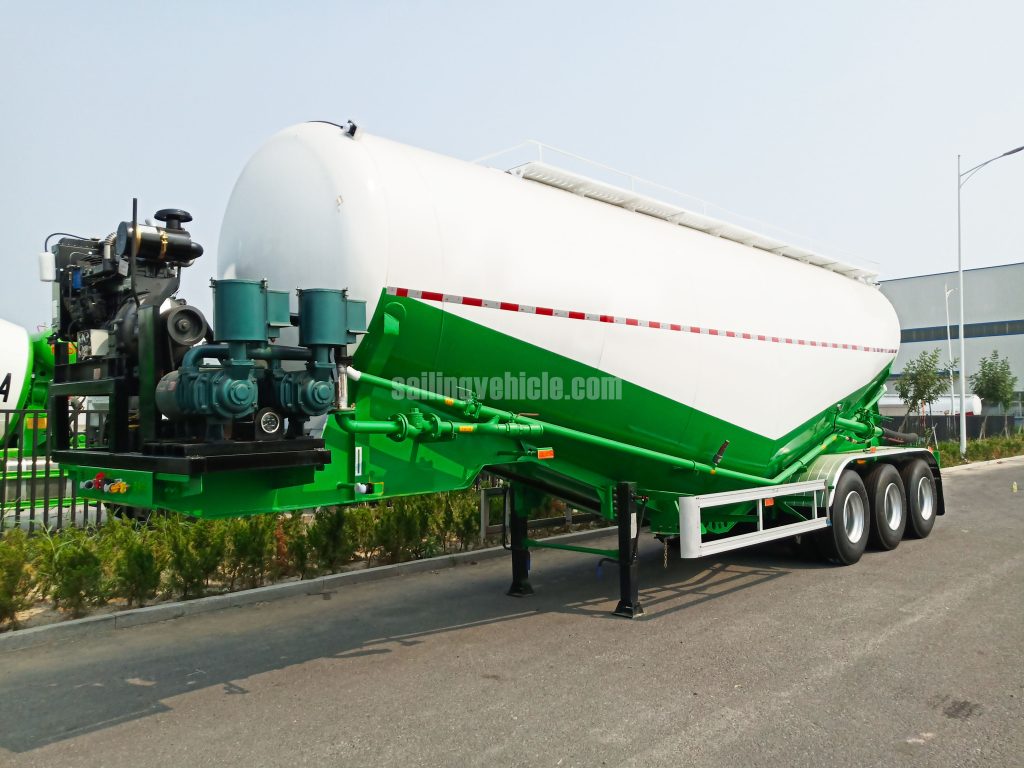

45 Powder Tanker with Diesel Engine and Air Compressor| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,000 – 17,000 USD（Prices vary by configuration）
Optimize logistics with our 45 Powder Tanker with Diesel Engine and Air Compressor. Independent discharge, 45m³ capacity, and WEICHAI power. Inquire for pricing!
Brand: TSV-SAILING
Model: TSV202009-45
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Are you looking to significantly upgrade your bulk food transport fleet? The 45 Powder Tanker with Diesel Engine and Air Compressor is meticulously engineered to provide unmatched efficiency, hygiene, and reliability for long-haul transport. Designed specifically for the rigorous demands of the modern food logistics industry, this advanced commercial equipment ensures your delicate dry bulk goods arrive at their destination in pristine condition, completely free from moisture or external contamination.
Premium Engineering of the 45 Powder Tanker with Diesel Engine and Air Compressor
To guarantee rapid and consistent unloading times, this trailer is equipped with a high-performance Weichai diesel engine paired directly with a 12m³ dual-cylinder Bohai air compressor. This robust pneumatic system ensures continuous, high-volume discharge, minimizing terminal downtime and maximizing your daily haulage throughput. For more context on industry standards, you can review the principles of pneumatic transport on the Wikipedia bulk material handling page.
Safety and structural durability remain paramount in our design philosophy. The tank top features precision-punched anti-slip treads to protect operators during top-loading procedures. Down below, the foundation rests on globally renowned Fuwa or BPW axles. Coupled with a heavy-duty 28T JOST A300C landing gear, the operational stability of this vehicle is unparalleled, even when fully loaded with dense powder materials.
Optimized for Food-Grade Safety and Versatility
Transporting sensitive consumables requires strict adherence to hygiene standards. The interior of the tank is smoothly finished to prevent material buildup, ensuring complete discharge of farina and flour. Externally, the vehicle rolls on highly adaptable vacuum tires—available in versatile configurations like 12R22.5 or 385/65R22.5—offering superior traction across varied industrial terrains. Additionally, a rear backup water tank is thoughtfully integrated for on-the-go maintenance and immediate cleaning capabilities.
Investing in this high-capacity, heavy-duty trailer drastically reduces operational overhead while safeguarding your valuable cargo. Ready to elevate your logistics capabilities with custom manufacturing solutions? Get a competitive quote and detailed blueprints by visiting our Contact Us page today to speak with our engineering team.

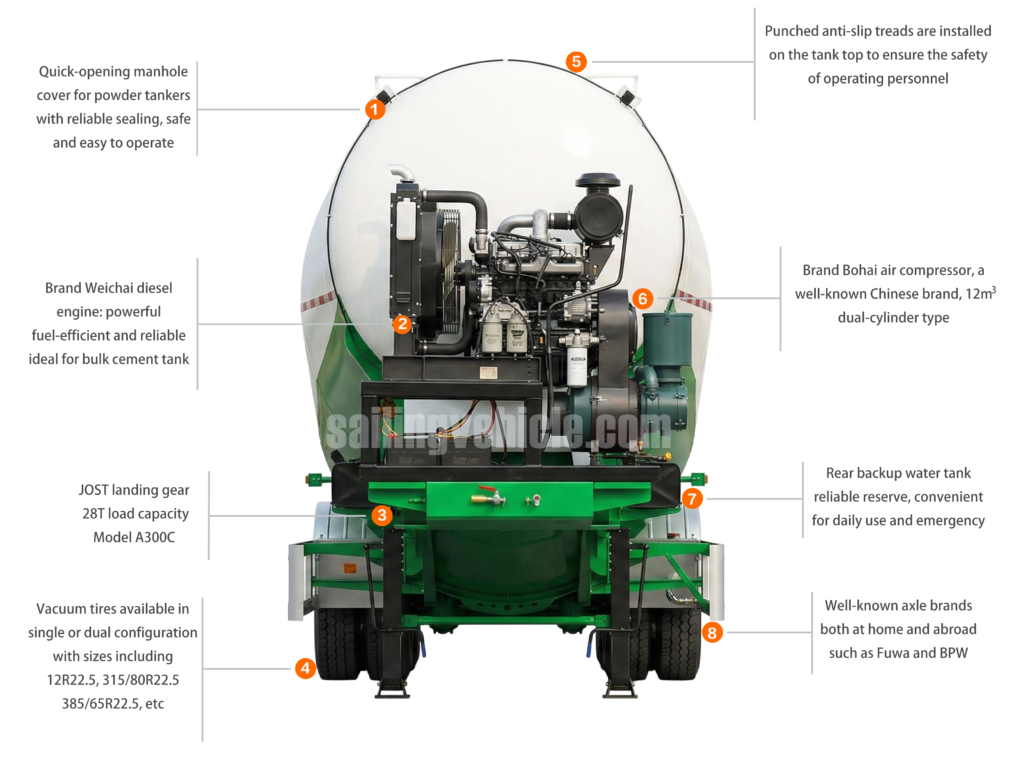

Product Overview
1. Quick-Opening Manhole Cover
Equip your fleet with our quick-opening manhole cover, specifically designed for powder tankers. It guarantees reliable sealing to prevent product loss, ensuring safe, efficient, and easy daily operations for your workforce.
2. Brand Weichai Diesel Engine
Experience unmatched performance with the premium Weichai diesel engine. Renowned for being powerful, fuel-efficient, and highly reliable, it provides the robust power necessary for demanding bulk cement and flour transport operations.3. JOST Landing Gear (Model A300C)
Rely on the heavy-duty JOST A300C landing gear, offering a robust 28-ton load capacity. This premium component ensures exceptional trailer stability during uncoupling, maximizing safety and extending the equipment's lifespan significantly.4. Versatile Vacuum Tires
Adapt to any terrain with versatile vacuum tires, available in single or dual configurations. Choose from sizes like 12R22.5 to 385/65R22.5, ensuring optimal traction, reduced rolling resistance, and superior durability.5. Punched Anti-Slip Treads
Prioritize worker safety with punched anti-slip treads securely installed along the tank top. These high-grip walkways prevent dangerous slips and falls, providing operators with maximum security during loading and routine maintenance.6. Brand Bohai Air Compressor
Maximize discharge efficiency with the dual-cylinder Bohai air compressor. As a top-tier Chinese brand, it delivers consistent, high-pressure airflow, drastically reducing unloading times and boosting your overall operational productivity and throughput.
7. Rear Backup Water Tank
Maintain operational readiness with a reliable rear backup water tank. This practical addition provides a convenient water reserve for daily equipment cleaning, essential maintenance tasks, and unforeseen emergency situations on site.
8. Premium Axle Brands
Guarantee smooth transportation with industry-leading axles from globally recognized brands like Fuwa and BPW. These heavy-duty axles provide superior load-bearing capacity, exceptional durability, and reduced maintenance costs for long-haul operations.| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
