| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. |
| 2 | Overall dimension | 12000×2500×3500mm (L×W×H) (Approx., based on final design drawings.) |
| 3 | Curb weight | 10000kg (Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | Kingpin | 50# (2") or 90# (3.5"), standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Air suspension (BPW/Fuwa/L1 brands optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 44,000 liters (valid volume) + 5% (ullage) |
| 13 | Tank material | Q235B |
| 14 | Tank design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| Main parts specification | ||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B |
| 16 | Compartment | 4 units, 11,000L+11,000L+11,000L+11,000L per compartment. |
| 17 | Manhole cover | Aluminum & 4 units, factory standard. (Jialong brand with ADR certificate optional) |
| 18 | Bottom valve | 4" aluminum & 4 units, factory standard. (Jialong brand with ADR certificate optional) |
| 19 | Discharging valve | 4" aluminum ball-type valve & 4 units (API valve optional) |
| 20 | Discharging hose box | 6 meters & 2 units. |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. |
| 22 | Handrail | 2 units on the top. |
| 23 | Walkway platform | Top with anti-slip punched design. |
| 24 | Ladder | 1 unit, on the rear or front. |
| 25 | Breather valve | Aluminum & 4 units. |
| 26 | Spare wheel carrier | 2 units. |
| 27 | Mud guard plate | Integrated design plate, carbon steel. |
| 28 | Relay valve | WABCO brand |
| 29 | Reverse buzzer | 1 unit. |
| 30 | Electric system | 24V, 7-pin socket, national standard. |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 32 | Painting |
Primer layer: One coat of anti-corrosive paint.
Final coat: Two coats of finish paint.
Color: As per customer's requirements. |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. |
| Other equipment | ||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. 2 sets of 8KG fire extinguishers with boxes.
5. 1 set of anti-static grounding tape.
6. All other necessary accessories. |
||
44CBM Fuel Tank Semitrailer With Air Suspension & Front Lift Axle| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price:16,500 – 19,500 USD （Prices vary by configuration）
High-efficiency 44CBM Fuel Tank Semitrailer With Air Suspension & Front Lift Axle. Durable carbon steel construction for safe, low-cost liquid fuel logistics. Get a quote!
Brand: TSV-SAILING
Model: TSV202002-44
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Advanced Logistics Solution: 44CBM Fuel Tank Semitrailer With Air Suspension & Front Lift Axle
The 44CBM Fuel Tank Semitrailer With Air Suspension & Front Lift Axle is engineered for high-volume fuel transportation, balancing payload efficiency with superior road handling. Built with premium-grade carbon steel and featuring a multi-compartment design, this trailer ensures maximum stability during long-haul petroleum logistics. Whether you are transporting gasoline, diesel, or crude oil, our tankers meet the highest international safety standards.
Why Choose Our Fuel Tank Semitrailer?
In the competitive B2B logistics sector, reducing TCO (Total Cost of Ownership) is vital. Our 44CBM Fuel Tank Semitrailer With Air Suspension & Front Lift Axle integrates an intelligent air ride system that significantly reduces vibration, protecting the tank’s structural integrity. The front lift axle allows for reduced tire wear and fuel savings during empty return trips, making it a sustainable choice for modern fleets. For more information on liquid transport safety, you can refer to Petroleum Engineering standards.
Optimized Performance for Global Markets
Our tankers are equipped with API-standard manhole covers and pneumatic emergency shut-off valves to prevent leaks and ensure rapid discharge. The aerodynamic design of the 44CBM Fuel Tank Semitrailer With Air Suspension & Front Lift Axle reduces wind resistance, further enhancing fuel economy. We provide customized solutions to meet specific regional regulations.
Ready to upgrade your fleet? Contact Us today for a detailed technical drawing and a competitive wholesale quotation.

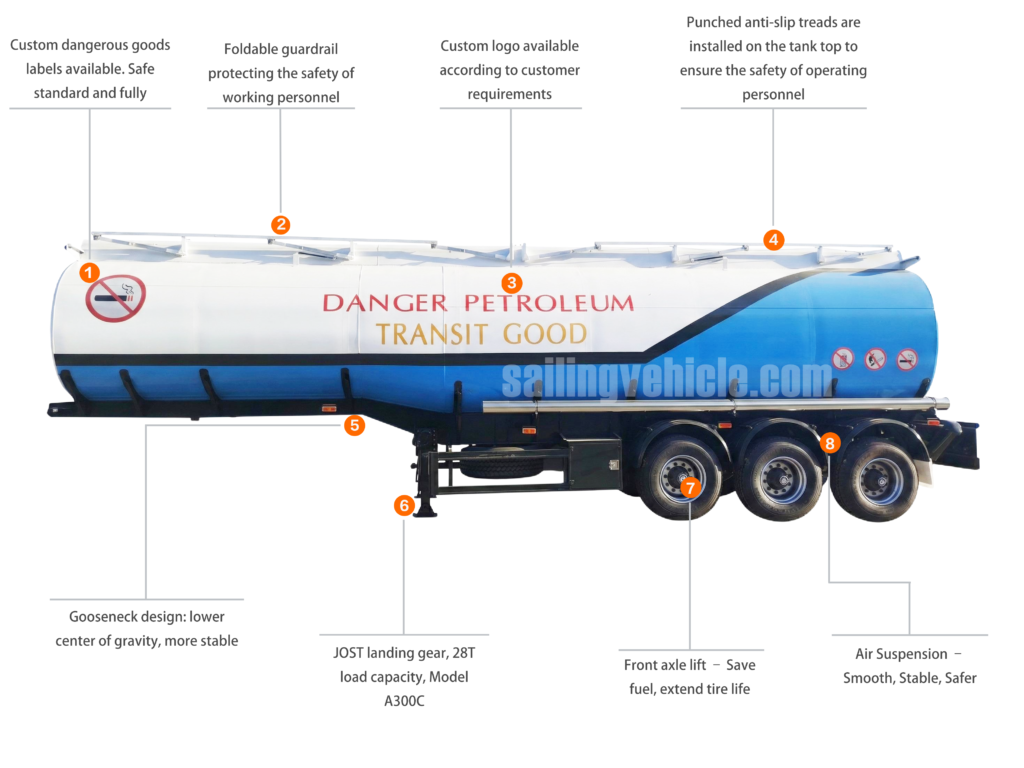

Product Overview
1. Custom Dangerous Goods Labels
Maximize compliance and visibility with our customizable dangerous goods labeling system. Engineered to meet strict international safety standards, these highly reflective warnings guarantee secure transit operations and professional fleet presentation across all hazardous material transport routes.
2. Foldable Guardrail System
Ensure maximum operational security with our premium foldable guardrail system. Designed for rapid deployment, it provides robust fall protection for your working personnel during top-loading procedures while neatly folding flat to minimize aerodynamic drag during highway transit.
3. Custom Corporate Logo Placement
Elevate your corporate identity with dedicated custom logo placement zones. We offer highly durable, weather-resistant branding options tailored exactly to your unique customer requirements, turning your heavy-duty fuel tanker into a powerful, moving billboard for your fleet.
4. Punched Anti-Slip Treads
Guarantee uncompromised operator safety in all weather conditions with our heavy-duty punched anti-slip treads. Installed strategically along the tank top, this high-grip walkway ensures secure footing for personnel during crucial loading, inspection, and maintenance operations.
5. Advanced Gooseneck Design
Experience unparalleled transit stability through our advanced gooseneck chassis design. By significantly lowering the overall center of gravity, this engineering innovation effectively prevents rollover risks, ensuring safer handling and superior maneuverability even under maximum payload conditions.
6. JOST Landing Gear (Model A300C)
Rely on industry-leading support with the heavy-duty JOST A300C landing gear. Boasting a massive 28T load capacity, this premium dual-speed mechanical component delivers effortless uncoupling and exceptional durability, minimizing maintenance downtime for your logistics operations.
7. Front Axle Lift System
Optimize operational costs and reduce wear with our intelligent front axle lift system. When running empty, simply lift the axle to drastically save fuel consumption, extend premium tire life, and lower overall long-term fleet maintenance expenses.
8. Premium Air Suspension
Safeguard both your valuable liquid cargo and the vehicle structure with our advanced air suspension system. It absorbs severe road shocks, providing a remarkably smooth, stable, and safer ride compared to traditional mechanical leaf spring setups.

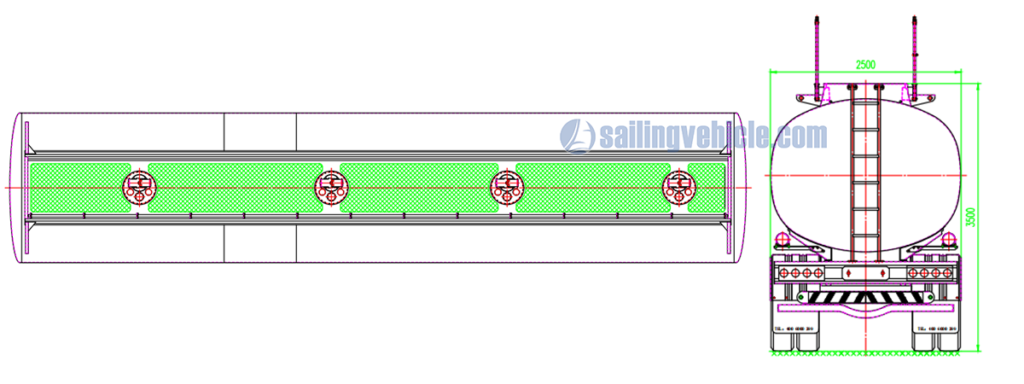

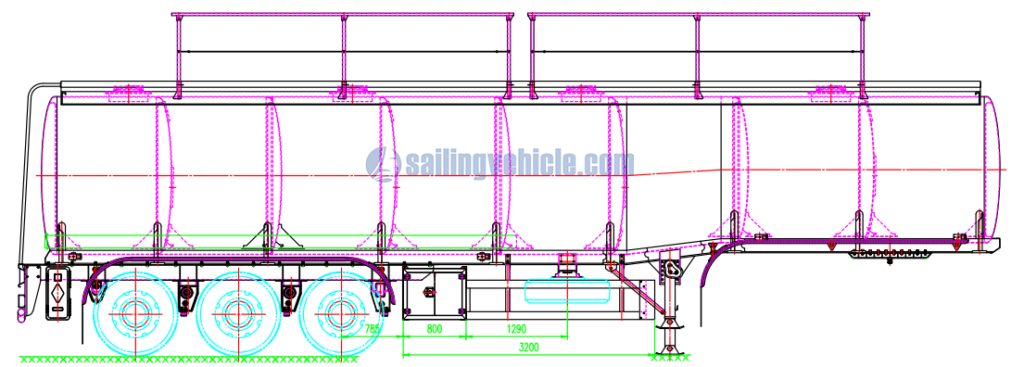

| Note: We will design drawings according to your requirements. |
 |
|
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
