| Tank trailer specification | ||
|---|---|---|
| 1 | Cargo | Petrol / Diesel / Kerosene and other fuels. |
| 2 | Overall dimension | 12000×2500×3500mm (L×W×H) (Approx., based on final design drawings.) |
| 3 | Curb weight | 9500kg (Approx., based on final design drawings.) |
| 4 | Fifth-wheel height | 1350mm (Generally within 1250 - 1450 mm; precise dimensions required) |
| 5 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) |
| 6 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 7 | Rim | 9.00 & 12 units, high-strength iron. |
| 8 | Kingpin | 50# (2") or 90# (3.5"), standard bolt type & JOST brand |
| 9 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 10 | Suspension | Mechanical suspension, leaf springs, 13mm×90mm, 10pcs (16mm×90mm, 10pcs, heavy-duty design optional) |
| Tank body specification | ||
| 11 | Tank shape | Square-round (Double D) and gooseneck design. |
| 12 | Tank capacity | 42,000 liters (valid volume) + 5% (ullage) |
| 13 | Tank material | Q235B |
| 14 | Tank design thickness |
End cover: 5.5mm
Tank body: 5mm
Baffle: 5mm |
| Main parts specification | ||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B |
| 16 | Compartment | 4 units, 10,500L+10,500L+10,500L+10,500L per compartment. |
| 17 | Manhole cover | Aluminum & 4 units, factory standard. (Jialong brand with ADR certificate optional) |
| 18 | Bottom valve | 4" aluminum & 4 units, factory standard. (Jialong brand with ADR certificate optional) |
| 19 | Discharging valve | 4" aluminum ball-type valve & 4 units (API valve optional) |
| 20 | Discharging hose box | 6 meters & 2 units. |
| 21 | Discharging hose | Anti-static type, 5.7 meters & 2 units. |
| 22 | Handrail | 2 units on the top. |
| 23 | Walkway platform | Top with anti-slip punched design. |
| 24 | Ladder | 1 unit, on the rear or front. |
| 25 | Breather valve | Aluminum & 4 units. |
| 26 | Spare wheel carrier | 2 units. |
| 27 | Mud guard plate | Integrated design plate, carbon steel. |
| 28 | Relay valve | WABCO brand |
| 29 | Reverse buzzer | 1 unit. |
| 30 | Electric system | 24V, 7-pin socket, national standard. |
| 31 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 32 | Painting |
Primer layer: One coat of anti-corrosive paint.
Final coat: Two coats of finish paint.
Color: As per customer's requirements. |
| 33 | Delivery | Spray wax before departure and cover with tarpaulin for protection. |
| Other equipment | ||
|
1. Single tool box, maximum available size.
2. Single valve box, maximum available size.
3. Single side loading & unloading on the left.
4. 2 sets of 8KG fire extinguishers with boxes.
5. 1 set of anti-static grounding tape.
6. All other necessary accessories. |
||
42,000 liters Fuel Tank Semi-trailer | Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：13,500 – 17,850 USD（Prices vary by configuration）
High-quality 42,000-liter fuel tank semi-trailer with carbon steel/aluminum alloy options. Certified safety valves and durable axles. Get a factory price quote!
Brand: TSV-SAILING
Model: TSV202103-42
Type: Fuel Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-35 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
42,000-liter fuel tank semi-trailer
The 42,000-liter fuel tank semi-trailer is a heavy-duty transportation solution expertly designed for the safe and efficient hauling of liquid fuels, including petrol, diesel, and crude oil. Engineered to meet the demanding needs of modern logistics fleets, this high-capacity fuel tanker trailer significantly reduces transport cycles and maximizes your operational profitability.
Constructed from premium Q235B or Q345B high-tensile carbon steel, the tank body offers exceptional durability and resistance to harsh environments. Inside the tank, strategically placed anti-wave baffles minimize liquid surge during transit, ensuring superior vehicle stability and safety even on rugged terrains. Paired with world-class components like BPW or FUWA axles, this semi-trailer guarantees reliable, long-lasting performance under heavy loads.
Furthermore, we understand the challenges of international shipping and long-term outdoor operations. To protect your investment from seawater corrosion, every 42,000L fuel tank trailer undergoes a specialized wax spraying process before delivery. Whether you are expanding your transport business in Africa, Southeast Asia, or beyond, this fuel oil tanker is your trusted partner for long-haul efficiency and safety.
Advanced Manufacturing and Quality Control
The reliability of our 42000-liter fuel tank trailer starts with our rigorous manufacturing process. We utilize advanced automatic submerged arc welding technology for the main structure, ensuring flawless, high-strength seams that prevent leakage under extreme pressure. Before leaving the factory, every fuel tanker undergoes strict quality inspections, including high-pressure water and air leak tests, as well as X-ray flaw detection on all weld lines. This guarantees that your liquid transport meets all international safety regulations and environmental standards.
Customizable Compartments and Discharge Systems
Understanding that logistics fleets transport multiple types of fuel, we offer highly customizable tank compartments. The 42,000L capacity can be divided into 2, 3, 4, or up to 6 separate compartments depending on your operational needs, allowing you to transport diesel, petrol, and aviation fuel simultaneously without contamination.
Furthermore, the trailer is equipped with standard API bottom loading systems, anti-spill sensors, and vapor recovery systems. These European-standard safety valves not only ensure faster loading and unloading speeds but also protect operators and the environment from hazardous gas emissions.
Ready to upgrade your fleet? [Contact our team today] for a customized quote or explore our full range of [fuel tank trailers].

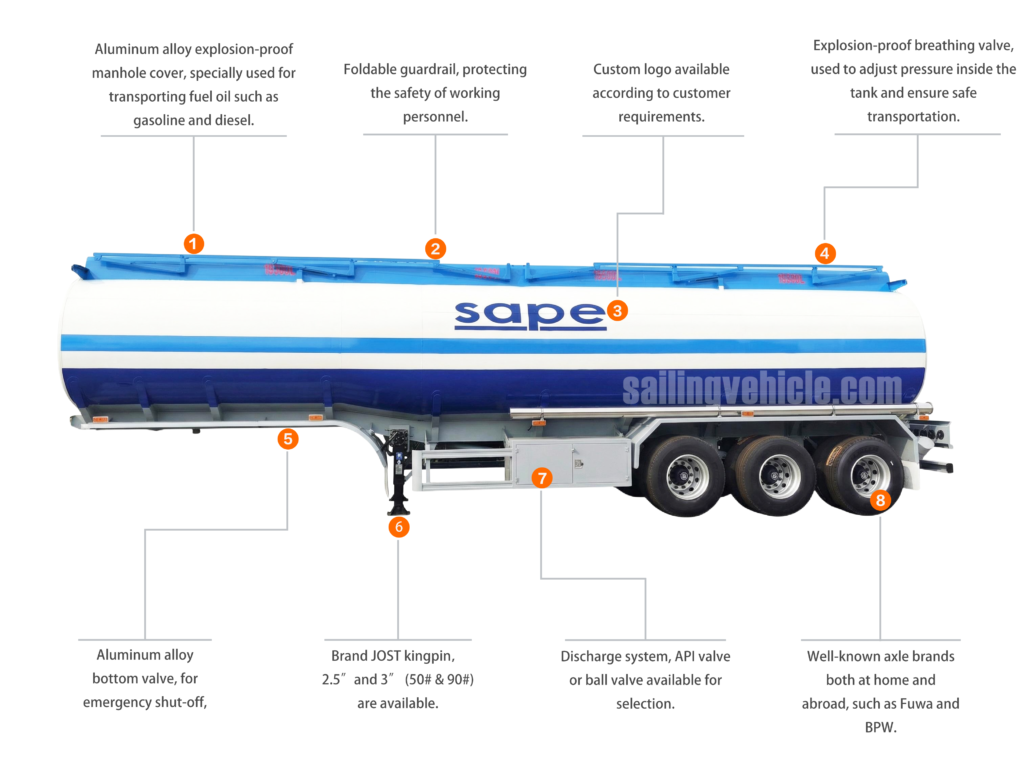

Product Overview
1. Aluminum Alloy Explosion-Proof Manhole Cover
Installed on the tank top for maintenance and inspection access. Its lightweight aluminum construction resists chemical corrosion and maximizes payload capacity. Crucially, the built-in explosion-proof mechanism automatically vents dangerous pressure buildups and prevents massive spills during rollovers, ensuring safety for highly flammable fuels.
2. Foldable Guardrail
A vital safety barrier that protects operators from dangerous falls during top-loading or inspections. Its intelligent folding design allows it to lie flat during highway transit—reducing the trailer's height clearance and aerodynamic drag for better fuel economy—and quickly deploys upright to create a secure working perimeter when parked.
3. Custom Logo Available
Transforms the tanker into a highly visible mobile billboard. Customers can personalize the large side panels with exclusive corporate logos, colors, and contact info using weather-resistant paints or reflective decals. This customization significantly enhances brand recognition, projects professionalism, and streamlines fleet identification.
4. Explosion-Proof Breathing Valve
A precision safety component that maintains the tank's structural integrity. It dynamically balances internal pressure by venting excess gas when temperatures rise and drawing in ambient air when a vacuum forms. A built-in flame arrester completely blocks external sparks, eliminating catastrophic fire and implosion risks.
5. Aluminum Alloy Bottom Valve
Also known as the emergency shut-off valve, this is the ultimate safety barrier installed at the tank's lowest point for efficient bottom loading. It features a critical shear groove; in severe collisions, the exterior cleanly breaks off while the internal core remains perfectly sealed, preventing disastrous fuel spills.
6. Brand JOST Kingpin
The crucial load-bearing joint connecting the semi-trailer to the tractor unit, designed to withstand immense towing forces. Featuring the world-renowned German brand JOST (available in standard 2.5" and 3" sizes), it guarantees exceptional metallurgical strength, unparalleled wear resistance, and absolute driving safety under heavy payloads.
7. Discharge System
The central operational hub for fuel unloading. Customers can select advanced API valves—which integrate with vapor recovery systems for eco-friendly, emission-free operation—or traditional mechanical ball valves for simple, low-maintenance handling. The entire system is enclosed in a waterproof aluminum box to extend its operational lifespan.
8. Well-Known Axle Brands
The heavy-duty undercarriage framework responsible for bearing the massive 42,000-liter payload and executing emergency braking. Equipped with globally respected top-tier brands like China's Fuwa and Germany's BPW, these high-strength steel axles ensure superior load capacity, highly reliable stopping power, and reduced long-term maintenance costs.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for ocean freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
