| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10000×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
7900kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 40CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 4mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||
40m³ Bulk Cement Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price:14,000 – 17,000 USD（Prices vary by configuration）
Maximize payload with our 40m³ Bulk Cement Tank Semi-trailer. Features high-strength steel and fast discharge speed. Contact us for wholesale factory prices!
Brand: TSV-SAILING
Model: TSV202007-40
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
High-Performance 40m³ Bulk Cement Tank Semi-trailer for Industrial Logistics
The 40m³ Bulk Cement Tank Semi-trailer is a premium solution engineered for the high-volume transport of bulk cement, fly ash, and other dry powder materials. Designed with a focus on aerodynamics and structural integrity, this trailer ensures a lower center of gravity and enhanced road stability, making it the preferred choice for large-scale construction projects and material suppliers worldwide.
Advanced Discharge Technology and Engineering
The core advantage of our 40m³ Bulk Cement Tank Semi-trailer lies in its sophisticated V-shaped tank design. This geometry is specifically optimized to ensure a smooth material flow during the unloading process. By minimizing internal friction, the trailer achieves a faster discharge rate with significantly less residue, which directly translates to higher operational efficiency and reduced cleaning downtime for your fleet.
To power these operations, we integrate industry-leading components. The trailer features a brand Weichai diesel engine paired with a dual-cylinder Bohai air compressor. This combination provides a powerful and reliable pneumatic source, ensuring consistent pressure for rapid unloading even in challenging environments.
Built for Durability and Reliability
Every 40m³ Bulk Cement Tank Semi-trailer is built to withstand rigorous industrial use. From the quick-opening manhole covers that ensure airtight sealing to the JOST heavy-duty landing gear, every detail is selected for longevity. According to International Transport Standards, maintaining high-quality axle and braking systems is critical for safety, which is why we utilize world-class Fuwa axles as standard.
Ready to optimize your bulk material logistics? Contact our technical sales team for a detailed quotation and custom configuration options.

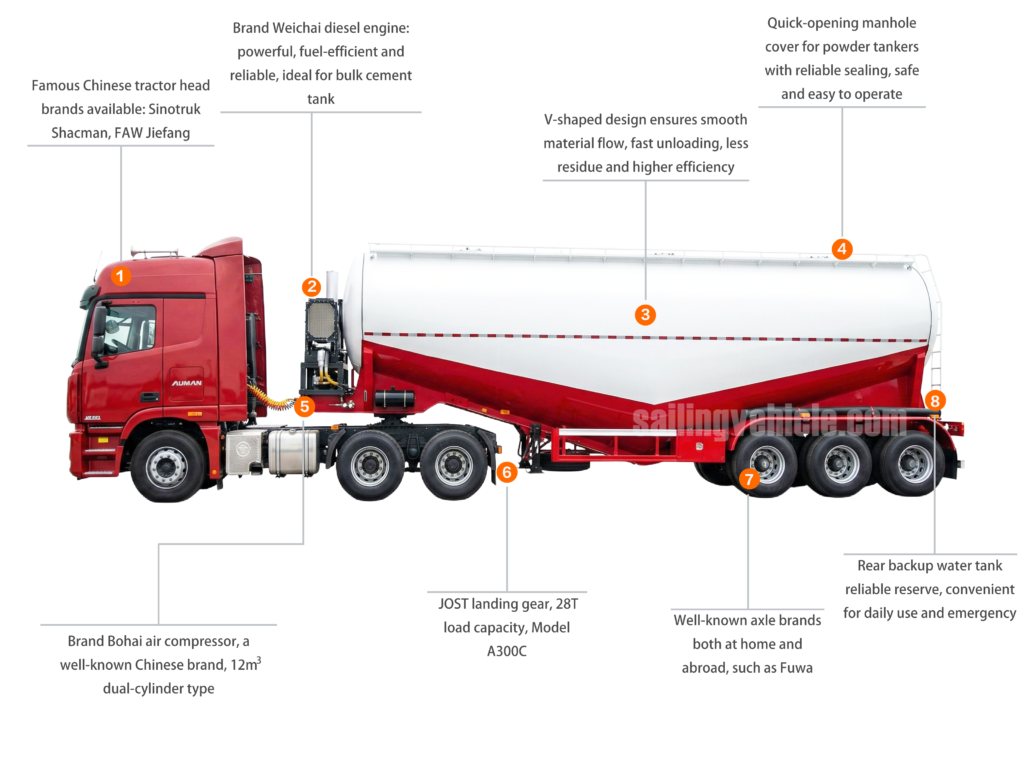

Product Overview
1. Premium Tractor Head Brands
We offer compatibility with famous Chinese tractor head brands including Sinotruk, Shacman, and FAW Jiefang. This ensures seamless integration and optimized power matching for your 40m³ powdery material transport semi-trailer operations.
2. Weichai Diesel Engine
The brand Weichai diesel engine is powerful, fuel-efficient, and highly reliable. It serves as the ideal power source for bulk cement tanks, providing the necessary torque to drive the pneumatic discharge system efficiently.
3. V-Shaped Tank Design
The specialized V-shaped design ensures a smooth material flow and exceptionally fast unloading. This engineering approach results in less residue inside the tank, leading to higher efficiency and reduced material waste during every trip.
4. Quick-Opening Manhole Cover
These quick-opening manhole covers are specifically designed for powder tankers. They feature reliable sealing mechanisms that are safe and easy to operate, ensuring the tank remains airtight during high-pressure discharge and transit.
5. Bohai Air Compressor
Equipped with a brand Bohai air compressor, a well-known $12m^3$ dual-cylinder type. This high-performance unit provides stable air pressure, which is critical for the rapid and complete unloading of powdery materials.
6. JOST Landing Gear
Featuring authentic JOST landing gear with a 28T load capacity (Model A300C). This world-class component offers superior support and stability when the trailer is detached, ensuring long-term durability and ease of operation.
7. Well-Known Axle Brands
We utilize well-known axle brands recognized both at home and abroad, such as Fuwa. These heavy-duty axles provide excellent load-bearing performance and braking reliability for the 40m³ powdery material transport semi-trailer.
8. Rear Backup Water Tank
A rear backup water tank is included as a reliable reserve. This feature is highly convenient for daily maintenance, operator hygiene, and emergency use in remote areas during long-haul material transportation.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
