| Container tank specification | |||
|---|---|---|---|
| 1 | Cargo | Gasoline, diesel, kerosene, and other petroleum oils | |
| 2 | Dimensions | Outer |
6058×2438×2591mm (L×W×H)
(Based on final design drawings.) |
| Centre distance between twistlocks |
5985×2259 mm (L×W)
(Based on final design drawings.) |
||
| 3 | Curb weight |
5500kg
(Approx., based on final design drawings.) |
|
| Tank body specification | |||
| 4 | Tank shape | Round cylindrical. | |
| 5 | Tank capacity | 26,000 liters | |
| 6 | Tank material | AL5182 | |
| 7 | Tank design thickness | End cover | 4.5mm |
| Tank body | 4mm | ||
| Baffle | 4mm | ||
| 8 | Insulation material | Rock wool, with multilayer insulation felt. | |
| 9 | Insulation material thickness |
50 mm
(30mm,80mm,100mm, or other thickness options are available). |
|
| 10 | Insulation cover plate | Color-coated plate | |
| 11 | Insulation cover plate thickness | 0.5mm, National standard. | |
| 12 | Heating system | Oven, steam, or burner. | |
| Main parts specification | |||
| 13 | Compartment | Single | |
| 14 | Manhole cover | Aluminum alloy & 2 units, 3-top and 6-bottom bolted configuration | |
| 15 | Bottom valve | Bottom & discharge integrated combination valve & 1 unit | |
| 16 | Discharging valve | ||
| 17 | Discharging hose box | 6 meters & 2 units. | |
| 18 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 19 | Handrail | 2 units on the top, Stainless steel material | |
| 20 | Walkway platform | On top with an anti-slip punched design, aluminum alloy material | |
| 21 | Ladder | 1 unit, on the rear | |
| 22 | Breather valve | Aluminum alloy & 2 units. | |
| 23 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 24 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |

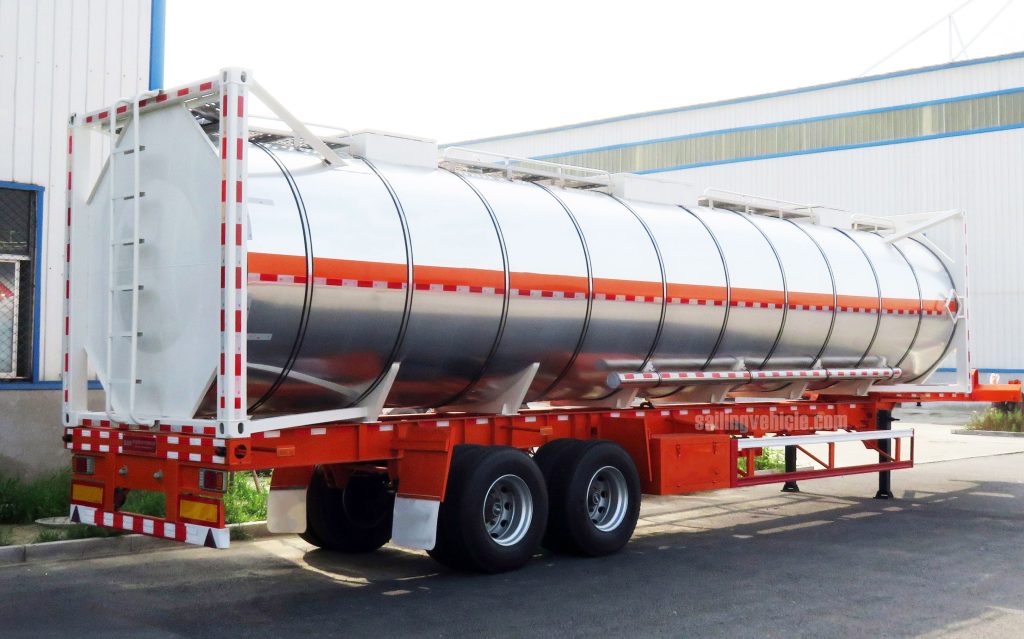

40FT Aluminum Insulated Tank Container| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: $21,800~$23,500（Prices vary by configuration）
Upgrade your bulk liquid transport with our durable 40FT Aluminum Insulated Tank Container. Maximize payload and ensure thermal stability. Get a quote today!
Brand: TSV-SAILING
Model: TSV201904-40
Type: Container Frame Tank Semi-trailer Insulation Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When transporting temperature-sensitive bulk liquids globally, reliability is absolutely non-negotiable. Our premium 40FT Aluminum Insulated Tank Container offers the ultimate solution for safe, efficient, and cost-effective intermodal transportation. By combining lightweight structural materials with advanced thermal technologies, this unit guarantees that your valuable cargo arrives in pristine condition, ready for immediate use.
Why Invest in a 40FT Aluminum Insulated Tank Container?
In the highly competitive landscape of chemical, pharmaceutical, and food-grade logistics, operational efficiency directly impacts your bottom line. This specialized 40FT Aluminum Insulated Tank Container utilizes a high-grade aluminum outer shell, which drastically reduces the overall tare weight when compared to traditional carbon steel models. This strategic weight reduction translates directly into increased payload capacity per shipment, allowing you to transport more product while remaining within strict highway and maritime weight limits, ultimately maximizing your long-term logistical return on investment.
Furthermore, maintaining precise temperature control is critical for preventing product spoilage, degradation, or dangerous internal pressure build-ups. Equipped with state-of-the-art multi-layer vacuum insulation, this tank ensures extraordinary thermal retention over extended journeys. Whether you are shipping volatile cryogenic liquids or heated viscous materials, the internal environment remains perfectly stabilized, entirely unaffected by extreme external weather fluctuations across different climate zones.
Streamlined Intermodal Logistics
Engineered with standardized ISO corner castings, this highly versatile unit easily transitions between ocean freighters, global rail networks, and heavy-duty road chassis without requiring any direct cargo transfer. This frictionless intermodal freight transport capability significantly minimizes loading handling times and completely eliminates the risk of cross-contamination during transit.
Secure Your Fleet Upgrade Today
Are you ready to optimize your bulk liquid supply chain with superior equipment? At Tianjin Sailing Vehicle Co., Ltd., we specialize in providing premium heavy-duty transport solutions tailored specifically for demanding global markets.
Reach out to our expert engineering team to discuss custom valve configurations, integrated heating systems, or specific regulatory requirements for your next 40FT Aluminum Insulated Tank Container.
Contact us today or call our direct sales line at +86 17303276268 to request a comprehensive technical drawing and a highly competitive pricing quote.

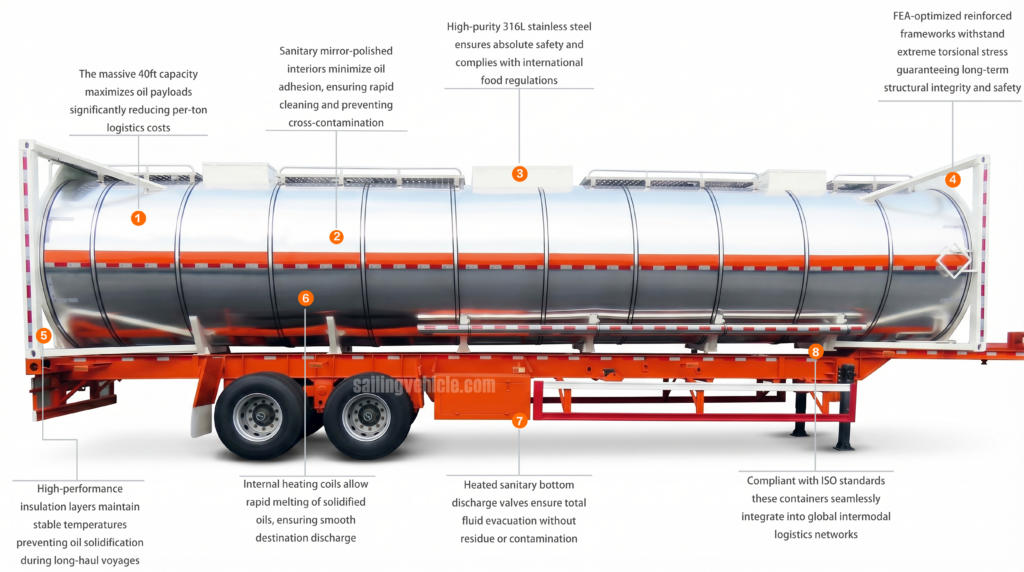

Product Overview
1. 40ft Volumetric Capacity
The massive 40ft capacity precisely maximizes your edible oil payloads on every trip. This intelligent volumetric design significantly reduces per-ton logistics costs, substantially boosting operational profitability for long-haul transport.
2. Sanitary Mirror-Polished Interiors
Premium sanitary mirror-polished interiors effectively minimize sticky oil adhesion inside the tank. This advanced finish ensures ultra-rapid cleaning turnarounds, drastically lowers maintenance costs, and strictly prevents dangerous inter-batch cross-contamination.
3. High-Purity 316L Stainless Steel
Manufactured from high-purity 316L stainless steel, this robust tank ensures absolute food safety. It rigorously complies with strict international food-grade regulations, guaranteeing pristine cargo purity and exceptional corrosion resistance globally.
4. FEA-Optimized Frameworks
Structurally advanced, FEA-optimized reinforced frameworks safely withstand extreme torsional stress during heavy port lifting. This superior engineering guarantees long-term structural integrity and absolute safety, exceptionally extending your equipment’s operational lifespan.
5. High-Performance Insulation Layers
Specialized high-performance insulation layers efficiently maintain remarkably stable internal temperatures. This crucial thermal barrier proactively prevents edible oil solidification during long-haul global voyages, drastically reducing costly destination heating requirements.
6. Internal Heating Coils
Powerful internal heating coils allow for the ultra-rapid melting of safely solidified food-grade oils. This robust active heating system guarantees consistently smooth, high-speed destination discharge, radically minimizing expensive terminal downtime.
7. Heated Sanitary Discharge Valves
Engineered heated sanitary bottom discharge valves guarantee total fluid evacuation without sticky residue or bacterial contamination. This ensures incredibly fast, perfectly sterile cargo unloading operations at any international destination terminal.
8. ISO Intermodal Compliance
Fully compliant with global ISO standards, these premium containers seamlessly integrate into vast international intermodal logistics networks. This structural standardization guarantees highly efficient, zero-loss transfer among modern ships, trains, and trucks.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
