| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | 40Ft- Flatbed Semi-trailer. | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
12800×2550×2970 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with design drawings, with heavy-duty structural | |
| 5 | Material | Carbon steel,Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension,leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |
| 14 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 19 | Lashing Winch | Available in large quantities. | |
| 20 | Mud guard plate | Integrated design plate,heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty tool box, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding strap.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||
40 Feet Flatbed Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 8,000 – 10,000 USD（Prices vary by configuration）
Maximize your transport efficiency with our premium 40 feet flatbed semi-trailer. Built with high-strength steel for ultimate durability. Get a quote today!
Brand: TSV-SAILING
Model: TSV202109-40FF
Type: Flat-bed Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Maximize Logistics with a Heavy-Duty 40 Feet Flatbed Semi-trailer
Investing in a highly durable 40 Feet Flatbed Semi-trailer is an essential step for streamlining your global logistics and heavy-duty transport operations. Designed for maximum load-bearing capacity and ultimate versatility, this commercial trailer effortlessly handles standard 20ft containers, 40ft containers, and oversized bulk cargo. For fleet managers and international trade specialists, selecting the right equipment directly impacts profitability, safety, and delivery timelines.
Engineered for Extreme Environments
Built with heavy-duty BPW or FUWA axles paired with an advanced mechanical leaf spring suspension system, it guarantees stability across challenging terrains. This is particularly vital when operating in demanding regions where road conditions vary significantly. The core foundation of the chassis relies on a reinforced main beam, meticulously welded using automatic submerged arc technology. This high-strength steel construction ensures unparalleled structural integrity, prevents deformation under massive loads, and provides exceptional long-term durability. By utilizing premium Q345 or T700 carbon steel, the tare weight of the trailer is optimized without sacrificing its payload capability, allowing you to transport more goods per trip.
Uncompromising Safety and Efficiency
Safety and reliability remain paramount in industrial B2B logistics. Your 40 Feet Flatbed Semi-trailer must perform flawlessly under pressure. To address this, we equip every unit with premium JOST landing gear and twelve precision-engineered standard twist locks. These components ensure that containers remain securely fastened during transit. Whether you are navigating smooth modern highways or rugged industrial sites, this equipment minimizes unexpected maintenance costs while simultaneously maximizing your daily operational uptime. To understand more about international standard transport guidelines, you can review comprehensive semi-trailer design principles.
Are you prepared to upgrade your fleet’s overall capability and secure a distinct competitive edge in your target market? Our commercial heavy-duty transport solutions are meticulously engineered for long-term performance, superior safety, and a high return on investment. If you are evaluating options for your next major equipment procurement, our technical sales team is ready to assist you. Contact our experts today to discuss your specific payload requirements, explore customization options, and receive a detailed, competitive quotation tailored to your business needs.
Product Overview
1. Heavy-Duty Twist Locks
Forged heavy-duty twist locks ensure absolute container stability during extreme dynamic maneuvers. This essential safety feature locks shipping containers firmly, significantly reducing cargo shifting risks and ensuring secure transport across challenging industrial routes.
2. T700 Steel Chassis
Our FEA optimized T700 steel chassis maximizes legal payload while entirely eliminating structural fatigue. This high-strength framework guarantees unparalleled durability, allowing your fleet to transport heavier loads and drastically increase your logistical profitability.
3. X-Ray Tested Welding
Automated X-ray tested welding and precisely engineered camber strictly guarantee zero chassis sagging. This advanced manufacturing process ensures flawless structural integrity, providing your fleet with a resilient foundation for continuous, heavy-duty hauling operations.
4. Advanced KTL Electro-Coating
Advanced KTL electro-coating effectively resists severe port corrosion, drastically minimizing your long-term fleet total cost of ownership. This superior surface treatment shields the metal from harsh environments, maintaining structural integrity and a professional appearance.
5. Reinforced Checkered Steel Decking
Reinforced checkered steel decking maximizes cargo versatility, effortlessly withstanding heavy forklift operations during loading. This robust, anti-slip platform provides a secure foundation, ensuring rapid material handling and preventing costly surface damage daily.
6. Premium JOST Landing Gears
Premium JOST landing gears safely sustain heavy impacts during high-frequency terminal uncoupling. Engineered for exceptional reliability, these robust supports ensure smooth trailer drop-offs, protecting your equipment from stress and optimizing your turnaround times.
7. Engineered Mechanical Suspension
The engineered mechanical suspension optimizes heavy load distribution, strictly minimizing costly uneven tire wear. This robust system absorbs severe road shocks, providing excellent dynamic stability while significantly extending the operational lifespan of your tires.
8. Premium WABCO Braking System
Premium WABCO braking systems guarantee millisecond response times, strictly preventing hazardous semi-trailer jackknifing. This world-class safety technology delivers superior stopping power, ensuring ultimate protection for your drivers, valuable cargo, and highway infrastructure.

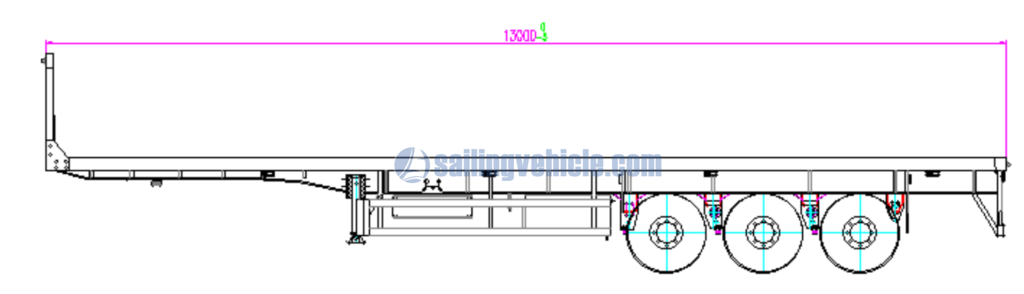

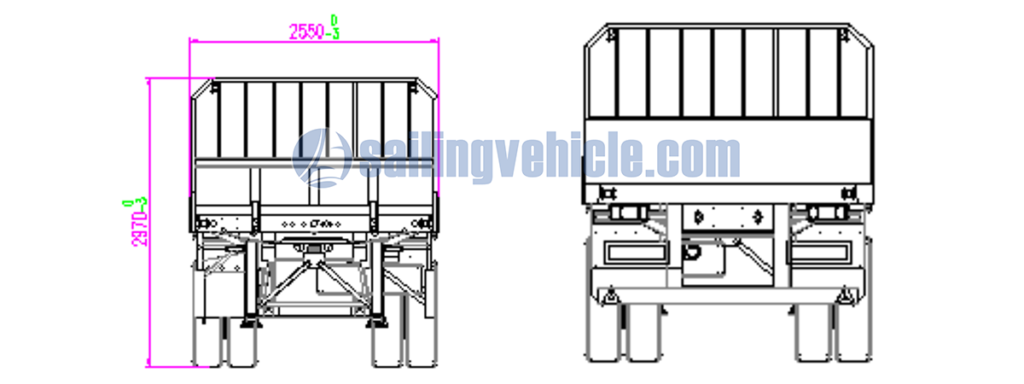

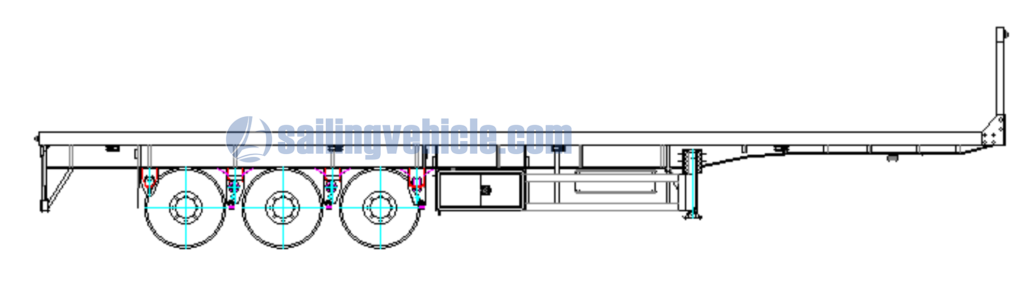

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
