| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
11808×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
9200kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 16 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 16 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 60 CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 5mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||
4-axle 60m³ Bulk Cement Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: $15,000~$16,200（Prices vary by configuration）
Maximize payload with our 4-axle 60m³ Bulk Cement Tank Semi-trailer. High-strength steel, independent diesel engine, and 1.5t/min discharge. Get a quote now!
Brand: TSV-SAILING
Model: TSV202011-60
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Ultra-High Efficiency with the 4-axle 60m³ Bulk Cement Tank Semi-trailer
The 4-axle 60m³ Bulk Cement Tank Semi-trailer is designed for the most demanding bulk material logistics, capable of transporting massive quantities of cement, fly ash, and lime. The addition of a fourth axle significantly increases the Gross Vehicle Weight (GVW) allowance in many regions, providing superior stability and reducing road wear compared to standard 3-axle models. This makes it an essential asset for large-scale infrastructure projects requiring high-frequency material delivery.
High-Performance Pneumatic Discharge System
Equipped with a dedicated WEICHAI auxiliary engine and a 12m³/min double-cylinder air compressor, this tanker operates independently of the tractor unit. The internal fluidized bed system ensures that materials are fully aerated, achieving a rapid discharge rate of 1.5 tons per minute. This high-efficiency system, often used in Bulk Material Handling logistics, ensures a residual rate of less than 0.3%, maximizing your profit margins by ensuring every kilogram of cargo is delivered.
Engineered for Rugged Durability and Safety
Safety and structural integrity are paramount for a 60-ton load. The 4-axle 60m³ Bulk Cement Tank Semi-trailer features a reinforced I-beam chassis and high-strength steel tank body, robot-welded for maximum pressure retention. The 4-axle configuration provides enhanced braking power and lateral stability on uneven terrain. Standard safety features include automatic pressure relief valves (0.2MPa) and heavy-duty mechanical suspension to handle the intense torsional stresses of off-road construction sites.
Maximize your fleet’s hauling potential today. For customized axle configurations or factory pricing, please Contact Our Sales Team for a detailed technical consultation.

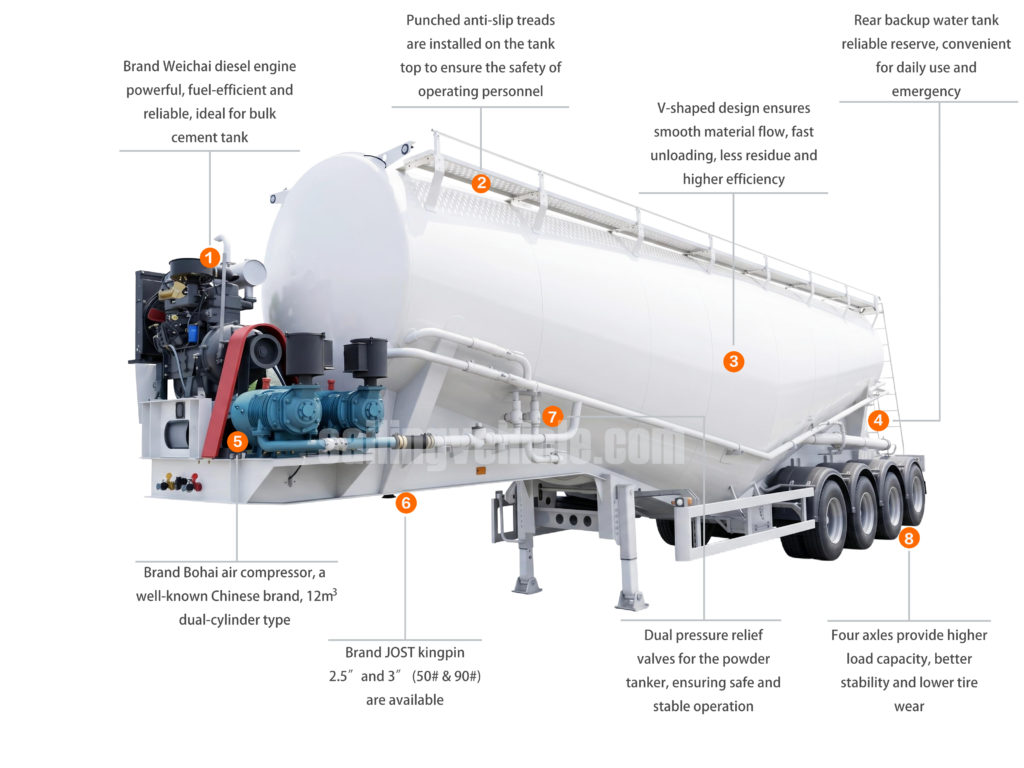

Product Overview
1. Weichai Diesel Engine
Equip your fleet with the industry-leading Weichai diesel engine. Renowned for exceptional fuel efficiency and robust power, this heavy-duty engine guarantees reliable, continuous performance for your most demanding bulk cement transport operations.
2. Punched Anti-Slip Treads
Prioritize personnel safety with our precision-punched anti-slip top treads. Engineered to provide maximum grip in harsh weather conditions, this durable walkway ensures secure footing during essential loading and routine maintenance tasks.
3. V-Shaped Tank Design
Maximize unloading speed with our aerodynamically optimized V-shaped tank design. This innovative fluidization structure ensures ultra-smooth material flow, dramatically reducing internal residue and significantly boosting your overall operational efficiency and daily throughput.
4. Rear Backup Water Tank
Ensure on-the-road operational readiness with the integrated rear backup water tank. This durable, reliable reserve provides convenient access to water for daily cleaning, brake system cooling, and handling unexpected emergencies during transit.
5. Bohai Air Compressor
Achieve incredibly fast discharge rates utilizing the premium Bohai 12m³ dual-cylinder air compressor. This top-tier component delivers consistent, high-volume pneumatic pressure, ensuring highly efficient and residue-free unloading for all dry powder bulk materials.
6. JOST Kingpin
Ensure a secure and steadfast connection with the premium JOST kingpin, available in 2.5-inch and 3-inch sizes. Engineered for ultimate structural integrity, it guarantees superior towing safety and longevity under extreme load conditions.
7. Dual Pressure Relief Valves
Safeguard your pneumatic system with advanced dual pressure relief valves. These crucial safety components automatically regulate internal tank pressure, preventing over-pressurization and ensuring incredibly safe, stable, and risk-free material discharging operations.
8. Four Axles Configuration
Handle massive payloads effortlessly with our heavy-duty four-axle configuration. Designed to provide superior weight distribution and exceptional road stability, this setup significantly lowers tire wear and maximizes the lifespan of your trailer.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
