| Tank trailer specification | ||||
|---|---|---|---|---|
| 1 | Medium | Liquid Nitrogen (LN2). | ||
| 2 | Overall dimension | 11520x2500x3350mm (L*W*H) | ||
| 3 | Curb weight | 12,400 KG | ||
| 4 | Payload capacity | 27,600 KG | ||
| 5 | Design Speed | ≤79 km/h | ||
| 6 | Design Temperature | -157.5/50 ℃ | ||
| 7 | Working Temperature | -196~157.2℃/-40~50 ℃ | ||
| 8 | Design Pressure | 1.60MPa | ||
| 9 | Working Pressure | ≤1.60MPa | ||
| 10 | Weld Joint Efficiency | 1 | ||
| 11 | Corrosion Allowance | 0 mm | ||
| 12 | Rated Fill Ratio | 0.925 | ||
| 13 | Filling Density per Unit Volume | 747 kg/m³ | ||
| 14 | Insulation Type | High-Vacuum Multi-layer Insulation | ||
| 15 | Tank Gross Weight | 8455 kg | ||
| 16 | Service life | 10 years | ||
| 17 | Fifth-wheel height |
1320mm
(Generally within 1250 - 1450 mm; precise dimensions required based on the customer's truck) |
||
| Tank body specification | ||||
| 18 | Tank shape | Cylindrical round | ||
| 19 | Tank capacity | 37 CBM | ||
| 20 | Tank body material | S30408 | ||
| 21 | Tank Design thickness | End cover | 8 mm | |
| Tank body | 11.5 mm | |||
| Tank parts specification | ||||
| 22 | Liquid level meter | Type | Combined differential pressure type | |
| Model | MZC-IIA | |||
| Nominal Pressure | 4.0 MPa | |||
| Surveying range | 0~1500 mmWCmm | |||
| Precision | 2.5Grade | |||
| Connection Type | Threaded | |||
| 23 | Emergency cutting valve | Model | Gas phase | DJQ-50 |
| Liquid phase | DJQ-50 | |||
| Nominal pressure | 2.5 MPa | |||
| Nominal diameter | Gas phase | DN50mm | ||
| Liquid phase | DN50mm | |||
| Operation way | Manual | |||
| Closing time | ≤5 Sec | |||
| Melting switch temperature | 75±5℃ | |||
| 24 | Safety valve | Type | Threaded | |
| Model | DAY-25 | |||
| Nominal pressure | 4.0 MPa | |||
| Nominal diameter | DN25mm | |||
| Set pressure | 1.74/1.77 MPa | |||
| Re-seating pressure | 1.57 MPa | |||
| Rated for relieving pressure | 1.85 MPa | |||
| 25 | Flame Arrester | Model | DGZ-40 | |
| Nominal Pressure | 4.0 MPa | |||
| Nominal Size | DN40 | |||
| Connection Type | Welded | |||
| 26 | Pressure gauge | Type | YTN-100 | |
| Model | Threaded connection | |||
| Precision | 1.6 grade | |||
| Surveying range | 0~ 1.6 MPa | |||
| 27 | Thermometer | Type | Ultra-low Temperature Gauge | |
| Model | Threaded connection | |||
| Precision | 1.5 grade | |||
| Surveying range | -196℃ ~ +50℃ | |||
| Trailer parts specification | ||||
| 28 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
||
| 29 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
||
| 30 | Rim | 9.00 & 12 units, high-strength iron. | ||
| 31 | King pin | 50#(2") or 90# (3.5") , Standard bolt type & Brand JOST | ||
| 32 | Landing gear | Capacity 28T, Brand JOST, Model A300C | ||
| 33 | Suspension | Mechanical suspension, leaf springs,16mm*90mm*10pcs | ||
| 34 | Ladder | 1 unit | ||
| 35 | Spare wheel carrier | 2 units. | ||
| 36 | Mud guard plate | Integrated design plate, carbon steel. | ||
| 37 | Relay valve | Brand WABCO | ||
| 38 | Reverse buzzer | 1 unit. | ||
| 39 | Electric system | 24V, 7-pin socket. National standard. | ||
| 40 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
||
| 41 | Painting | Primer layer | One coat of anti-corrosive paint. | |
| Final coat | Two coats of finish paint. | |||
| Color | As the customer's requirements. | |||
| 42 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | ||
| Other equipment | ||||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on the left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding straps.
6. All other necessary accessories. |
||||
37m³ Liquid Nitrogen Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 50,000 -53,000 USD（Prices vary by configuration）
Upgrade fleet safety with our reliable 37m³ Liquid Nitrogen Tank Semi-trailer. Premium vacuum insulation ensures zero loss. Request a custom quote today!
Brand: TSV-SAILING
Model: TSV202612-37
Type: LOx/LAr/LN Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 45-60 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
When transporting cryogenic gases, maintaining extreme thermal stability and uncompromising safety is absolutely essential for your supply chain. Our state-of-the-art 37m³ Liquid Nitrogen Tank Semi-trailer is purposefully engineered to meet the rigorous demands of global B2B chemical logistics. Designed specifically for deep-freeze transportation, this premium cryogenic vessel guarantees the secure, temperature-controlled delivery of liquefied gases over extended international logistics routes.
Ultimate Performance of the 37m³ Liquid Nitrogen Tank Semi-trailer
Constructed with a robust double-walled vacuum insulation system, the inner vessel utilizes premium austenitic stainless steel (S30408) for superior low-temperature endurance and absolute purity retention. The outer shell is strictly built from high-yield carbon steel, offering exceptional structural integrity against heavy impacts. This advanced multi-layer vacuum insulation technology effectively minimizes daily evaporation rates, ensuring maximum product yield and preserving profit margins during long-haul transit. By adopting this superior cryogenic engineering, fleet operators can drastically reduce their operational overhead while significantly maximizing the trailer’s overall service longevity.
Precision Engineering and Safety Mechanisms
Safety is the undeniable foundation of all cryogenic logistics operations. This advanced semi-trailer comes fully integrated with premium dual-safety relief valves, ultra-precise pressure gauges, and reliable emergency shut-off controls. These redundant security systems proactively prevent hazardous internal pressure build-ups under diverse conditions. For industry professionals rigorously reviewing thermal constraints, you can consult the official liquid nitrogen transport guidelines.
To comprehensively optimize road stability and dynamic performance, the transport vehicle features heavy-duty BPW axles combined with a highly responsive anti-lock braking system. These incredibly durable mechanical assemblies effectively minimize tire wear, improve fuel economy, and maximize braking reliability across challenging international terrains, thereby offering a remarkably low total cost of ownership. Ultimately, this specialized cryogenic transport vehicle consistently delivers unparalleled payload efficiency without ever sacrificing operational maneuverability.
Efficient Operations and Customization
Accelerate your daily workflow with our meticulously optimized piping layout. The ergonomically designed rear operating cabinet empowers operators to seamlessly manage incredibly fast, leak-proof loading and discharging processes safely. This intelligent terminal setup drastically reduces terminal handling time and completely eliminates hazardous atmospheric exposure.
Are you completely ready to elevate your industrial gas transport fleet with a proven, exceptionally reliable logistics solution? Our dedicated expert engineers are readily available to thoroughly tailor all specifications to your distinct regional standards. Please Contact Us today to discuss exact pricing, custom manufacturing features, and comprehensive global shipping options for your very next strategic investment.
Product Overview
1. Hazardous Materials Placards
Clear hazardous materials placards and detailed operating instructions guarantee immediate operational identification. This crucial safety feature ensures strict regulatory compliance and protects your operators, streamlining daily logistics while safely mitigating risks in demanding industrial environments.
2. High-Vacuum Multilayer Winding
Our state-of-the-art high-vacuum multilayer winding technology guarantees superior long-term thermal insulation for cryogenic liquids. This critical feature dramatically reduces costly boil-off gas losses, ensuring your valuable payload remains highly stable and exceptionally profitable throughout transit.
3. High-Efficiency Piping System
Featuring large-diameter ports and low-resistance piping, this advanced fluid system works seamlessly to significantly boost your loading and unloading efficiency. Drastically minimize depot turnaround times and easily maximize daily operational productivity for your entire fleet.
4. Smart Internal Safety Valves
Engineered for ultimate security, these smart internal valves rapidly cut off gas flow during accidental pipeline ruptures. This instantaneous fail-safe mechanism prevents catastrophic cryogenic leaks, ensuring maximum safety for both your personnel and the environment.
5. Premium Global Core Components
We integrate world-class core components sourced directly from global top suppliers to guarantee an exceptionally long service life. Rely on robust mechanical durability and consistent performance, even when operating continuously under harsh environmental conditions.
6. Low COG Chassis Bolting
A sturdier bolted connection firmly secures the main pressure tank to our specialized low center-of-gravity chassis. This innovative structural design significantly enhances road stability, effectively preventing dangerous rollovers and ensuring exceptionally safe highway transportation.
7. Premium Axles & Air Suspension
Equipped with top-tier premium brand axles and advanced air suspension systems, this heavy-duty setup significantly lowers mechanical failure rates. Enjoy drastically reduced long-term maintenance costs, smoother payload rides, and extended lifespan for your valuable asset.
8. Centralized Operation Cabinet
All critical operational valves and piping are securely centralized within a single, highly accessible rear cabinet. This ergonomic design protects vital components from harsh weather while ensuring completely effortless operation, streamlined inspection, and daily maintenance.

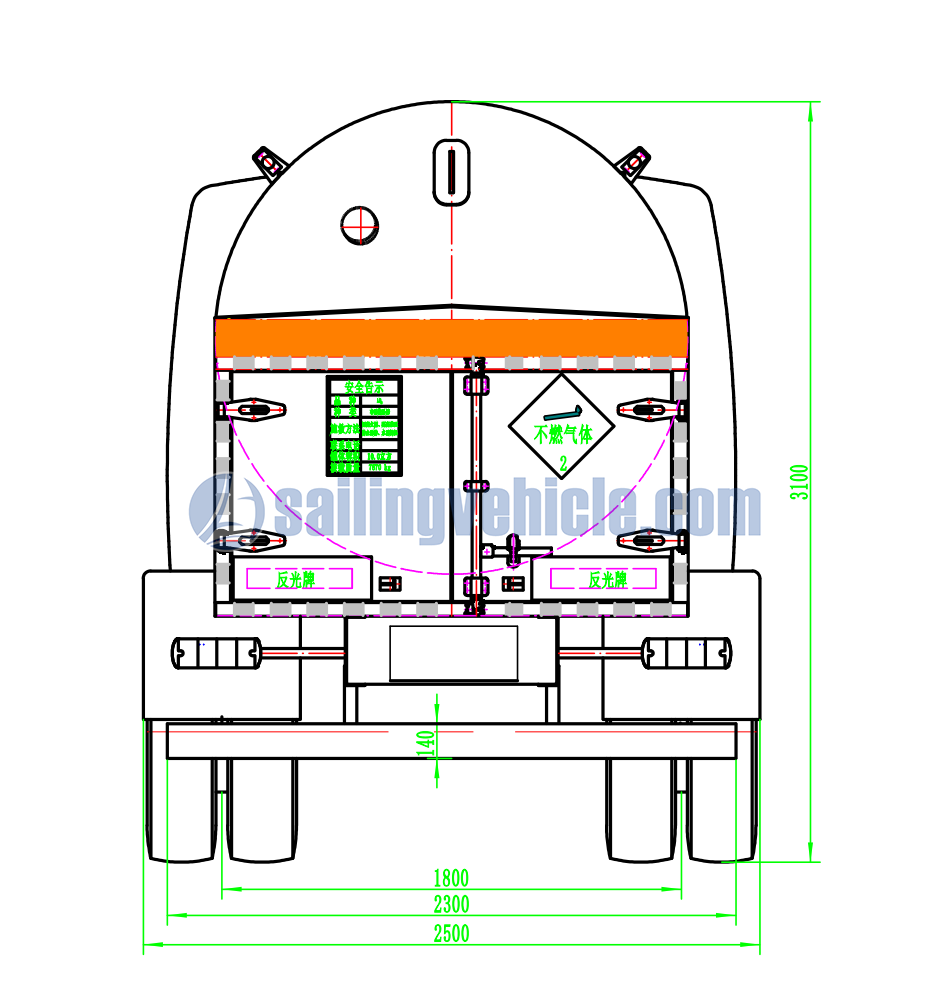

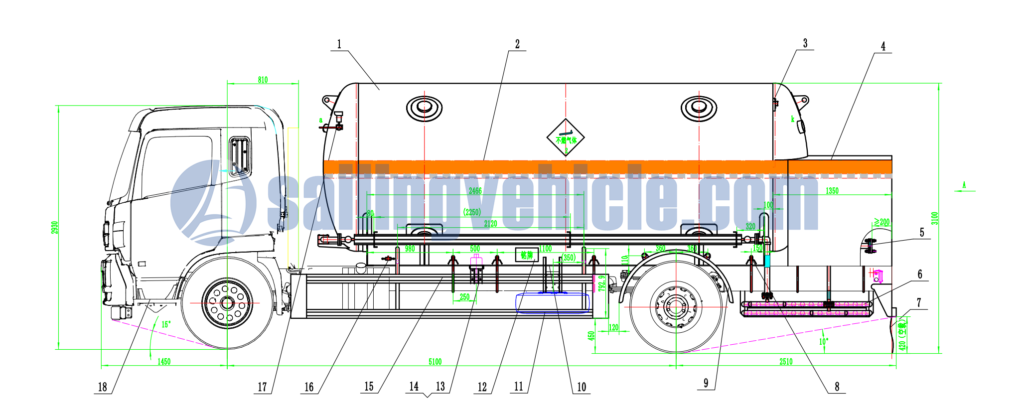

| Note: We will design drawings according to your requirements. |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
