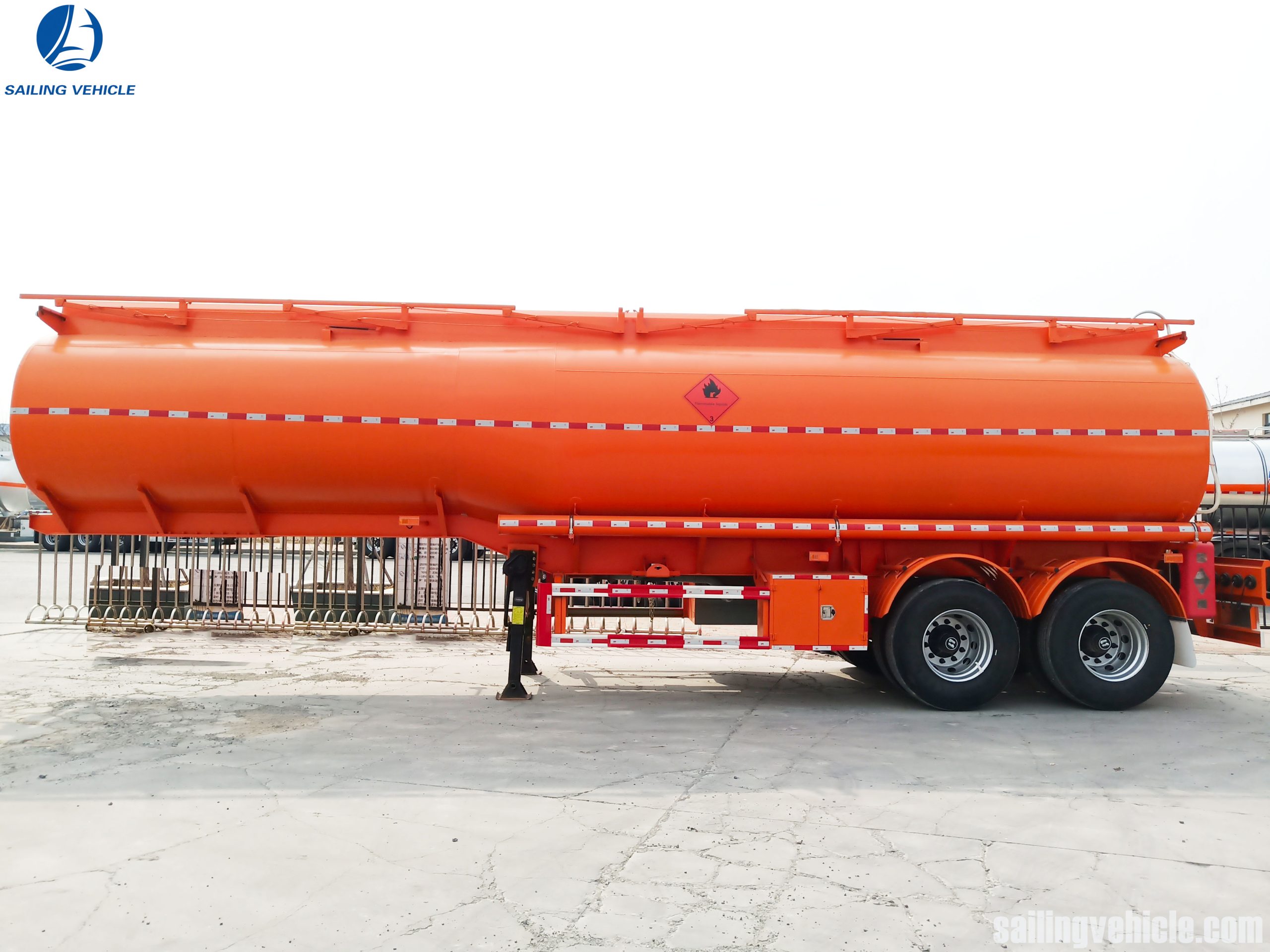

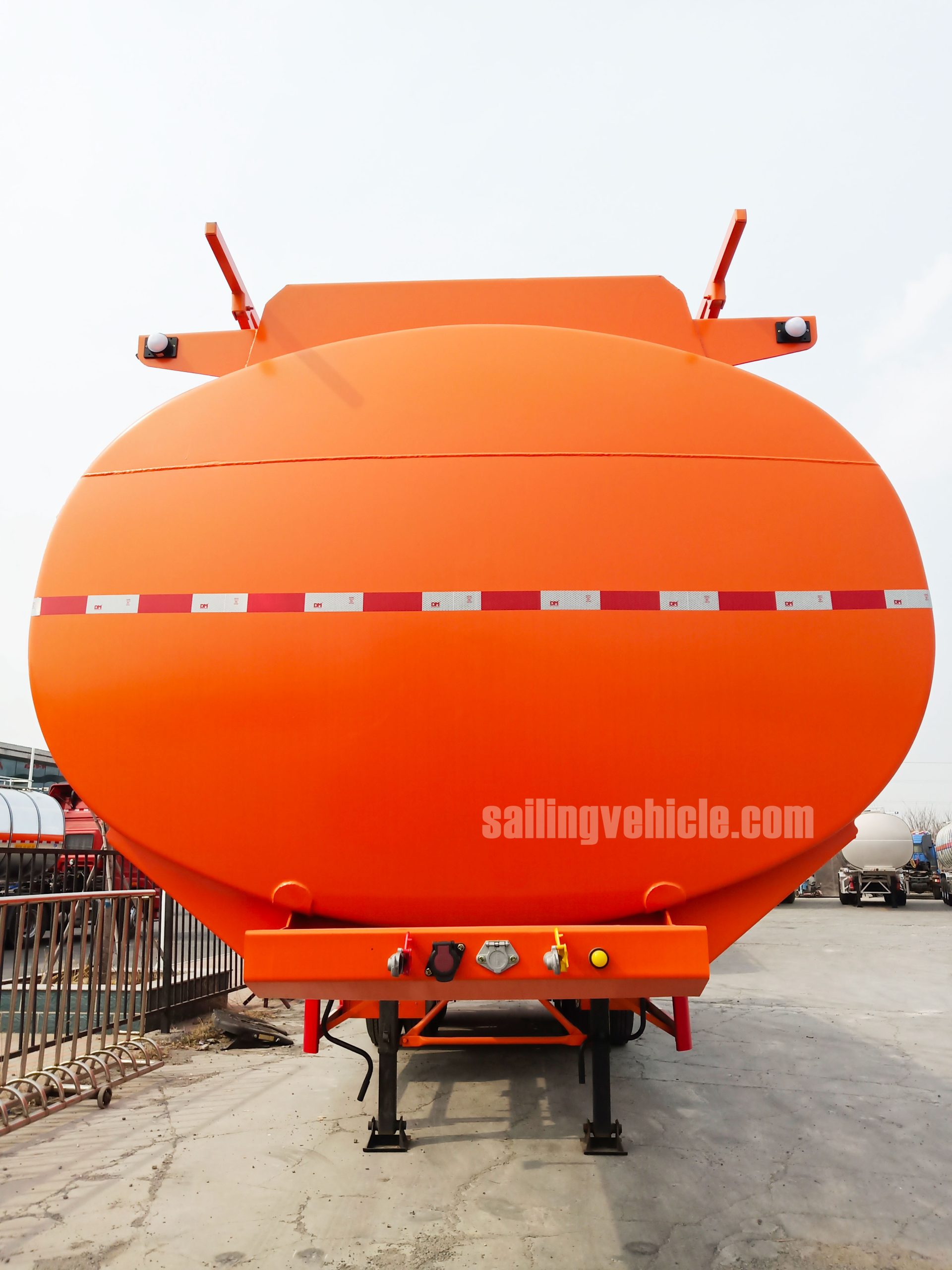

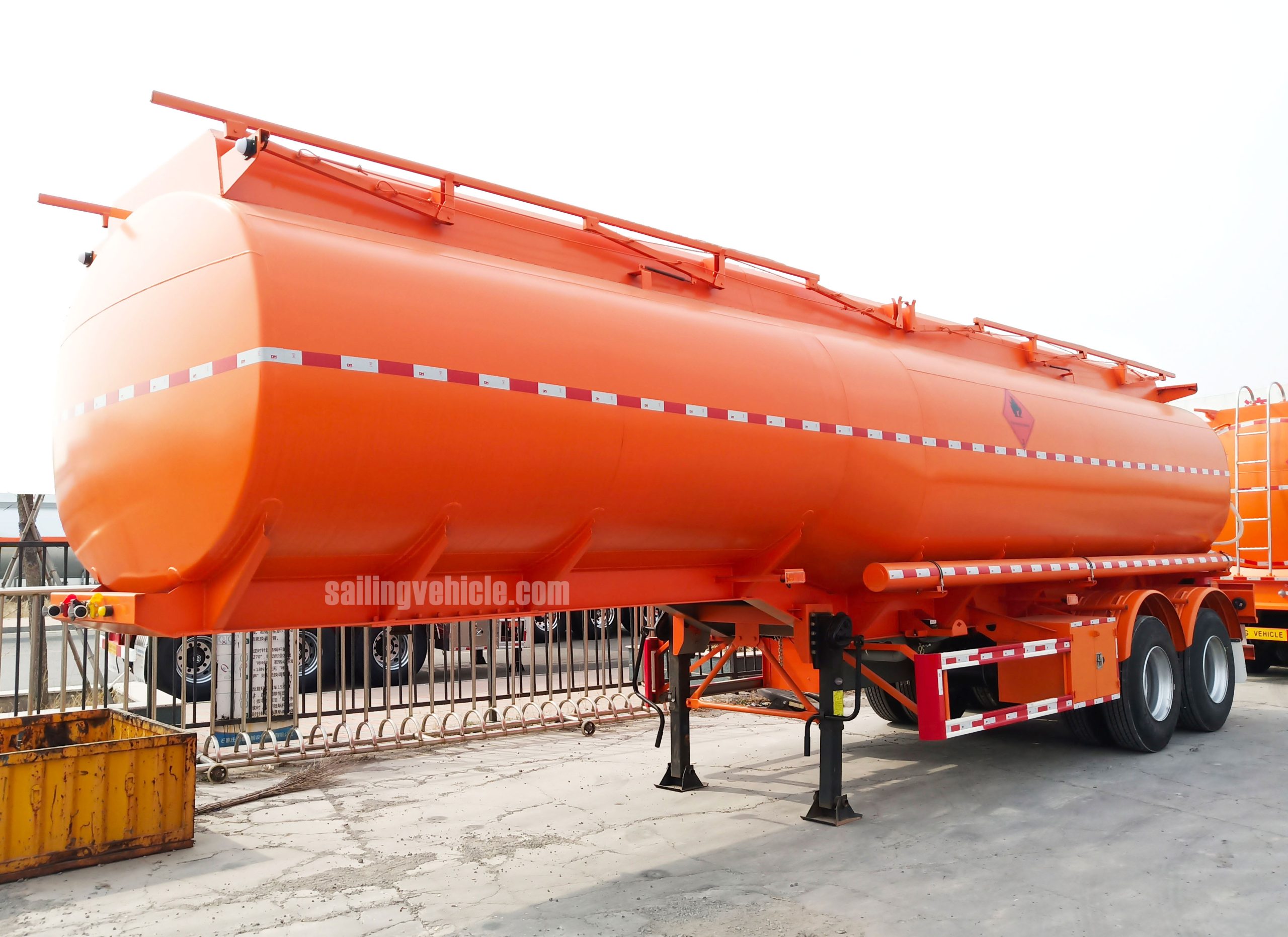

| Tank trailer specification | ||||
| Medium | Petrol/Diesel/Kerosene and other fuel oil | |||
| Shape | Square Round, goose neck type | |||
| Main beam | Q345B or T700 high-strength steel materials； heavy duty and extra durability designed; Opting for high tensile steel, welded by automatic Submerged-Arc processes | |||
| Overall dimension | 10700*2500*3425mm (approx) | |||
| Curb weight | 8000kg (approx) | |||
| Height of the fifth wheel | 1350mm | |||
| Axle | 13T BPW/Fuwa/ZY/L1/SAF Brand with ABS & 2 units | |||
| Tire | Doublecoin/Triangle/Chaoyang/Linglong Brand,12R22.5 & 8 units | |||
| Rim | Steel,9.0 & 8 units | |||
| Kingpin | Jost Brand, standard bolt type & 2”(50mm)/3.5”(90mm) | |||
| Landing gear | Jost/SAF-Holland/Fuwa Brand & two sides Operation | |||
| Suspension | Mechanical suspension with leaf springs & 13*90*10 or 16*90*10（heavy-duty design） | |||
| Tank body specification | ||||
| Tank capacity | 30,000 liters +5% | |||
| Tank material | Q235B or Q345B | |||
| Tank design thickness | Dish end | 5.5mm | ||
| Tank body | 5mm | |||
| Main parts specification | ||||
| Compartment | 3 units | |||
| Manhole cover | JIALONG Brand & Aluminum & 3 units | |||
| Bottom valve | JIALONG Brand & 4” Aluminum & 3 units | |||
| Breath valve | Aluminum & 3 units | |||
| Discharge valve | 4” API aluminum & 3 units | |||
| Relay valve | WABCO Brand | |||
| ABS | With local famous brand ABS | |||
| Electric system | 24v,7-pin socket | |||
| Light | LED lights. Rear lighting with rear/stop/parking/direction/fog/reverse lights.Side lights.separate indicator lights. | |||
| Discharge hose | 5.7 meters & 2 units | |||
| Ladder | 1 unit, on the rear or front | |||
| Reverse buzzer | 1 unit | |||
| Spare wheel Carrier | 1 unit | |||
| Mudguard | Heavy-duty design, steel or aluminum | |||
| Painting | Stain Proofing | Sandblasting | ||
| Primer layer | One coat of anti-corrosive paint | |||
| Final coat | Two coats of finished paint | |||
| Color | As customer’s requirements | |||
| Other equipment | ||||
| 1. Single toolbox | ||||
| 2. Single valve box | ||||
| 3. Single-side loading and unloading on left | ||||
| 4. 2 sets of 8KG fire extinguishers | ||||
| 5. 1 set of anti-static grounding tape | ||||
| 6. All of the other necessary tools | ||||
|

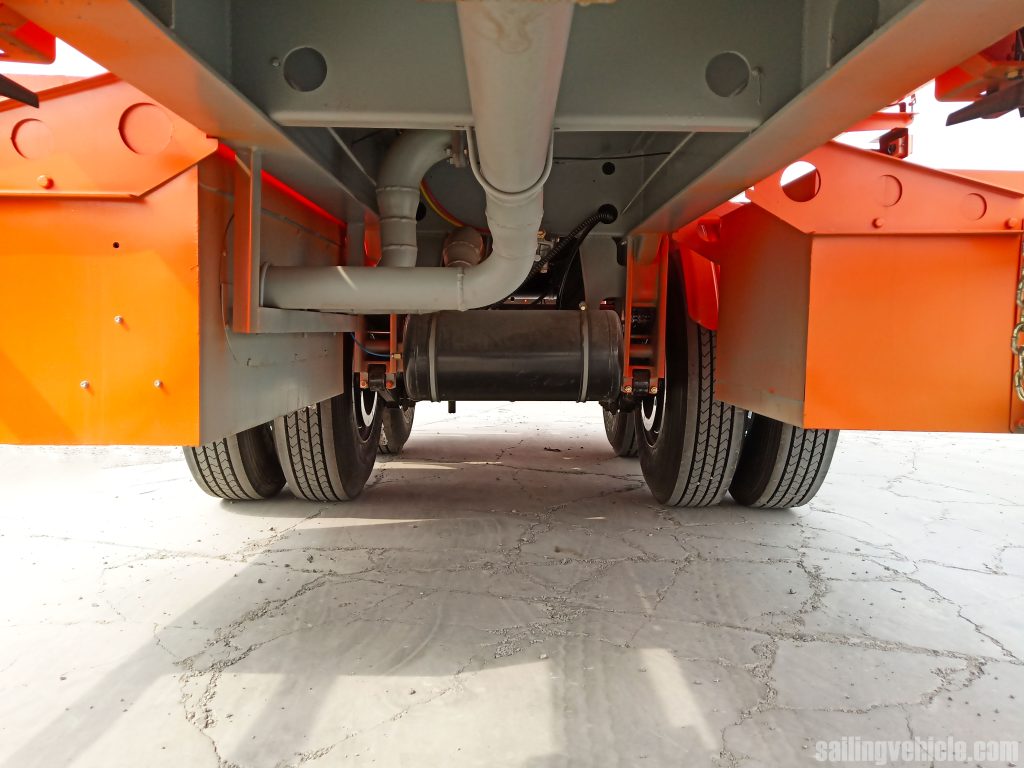

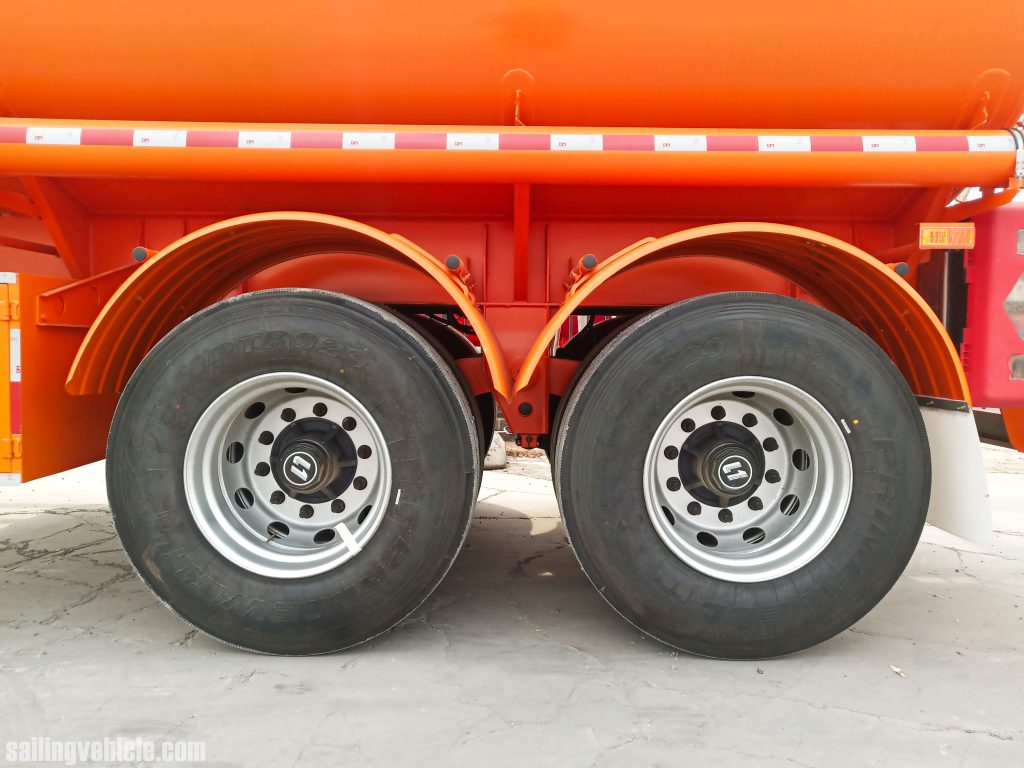

Axle and tire |

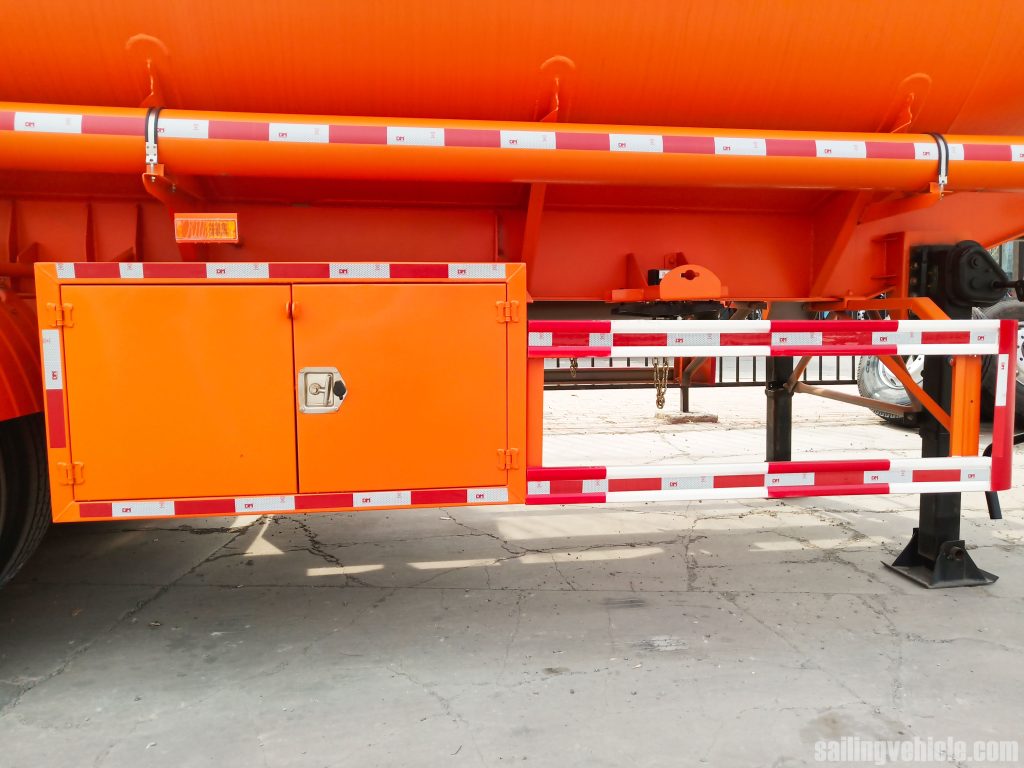

Protection and box |
 |
 |
|

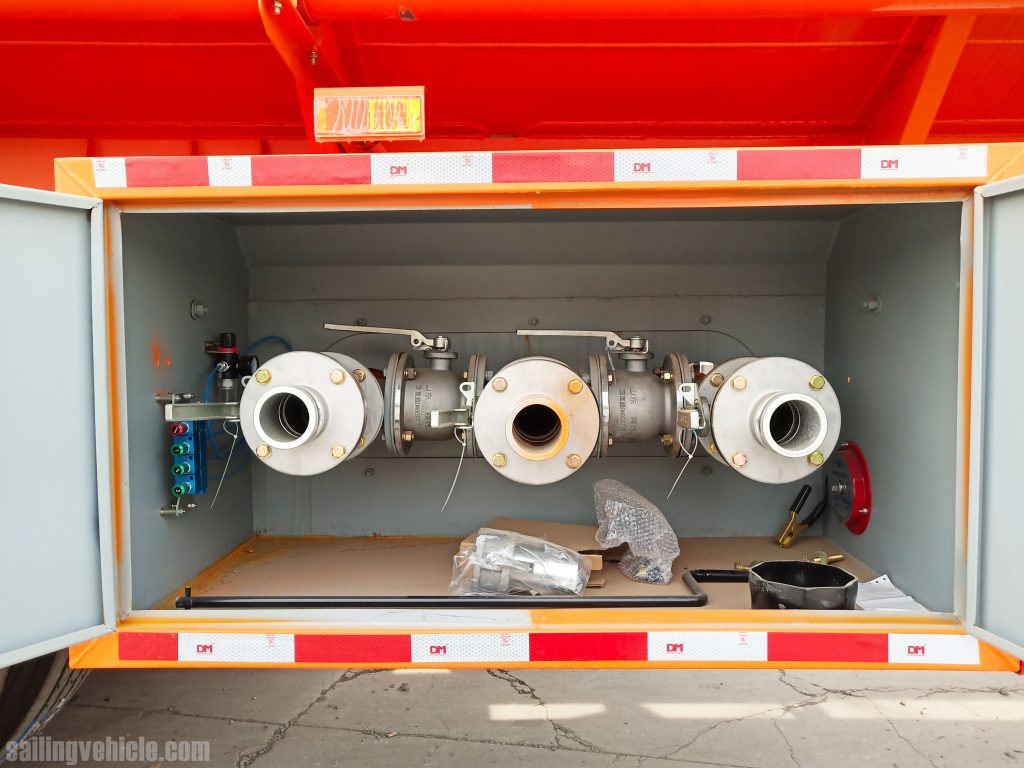

Discharging valve |
Bottom valve |
 |
 |
|

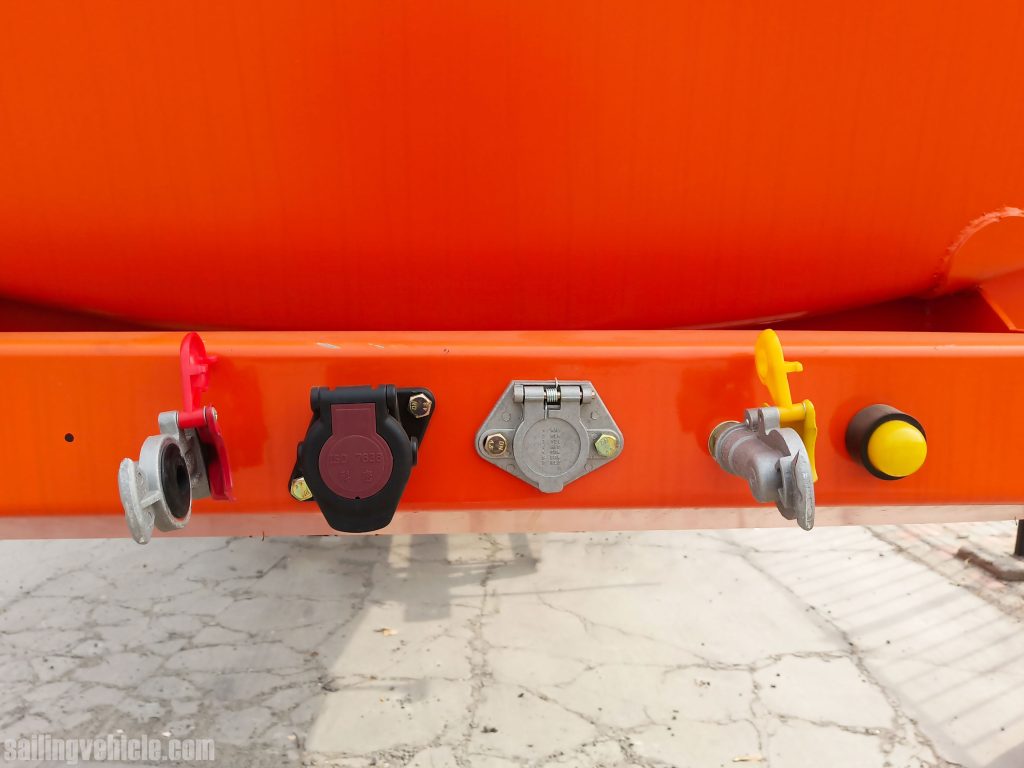

Electrical connector |

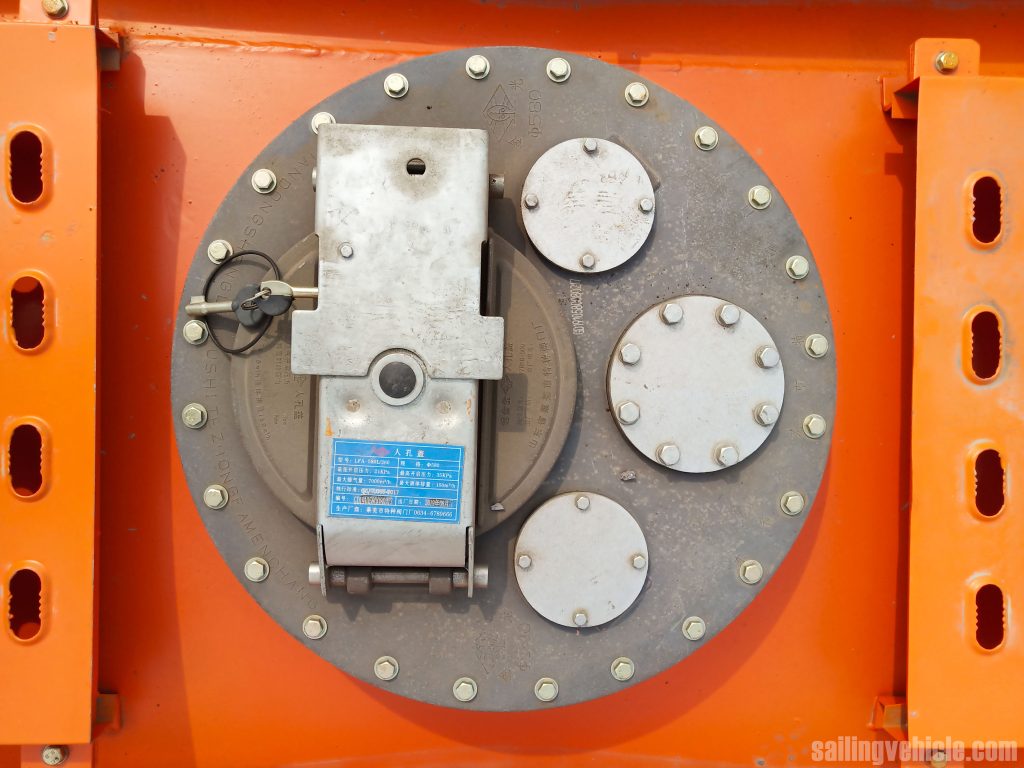

Manhole cover |
 |
 |
|

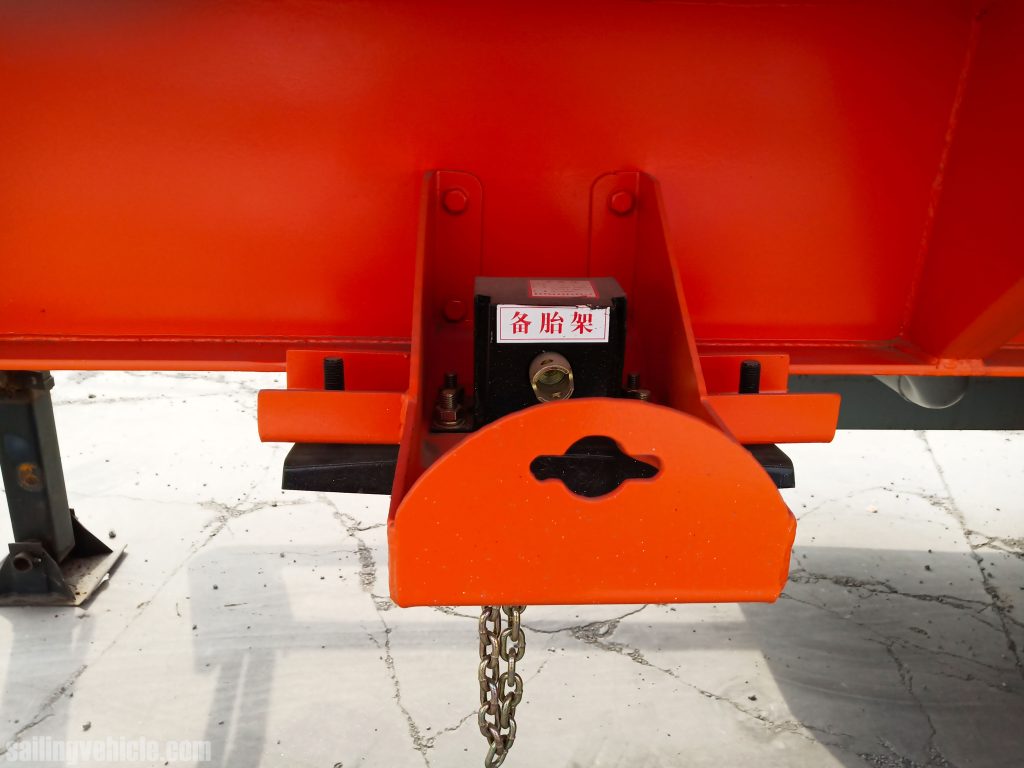

Spare wheel carrier |
Tools |
 |
 |
|

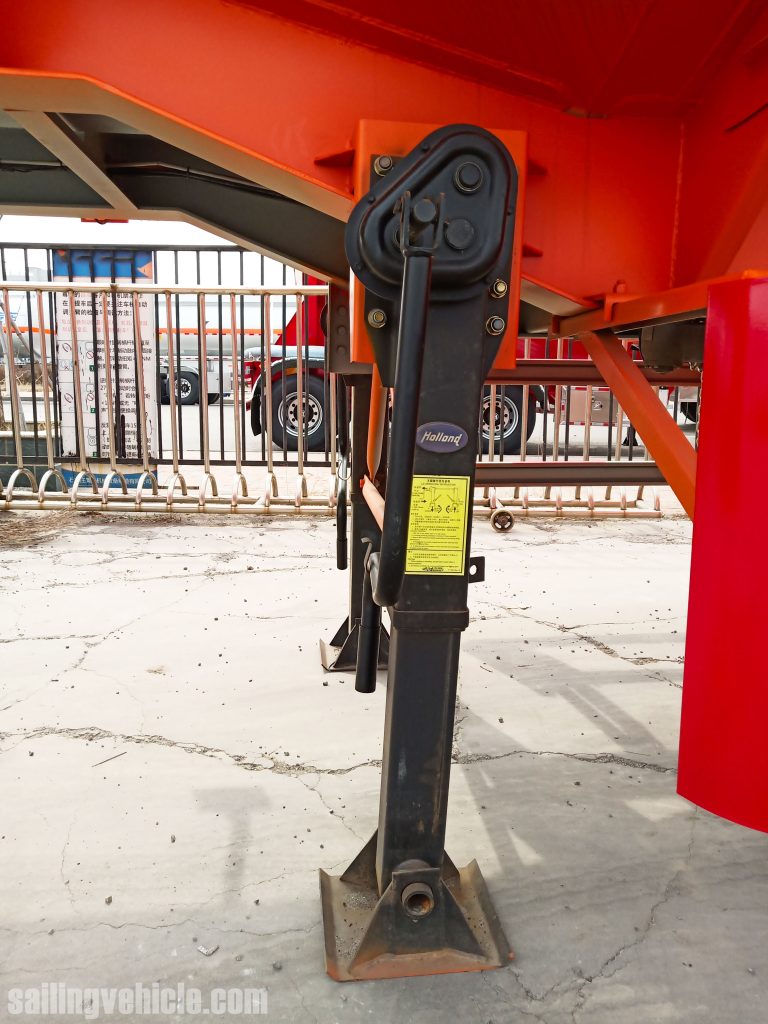

Landing gear |
Pneumatic switch |
 |
 |
|

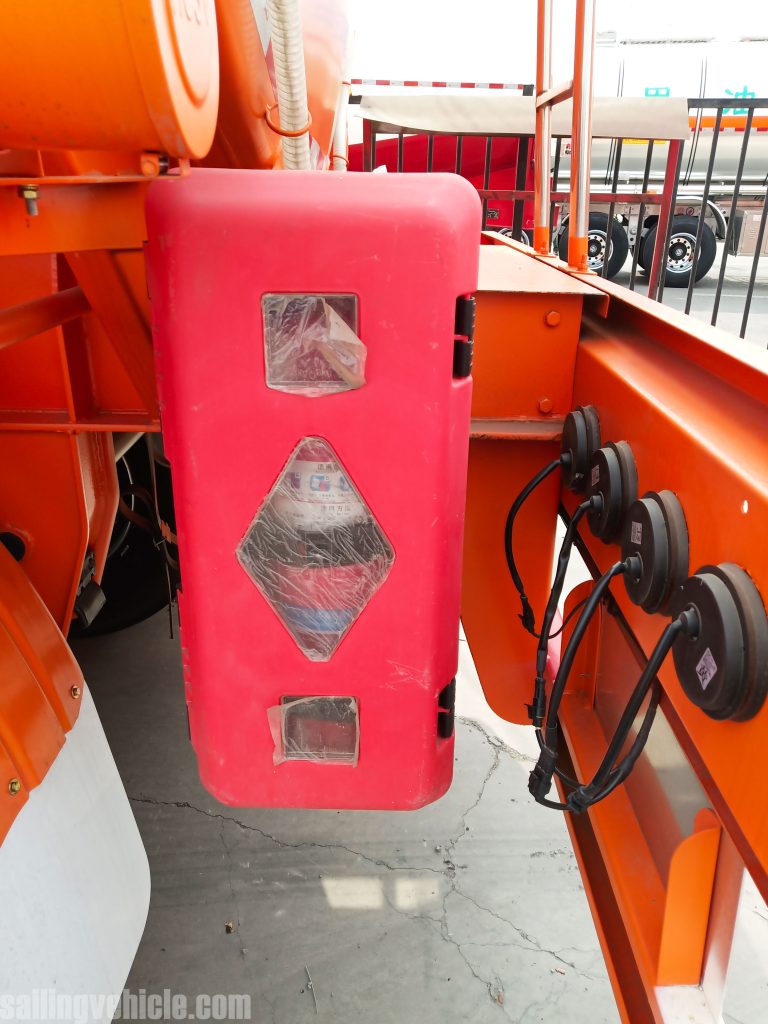

Fire extinguisher |
Accessories |
 |
 |

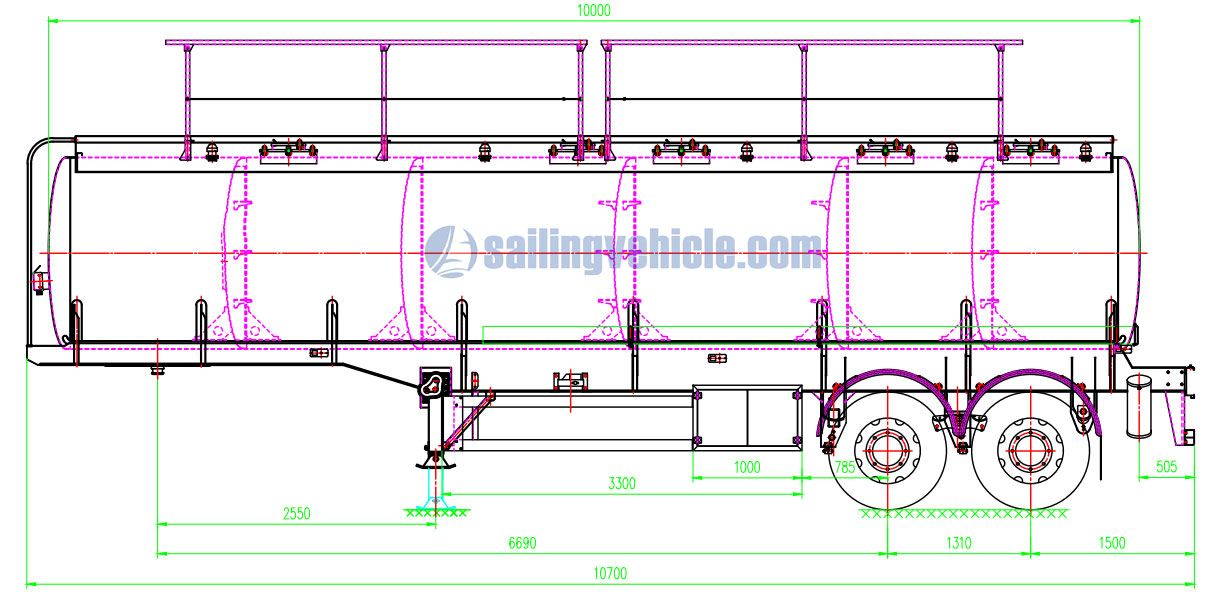

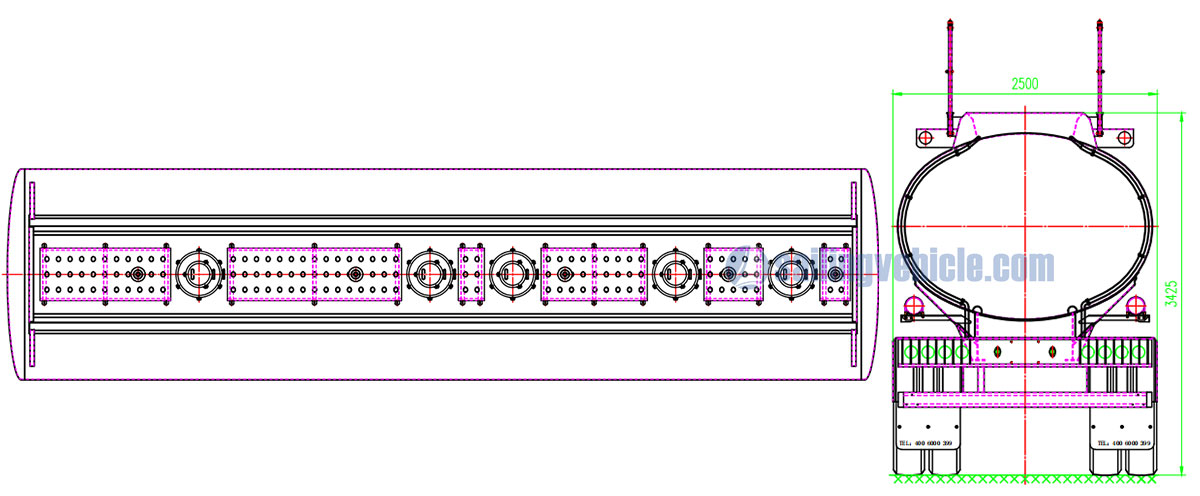

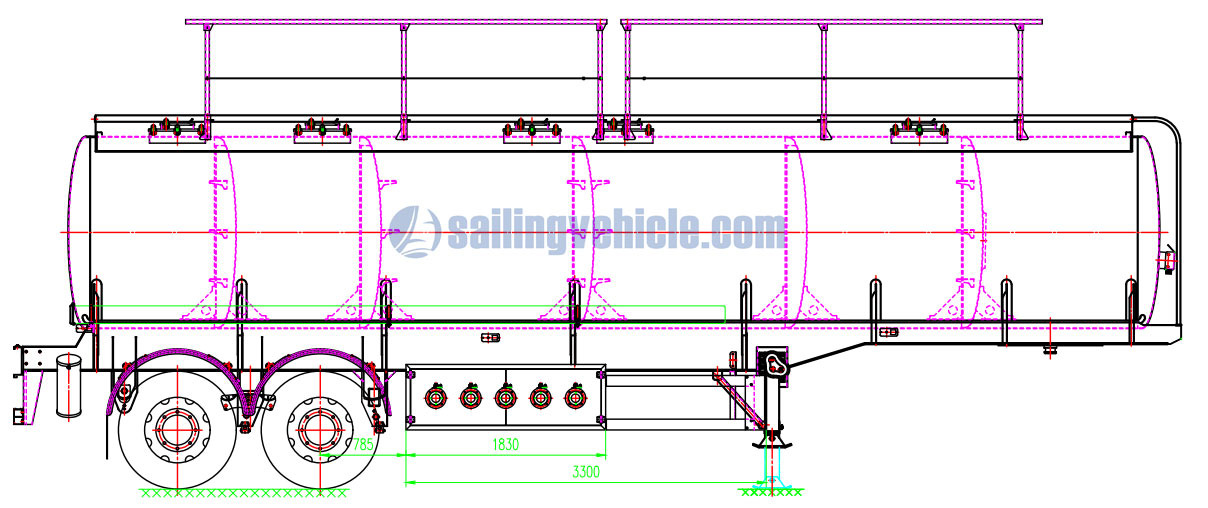

| NOTE： We will design the drawings according to your requirements. |
 |
 |
 |
| NOTE: To protect the vehicle from seawater corrosion, we will spray wax before shipment. |
 |
 |
 |
 |
