| Container tank specification | |||
|---|---|---|---|
| 1 | Cargo | Gasoline, diesel, kerosene and other petroleum oils | |
| 2 | Dimensions | Outer |
12188×2438×2591mm (L×W×H)
(Based on final design drawings.) |
| Centre distance between twistlocks |
11985×2259 mm (L×W)
(Based on final design drawings.) |
||
| 3 | Curb weight |
7000kg
(Approx., based on final design drawings.) |
|
| Tank body specification | |||
| 4 | Tank shape | Round cylindrical. | |
| 5 | Tank capacity | 35,000 liters | |
| 6 | Tank material | Carbon Steel, Q235B | |
| 7 | Tank design thickness | End cover | 4.5mm |
| Tank body | 4mm | ||
| Baffle | 4mm | ||
| Main parts specification | |||
| 8 | Compartment | Single | |
| 9 | Manhole cover | Aluminum alloy & 2 units, 3-top and 6-bottom bolted configuration | |
| 10 | Bottom valve | Bottom & discharge integrated combination valve & 1 unit | |
| 11 | Discharging valve | ||
| 12 | Discharging the hose box | 6 meters & 2 units. | |
| 13 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 14 | Handrail | 2 units on the top, Stainless steel material | |
| 15 | Walkway platform | On top with an anti-slip punched design, aluminum alloy material | |
| 16 | Ladder | 1 unit, on the rear | |
| 17 | Breather valve | Aluminum alloy & 2 units. | |
| 18 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 19 | Delivery | Spray wax before departure and cover with a tarpaulin for delivery. | |

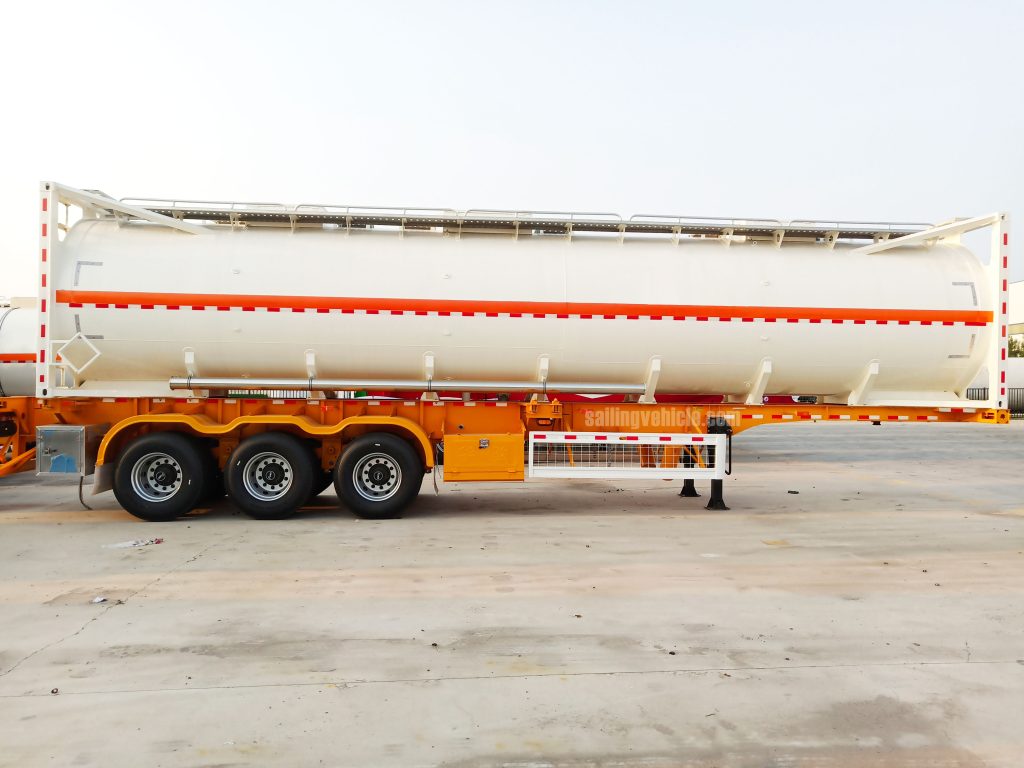

30FT Carbon Steel Container Tanker| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price:11,800 – 14,800 USD（Prices vary by configuration）
Maximize liquid transport efficiency with our highly durable 30FT Carbon Steel Container Tanker. Engineered for safety and heavy payloads. Contact us today!
Brand: TSV-SAILING
Model: TSV201801-30
Type: Container Frame Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Investing in a highly robust 30FT Carbon Steel Container Tanker is the ultimate strategic decision for logistics operators handling large-scale liquid transport. Engineered to withstand the harshest road conditions in emerging markets, this specialized trailer ensures your operations run with maximum safety, reduced downtime, and enhanced overall profitability.
High-Performance 30FT Carbon Steel Container Tanker Engineering
When transporting hazardous chemicals, industrial fuels, or agricultural liquids, structural integrity is non-negotiable. Our tanker utilizes premium-grade carbon steel, renowned for its exceptional tensile strength and abrasive wear resistance. This ensures your bulk cargo remains entirely secure, even when navigating unpaved roads or extreme temperature fluctuations globally.
Built for Maximum Payload and Durability
By optimizing the tare weight without compromising on heavy-duty performance, this 30FT Carbon Steel Container Tanker allows commercial fleets to maximize their legal payload capacities. We incorporate world-class components, including reinforced axles and advanced braking systems, directly addressing the core needs of international B2B logistics. Reduced maintenance intervals mean your fleet stays on the road longer, generating higher returns per trip. The integration of high-flow discharge valves significantly reduces unloading times at terminal destinations, vastly improving daily operational turnover rates.
Elevate Your Logistics Fleet Efficiency Today
Scaling your enterprise demands reliable equipment. Every 30FT Carbon Steel Container Tanker we manufacture undergoes rigorous quality control and high-pressure testing before international deployment. From the reinforced ISO corner castings to the heavy-duty landing gear, every detail is meticulously crafted to accelerate turnaround times and protect your valuable cargo assets. By choosing this industrial solution, your business instantly benefits from minimized operational bottlenecks and enhanced long-term supply chain reliability.
Are you ready to optimize your bulk liquid transport capabilities with premium industrial-grade equipment? Our dedicated commercial vehicle experts are ready to provide custom configurations tailored to your specific market demands. Contact our engineering team today to secure highly competitive bulk pricing and detailed technical blueprints for your next major fleet upgrade.

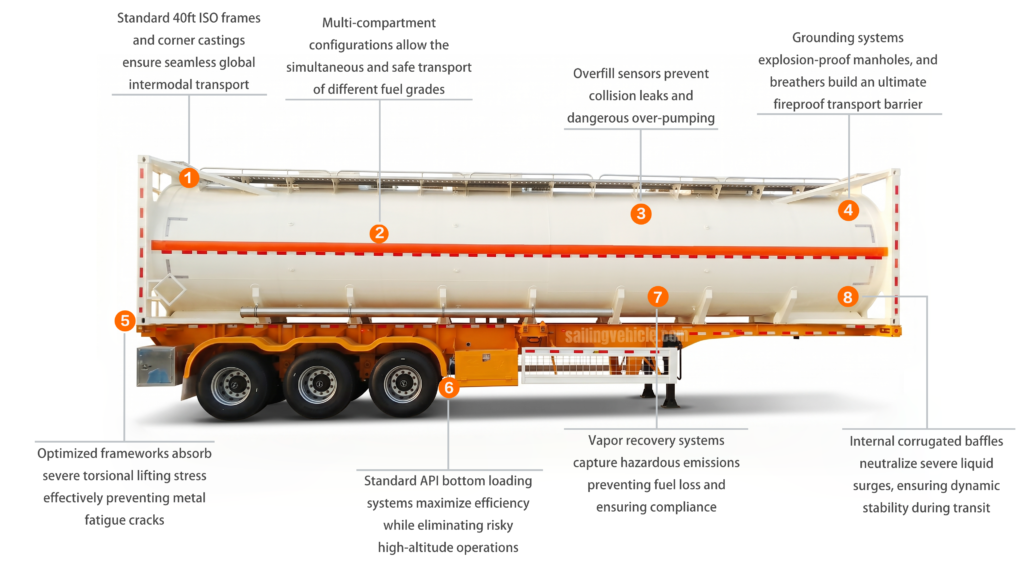

Product Overview
1. ISO Frames & Corner Castings
Standard 40ft ISO frames and robust corner castings ensure completely seamless global intermodal transport. This structural integrity guarantees safe, efficient transitions between ships, trains, and trucks, drastically reducing logistics downtime.
2. Multi-Compartment Configuration
Advanced multi-compartment configurations allow the simultaneous, safe transport of distinct fuel grades. This intelligent design dramatically boosts your operational flexibility, maximizing fleet utilization while strictly maintaining cargo purity and safety.
3. Overfill Protection Sensors
High-precision overfill sensors actively prevent dangerous over-pumping and potential collision leaks. This critical safety mechanism protects your valuable liquid cargo, ensures environmental compliance, and completely minimizes hazardous workplace accidents.
4. Fireproof Safety Systems
Integrated grounding systems, explosion-proof manholes, and advanced breathers construct an ultimate fireproof transport barrier. This comprehensively protects combustible fuel oil cargo, ensuring unparalleled operator safety and rigorous global regulatory compliance.
5. Optimized Steel Frameworks
Expertly optimized frameworks effectively absorb severe torsional lifting stress during heavy-duty operations. This superior engineering directly prevents metal fatigue cracks, ensuring long-term asset durability and significantly lowering your maintenance costs.
6. API Bottom Loading Systems
Standardized API bottom loading systems maximize fluid transfer efficiency while completely eliminating risky high-altitude manual operations. This highly upgrades operator safety and drastically accelerates terminal loading and unloading turnaround times.
7. Vapor Recovery Systems
Cutting-edge vapor recovery systems proactively capture hazardous emissions during transit. This eco-friendly technology critically prevents expensive fuel loss while ensuring absolute compliance with stringent international environmental and safety regulatory standards.
8. Internal Corrugated Baffles
Heavy-duty internal corrugated baffles expertly neutralize severe liquid surges during highway transit. This robust structural enhancement guarantees superior dynamic stability, mitigating vehicle rollover risks and ensuring ultra-safe bulk liquid logistics.

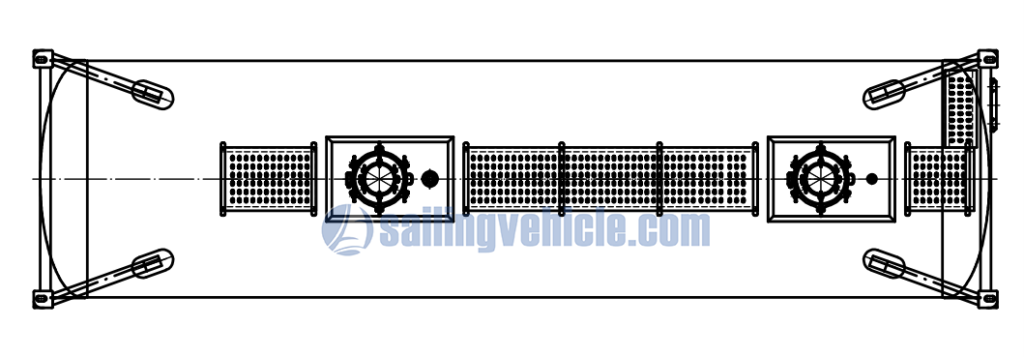

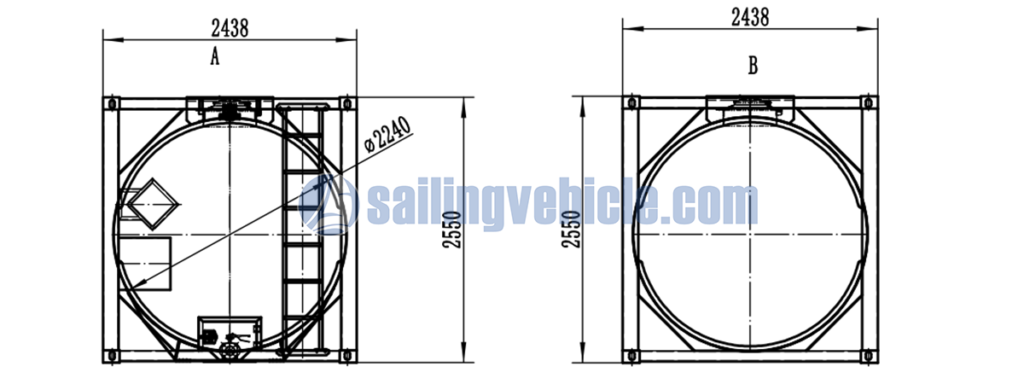

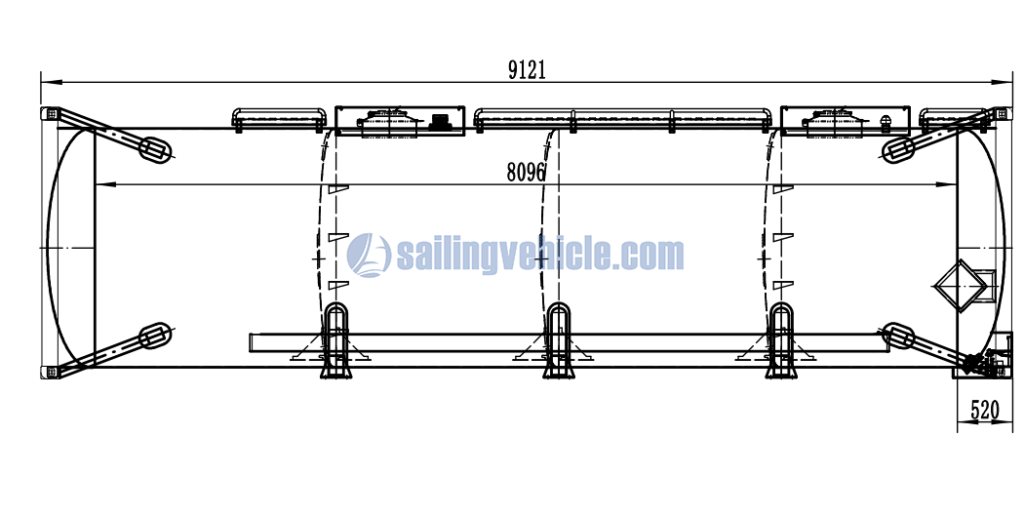

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
