| Container tank specification | |||
|---|---|---|---|
| 1 | Cargo | Gasoline, diesel, kerosene and other petroleum oils | |
| 2 | Dimensions | Outer |
12188×2438×2591mm (L×W×H)
(Based on final design drawings.) |
| Centre distance between twistlocks |
11985×2259 mm (L×W)
(Based on final design drawings.) |
||
| 3 | Curb weight |
7000kg
(Approx., based on final design drawings.) |
|
| Tank body specification | |||
| 4 | Tank shape | Round cylindrical. | |
| 5 | Tank capacity | 35,000 liters | |
| 6 | Tank material | AL5182 | |
| 7 | Tank design thickness | End cover | 4.5mm |
| Tank body | 4mm | ||
| Baffle | 4mm | ||
| Main parts specification | |||
| 8 | Compartment | Single | |
| 9 | Manhole cover | Aluminum alloy & 2 units, 3-top and 6-bottom bolted configuration | |
| 10 | Bottom valve | Bottom & discharge integrated combination valve & 1 unit | |
| 11 | Discharging valve | ||
| 12 | Discharging the hose box | 6 meters & 2 units. | |
| 13 | Discharging hose | Anti-static type, 5.7 meters & 2 units. | |
| 14 | Handrail | 2 units on the top, Stainless steel material | |
| 15 | Walkway platform | On top with an anti-slip punched design, aluminum alloy material | |
| 16 | Ladder | 1 unit, on the rear | |
| 17 | Breather valve | Aluminum alloy & 2 units. | |
| 18 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 19 | Delivery | Spray wax before departure and cover with a tarpaulin for delivery. | |

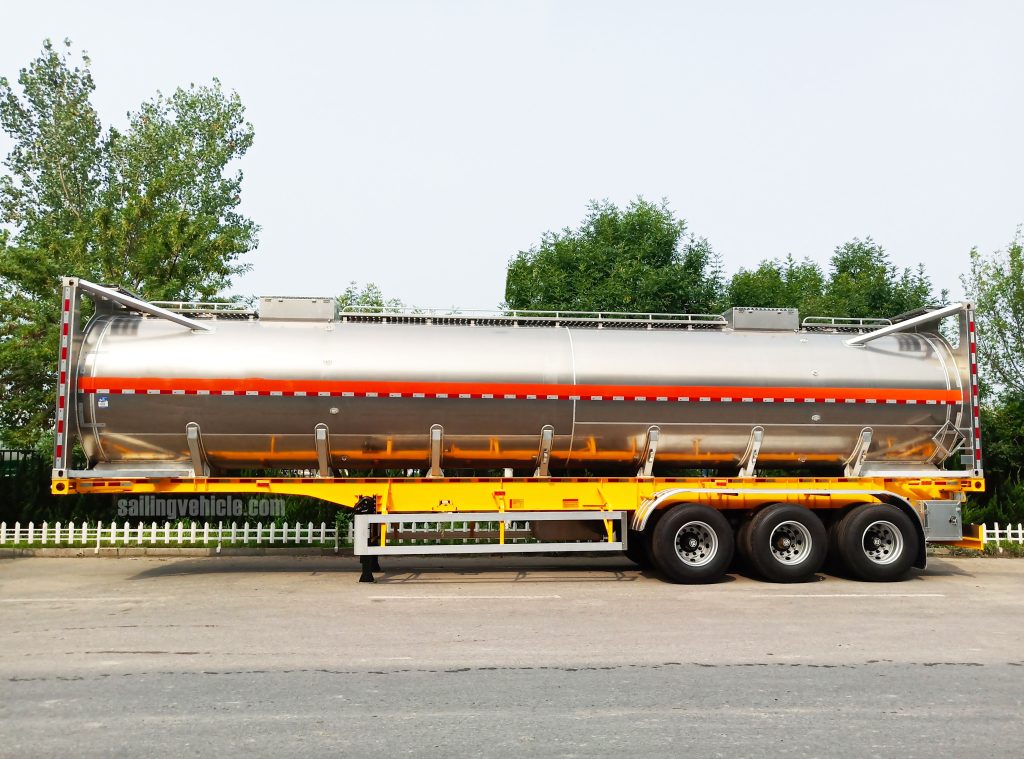

30FT Aluminum Liquid Tank Semi-Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 11,800 – 14,800 USD（Prices vary by configuration）
Maximize your fleet’s efficiency with our premium 30FT Aluminum Liquid Tank Semi-Trailer. Lightweight design ensures high payload and safety. Contact us today!
Brand: TSV-SAILING
Model: TSV201701-30
Type: Container Frame Tank Semi-trailer Aluminum Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the demanding world of bulk fluid logistics, investing in a robust 30FT Aluminum Liquid Tank Semi-Trailer is crucial for ensuring long-term fleet profitability and operational safety. Designed to strictly meet the highest global transport standards, this specialized trailer seamlessly combines lightweight materials with exceptional structural integrity. Whether you are moving petrochemicals, refined fuels, or agricultural liquids, reliability is absolutely paramount.
Why Choose Our 30FT Aluminum Liquid Tank Semi-Trailer?
Your operational efficiency relies entirely on maximizing payload while systematically minimizing fuel consumption per trip. Fabricated from premium-grade aluminum alloys, our unit significantly reduces the overall tare weight when directly compared to traditional carbon steel alternatives. This strategic weight reduction translates into substantially increased cargo capacity and drastically reduced operating costs over the vehicle’s lifespan. Furthermore, the tank boasts exceptional natural corrosion resistance, making it perfectly ideal for hauling diverse industrial chemicals, sensitive food-grade products, or volatile fuels without any risk of internal material degradation.
Advanced Components for Unmatched Reliability
Strict safety compliance and fluid handling precision are paramount in hazardous transportation. Our transport units are explicitly equipped with top-tier, industry-leading components. We utilize heavy-duty BPW axles to ensure superior load distribution and premium stainless steel API discharge valves to guarantee completely leak-proof offloading operations. This strategic engineering approach guarantees smooth transit across rough industrial terrains and facilitates seamless integration into broader, global intermodal freight transport logistics networks, ensuring your supply chain remains uninterrupted.
By integrating state-of-the-art internal anti-surge baffles, the 30FT Aluminum Liquid Tank Semi-Trailer effectively minimizes dynamic liquid shifting during high-speed transit. This critical design element drastically enhances overall vehicle stability during sudden braking or sharp cornering, ensuring maximum driver safety and total fleet asset protection across unpredictable highway conditions.
Are you ready to dramatically upgrade your liquid transportation capabilities with reliable, lightweight equipment? Our engineering team is prepared to customize your next fleet addition. Contact us today for a comprehensive technical consultation, customized CAD drawings, and a highly competitive quote tailored to your specific operational requirements and local highway regulations.

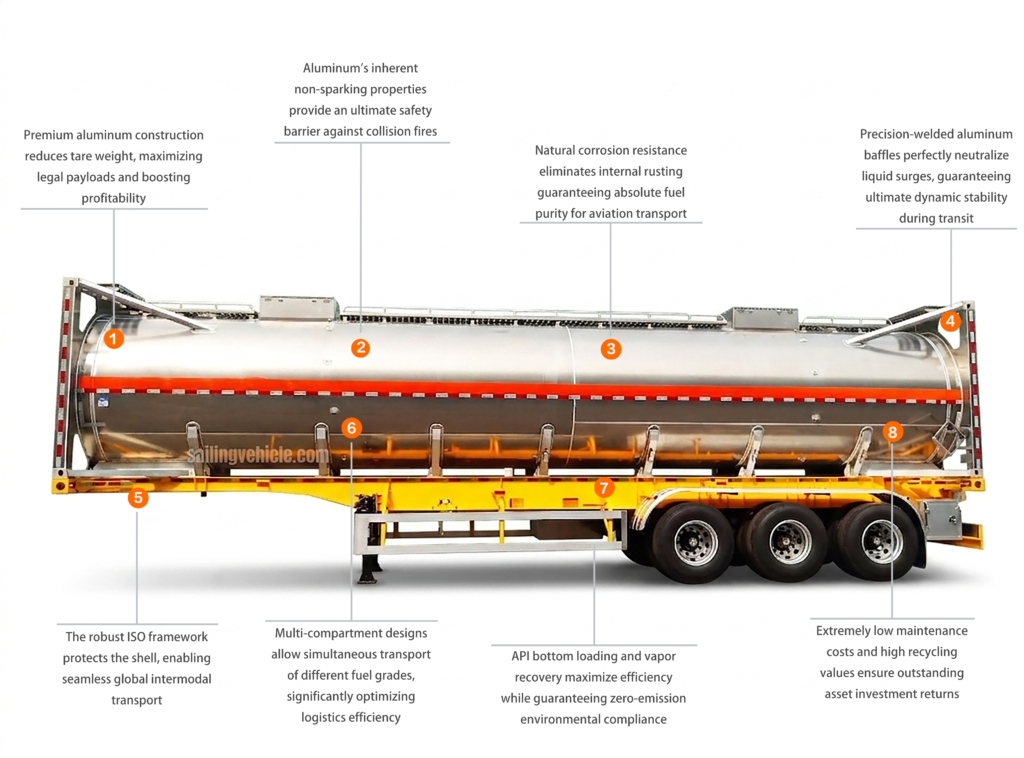

Product Overview
1. Premium Aluminum Construction
Premium aluminum construction significantly reduces equipment tare weight. This structural advantage expertly maximizes your legal liquid payloads, drastically cutting per-trip costs and substantially boosting long-term profitability for modern B2B logistics fleets.
2. Non-Sparking Safety Properties
Aluminum’s inherent non-sparking metallic properties provide an ultimate, uncompromising safety barrier against hazardous collision fires. This critical feature ensures unparalleled transportation security for highly combustible fuels across demanding commercial transit routes.
3. Natural Corrosion Resistance
Exceptional natural corrosion resistance permanently eliminates dangerous internal tank rusting. This strict hygienic standard guarantees absolute fuel purity, making it completely ideal for highly sensitive aviation transport and stringent global fuel supply chains.
4. Precision-Welded Aluminum Baffles
Heavy-duty, precision-welded aluminum baffles effectively neutralize severe internal liquid surges. This robust structural enhancement guarantees ultimate dynamic stability during high-speed transit, significantly reducing dangerous vehicle rollover risks for high-value hazardous cargo.
5. Robust ISO Framework
The robust intermodal ISO framework comprehensively protects the inner aluminum shell. This optimized design enables completely seamless, zero-damage global intermodal transport across modern shipping lines, commercial trains, and heavy-duty highway trucks.
6. Multi-Compartment Design
Advanced multi-compartment designs allow the simultaneous, ultra-safe transport of distinctly different fuel grades. This intelligent configuration significantly optimizes your daily logistics efficiency, directly reducing fleet overhead and accelerating profitable supply chain operations.
7. API Bottom Loading System
Standardized API bottom loading and integrated vapor recovery systems dramatically maximize terminal efficiency. These smart features guarantee zero-emission environmental compliance while completely eliminating hazardous manual high-altitude loading operations for ground personnel.
8. High Investment ROI
Extremely low lifetime maintenance costs combined with inherently high end-of-life aluminum recycling values ensure outstanding asset investment returns. This premium equipment sustainably drives corporate profitability and incredibly long-term commercial financial success.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
