| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | 30Feet 3-Axle Logistics Platform Trailer. | |
| 2 | Function | Transport container, loose cargo, bagged cement, bulk rice, etc. | |
| 3 | Overall dimensions |
12800×2550×2970 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with the design drawings, with heavy-duty structural | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 50 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based) |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Platform | Thickness 3 mm & checkered steel plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension,leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |
| 14 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Lash hook |
2×12mm diameter lash hooks at the rear; 12mm diameter lash hooks
Heavy-duty construction.
Available in large quantities. |
|
| 19 | Lashing Winch | Available in large quantities. | |
| 20 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per the customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | |
| Other equipment | |||
|
1. One heavy-duty toolbox, maximum possible size.
2. Two sets of 8KG fire extinguishers with boxes.
3. One set of anti-static grounding straps.
4. All other necessary accessories.
5. Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||

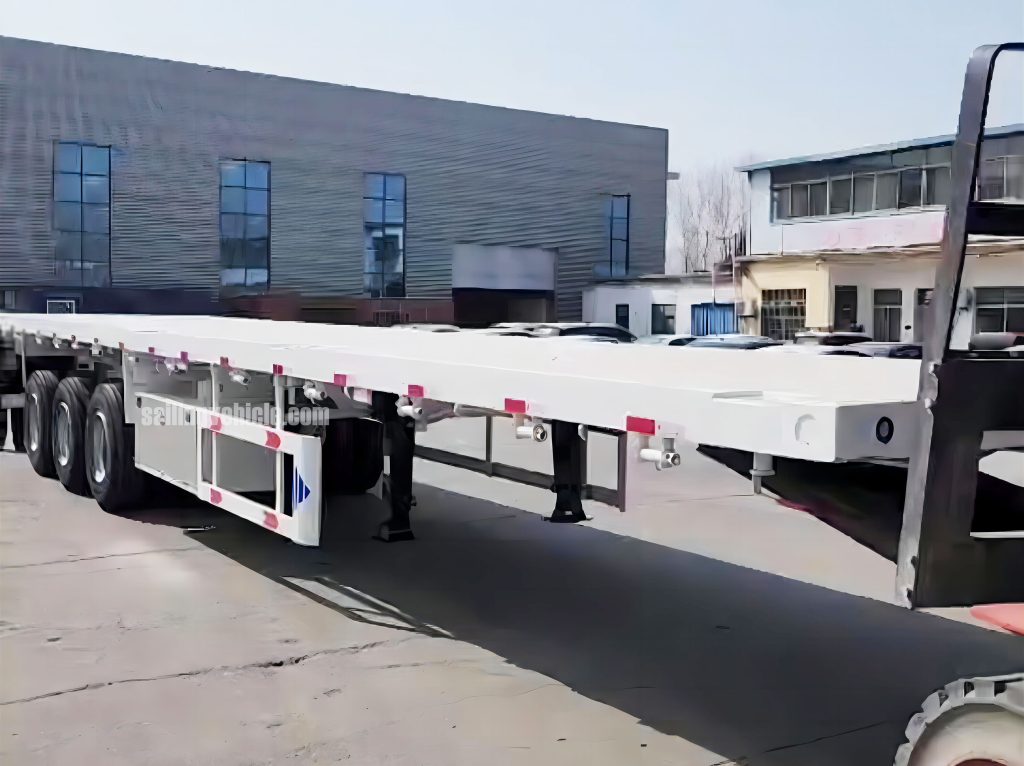

30Feet 3-Axle Logistics Platform Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 8,000 – 10,000 USD（Prices vary by configuration）
Boost your transport efficiency with our premium 30Feet 3-Axle Logistics Platform Trailer. Built for maximum durability, safety, and heavy payloads. Get a quote!
Brand: TSV-SAILING
Model: TSV201604-30
Type: Flat-bed Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Upgrade Your Fleet with a 30Feet 3-Axle Logistics Platform Trailer
Upgrading your heavy-duty transport capabilities starts with selecting the right equipment, and the 30Feet 3-Axle Logistics Platform Trailer is meticulously engineered to meet those exact demands. Designed specifically for intensive regional and international freight networks, this highly versatile trailer optimizes the movement of bulk cargo, heavy building materials, and standard shipping containers. For commercial fleet managers seeking to maximize daily profitability, investing in a highly durable logistics platform translates directly to reduced vehicle downtime and vastly increased operational efficiency.
Engineered for Maximum Payload and Durability
The foundation of this trailer lies in its robust, heavy-duty construction. Manufactured using premium Q345 high-tensile carbon steel, the main beam and flatbed platform resist structural deformation even under extreme payload conditions. Coupled with an advanced heavy-duty 3-axle system—featuring globally recognized commercial axles—it guarantees optimal weight distribution across the chassis. This precise engineering not only ensures unmatched stability on challenging terrains but also minimizes premature tire wear. Furthermore, the reinforced mechanical leaf spring suspension system efficiently absorbs severe road shocks, protecting both the structural integrity of the trailer and the valuable commercial cargo it carries.
Advanced Safety and Efficiency Features
Uncompromising safety and rapid turnaround times are absolute necessities in modern B2B logistics. To actively support these operational goals, our trailer is equipped with a highly responsive dual-line pneumatic braking system, delivering reliable, immediate stopping power. Additionally, top-tier JOST dual-speed landing gear and secure twist locks provide drivers with secure, effortless handling during coupling and terminal loading phases. Understanding the core principles of commercial vehicle dynamics helps highlight exactly why these premium, heavy-duty components are vital for safe and profitable transit.
Are you ready to streamline your global supply chain and significantly enhance your hauling capabilities? A high-quality heavy transport solution provides a remarkable return on investment by ensuring consistent, safe, and highly efficient deliveries. Our dedicated engineering and technical sales experts are fully prepared to tailor this equipment to your specific industry requirements. Contact our team today to request a comprehensive technical consultation and secure a highly competitive quote for your expanding fleet.
Product Overview
1. Engineered T700 Steel Chassis
This engineered T700 high-strength steel chassis completely maximizes your legal payload capacity while strictly eliminating long-term structural fatigue. Invest in superior durability to safely transport massive commercial loads and drastically increase your logistical profitability.
2. Reinforced Anti-Slip Decking
The reinforced anti-slip decking effortlessly withstands relentless heavy forklift operations, strictly maximizing your profitable bilateral freight. This robust surface guarantees rapid, secure material handling and prevents costly structural damage during daily terminal loading.
3. Advanced KTL Electro-Coating
Our advanced KTL electro-coating completely neutralizes severe port and highway corrosion, drastically minimizing your long-term fleet total cost of ownership. This premium surface treatment shields the metal, maintaining structural integrity and a highly professional appearance.
4. Forged Matrix Twist Locks
Forged matrix twist locks completely guarantee dynamic container stability, strictly eliminating hazardous cargo shifting during high-speed transit. This critical safety mechanism firmly secures your valuable shipping containers, protecting your cargo across challenging industrial routes.
5. Automated Flaw-Free Welding
Automated flaw-free welding combined with precisely engineered camber strictly guarantees absolutely zero heavy-duty chassis sagging. This advanced manufacturing process ensures flawless structural integrity, providing your fleet with a resilient foundation for continuous, intensive hauling.
6. Premium JOST Landing Gear
Premium JOST equipment safely withstands violent impacts, strictly guaranteeing high-frequency terminal uncoupling efficiency. Engineered for exceptional reliability, these robust supports ensure smooth trailer drop-offs, protecting your assets from stress and dramatically optimizing turnaround times.
7. Calibrated Mechanical Suspension
The calibrated suspension dynamically balances axle loads, strictly minimizing severely costly uneven tire wear. This robust system effortlessly absorbs severe road shocks, providing excellent dynamic stability while significantly extending the operational lifespan of your tires.
8. Premium WABCO Braking System
The world-class WABCO braking system instantly prevents fatal jackknifing, guaranteeing millisecond response times. This vital safety technology delivers superior stopping power under extreme loads, ensuring ultimate protection for your drivers, valuable cargo, and assets.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
