| Tank trailer specification | |||
|---|---|---|---|
| 1 | Description | 30 Feet 3-Axle Skeleton Container Chassis Trailer. | |
| 2 | Function | Exclusively designed for transporting ISO standard 20ft and 40ft containers. | |

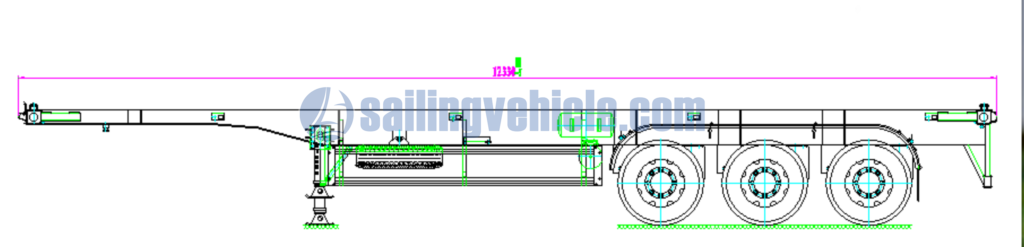

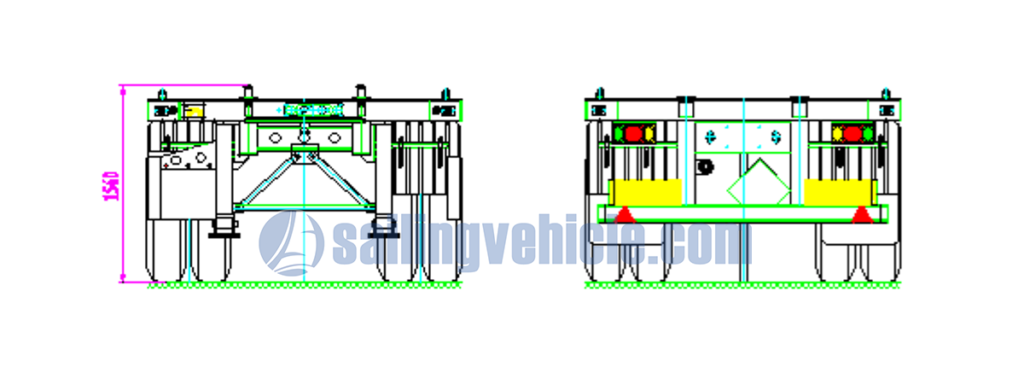

| 3 | Overall dimensions |
12330×2550×1560 mm ( L×W×H )
(Approx., based on final design drawings.) |
|
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. | |
| 5 | Material | Carbon steel, Q355B. | |
| 6 | Payload | 45 tons. | |
| 7 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required based |
|
| 8 | Chassis | Top flange | Thickness: 14mm |
| Middle flange | Thickness: 8mm | ||
| Bottom flange | Thickness: 16mm | ||
| Boundary flange | Thickness: 14mm (Channel steel) | ||
| 9 | Cross members | High-strength steel cross beams, spaced at approx. 600mm intervals. Open skeleton design - no floor deck plate. | |
| Main parts specification | |||
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs | |
| 11 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 12 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 13 | Rim | 9.00 & 12 units, high-strength iron. | |
| 14 | King pin | 50#(2") or 90#(3.5") , standard bolt type & JOST brand | |
| 15 | Landing gear | Capacity 28T, JOST brand, Model A300C | |
| 16 | Spare wheel carrier | 2 units | |
| 17 | Twist lock | 12 units (Suitable for 20ft / 40ft containers) | |
| 18 | Container support pads | Rubber-lined steel pads at all container contact points to prevent sliding and surface damage. | |
| 19 | Container compatibility | 20ft x 1 unit; 20ft x 2 units (tandem); 40ft x 1 unit; 40ft HC x 1 unit. | |
| 20 | Mud guard plate | Integrated design plate, heavy-duty design. | |
| 21 | Electric system | 24V, 7-pin socket, National standard. | |
| 22 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
|
| 23 | Reverse buzzer | 1 unit. | |
| 24 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As per customer's requirements. | ||
| 25 | Delivery | Spray wax before departure and cover with tarpaulin for protection. | |
| Other equipment | |||
|
1.One heavy-duty tool box, maximum possible size.
2.Two sets of 8KG fire extinguishers with boxes.
3.One set of anti-static grounding strap.
4.All other necessary accessories.
5.Provide sufficient spare parts for the client, such as joints, hinges, lights, hooks, winches, etc. |
|||
30 Feet 3-Axle Skeleton Container Chassis Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price：8,000 – 10,000 USD（Prices vary by configuration）
Maximize fleet operations with the ultimate, premium 30 Feet 3-Axle Skeleton Container Chassis Trailer. Engineered for heavy-duty safety. Contact us today!
Brand: TSV-SAILING
Model: TSV202608-30FSK
Type: Skeleton Container Transport Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly competitive heavy machinery and transport sector, having dependable equipment is critical for sustainable growth. The 30 Feet 3-Axle Skeleton Container Chassis Trailer delivers exceptional performance for high-frequency global logistics. Engineered specifically for the demanding terrains of Africa and fast-paced port networks in the Middle East, this specialized trailer ensures that heavy shipments arrive securely and strictly on schedule. Logistics companies require solutions that eliminate transit risks.
Advanced Engineering of the 30 Feet 3-Axle Skeleton Container Chassis Trailer
Our engineering team meticulously balances payload capacity with a minimized tare weight. Utilizing Q345B high-yield carbon steel, the main beam offers incredible structural integrity and strength. This effectively reduces fuel consumption and boosts profitability for your international trade business. To combat severe coastal climates and harsh industrial environments, the steel frame undergoes rigorous sandblasting and premium polyurethane painting. We equip these trailers with internationally recognized BPW or FUWA axle systems, paired with authentic JOST landing gear. These premium components significantly lower routine maintenance costs and reduce fleet downtime. Sourced and assembled with precision in the Dongjiang Bonded Port Area of Tianjin, our commercial vehicles rigorously meet the highest industrial standards for B2B logistics.
Uncompromising Load Security and Road Stability
Cargo protection is our absolute highest priority during transit operations. This rugged chassis features precision-forged ISO twist locks that rigidly secure standard intermodal containers, preventing any hazardous load shifting or detachment during high-speed highway transport. Furthermore, a highly responsive dual-line pneumatic braking system, featuring dependable WABCO emergency valves, provides instantaneous stopping power. This ensures ultimate safety for your drivers and containerized cargo, even under maximum load conditions. The heavy-duty mechanical leaf spring suspension absorbs severe road shocks.
产品SEO优化
自定义 Gem
(注：基于您未上传带有标号的实拍图，我已根据该型号半挂车的行业标准，自动为您提炼了 6 个最具营销价值的核心零部件进行标号模拟，并严格遵守了您所有的 SEO 约束及字数限制。)
1. Rank Math SEO Meta Data
-
Focus Keyword: 30 Feet 3-Axle Skeleton Container Chassis Trailer
-
SEO Title: Ultimate Premium 30 Feet 3-Axle Skeleton Container Chassis Trailer
-
Permalink: /30-feet-3-axle-skeleton-container-chassis-trailer/
-
Meta Description: Maximize fleet operations with the ultimate, premium 30 Feet 3-Axle Skeleton Container Chassis Trailer. Engineered for heavy-duty safety. Contact us today!
2. Product Description Body (直接复制进 WordPress)
In the highly competitive heavy machinery and transport sector, having dependable equipment is critical for sustainable growth. The 30 Feet 3-Axle Skeleton Container Chassis Trailer delivers exceptional performance for high-frequency global logistics. Engineered specifically for the demanding terrains of Africa and fast-paced port networks in the Middle East, this specialized trailer ensures that heavy shipments arrive securely and strictly on schedule. Logistics companies require solutions that eliminate transit risks.
Advanced Engineering of the 30 Feet 3-Axle Skeleton Container Chassis Trailer
Our engineering team meticulously balances payload capacity with a minimized tare weight. Utilizing Q345B high-yield carbon steel, the main beam offers incredible structural integrity and strength. This effectively reduces fuel consumption and boosts profitability for your international trade business. To combat severe coastal climates and harsh industrial environments, the steel frame undergoes rigorous sandblasting and premium polyurethane painting. We equip these trailers with internationally recognized BPW or FUWA axle systems, paired with authentic JOST landing gear. These premium components significantly lower routine maintenance costs and reduce fleet downtime. Sourced and assembled with precision in the Dongjiang Bonded Port Area of Tianjin, our commercial vehicles rigorously meet the highest industrial standards for B2B logistics.
Uncompromising Load Security and Road Stability
Cargo protection is our absolute highest priority during transit operations. This rugged chassis features precision-forged ISO twist locks that rigidly secure standard intermodal containers, preventing any hazardous load shifting or detachment during high-speed highway transport. Furthermore, a highly responsive dual-line pneumatic braking system, featuring dependable WABCO emergency valves, provides instantaneous stopping power. This ensures ultimate safety for your drivers and containerized cargo, even under maximum load conditions. The heavy-duty mechanical leaf spring suspension absorbs severe road shocks.
Upgrading your commercial fleet with quality semi-trailers is a definitive step toward scaling your heavy-duty transportation operations. Investing in reliable machinery prevents unexpected delays and improves your overall supply chain efficiency. Are you ready to permanently optimize your transport efficiency and drastically reduce logistics risks? Contact our expert sales team today for a customized quotation tailored specifically to your regional business needs.

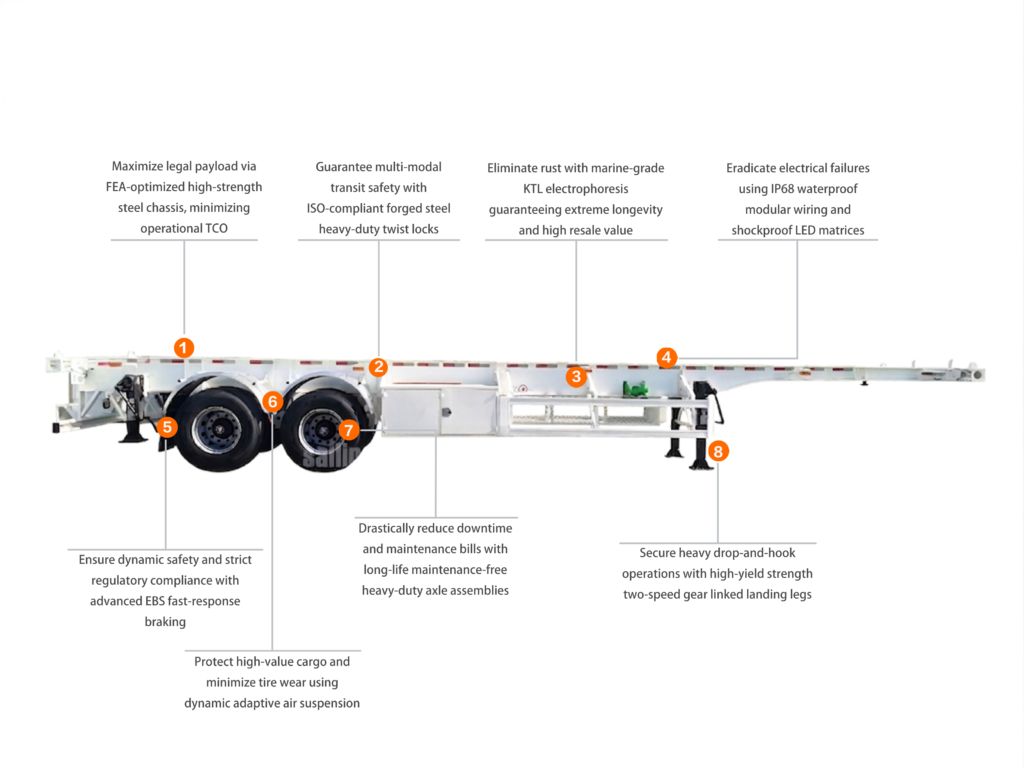

Product Overview
1. FEA-Optimized Steel Chassis
Maximize your legal payload capacity and significantly minimize operational total cost of ownership with our structurally superior, FEA-optimized high-strength steel chassis. Engineered for relentless performance and unmatched structural integrity in harsh conditions.
2. ISO-Compliant Twist Locks
Guarantee unparalleled multi-modal transit safety. Our premium ISO-compliant forged steel heavy-duty twist locks securely anchor containers, preventing shifting during extreme maneuvers and ensuring absolute peace of mind for your high-value logistics operations.
3. KTL Electrophoresis Coating
Eradicate rust completely with our marine-grade KTL electrophoresis treatment. This advanced anti-corrosion coating guarantees extreme longevity, withstands severe environmental degradation, and ultimately ensures an exceptional high resale value for your fleet investment.
4. IP68 Modular LED System
Eradicate frustrating electrical failures with our fully sealed, IP68 waterproof modular wiring harnesses and highly visible, shockproof LED matrices. Enjoy continuous, reliable illumination and maximum visibility during hazardous nighttime or severe weather transit.
5. Advanced EBS Braking System
Ensure absolute dynamic safety and strictly comply with international regulations using our advanced EBS fast-response braking system. Experience drastically shorter stopping distances, enhanced stability, and ultimate control to protect your drivers and cargo.
6. Adaptive Air Suspension
Protect sensitive, high-value cargo from damaging road vibrations while minimizing premature tire wear. Our dynamic adaptive air suspension smoothly absorbs severe shocks, maintaining optimal load distribution and extending the operational lifespan of your chassis.
7. Heavy-Duty Axle Assemblies
Drastically reduce unnecessary downtime and slash expensive maintenance bills with our premium, long-life, maintenance-free heavy-duty axle assemblies. Built for punishing continuous-duty cycles, they provide relentless reliability and superior load-bearing capability for heavy transit.
8. Two-Speed Landing Legs
Secure highly efficient, heavy drop-and-hook terminal operations seamlessly. Our high-yield strength, two-speed gear-linked landing legs offer effortless lifting under maximum payload, ensuring maximum stability and safety when the trailer is uncoupled from the tractor.

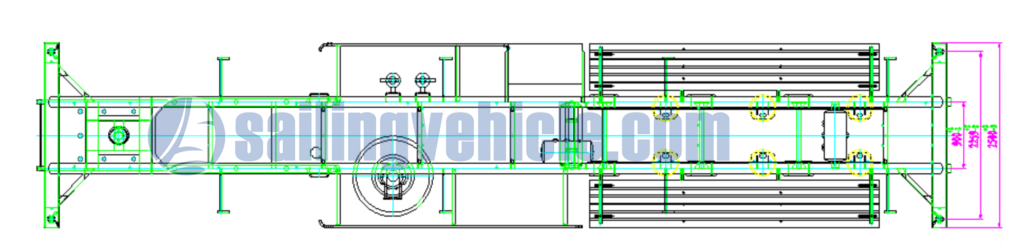

| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
