| Tank trailer specification | |||
|---|---|---|---|
| 1 | Cargo | Bulk cement and other bulk powder cargo. | |
| 2 | Overall dimensions |
10100×2550×4000mm (L×W×H)
(Approx., based on final design drawings.) |
|
| 3 | Curb weight |
8200kg
(Approx., based on final design drawings.) |
|
| 4 | Fifth-wheel height |
1350mm
(Generally within 1250 - 1450 mm; precise dimensions required) |
|
| 5 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
|
| 6 | Tire |
12R22.5 & 12 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
|
| 7 | Rim | 9.00 & 12 units, high-strength iron. | |
| 8 | Kingpin | 50#(2") or 90# (3.5"), standard bolt type & JOST brand. | |
| 9 | Landing gear | Capacity 28T, Brand JOST, Model A300C.(Fuwa brand optional) | |
| 10 | Suspension | Mechanical suspension, leaf springs,16mm×90mm,10pcs. | |
| Tank body specification | |||
| 11 | Tank shape | V-shaped | |
| 12 | Tank capacity | 50 CBM | |
| 13 | Tank material | Carbon steel, Q235B | |
| 14 | Tank Design thickness | End cover | 5mm |
| Tank body | 4mm | ||
| Main parts specification | |||
| 15 | Beam | Heavy-duty and extra durable T-type beam, high tensile Q355B steel with automatic submerged arc welding. | |
| 16 | Air compressor | 1 unit, BOHAI brand, 12CBM power. | |
| 17 | Diesel engine | 1 unit, HUAFENG WEICHAI, 4105 Model. | |
| 18 | Compartment | Single compartment. | |
| 19 | Manhole cover | Carbon steel & 2 units. | |
| 20 | Discharging hose | Anti-static type, 7 meters & 1 unit. | |
| 21 | Ladder | 2 units, one at the rear, one on the left middle side. | |
| 22 | Safety valve | 2 units. | |
| 23 | Pressure gauge | 1 unit | |
| 24 | Spare wheel carrier | 1 unit. | |
| 25 | Mud guard plate | Integrated design plate, heavy-duty design, carbon steel. | |
| 26 | Tool box | 1 unit, maximum available size. | |
| 27 | Relay valve | Brand WABCO | |
| 28 | Reverse buzzer | 1 unit. | |
| 29 | Electric system | 24V, 7-pin socket, national standard. | |
| 30 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. |
|
| 31 | Painting | Primer layer | One coat of anti-corrosive paint. |
| Final coat | Two coats of finish paint. | ||
| Color | As customer's requirements. | ||
| 32 | Delivery | Spray wax before departure and tarpaulin for protection. | |
| Other equipment | |||
|
1.One set of anti-static grounding strap.
2.Provide some additional spare parts for free.
3.All other necessary accessories. |
|||

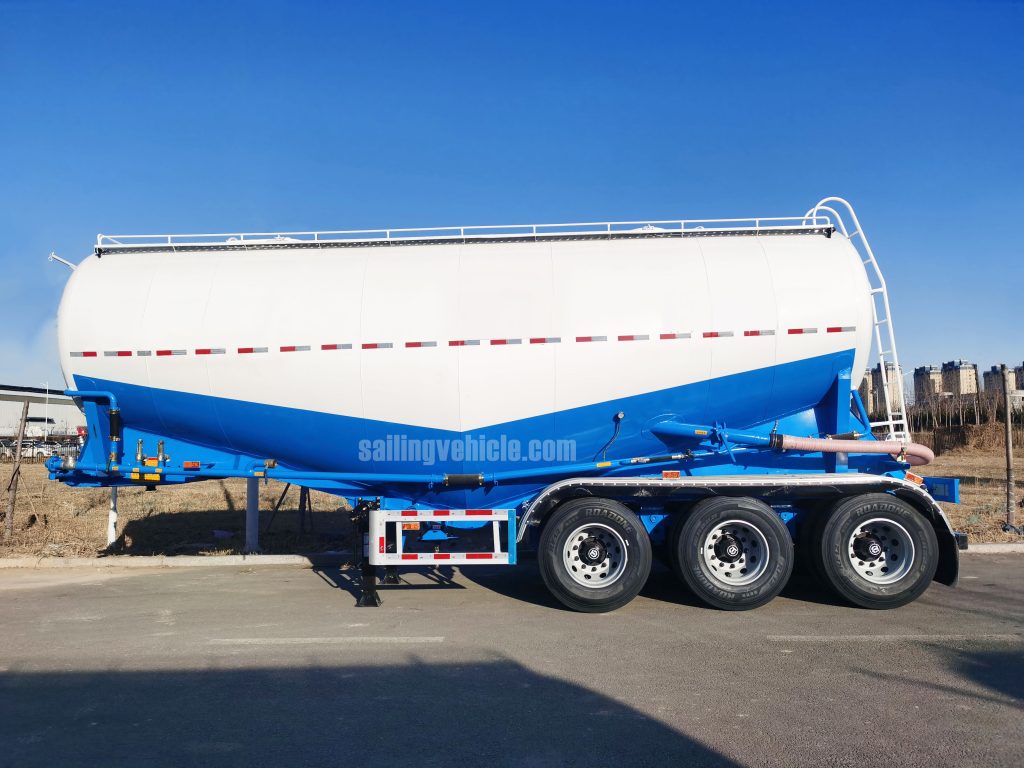

3-axle Bulk Cement Tanker With WEICHAI Engine| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,500 – 17,500 USD（Prices vary by configuration）
Maximize uptime with our 3-axle Bulk Cement Tanker with WEICHAI Engine. Fast discharge, 40m³ capacity, and rugged durability. Get a factory quote now!
Brand: TSV-SAILING
Model: TSV202007-50
Type: Cement Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
Looking to optimize your bulk transport fleet for higher profit margins? The 3-axle Bulk Cement Tanker With WEICHAI Engine is meticulously engineered to deliver unmatched operational efficiency, safety, and long-term profitability. Designed specifically for hauling essential dry bulk powders like premium cement, industrial fly ash, and agricultural lime, this advanced commercial vehicle ensures rapid discharging while aggressively minimizing your daily operational costs. By integrating cutting-edge pneumatic technology, it sets a new standard in modern logistics.
Why Choose Our 3-axle Bulk Cement Tanker With WEICHAI Engine?
When transporting heavy bulk powders over long distances, superior structural integrity is absolutely critical. Our premium dry bulk transport trailer utilizes an ultra-lightweight, high-strength steel design that maximizes your legal payload capacity while strictly complying with international highway weight regulations. Furthermore, it integrates a world-class WABCO intelligent air suspension system. As detailed in Wikipedia’s comprehensive guide on air suspension, this advanced damping technology maximizes dynamic road stability and practically eliminates rollover hazards, ensuring your valuable cargo and professional drivers remain completely safe on challenging industrial terrains.
Advanced Discharging Technology
Unloading speed and material purity are essential factors in dry bulk logistics. This highly specialized trailer guarantees extreme discharging speeds and entirely eliminates internal material retention through its advanced, strategically placed fluidization canvas. Coupled with a heavy-duty, oil-free pneumatic compressor system, it consistently ensures zero cargo contamination during high-frequency pumping operations. We also utilize thickened, wear-resistant unloading valves and forged fittings to prevent costly pipeline blockages, greatly extending your equipment’s operational lifecycle and reducing maintenance downtime.
Unyielding Durability and Safety
To drastically minimize your fleet’s total cost of ownership, the exterior shell is treated with premium marine-grade anti-corrosion coatings, protecting the steel from harsh environmental elements. Underneath, the reinforced heavy-duty chassis is masterfully built to guarantee maximum structural endurance, effectively preventing metal cracking under extreme payload conditions. Additionally, absolute operational safety is guaranteed by integrated pressure relief systems that automatically eliminate internal explosion risks.
Investing in exceptionally reliable transportation equipment is the ultimate key to rapidly scaling your industrial operations. Are you ready to substantially upgrade your logistics capabilities with this high-performance transport vehicle? Contact our expert sales engineering team today to receive a highly competitive, customized quote on your new 3-axle Bulk Cement Tanker With WEICHAI Engine and discover how we can tailor it to meet your specific industry demands.

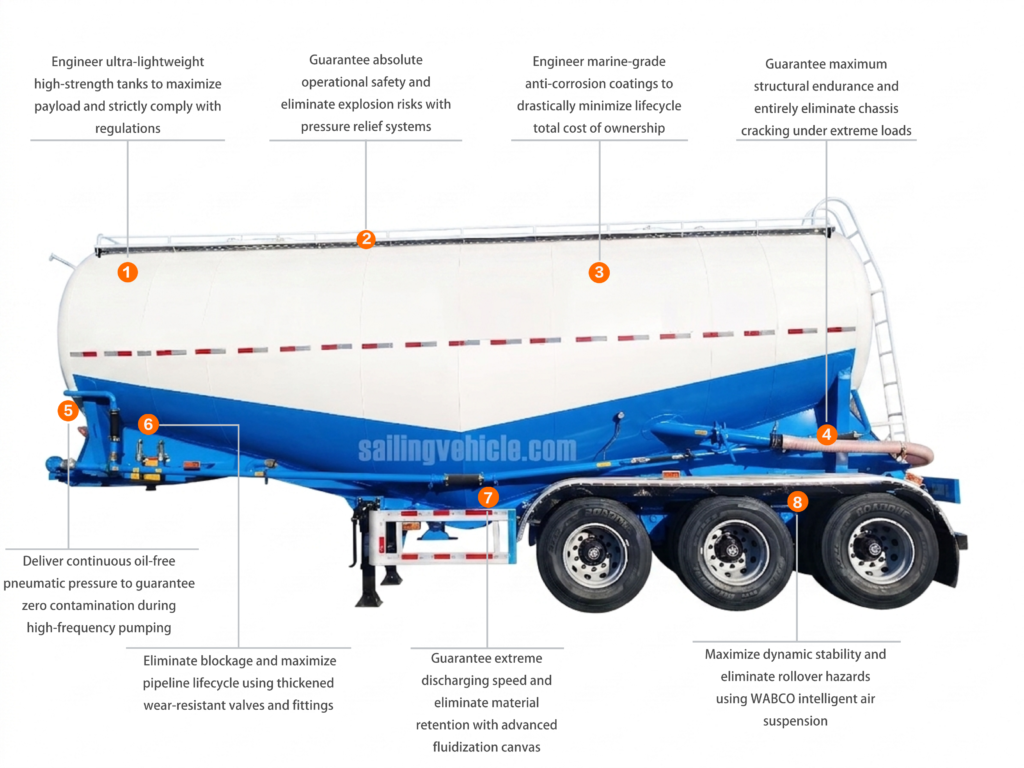

Product Overview
1. Ultra-Lightweight High-Strength Tank
Engineered with ultra-lightweight, high-strength steel, this advanced tank maximizes your payload capacity while complying with road regulations. Enhance profitability through superior durability and reduced tare weight on every single transport trip.
2. Pressure Relief System
Guarantee absolute operational safety and entirely eliminate explosion risks with our precision-engineered pressure relief systems. This vital safety mechanism regulates internal pressure, protecting operators and ensuring uninterrupted performance during pneumatic unloading operations.
3. Marine-Grade Anti-Corrosion Coating
Featuring premium marine-grade anti-corrosion coatings, this trailer drastically minimizes your lifecycle total cost of ownership. The resilient finish withstands harsh environments, extending the operational lifespan and maintaining a professional appearance year after year.
4. Reinforced Structural Chassis
Guarantee maximum structural endurance and eliminate chassis cracking under extreme load conditions. Our reinforced, heavy-duty framework ensures unparalleled stability, allowing you to confidently transport massive bulk capacities across challenging industrial terrains without failure.
5. Oil-Free Pneumatic Compressor System
Deliver continuous, oil-free pneumatic pressure to guarantee zero cargo contamination during high-frequency pumping. This heavy-duty compressor system ensures rapid, hygienic discharging, making it the perfect solution for transporting sensitive dust materials flawlessly.
6. Wear-Resistant Valves and Fittings
Eliminate pipeline blockages and maximize lifecycle longevity using thickened, wear-resistant valves and premium fittings. This optimized discharge infrastructure ensures smooth, high-speed material flow, significantly reducing maintenance downtime and boosting your overall operational efficiency.
7. Advanced Fluidization Canvas
Guarantee extreme discharging speeds and effectively eliminate material retention with our advanced fluidization canvas. This innovative internal aeration system ensures uniform airflow, drastically accelerating unloading times and maximizing your daily bulk transportation output.
8. WABCO Intelligent Air Suspension
Maximize dynamic road stability and actively eliminate rollover hazards using the WABCO intelligent air suspension system. This world-class technology delivers exceptionally smooth handling, ensuring maximum cargo protection and driver safety on every journey.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
