| Tank trailer specification | ||
|---|---|---|
| 1 | Description | 3-axle 12units Capacity Car Carrier Semi-trailer |
| 2 | Function | Designed for transporting passenger cars, SUVs, light commercial vehicles, and new energy vehicles. Upper and lower dual-deck configuration for maximum vehicle capacity. |
| 3 | Overall dimensions | 17000x2500x4200 mm ( L x W x H ) (Approx., based on final design drawings. Front extension: 500mm; Rear extension: 1500mm. Height complies with road transport regulations.) |
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. |
| 5 | Material | High-strength carbon steel Q355B, upper flange 14mm,middle 8mm,down 16mm. |
| 6 | Vehicle capacity | 8 standard passenger car (Actual capacity subject to individual vehicle dimensions.) |
| 7 | Loading capacity | 40-60 tons. |
| 8 | Fifth-wheel height | 1350mm (Generally within 1250-1450mm; precise dimensions required based on the customer's truck head.) |
| 9 | Ground clearance | 200mm |
| 10 | Height of loading surface | 435mm |
| Frame Structure | ||
| 11 | Main longitudinal beam | I-shape high-strength steel, variable cross-section. Automatic submerged arc welding was used on the left and right sides. Integrated gooseneck design. |
| 12 | Upper deck | 2 hydraulic lift decks, adjustable height to accommodate different vehicle heights. Load capacity per deck: approx. 15 tons. |
| 13 | Lower deck | Fixed or tiltable lower deck with tire recesses. Anti-slip checkered steel plate, thickness 3mm/4mm/6mm (optional). |
| 14 | Loading ramp | Aircraft-style integrated ramp. |
| 15 | Control system | Electro-Hydraulic Power + Side Control Levers. |
| 16 | Safety Features | Tire Recesses +Wheel Chocks +Tire Stoppers. |
| Running Gear | ||
| 17 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
| 18 | Suspension |
Mechanical suspension, leaf springs,13mm*90mm,10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
| 19 | Tire |
825R20 & 6 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 20 | Rim | 6. 50-20 & 6 units, high-strength iron. |
| 21 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand |
| 22 | Braking system | 2-Line compressed air brake system on all wheels with additional parking brake. |
| 23 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 24 | Spare wheel carrier | 1 unit. |
| 25 | Hubs | Cast steel 10 studs. |
| Electrical & Lighting | ||
| 26 | Electric system | 24V, 7-pin socket, national standard. |
| 27 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 28 | Reverse buzzer | 1 unit. |
| Painting | ||
| 29 | Paintings |
KTL Electrophoresis painting + powder spraying.
One coat of anti-corrosive paint.
Two coats of finish paint.
As per the customer's requirements. |
| 30 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |

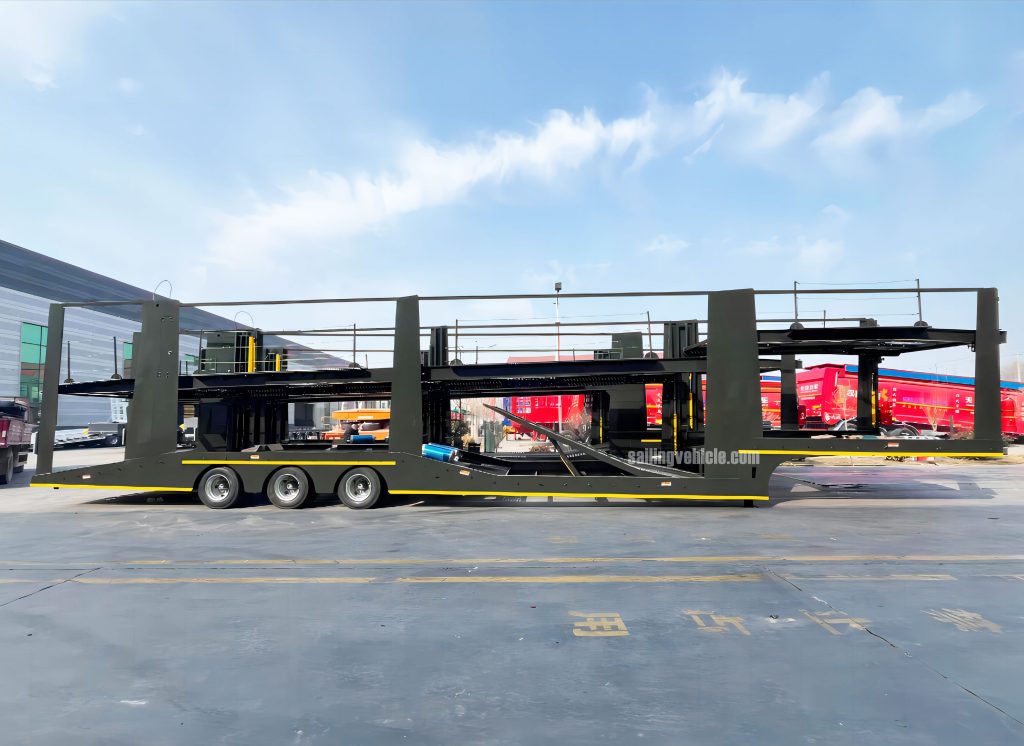

3-axle 12units Capacity Car Carrier Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,400 – 18,400 USD（Prices vary by configuration）
Looking for a proven premium 3-axle 12units Capacity Car Carrier Semi-trailer? Maximize fleet transport efficiency safely. Email info@sailingvehicle.com!
Brand: TSV-SAILING
Model: TSV202606-12C
Type: Car Carrier Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly demanding global logistics industry, maximizing your transport volume per trip is crucial for profitability. The 3-axle 12units Capacity Car Carrier Semi-trailer is meticulously engineered to meet the rigorous daily hauling demands of international B2B trade across expanding commercial markets in Africa, the Middle East, and Southeast Asia.
This specialized commercial transport trailer is expertly built with a reinforced dual-deck structural framework utilizing premium high-tensile Q345B carbon steel. It safely handles the immense, concentrated physical weight of twelve standard vehicles without experiencing any structural fatigue over time. By incorporating heavy-duty BPW or Fuwa axles alongside advanced hydraulic lifting mechanisms, the 3-axle 12units Capacity Car Carrier Semi-trailer consistently delivers a stable, perfectly balanced ride even on unpaved or rough terrain. The robustly welded steel framework guarantees your high-value automotive cargo remains completely secure from the initial commercial loading dock to the final dealership delivery destination.
High-Efficiency 3-axle 12units Capacity Car Carrier Semi-trailer
Commercial safety and long-term operational efficiency are the fundamental cornerstones of our mechanical design. Our 3-axle 12units Capacity Car Carrier Semi-trailer prominently features a world-renowned WABCO pneumatic braking system, guaranteeing highly responsive stopping power under maximum transport loads. Furthermore, strategically placed heavy-duty tire tie-down points firmly lock every transported vehicle directly onto the steel deck. This crucial integrated safety feature prevents any dangerous cargo shifting or costly internal collisions during high-speed highway transit. By upgrading your logistics fleet with this heavy-duty equipment, competitive companies can drastically lower their daily operational costs per vehicle hauled.
Exceptional hardware durability directly equates to a significantly higher return on investment for international fleet managers. The 3-axle 12units Capacity Car Carrier Semi-trailer undergoes a comprehensive sandblasting procedure and is coated with premium polyurethane paint. This advanced anti-corrosive finish aggressively resists severe metal rust, particularly in humid coastal port environments. Equip your commercial transport fleet with the industry’s most robust multi-car hauling solution today. Are you ready to rapidly scale operations? Explore our entire product catalog or reach out via our Contact Us page at info@sailingvehicle.com to securely obtain a highly competitive quotation.

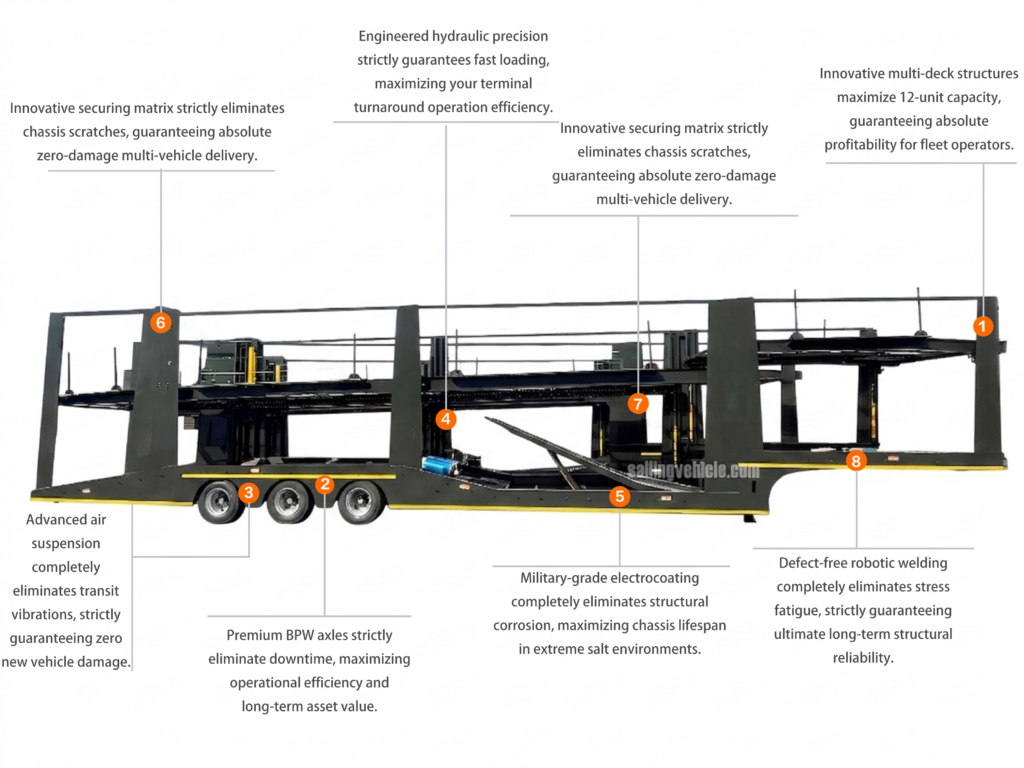

Product Overview
1. Multi-Deck Structures
Engineer innovative multi-deck structures to safely maximize your 12-unit capacity. This strategic B2B design effectively optimizes load distribution, guaranteeing absolute profitability for operators and significantly reducing per-vehicle transportation costs.
2. Premium BPW Axles
Integrate premium BPW axles to strictly eliminate costly maintenance downtime. These globally recognized components effortlessly maximize your operational efficiency and ensure exceptional long-term asset value under demanding commercial conditions.
3. Advanced Air Suspension
Deploy an advanced air suspension system to completely eliminate harsh transit vibrations. This premium engineering strictly guarantees zero new vehicle damage, ensuring your valuable automotive cargo arrives in pristine condition.
4. Hydraulic Precision System
Utilize an engineered hydraulic precision system to strictly guarantee safe, fast loading cycles. This robust mechanism maximizes your terminal turnaround operation efficiency, empowering your crew to handle massive fleets effortlessly.
5. Military-Grade Electrocoating
Apply military-grade electrocoating to completely eliminate dangerous structural corrosion. This advanced anti-rust treatment exponentially maximizes your chassis lifespan, aggressively protecting your valuable logistics investment even in extreme salt environments.
6. Upper Securing Matrix
Deploy an innovative securing matrix on the upper decks to strictly eliminate chassis scratches. This advanced load-binding system guarantees absolute zero-damage multi-vehicle delivery, powerfully protecting your reputation with automotive dealerships.
7. Lower Securing Matrix
Utilize our intelligent lower deck securing matrix to prevent hazardous transit shifting. This strategic restraint system completely eliminates undercarriage damage, rigorously ensuring absolute zero-damage delivery for high-value automotive commercial freight.
8. Robotic Welding Framework
Engineer the framework utilizing defect-free robotic welding to completely eliminate structural stress fatigue. This precision manufacturing standard strictly guarantees ultimate long-term structural reliability, safely enduring extreme multi-vehicle heavy payload operations.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
