| Tank trailer specification | ||||
|---|---|---|---|---|
| 1 | Medium | LOX (Liquid Oxygen). | ||
| 2 | Overall dimension | 12090x2500x3385 (L*W*H) | ||
| 3 | Curb weight | 13,924 KG | ||
| 4 | Payload capacity | 26,676 KG | ||
| 5 | Design Speed | ≤ 80 km/h | ||
| 6 | Design Temperature | -147 / 50 ℃ | ||
| 7 | Working Temperature | -163~-147 ℃ | ||
| 8 | Design Pressure (Inner Vessel / Outer Shell) | 1.6 / -0.1~0.1 MPa | ||
| 9 | Working Pressure (Inner Vessel / Outer Shell) | ≤ 1.6 / -0.1 MPa | ||
| 10 | Weld Joint Efficiency | 1 | ||
| 11 | Corrosion Allowance | 0 mm | ||
| 12 | Rated Fill Ratio | 0.9 | ||
| 13 | Filling Density per Unit Volume | 1026 kg/m³ | ||
| 14 | Insulation Type | High-Vacuum Multi-layer Insulation | ||
| 15 | Tank Gross Weight | 8,678 kg | ||
| 16 | Service life | 10 years | ||
| 17 | Fifth-wheel height | 1320mm (Generally within 1250 - 1450 mm, precise dimensions required based on | ||
| Tank body specification | ||||
| 18 | Tank shape | Cylindrical round | ||
| 19 | Tank capacity | 26 CBM | ||
| 20 | Tank body material | S30408 | ||
| 21 | Outer shell material | Q345R | ||
| 22 | Tank Design thickness | Inner vessel wall | 9.83 mm | |
| Outer shell wall | 3.67 mm | |||
| Tank parts specification | ||||
| 23 | Liquid level meter | Type | Combined differential pressure type | |
| Model | MZC-II A | |||
| Nominal Pressure | 4.0 MPa | |||
| Surveying range | 0~2500 mmWC | |||
| Connection Type | Threaded | |||
| 24 | Emergency cutting valve | Model | Gas phase | DJQ-50D |
| Liquid phase | DJQ-50D | |||
| Nominal pressure | 2.5 MPa | |||
| Nominal diameter | Gas phase | 50mm | ||
| Liquid phase | 50mm | |||
| Operation way | Pneumatic (manual override) | |||
| Closing time | < 5 Sec | |||
| Melting switch temperature | 75±5℃ | |||
| 25 | Safety valve | Model | DAY-25 | |
| Nominal pressure | 4.0 MPa | |||
| Nominal diameter | DN25mm | |||
| Set pressure | 1.4/1.5 MPa | |||
| Re-seating pressure | ≥ 1.26 MPa | |||
| Rated for relieving pressure | ≤ 1.86 MPa | |||
| 26 | Pressure gauge | Model | YTN-100B | |
| Connection type | Threaded | |||
| Precision | 1.6 grade | |||
| Surveying range | 0~ 2.5 MPa | |||
| 27 | Thermometer | Type | Cryogenic Temperature Gauge | |
| Model | Threaded connection | |||
| Precision | 1.5 grade | |||
| Surveying range | -196℃ ~ +50℃ | |||
| Trailer parts specification | ||||
| 28 | Axle | 13T Brand TSV with ABS and automatic slack adjusters & 3 units. (BPW/Fuwa/L1 brands optional) | ||
| 29 | Tire | 12R22.5 & 12 units (Tubeless type). (Triangle/Doublecoin/Linglong/Chaoyang brands optional) | ||
| 30 | Rim | 9.00 & 12 units, high-strength iron. | ||
| 31 | King pin | 50#(2") or 90#(3.5") , Standard bolt type & Brand JOST | ||
| 32 | Landing gear | Capacity 28T, Brand JOST, Model A300C | ||
| 33 | Suspension | Mechanical suspension, leaf springs, 16mm*90mm*10pcs | ||
| 34 | Ladder | 1 unit. | ||
| 35 | Spare wheel carrier | 2 units. | ||
| 36 | Mud guard plate | Integrated design plate, carbon steel. | ||
| 37 | Relay valve | Brand WABCO | ||
| 38 | Reverse buzzer | 1 unit. | ||
| 39 | Electric system | 24V, 7-pin socket, National standard. | ||
| 40 | Lights | LED lights with protection. Side/rear/stop/indicator/parking/fog/reverse/clearance lights etc. | ||
| 41 | Painting | Primer layer | One coat of anti-corrosive paint. | |
| Final coat | Two coats of finish paint. | |||
| Color | As the customer's requirements. | |||
| 42 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. | ||
| Other equipment | ||||
|
1. Single toolbox, maximum available size.
2. Single valve box, maximum available size.
3. Loading and unloading on the left side.
4. Two sets of 8KG fire extinguishers with boxes.
5. One set of anti-static grounding straps.
6. All other necessary accessories. |
||||
26m³ LOx Liquid Oxygen Tank Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 53,000 – 56,000 USD（Prices vary by configuration）
Discover our premium 26m³ LOx Liquid Oxygen Tank Semi-trailer, engineered for maximum safety in challenging terrains. Contact us today for a custom quote!
Brand: TSV-SAILING
Model: TSV202105-26
Type: LOx/LAr/LN Tank Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc
Trailer Highlights
Securing industrial gas logistics demands equipment engineered for absolute safety and structural durability. The 26m³ LOx Liquid Oxygen Tank Semi-trailer provides the ultimate solution for transporting volatile cryogenic payloads safely across demanding environments. Whether navigating heavy-haul logistics routes in Tanzania, Mozambique, and South Africa, or integrating into vast dedicated fleets for mega-clients like Dangote, this specialized transport machinery ensures zero-loss, high-efficiency operations. It embodies true industrial aesthetics with clean, high-definition structural execution, reflecting the professional manufacturing standards expected in top-tier heavy equipment production.
Proven Engineering of the 26m³ LOx Liquid Oxygen Tank Semi-trailer
Transporting cryogenic liquids such as LOx, LIN, and LAR requires advanced thermal dynamics. Our semi-trailers feature a robust double-wall vacuum insulation system designed to withstand extreme temperature differentials. The inner vessel utilizes top-tier S30408 stainless steel, while the outer shell is forged from high-impact Q345R carbon steel. By utilizing high-vacuum multi-layer perlite insulation, this 26m³ LOx Liquid Oxygen Tank Semi-trailer significantly minimizes daily evaporation rates during long-haul commercial transit. For detailed insights into the foundational thermal processes involved, review the applied physics of cryogenic storage dewars on Wikipedia.
Maximizing Fleet Efficiency and Operational Safety
In developing regions and high-demand commercial markets, robust mechanical components are non-negotiable. Heavy-duty mechanical suspension systems and reinforced axles ensure maximum stability over uneven terrain. Furthermore, precision-engineered dual safety relief valves and a centralized ergonomic control cabinet streamline loading and discharge procedures. This optimized layout prevents freezing hazards and substantially reduces operator turnaround times during critical transfer operations. Investing in a highly reliable 26m³ LOx Liquid Oxygen Tank Semi-trailer drastically lowers long-term operational costs while immediately upgrading your payload capacity. Built to perform flawlessly in severe commercial conditions, our cryogenic units guarantee secure deliveries. Are you ready to upgrade your heavy transport infrastructure? Contact our sales engineering team today for customized technical specifications and competitive direct pricing.

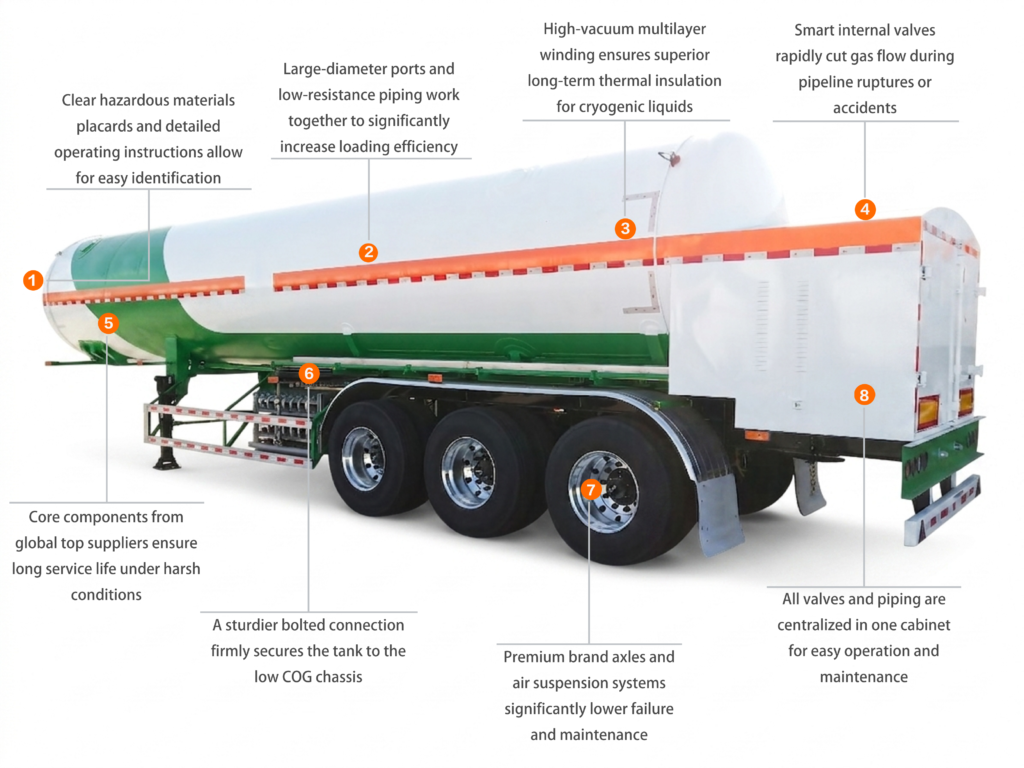

Product Overview
1. Hazardous Materials Placards
Clear hazardous materials placards and detailed operating instructions guarantee immediate identification. This essential safety feature ensures compliance and protects operators, streamlining daily operations while mitigating risks in demanding industrial environments.
2. High-Efficiency Piping System
Featuring large-diameter ports and low-resistance piping, this advanced system works seamlessly to significantly boost your loading and unloading efficiency. Minimize turnaround times and maximize daily operational productivity for your fleet.
3. High-Vacuum Multilayer Insulation
Our high-vacuum multilayer winding technology guarantees superior long-term thermal insulation for cryogenic liquids. This critical feature dramatically reduces boil-off gas losses, ensuring your valuable payload remains safe and highly profitable.
4. Smart Safety Internal Valves
Engineered for maximum security, these smart internal valves rapidly cut off gas flow during accidental pipeline ruptures. This crucial mechanism prevents catastrophic leaks, ensuring ultimate safety for personnel and equipment.
5. Premium Core Components
We utilize world-class core components sourced from global top suppliers to guarantee an exceptionally long service life. Depend on robust reliability and consistent performance, even when operating under harsh environmental conditions.
6. Low COG Chassis & Bolting
A heavy-duty bolted connection firmly secures the tank to our specialized low center-of-gravity chassis. This innovative design significantly enhances road stability, preventing rollovers and ensuring exceptionally safe highway transportation.
7. Premium Axles & Air Suspension
Equipped with top-tier premium brand axles and advanced air suspension systems, this trailer significantly lowers failure rates. Enjoy drastically reduced maintenance costs, smoother rides, and extended lifespan for your entire asset.
8. Centralized Operation Cabinet
All critical valves and piping are securely centralized within a single, easily accessible rear cabinet. This ergonomic design protects vital components from weather while ensuring effortless operation, inspection, and daily maintenance.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
