| Tank trailer specification | ||
|---|---|---|
| 1 | Description | 2-Axle 8-unit Car Carrier Semi-Trailer |
| 2 | Function | Designed for transporting passenger cars, SUVs, light commercial vehicles, and new energy vehicles. Upper and lower dual-deck configuration for maximum vehicle capacity. |
| 3 | Overall dimensions | 17000x2500x4200 mm ( L x W x H ) (Approx., based on final design drawings. Front extension: 500mm; Rear extension: 1500mm. Height complies with road transport regulations.) |
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. |
| 5 | Material | High-strength carbon steel Q355B, upper flange 14mm,middle 8mm,down 16mm. |
| 6 | Vehicle capacity | 8 standard passenger car (Actual capacity subject to individual vehicle dimensions.) |
| 7 | Loading capacity | 40-60 tons. |
| 8 | Fifth-wheel height | 1350mm (Generally within 1250-1450mm; precise dimensions required based on the customer's truck head.) |
| 9 | Ground clearance | 200mm |
| 10 | Height of loading surface | 435mm |
| Frame Structure | ||
| 11 | Main longitudinal beam | I-shape high-strength steel, variable cross-section. Automatic submerged arc welding was used on the left and right sides. Integrated gooseneck design. |
| 12 | Upper deck | 2 hydraulic lift decks, adjustable height to accommodate different vehicle heights. Load capacity per deck: approx. 15 tons. |
| 13 | Lower deck | Fixed or tiltable lower deck with tire recesses. Anti-slip checkered steel plate, thickness 3mm/4mm/6mm (optional). |
| 14 | Loading ramp | Aircraft-style integrated ramp. |
| 15 | Control system | Electro-Hydraulic Power + Side Control Levers. |
| 16 | Safety Features | Tire Recesses +Wheel Chocks +Tire Stoppers. |
| Running Gear | ||
| 17 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
| 18 | Suspension |
Mechanical suspension, leaf springs,13mm*90mm,10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
| 19 | Tire |
825R20 & 6 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 20 | Rim | 6. 50-20 & 6 units, high-strength iron. |
| 21 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand |
| 22 | Braking system | 2-Line compressed air brake system on all wheels with additional parking brake. |
| 23 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 24 | Spare wheel carrier | 1 unit. |
| 25 | Hubs | Cast steel 10 studs. |
| Electrical & Lighting | ||
| 26 | Electric system | 24V, 7-pin socket, national standard. |
| 27 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 28 | Reverse buzzer | 1 unit. |
| Painting | ||
| 29 | Paintings |
KTL Electrophoresis painting + powder spraying.
One coat of anti-corrosive paint.
Two coats of finish paint.
As per the customer's requirements. |
| 30 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |

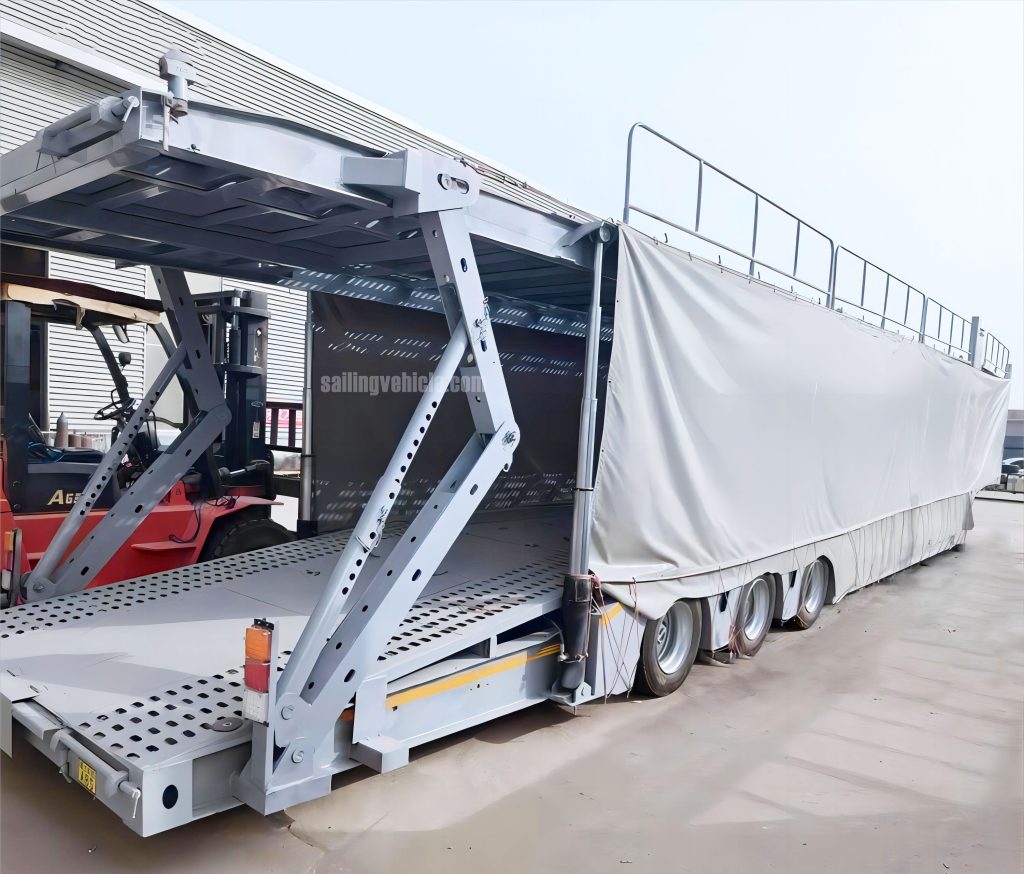

2-Axle 8-unit Car Carrier Semi-Trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,400 – 18,400 USD（Prices vary by configuration）
Secure your fleet with our premium 2-Axle 8-unit Car Carrier Semi-Trailer. Maximize transport efficiency and cargo safety. Contact info@sailingvehicle.com today!
Brand: TSV-SAILING
Model: TSV202606-C
Type: Car Carrier Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly competitive commercial automotive transport industry, maximizing your delivery volume while maintaining on-road agility is absolutely essential for sustained profitability. Our premium 2-Axle 8-unit Car Carrier Semi-Trailer offers the perfect balance of heavy-duty hauling capability and superior highway maneuverability. Designed exclusively for professional logistics fleets, this transporter ensures that luxury sedans, hatchbacks, and mid-size SUVs reach their final dealership destinations without a single scratch, optimizing your daily workflow.
High-Efficiency 2-Axle 8-unit Car Carrier Semi-Trailer
To consistently meet stringent international B2B trade demands across expanding markets in Africa, the Middle East, and Southeast Asia, our structural engineering is uncompromising. The 2-Axle 8-unit Car Carrier Semi-Trailer utilizes a reinforced high-tensile Q345B carbon steel framework. This robust dual-deck structure easily supports the immense concentrated weight of eight fully loaded vehicles without experiencing long-term structural deformation. Integrated seamlessly with advanced precision hydraulic lifting mechanics, the system drastically reduces manual loading and unloading times at busy logistical hubs. This versatile, high-capacity car carrier trailer serves as a vital, cost-saving asset for any demanding long-distance transport network.
Operational safety and consistent mechanical reliability remain our highest engineering priorities. By actively utilizing top-tier commercial hardware, including heavy-duty 13-ton axles and highly responsive WABCO pneumatic braking valves, drivers maintain absolute control across unpredictable highway conditions. Furthermore, strategically placed heavy-duty tire tie-down points lock each transported vehicle securely onto the steel deck, effectively preventing any dangerous cargo shifting or costly internal collisions during high-speed transit.
Every unit undergoes a rigorous sandblasting and multi-layer polyurethane painting process. This advanced anti-corrosive finish aggressively resists severe metal rust, particularly in humid coastal port environments. Actively investing in the 2-Axle 8-unit Car Carrier Semi-Trailer guarantees a high return on investment by significantly lowering your daily operational and routine maintenance costs.
Are you ready to safely scale your global fleet operations today? Reach out to our expert team via our Contact Us page at info@sailingvehicle.com. Secure a highly competitive, customized quotation tailored specifically to your regional heavy freight delivery requirements.
3. Image SEO

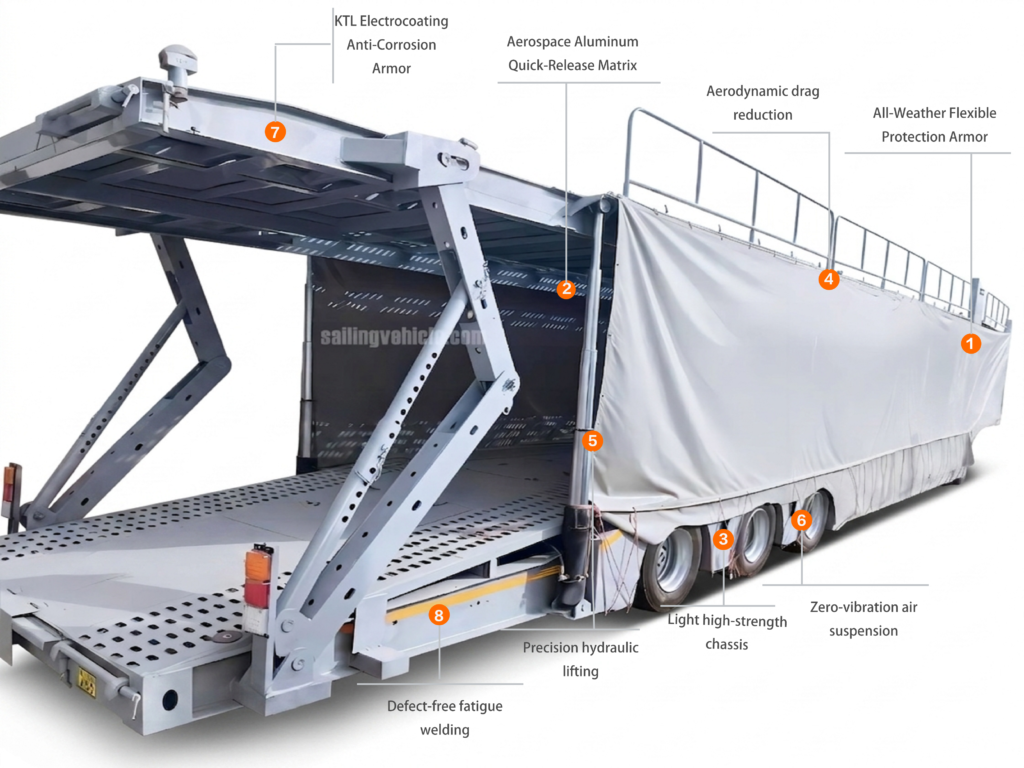

Product Overview
1. All-Weather Flexible Protection Armor
Deploy an advanced all-weather flexible protection armor to rigorously shield high-value vehicles from harsh climates and road debris. This heavy-duty cloth cover aggressively guarantees pristine dealership deliveries, protecting your lucrative commercial reputation.
2. Aerospace Aluminum Quick-Release Matrix
Integrate an aerospace aluminum quick-release matrix to radically streamline your daily terminal loading. This lightweight, ultra-durable securing mechanism strictly maximizes operational turnaround efficiency, empowering dock crews to flawlessly execute rapid daily dispatches.
3. Light High-Strength Chassis
Engineer a light high-strength chassis to strictly maximize your legal hauling payload. This robust B2B foundation drastically reduces fleet tare weight while completely eliminating chassis deformation risks under extreme multi-vehicle dynamic operations.
4. Aerodynamic Drag Reduction
Utilize an optimized aerodynamic drag reduction profile to significantly slash long-haul fuel consumption. This intelligent design actively maximizes your commercial fleet's daily efficiency, aggressively driving down your total cost of ownership on the highway.
5. Precision Hydraulic Lifting
Implement precision hydraulic lifting systems to strictly guarantee absolutely seamless upper-deck stacking. This highly robust mechanism massively maximizes your terminal loading speed, effortlessly ensuring safe operations while entirely eliminating hazardous vehicle ground strikes.
6. Zero-Vibration Air Suspension
Equip your fleet with a zero-vibration air suspension system to entirely eliminate dangerous transit shocks. This premium engineering safely protects delicate automotive electronics and premium paintwork, strictly guaranteeing zero-damage deliveries for luxury cargo.
7. KTL Electrocoating Anti-Corrosion Armor
Apply premium KTL electrocoating anti-corrosion armor to entirely eliminate devastating structural rust. This advanced chemical barrier exponentially maximizes your operational lifespan and preserves exceptionally high resale value, fiercely protecting your logistics investment.
8. Defect-Free Fatigue Welding
Execute strict defect-free fatigue welding to completely eliminate long-term structural stress failures. This rigorous manufacturing standard securely guarantees a maximum operational lifespan under extreme dynamic loads, providing an incredibly reliable foundation for auto transport.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
GET YOUR FREE QUOTE
Please fill in the form with details, so that we can send you a quotation correctly.
Please understand that there is a 5-8 hour time difference between China and Africa. We will send you the latest quotation within 2 hours after starting work in Beijing time.
If you also want more detailed trailers' introduction brochures, drawings, pictures, videos and other details. Please describe the type of semi-trailer you want in the form below, and leave your usual contact information, Email or Whastapp.
Our Advantages
Robust Suspension for Harsh Road Conditions
Designed specifically for the challenging road conditions often found in Africa, Southeast Asia, and South America, our trailer chassis is reinforced with heavy-duty mechanical suspension and widened leaf springs. Customers can also opt for air suspension systems for sensitive cargo. Paired with 12R22.5 or 315/80R22.5 wear-resistant tires, the trailer maintains excellent stability, reduces tire wear, and extends the overall lifespan of the vehicle even when navigating unpaved or mountainous roads.
Shipping and Delivery Solutions
We provide cost-effective and secure shipping solutions for global buyers. For a standard trailer, we typically recommend RORO (Roll-on/Roll-off) ships or bulk cargo ships. To provide the highest level of protection, we thoroughly spray the entire exterior with a protective wax coating and securely cover the vehicle with heavy-duty tarpaulins before it leaves the factory. This double-layered protection prevents seawater rust and weather damage during the voyage, ensuring the trailer arrives at your port in pristine condition.
Reliable After-Sales Support and Spare Parts
As a direct manufacturer, we don’t just sell trailers; we build long-term business partnerships. Every trailer comes with a comprehensive one-year warranty covering the main chassis and tank body. We understand that vehicle downtime costs you money, which is why we maintain a complete inventory of OEM spare parts, including API valves, brake pads, and suspension components. Our dedicated technical support team is always available to provide maintenance guidance and remote troubleshooting, ensuring your fleet remains safely on the road.
Why Choose Sailingvehicle for Your Transport Fleet?
With years of experience in heavy-duty commercial vehicle manufacturing, Sailingvehicle provides factory-direct pricing without compromising on quality. We have successfully exported thousands of trailers to international markets, earning a solid reputation for durability and excellence. Whether you need a standard trailer or a fully customized hauling solution, our engineering team is ready to deliver unmatched value to your business.
