| Tank trailer specification | ||
|---|---|---|
| 1 | Description | 10-unit Capacity Auto Transport Semi-trailer |
| 2 | Function | Designed for transporting passenger cars, SUVs, light commercial vehicles, and new energy vehicles. Upper and lower dual-deck configuration for maximum vehicle capacity. |
| 3 | Overall dimensions | 17000x2500x4200 mm ( L x W x H ) (Approx., based on final design drawings. Front extension: 500mm; Rear extension: 1500mm. Height complies with road transport regulations.) |
| 4 | Curb weight | In accordance with design drawings, with a lightweight optimized structural design. |
| 5 | Material | High-strength carbon steel Q355B, upper flange 14mm,middle 8mm,down 16mm. |
| 6 | Vehicle capacity | 8 standard passenger car (Actual capacity subject to individual vehicle dimensions.) |
| 7 | Loading capacity | 40-60 tons. |
| 8 | Fifth-wheel height | 1350mm (Generally within 1250-1450mm; precise dimensions required based on the customer's truck head.) |
| 9 | Ground clearance | 200mm |
| 10 | Height of loading surface | 435mm |
| Frame Structure | ||
| 11 | Main longitudinal beam | I-shape high-strength steel, variable cross-section. Automatic submerged arc welding was used on the left and right sides. Integrated gooseneck design. |
| 12 | Upper deck | 2 hydraulic lift decks, adjustable height to accommodate different vehicle heights. Load capacity per deck: approx. 15 tons. |
| 13 | Lower deck | Fixed or tiltable lower deck with tire recesses. Anti-slip checkered steel plate, thickness 3mm/4mm/6mm (optional). |
| 14 | Loading ramp | Aircraft-style integrated ramp. |
| 15 | Control system | Electro-Hydraulic Power + Side Control Levers. |
| 16 | Safety Features | Tire Recesses +Wheel Chocks +Tire Stoppers. |
| Running Gear | ||
| 17 | Axle |
13T Brand TSV with ABS and automatic slack adjusters & 3 units.
(BPW/Fuwa/L1 brands optional) |
| 18 | Suspension |
Mechanical suspension, leaf springs,13mm*90mm,10pcs
(16mm×90mm, 10pcs, heavy-duty design optional) |
| 19 | Tire |
825R20 & 6 units (Tubeless type).
(Triangle/Doublecoin/Linglong/Chaoyang brands optional) |
| 20 | Rim | 6. 50-20 & 6 units, high-strength iron. |
| 21 | King pin | 50#(2") or 90# (3.5") , standard bolt type & JOST brand |
| 22 | Braking system | 2-Line compressed air brake system on all wheels with additional parking brake. |
| 23 | Landing gear | Capacity 28T, JOST brand, Model A300C (Fuwa brand optional) |
| 24 | Spare wheel carrier | 1 unit. |
| 25 | Hubs | Cast steel 10 studs. |
| Electrical & Lighting | ||
| 26 | Electric system | 24V, 7-pin socket, national standard. |
| 27 | Lights |
LED lights with protection.
Side/rear/stop/indicator/parking/fog/reverse/clearance lights, etc. |
| 28 | Reverse buzzer | 1 unit. |
| Painting | ||
| 29 | Paintings |
KTL Electrophoresis painting + powder spraying.
One coat of anti-corrosive paint.
Two coats of finish paint.
As per the customer's requirements. |
| 30 | Delivery | Spray wax before departure and cover with a tarpaulin for protection. |
10-unit Capacity Auto Transport Semi-trailer| Factory Price – Sailingvehicle
⭐⭐⭐⭐⭐
Price: 14,400 – 18,400 USD（Prices vary by configuration）
Looking for a proven best 10-unit Capacity Auto Transport Semi-trailer? Maximize your commercial fleet’s efficiency. Contact info@sailingvehicle.com today!
Brand: TSV-SAILING
Model: TSV202607-10C
Type: Car Carrier Semi-trailer
Origin: China
Payment Term: T/T
Delivery time: 15-25 days
Shipping: Bulk cargo ship/Ro-Ro ship/Container shipment / SKD / CKD / etc.
Trailer Highlights
In the highly competitive global automotive logistics sector, maximizing your hauling volume per trip is absolutely vital for sustained profitability. Our heavy-duty 10-unit Capacity Auto Transport Semi-trailer offers the ultimate transportation solution for large-scale commercial fleets operating across rapidly expanding markets in Africa, the Middle East, and Southeast Asia. Designed explicitly to handle demanding long-haul routes, this premium asset drastically enhances your operational capacity while minimizing overall transit expenses.
Constructed fundamentally from premium high-tensile Q345B carbon steel, this robust dual-deck commercial vehicle transporter strongly resists critical structural deformation, even under immense physical stress. By actively utilizing world-renowned hardware components like heavy-duty BPW axles and highly responsive WABCO pneumatic braking systems, professional fleet operators can confidently guarantee supreme highway safety, perfectly balanced weight distribution, and incredibly consistent driving performance over thousands of miles.
High-Yield 10-unit Capacity Auto Transport Semi-trailer
Successfully meeting international B2B trade demands requires unyielding structural durability and intelligent mechanical design. The advanced precision hydraulic lifting mechanics seamlessly integrated into our 10-unit Capacity Auto Transport Semi-trailer allow operators to execute extremely smooth and rapid internal deck adjustments. This vital feature drastically reduces manual vehicle loading and unloading times at busy logistical hubs, directly enabling faster commercial turnaround cycles and significantly lower labor costs per trip. Furthermore, the specialized anti-corrosive polyurethane painting process completely ensures the trailer effortlessly survives the harshest coastal port environments without rusting.
Every single inch of this meticulously engineered structure aggressively prioritizes maximum cargo security. Strategically positioned dedicated tire tie-down anchor points securely lock down each transported vehicle, entirely eliminating any dangerous cargo shifting or costly internal collisions during high-speed highway transit and sharp turning maneuvers. Actively investing in the highly reliable 10-unit Capacity Auto Transport Semi-trailer instantly equips your commercial transport business with an unparalleled competitive edge in modern heavy freight delivery.
Are you ready to rapidly upgrade your daily logistics operations and safely scale your international shipping volume? Reach out directly to our expert engineering team via our Contact Us page at info@sailingvehicle.com to securely obtain a customized, highly competitive quotation tailored specifically to your unique regional fleet requirements today.

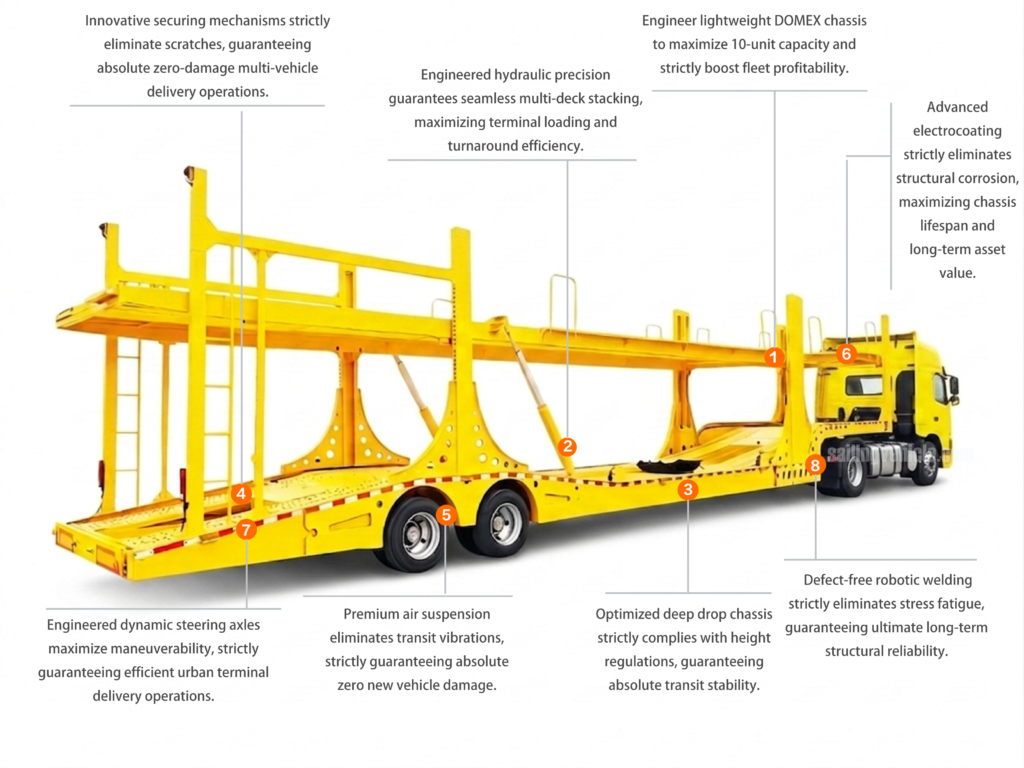

Product Overview
1. Lightweight DOMEX Chassis
Engineer a lightweight DOMEX chassis to strictly maximize your 10-unit capacity. This ultra-strong structural foundation drastically slashes fleet tare weight, empowering B2B operators to safely maximize payload profitability while completely complying with strict highway weight regulations.
2. Engineered Hydraulic Precision
Deploy engineered hydraulic precision to strictly guarantee absolutely seamless multi-deck stacking. This robust lifting mechanism radically maximizes your terminal loading and turnaround efficiency, allowing dock crews to confidently execute rapid, highly profitable daily vehicle dispatches.
3. Optimized Deep Drop Chassis
Utilize an optimized deep drop chassis to strictly comply with severe highway height regulations. This highly intelligent structural design guarantees absolute transit stability, empowering your fleet to securely transport maximum payloads without hazardous overhead clearance issues.
4. Innovative Securing Mechanisms
Implement innovative securing mechanisms to aggressively eliminate costly chassis scratches. This highly secure, flexible load-binding system strictly guarantees absolute zero-damage multi-vehicle delivery operations, powerfully protecting your commercial reputation with high-end premium automotive dealerships.
5. Premium Air Suspension
Integrate a premium air suspension system to entirely eliminate harsh transit vibrations. This high-end shock absorption technology strictly guarantees absolute zero new vehicle damage, ensuring pristine dealership deliveries and rigorously protecting delicate automotive electronics on rough roads.
6. Advanced Electrocoating
Apply advanced electrocoating to strictly eliminate devastating structural corrosion. This premium chemical barrier exponentially maximizes your operational lifespan and preserves exceptionally high resale value, fiercely protecting your valuable logistics investment from harsh coastal salt environments.
7. Dynamic Steering Axles
Engineer dynamic steering axles to radically maximize tight maneuverability. This intelligent running gear strictly guarantees highly efficient urban terminal delivery operations, effortlessly navigating constrained city dealership lots and dramatically reducing your overall commercial transit times.
8. Defect-Free Robotic Welding
Execute defect-free robotic welding to strictly eliminate structural stress fatigue. This precision manufacturing standard completely guarantees ultimate long-term structural reliability under extreme dynamic multi-vehicle loads, providing an incredibly robust foundation for heavy-duty B2B transport operations.
| Note: We will design drawings according to your requirements. |
 |
 |
 |
Screw Rust Prevention
During the pre-shipment packaging of the semi-trailer, anti-rust oil is applied to the bolts to prevent corrosion during transportation.01
Spray preservative
Built for the long haul! Every semi-trailer part is treated with premium anti-corrosion spray before leaving our factory, ensuring maximum rust protection and lasting durability.02
Wax Spray
Factory-fresh and fully protected! Our pre-delivery full-trailer wax spraying shields against corrosion and weather, guaranteeing a lasting shine and maximum durability from day one.03
Tarping
Flawless delivery guaranteed! Every trailer is fully tarped before leaving our factory, shielding your investment from dust and weather so it arrives in pristine condition.04
Preparing the tank trailer for sea freight
Ready for the global stage! Our expert packaging and secure vessel loading ensure your tank trailers cross the ocean safely, arriving in perfect condition anywhere in the world.05
